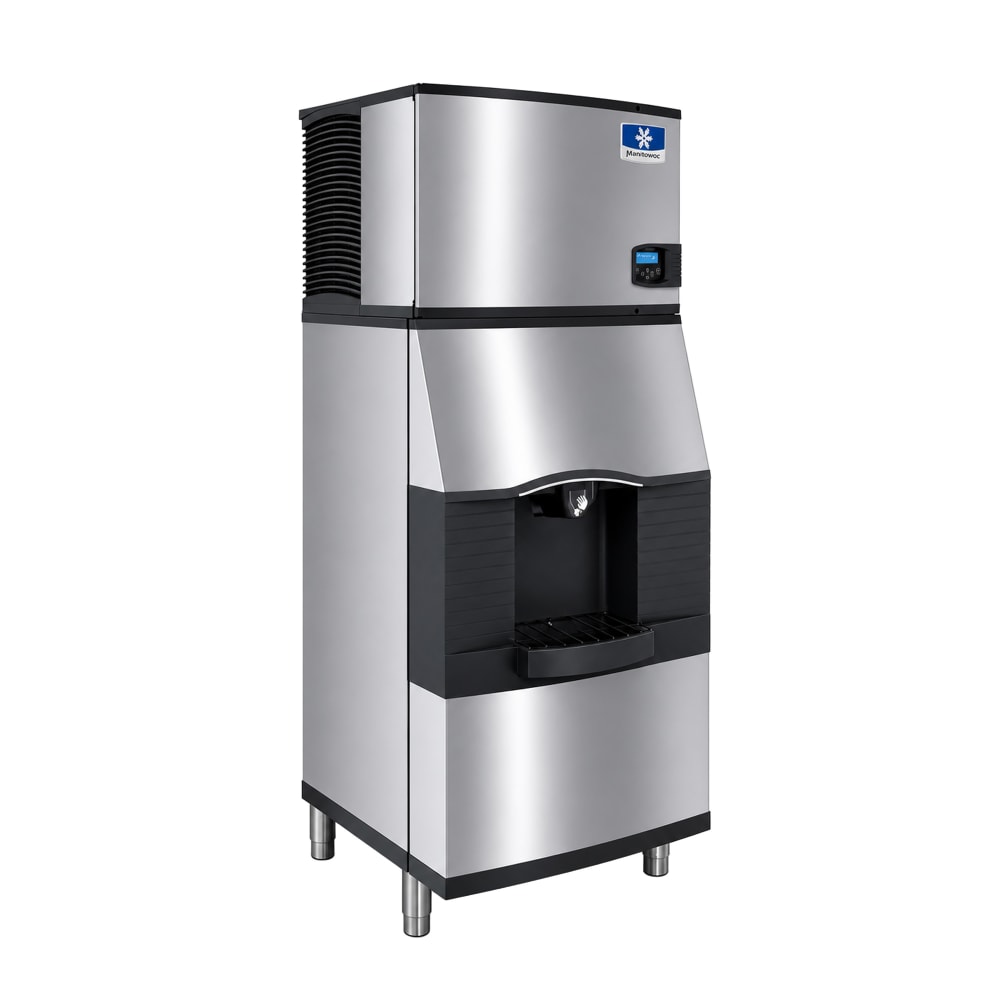

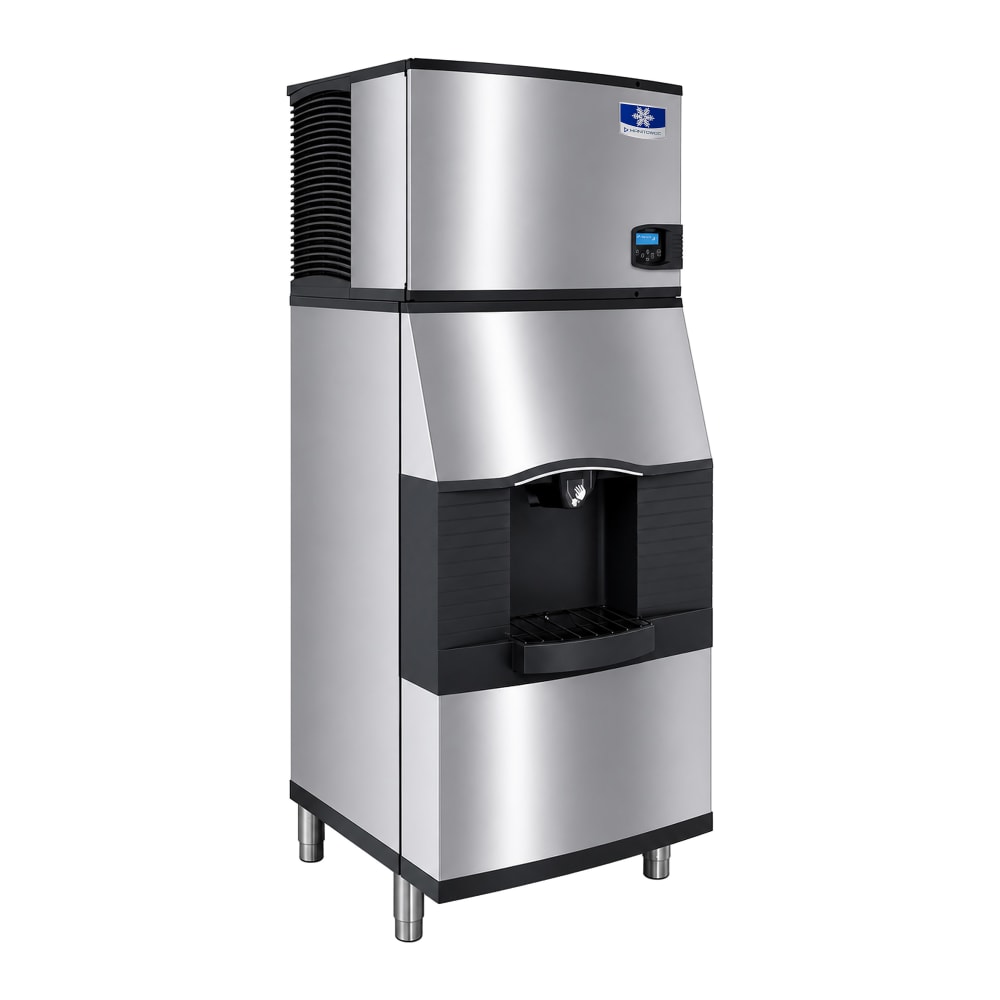

Manitowoc Ice IDP0620W/SPA162 528 lb Full Cube Ice Machine w/ Ice Dispenser - 120 lb Storage, Bucket Fill, 115v
$8,807.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Manitowoc Ice IDP0620W/SPA162 Description
The Manitowoc Ice IDP0620W-161/SPA162 Indigo NXT™ ice maker with dispenser has a 528-pound daily production capacity. Operators can program this amount to best suit their application based on the time the unit is operational or by production volume. It makes full-cube ice, which melts slowly but is not suitable for smoothies since it does not break down well in a blender. An acoustical probe measures ice thickness, ensuring each production cycle is uniform.
Users can monitor the Manitowoc Ice IDP0620W-161/SPA162 ice machine on its touchscreen display, and the unit automatically runs 24-hour preventive maintenance. Its dispenser has a 120-pound storage capacity since it is designed to fill buckets in hotels and motels. Spilling is reduced by the dispenser’s rocking chute mechanism, and ice that spills over is caught in the oversized drip tray.
- Part of the Indigo NXT series
- 528-lb. daily ice production capacity
- Programmable ice production can be based on operation time or daily volume
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Ice thickness is consistently measured by an acoustical sensing probe
- easyTouch® display for energy, service, and menu settings
- 24-hr. preventive maintenance and diagnostic feedback
- Swing-out food zone door provides convenient component access
- Removable sensing probes, distribution tube, water trough, and curtain
- Integral components have AlphaSan® antimicrobial agent
- DuraTech™ clear coating on the stainless steel exterior resists corrosion and smudges
- Water-cooled motor
- Uses R290 refrigerant
- 5,400 average BTU; 6,300 peak BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 120-lb. capacity
- Fills buckets in resorts and hotels
- Rocking chute mechanism stops spills while dispensing
- Drain pan has an oversized design that catches overflow
- Built-in agitator
- DuraTech exterior
- Ice Maker
- 22 in. W x 24.5 in. D x 21.5 in. H
- 11.6 A, 4.13 kW
- 115 V/60 Hz/1 ph
- Ice Dispenser
- 22 in. W x 31.19 in. D x 54 in. H
- 1.6 A
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDP0620W/SPA162 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 528 lb/24 hours at 70°/50° (468 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
Vending Ice Dispenser, touchless lever, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" dice or half-dice machines, cULus, CE, ADA compliant
Watch a video about this product
Manitowoc Ice IDP0620W/SPA162 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 528 |
| Also Known As | IDT0620W/SPA162 |
| Amps | 11.6, 1.6 |
| Bin Capacity (lb) | 120 |
| Compressor Type | Water Cooled |
| Depth (in) | 31.19 |
| Dispenser Type | Lever |
| Dispenses | Ice Only |
| Height (in) | 75.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Serving Vessel | Bucket |
| Special Features | Duratech™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 305.00 |
