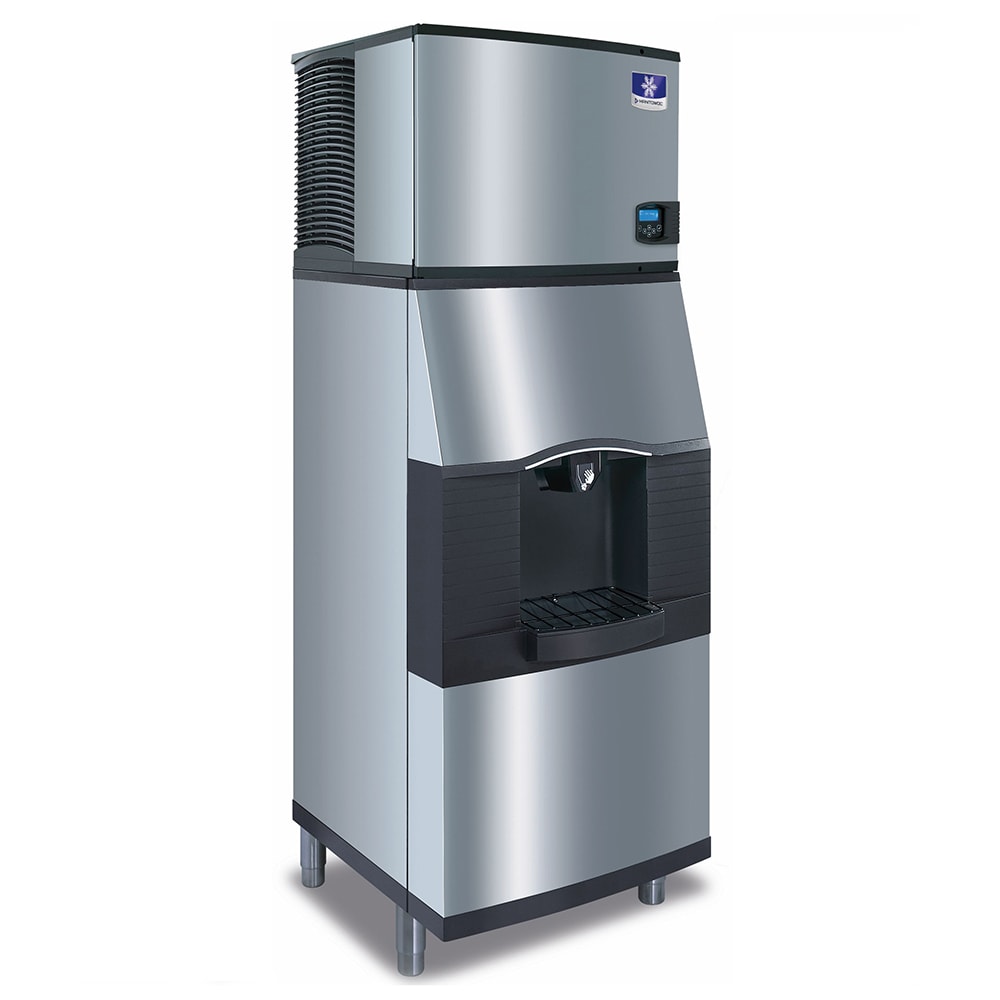

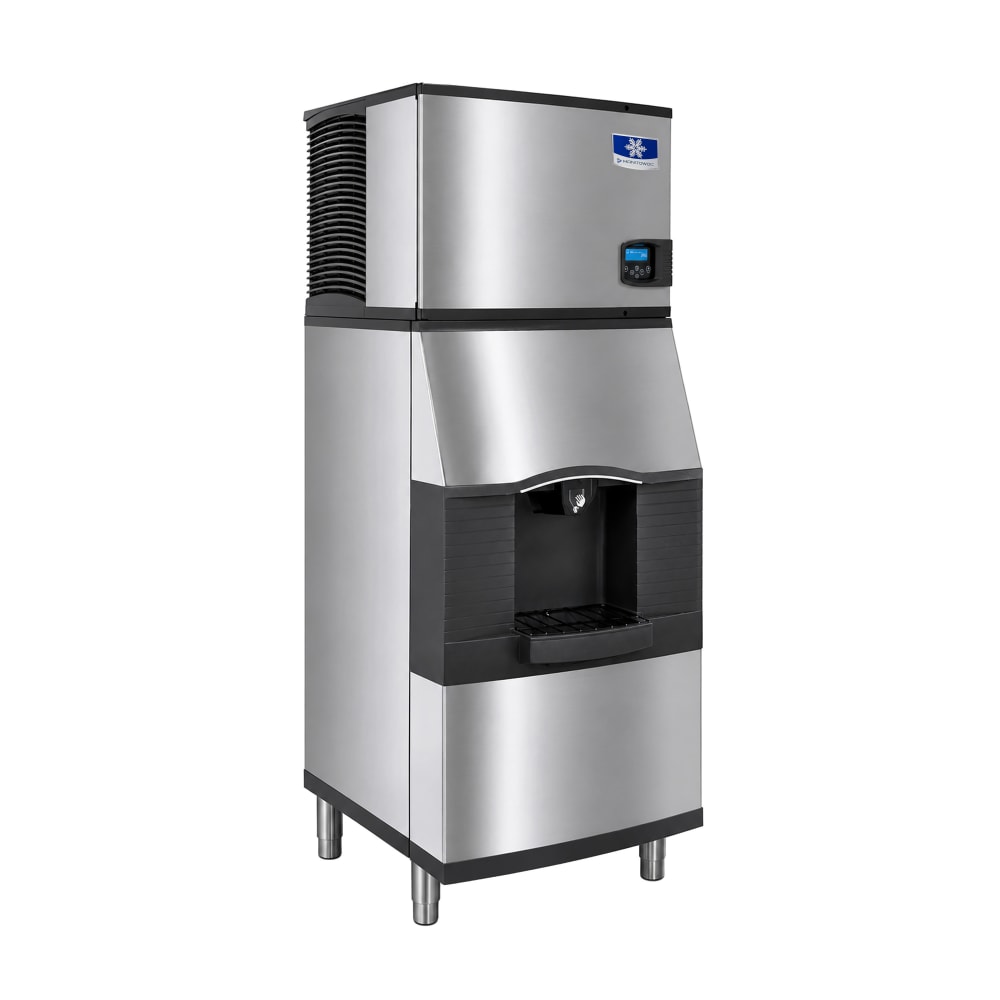

Manitowoc Ice IYT0620A/SPA162 575 lb Half Cube Ice Machine w/ Ice Dispenser - 120 lb Storage, Bucket Fill, 115v

The Manitowoc IYT0620A-161/SPA162 Indigo NXT™ ice machine with dispenser has an air-cooled motor. A clear coat called DuraTech® on the stainless steel exterior resists smudges, while the head has a hinged door that provides access to removable internal components. To keep up with issues, diagnostics run every 24 hours, and an easyTouch® control panel uses icons for straightforward use.

It can produce 575 pounds of ice, depending on ambient and incoming water temperatures, while the dispenser can hold 120 pounds of ice. It makes half dice ice, ideal for hotels and resorts. Production of ice can be adjusted based on volume or time of day. Before ice is released, an acoustical probe checks its thickness. The Manitowoc IYT0620A-161/SPA162 ice machine with dispenser has a drain pan that collects ice overflow.

Ice Machine Head

• 575-lb. ice production capacity
• 465-lb. AHRI-certified production capacity
• easyTouch panel uses touch icons
• Adjust ice production by time of day or bin volume
• Hinged front door
• Certain components are removable to simplify cleaning
• Slow scale growth with AlphaSan technology
• 24-hr. diagnostics alerts operators of system issues.
• Ice thickness is measured by an acoustical probe
• DuraTech is a clear coat over stainless steel exterior
• Produces half dice ice
• Air-cooled motor
• Uses R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• Average BTU per hour: 5,400
• Peak BTU per hour: 6,300
• 12.2 A, 4.87 kW
• 115 V/60 Hz/1 ph
• Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 22 in. W x 31.19 in. D x 75.5 in. H

Product Features

Ice Dispenser

• 120-lb. ice storage capacity
• Reduce ice spillage with chute dispense mechanism
• Built-in agitator
• Ice overflow is collected in the drain pan
• Hide smudges and fingerprints with DuraTech clear coat
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Manitowoc Ice IYT0620A/SPA162 within the 48 contiguous states.

From The Manufacturer

IYT-0620A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 575 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), DuraTech™ exterior, half dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®

SPA-162: Vending Ice Dispenser, touchless lever, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0620A/SPA162 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
