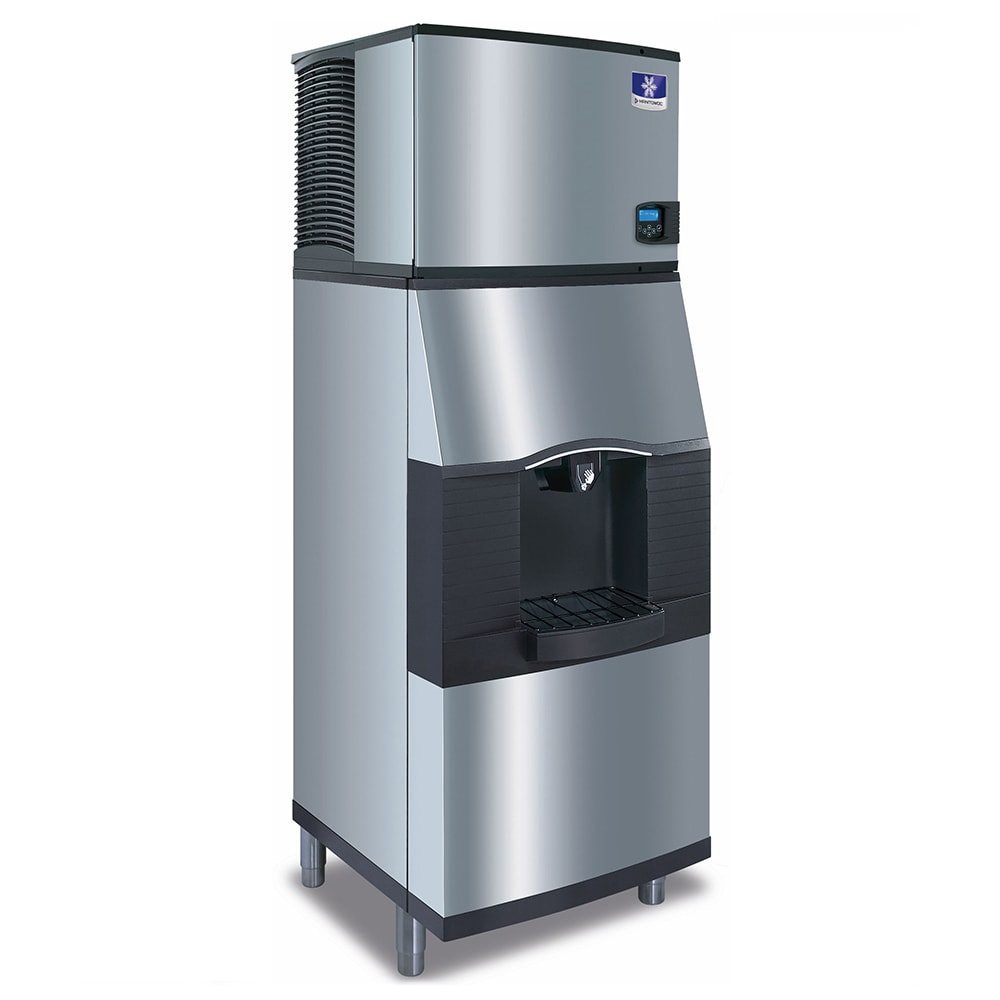

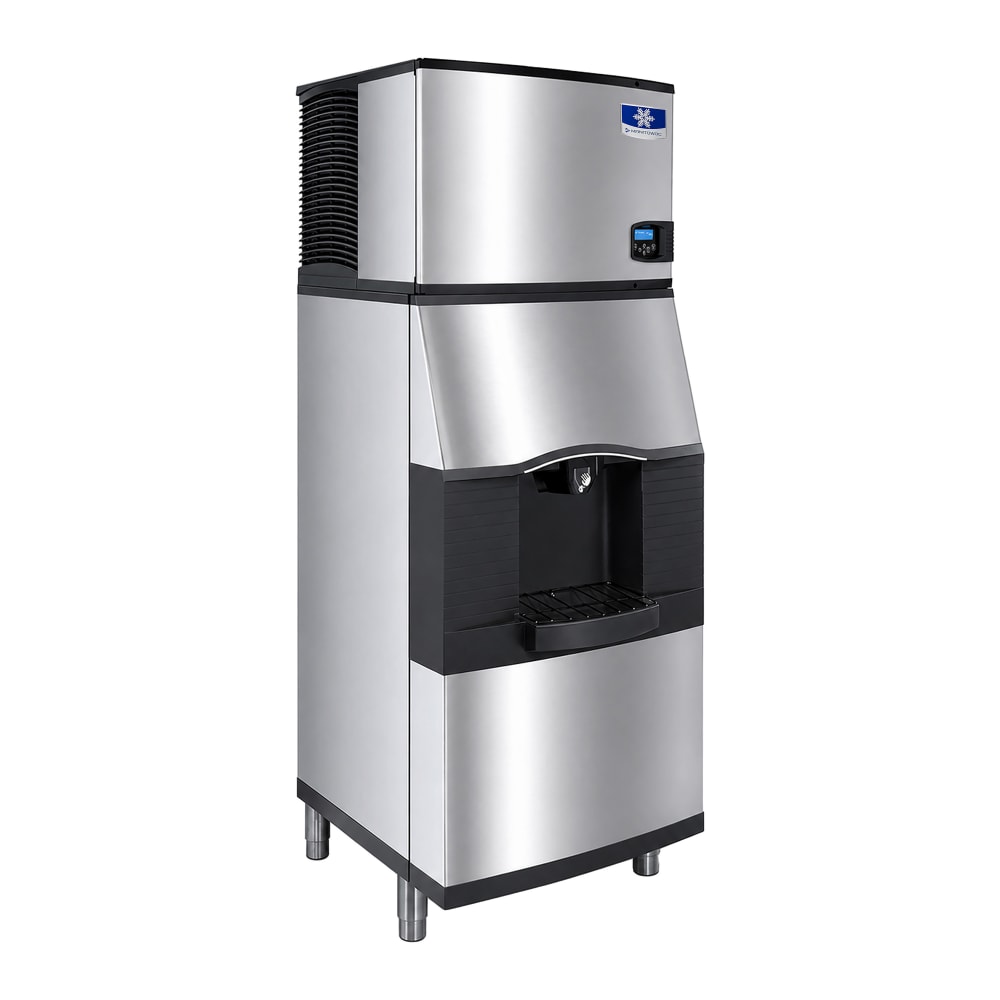

Manitowoc Ice IYP0620W/SFA192 510 lb Half Cube Ice Machine w/ Water & Ice Dispenser - 120 lb Storage, Bucket Fill, 115v
QUICK SHIP: Ships in 1 Business Day
$9,458.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Water Cooled
Manitowoc Ice IYP0620W/SFA192 Description
The Manitowoc IYP0620W-161/SFA192 Indigo NXT™ ice machine with dispenser has a storage capacity of 120 pounds, and it includes a water valve so guests can get ice and water. A drain pan collects excess ice, while a chute dispense mechanism prevents overflow. To break up ice, this unit has a built-in agitator. The head can make 510 pounds of ice every 24 hours, and its production can be determined by the time of day or volume.
This unit has a DuraTech® coating over its stainless steel exterior, giving it a clean look by hiding stains. A hinged door on the head removes for access to internal components that are removable for cleaning. Major components that contact water have AlphaSan® built in to slow scale growth between cleanings. Diagnostics run 24 hours to monitor the machine and alert the operator when issues arise. Manitowoc IYP0620W-161/SFA192 ice maker and dispenser has an easyTouch® control panel.
- 510-lb. ice production capacity
- Control panel uses touch icons
- Ice production can be set by time of day or dispenser volume
- Hinged front door
- Removable components
- Resists bacteria growth between cleanings with AlphaSan antimicrobial
- 24-hr. diagnostics run to keep track of operating status
- Ice thickness is measured by a probe before it is released
- Clear coat called DuraTech is put on stainless steel to prevent it from looking dirty
- Produces half dice ice
- Air-cooled motor
- Uses R290 refrigerant
- Part of the Indigo NXT series
- Required ambient temperature range: 40-110 degrees F
- Required incoming water temperature range: 40-90 degrees F
- Required water pressure: 20-80 PSI
- Average BTU per hour: 5,400
- Peak BTU per hour: 6,300
- 11.6 A, 3.87 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
- Overall dimensions: 22 in. W x 31.19 in. D x 75.5 in. H
- Built-in water valve
- 120-lb. ice storage capacity
- Chute dispense mechanism prevents ice from spilling
- Built-in agitator
- Overflow ice is caught by the drain pan
- Hide smudges and fingerprints with a DuraTech coating
- 1.6 A
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0620W/SFA192 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 510 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, fills containers up to 10-1/2" high, stainless steel exterior with vinyl trim, accepts 22" dice or half-dice machines, cULus, CE, ADA compliant
Watch a video about this product
Manitowoc Ice IYP0620W/SFA192 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 510 |
| Also Known As | IYT0620W/SFA192 |
| Amps | 11.6, 1.6 |
| Bin Capacity (lb) | 120 |
| Compressor Type | Water Cooled |
| Depth (in) | 31.19 |
| Dispenser Type | Lever |
| Dispenses | Ice & Water |
| Height (in) | 75.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Serving Vessel | Bucket |
| Special Features | Duratech™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 308.00 |
