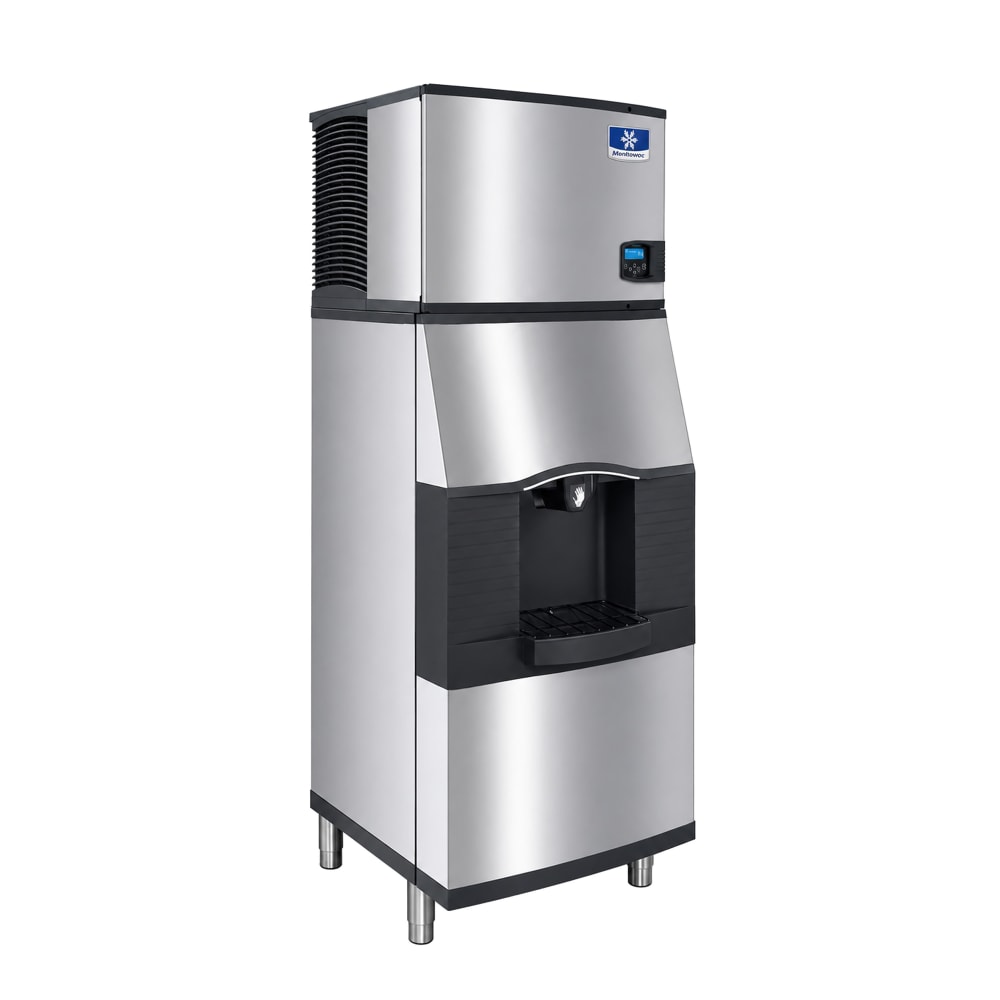

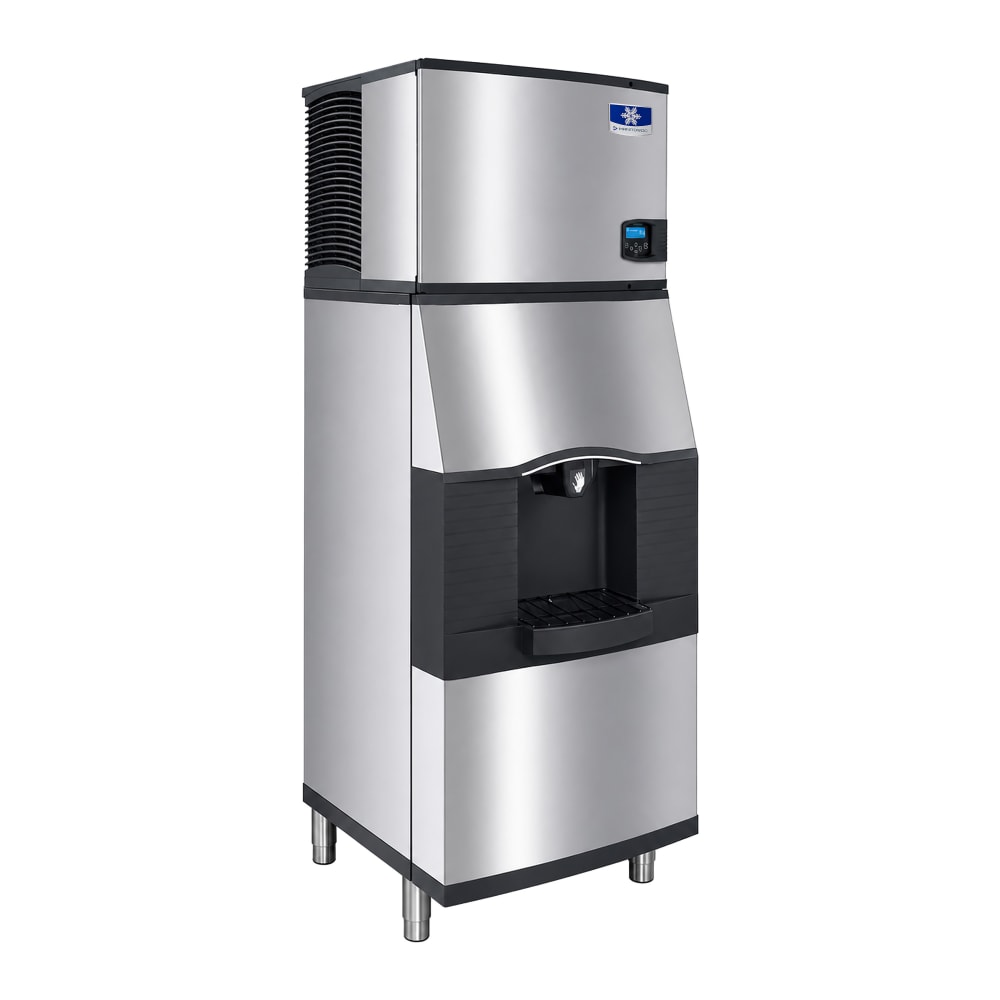

Manitowoc Ice IDP0620W/SFA192 528 lb Full Cube Ice Machine w/ Water & Ice Dispenser - 120 lb Storage, Bucket Fill, 115v
$9,458.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Manitowoc Ice IDP0620W/SFA192 Description
Producing full-cube ice, the Manitowoc Ice IDP0620W-161/SFA192 Indigo NXT™ ice maker with dispenser is ideal for operations that serve many types of drinks. Its large ice cubes melt slowly to prevent beverages from becoming watery, but they do not make drinks cold quickly like half-cube or nugget ice. This ice is measured by an acoustical probe every cycle to ensure consistency in size. In 24 hours, the unit can make 528 pounds, an amount that is programmable based on production time or volume.
On the touchscreen display, menu, service, and energy information for the ice machine head is available for the user’s convenience. This unit's parts can be accessed through its hinged door, which has a swing-out design. Perfect for large containers, the dispensing area accommodates cups as tall as 10.5 inches. It dispenses water and ice and can hold 120 pounds in its storage area. A rocking chute mechanism prevents ice from spilling onto the floor, and a large drain pan catches overflow. Durable enough for high-volume operations, the exterior on this Manitowoc Ice IDP0620W-161/SFA192 ice machine with dispenser is made of stainless steel with a corrosion-resistant clear coat.
- Part of the Indigo NXT series
- 528-lb. daily ice production capacity
- Ice production volume or time can be programmed by the operator
- Makes large, full-cube ice that fits in glassware
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Acoustical sensing probe uses sound waves to measure ice thickness
- easyTouch® touchscreen display with service, energy, and menu settings
- 24-hr. preventive maintenance and diagnostics
- Hinged, swing-out food zone door facilitates servicing parts
- Removable distribution tube, sensing probes, water trough, and curtain
- AlphaSan® antimicrobial technology slows down bacteria growth
- Stainless steel exterior has a DuraTech™ clear coating for rust and smudge resistance
- Water-cooled motor
- Uses R290 refrigerant
- 5,400 average BTU; 6,300 peak BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 120-lb. storage capacity
- Built-in water valve
- Compatible with 10.5-in.-tall containers
- Rocking chute dispenser mechanism reduces spills
- Oversized drain pan collects ice and water if they overflow
- Agitator breaks up ice clumps
- DuraTech exterior
- Ice Maker
- 22 in. W x 24.5 in. D x 21.5 in. H
- 11.6 A, 4.13 kW
- 115 V/60 Hz/1 ph
- Ice Dispenser
- 22 in. W x 31.19 in. D x 54 in. H
- 1.6 A
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDP0620W/SFA192 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 528 lb/24 hours at 70°/50° (468 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, fills containers up to 10-1/2" high, stainless steel exterior with vinyl trim, accepts 22" dice or half-dice machines, cULus, CE, ADA compliant
Watch a video about this product
Manitowoc Ice IDP0620W/SFA192 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 528 |
| Also Known As | IDT0620W/SFA192 |
| Amps | 11.6, 1.6 |
| Bin Capacity (lb) | 120 |
| Compressor Type | Water Cooled |
| Depth (in) | 31.19 |
| Dispenser Type | Lever |
| Dispenses | Ice & Water |
| Height (in) | 75.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Serving Vessel | Bucket |
| Special Features | Duratech™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 308.00 |
