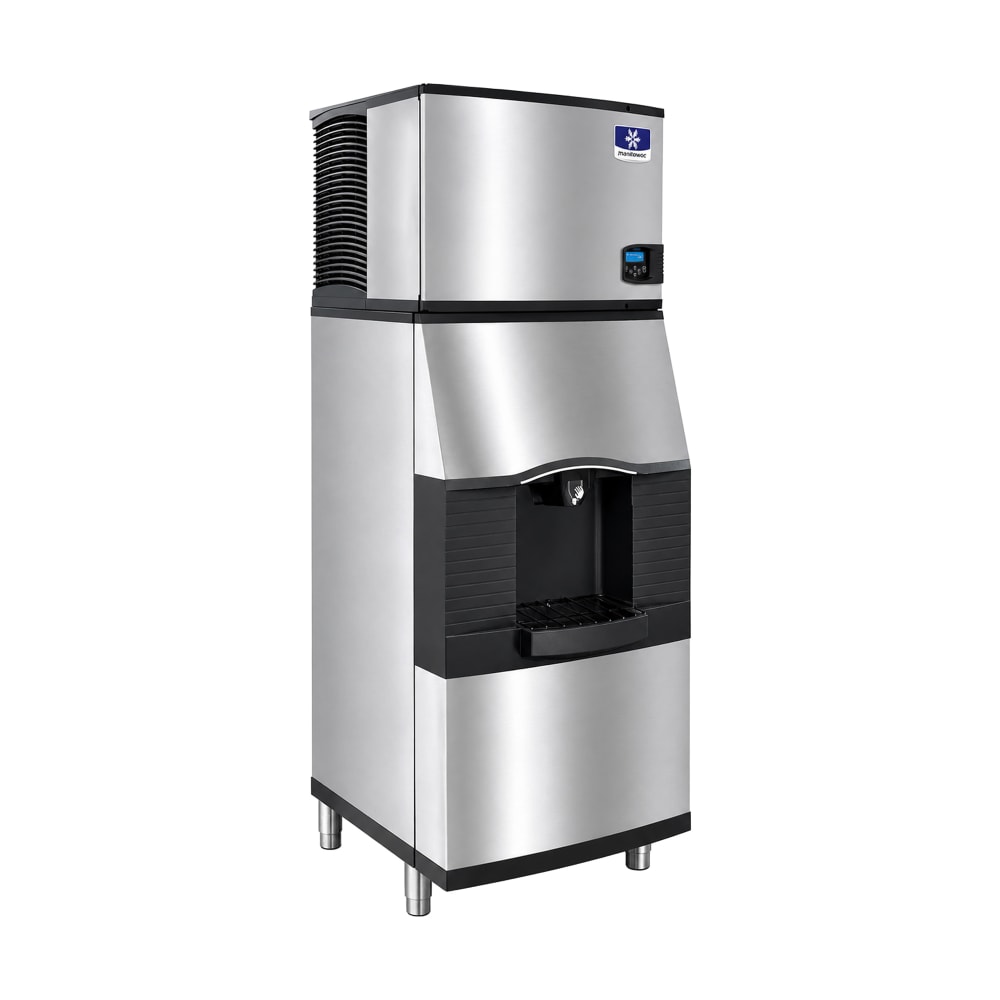

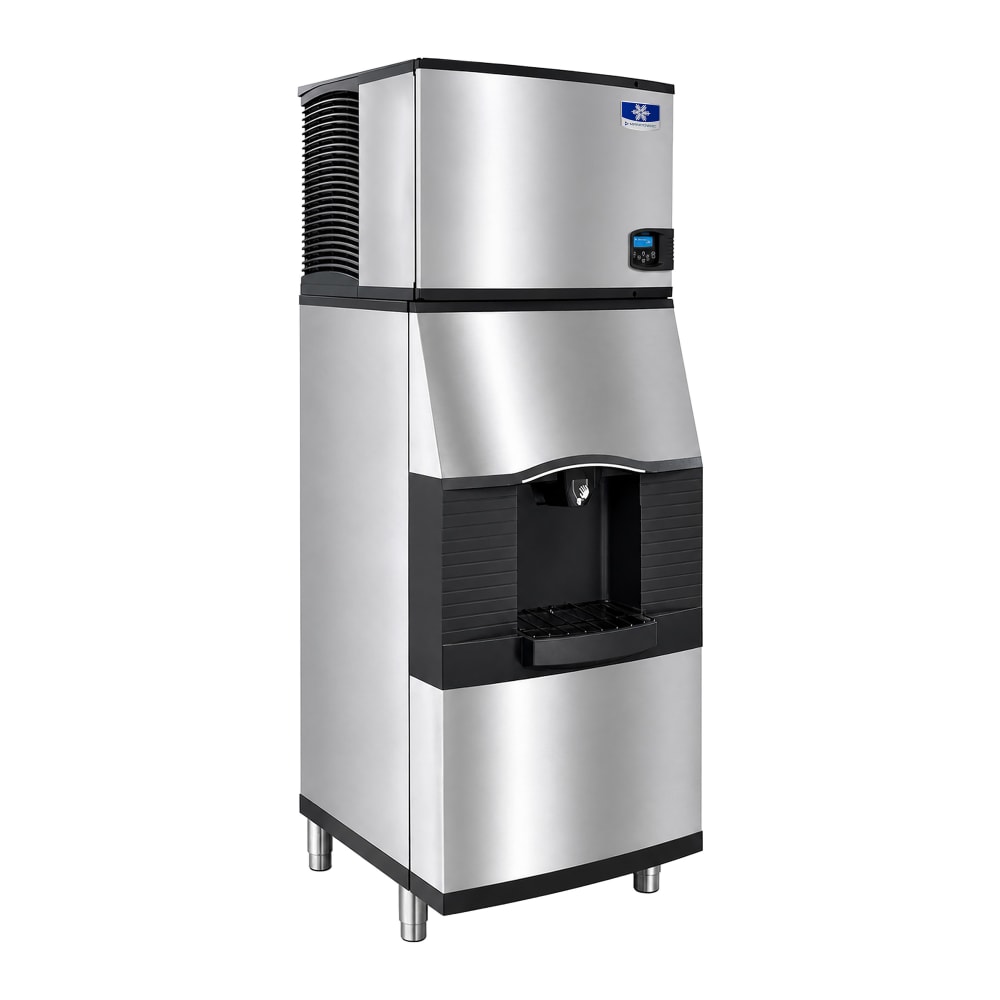

Manitowoc Ice IDP0620A/SFA192 482 lb Full Cube Ice Machine w/ Water & Ice Dispenser - 120 lb Storage, Bucket Fill, 115v
QUICK SHIP: Ships in 1 Business Day
$9,151.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Manitowoc Ice IDP0620A/SFA192 Description
The Manitowoc Ice IDP0620A-161/SFA192 Indigo NXTâ„¢ ice maker with dispenser can produce 482 pounds in 24 hours. This amount depends on the ambient air and incoming water temperatures, and operators can program it to best suit a specific application. Perfect for alcoholic drinks and regular beverages, it makes full-cube ice that measures 0.875 inch by 0.875 inch by 0.875 inch. This large ice type will not cool drinks as quickly as smaller ice types. An acoustical probe measures ice thickness with sound waves to ensure every cycle is consistent.
With the ice maker's touchscreen display, operators can check menu settings and find information on the unit's energy and maintenance. Preventive maintenance and diagnostics run continuously to provide additional machine information. Accessing the internal components is facilitated by the food zone door, which has a hinged, swing-out design. Some of these parts are removable, and others are made with an antimicrobial agent that slows bacteria growth between cleanings.
Large containers as tall as 10.5 inches fit in the dispensing area, and its built-in valve serves water and ice. An integrated rocking chute mechanism in the dispenser prevents spills, and if ice overflows, a large drain pan catches it, keeping floors dry and clean. This Manitowoc Ice IDP0620A-161/SFA192 ice machine with dispenser has a 120-pound storage capacity. Made of stainless steel, the exterior is durable, and its clear coating provides corrosion resistance.
- Part of the Indigo NXT series
- 482-lb. daily ice production capacity
- Makes large, slow-melting full-cube ice that is perfect for drinks
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Acoustical ice sensing probe uses sound waves to measure thickness and check for consistency
- Ice production is programmed based on volume or operation time
- easyTouch® display has menu, energy, and service settings
- 24-hr. preventive maintenance and diagnostic feedback
- Swing-out, hinged food zone door provides component access
- Removable sensing probes, water trough, curtain, and distribution tube
- AlphaSan® antimicrobial agent reduces the growth of bacteria
- Stainless steel exterior is heavy duty
- DuraTechâ„¢ clear coating on the exterior resists smudges and corrosion
- Air-cooled motor
- Uses R410A refrigerant
- 5,400 average BTU; 6,300 peak BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 120-lb. capacity
- Built-in water valve
- Compatible with containers under 10.5 in. tall
- Rocking chute dispenser mechanism will not spill
- Oversized drain pan catches drips
- Bridging is prevented by a built-in agitator
- DuraTech exterior
- Ice Maker
- 22 in. W x 24.5 in. D x 21.5 in. H
- 12.2 A, 5.18 kW
- 115 V/60 Hz/1 ph
- Ice Dispenser
- 22 in. W x 31.19 in. D x 54 in. H
- 1.6 A
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDP0620A/SFA192 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 482 lb./24 hours at 70°/50° (407 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, fills containers up to 10-1/2" high, stainless steel exterior with vinyl trim, accepts 22" dice or half-dice machines, cULus, CE, ADA compliant
Watch a video about this product
Manitowoc Ice IDP0620A/SFA192 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 482 |
| Also Known As | IDT0620A/SFA192 |
| Amps | 12.2, 1.6 |
| Bin Capacity (lb) | 120 |
| Compressor Type | Air Cooled |
| Depth (in) | 31.19 |
| Dispenser Type | Lever |
| Dispenses | Ice & Water |
| Height (in) | 75.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXTâ„¢ |
| Serving Vessel | Bucket |
| Special Features | Duratechâ„¢ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 311.00 |
