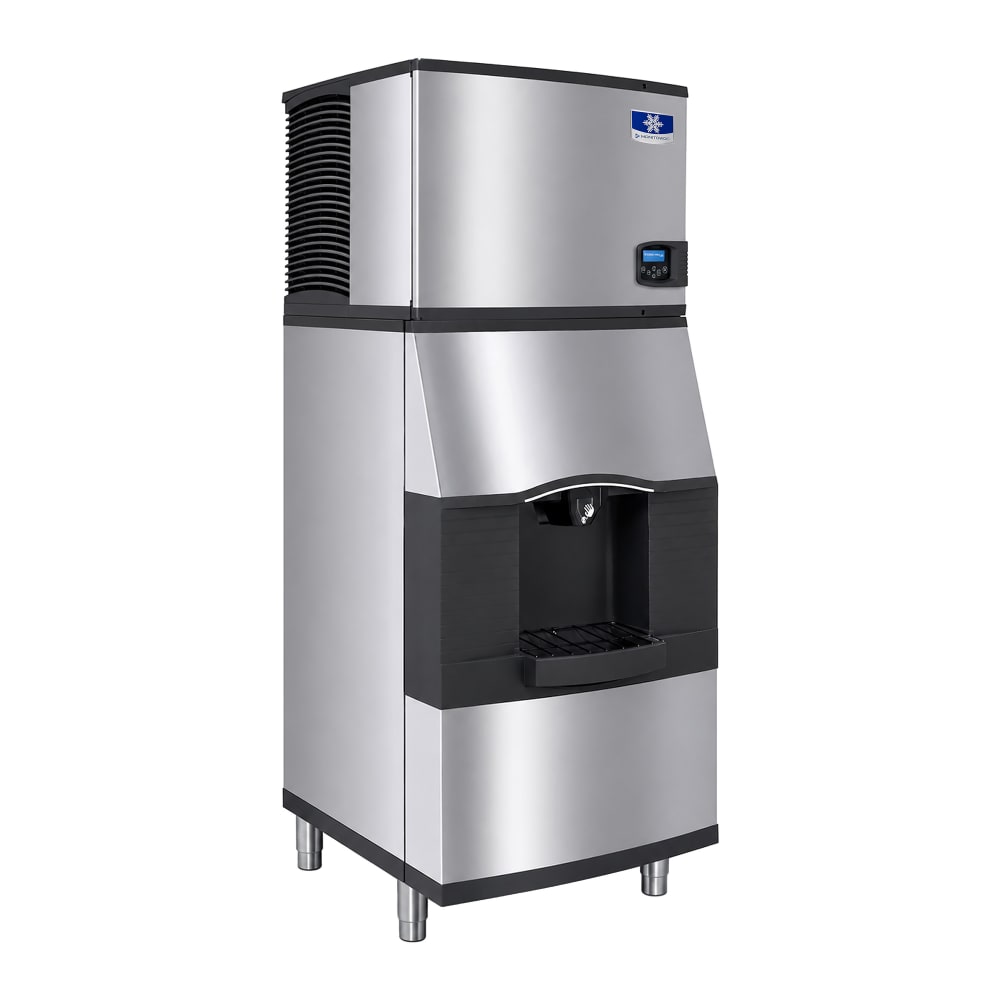

Manitowoc Ice IYT0620A/SFA192 575 lb Half Cube Ice Machine w/ Water & Ice Dispenser - 120 lb Storage, Bucket Fill, 115v

The Manitowoc IYT0620A-161/SFA192 Indigo NXT™ ice machine and dispenser can produce 575 pounds of ice, while the dispenser holds 120 pounds of ice. A chute dispense mechanism prevents ice from spilling, and excess ice is caught by the drain pan. Production can be set by the volume in the dispenser or time of day, and an acoustical probe measures ice thickness before it falls into the dispenser to ensure accuracy.

Major components in the head have AlphaSan® antimicrobial agent built in to slow scale growth, and some parts are removable for cleaning. Diagnostics run 24 hours to keep up with the operating status. The Manitowoc IYT0620A-161/SFA192 ice machine and dispenser has an air-cooled motor.

Ice Machine Head

• 575-lb. ice production capacity
• 465-lb. AHRI-certified production capacity
• Control the unit with easyTouch panel
• Ice production is adjustable by time of day and bin volume
• Hinged front door
• Removable components for cleaning
• AlphaSan deters bacteria growth
• 24-hr. diagnostics keep track of operating status
• Acoustical probe measures ice thickness
• Fingerprints and smudges are hidden by the clear coat over stainless steel
• Produces half dice ice
• Air-cooled motor
• Uses R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• Average BTU per hour: 5,400
• Peak BTU per hour: 6,300
• 12.2 A, 4.87 kW
• 115 V/60 Hz/1 ph
• Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 22 in. W x 31.19 in. D x 75.5 in. H

Product Features

Ice Dispenser

• Built-in water valve
• 120-lb. ice storage capacity
• Chute dispense mechanism reduces ice spillage
• Built-in agitator
• Drain pan collects overflow ice
• DuraTech clear coat maintains a clean appearance
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Manitowoc Ice IYT0620A/SFA192 within the 48 contiguous states.

From The Manufacturer

IYT-0620A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 575 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), DuraTech™ exterior, half dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®

SFA-192: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, fills containers up to 10-1/2" high, stainless steel exterior with vinyl trim, accepts 22" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0620A/SFA192 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
