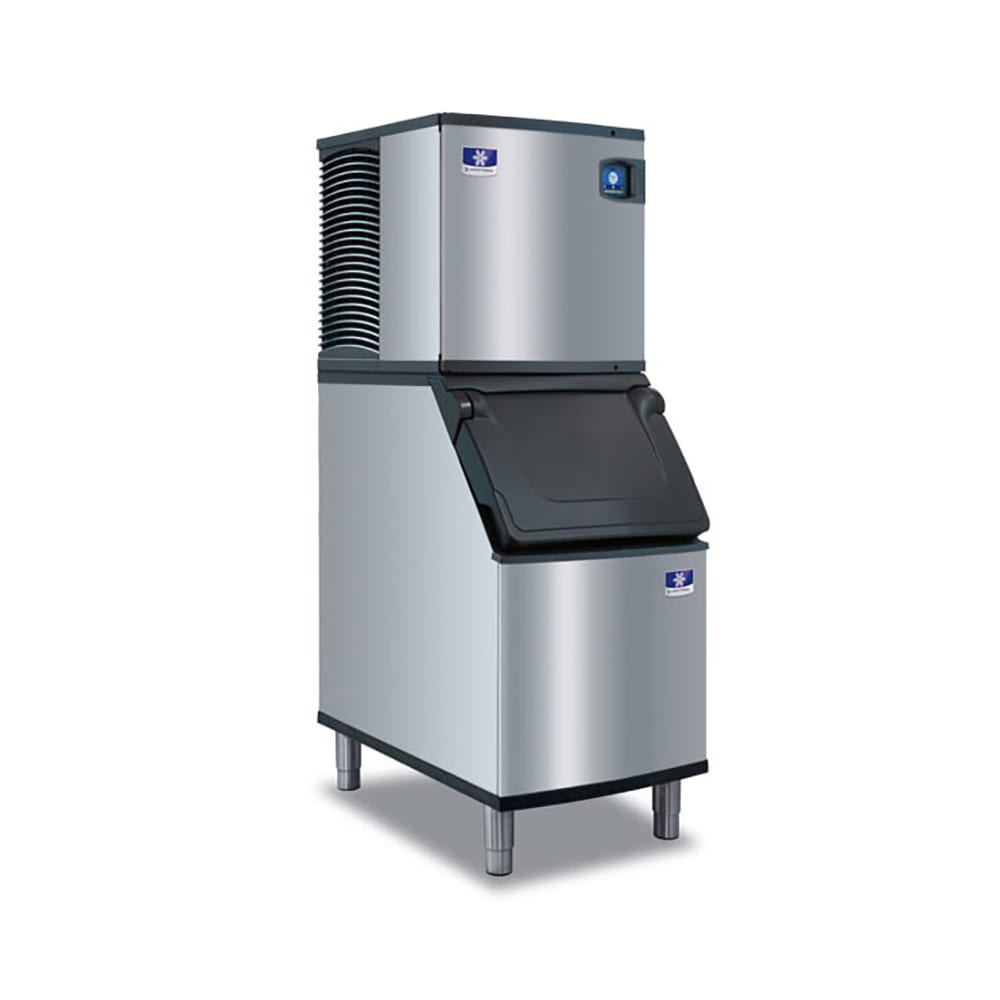

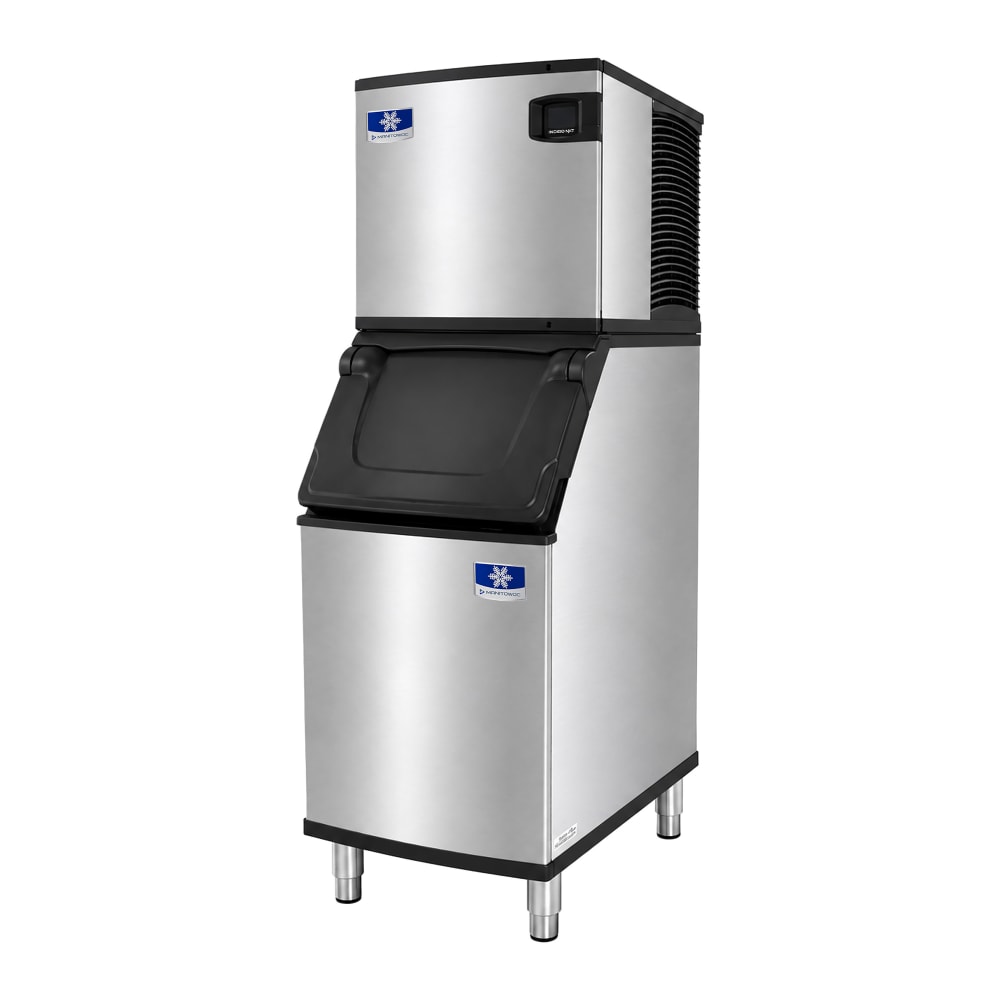

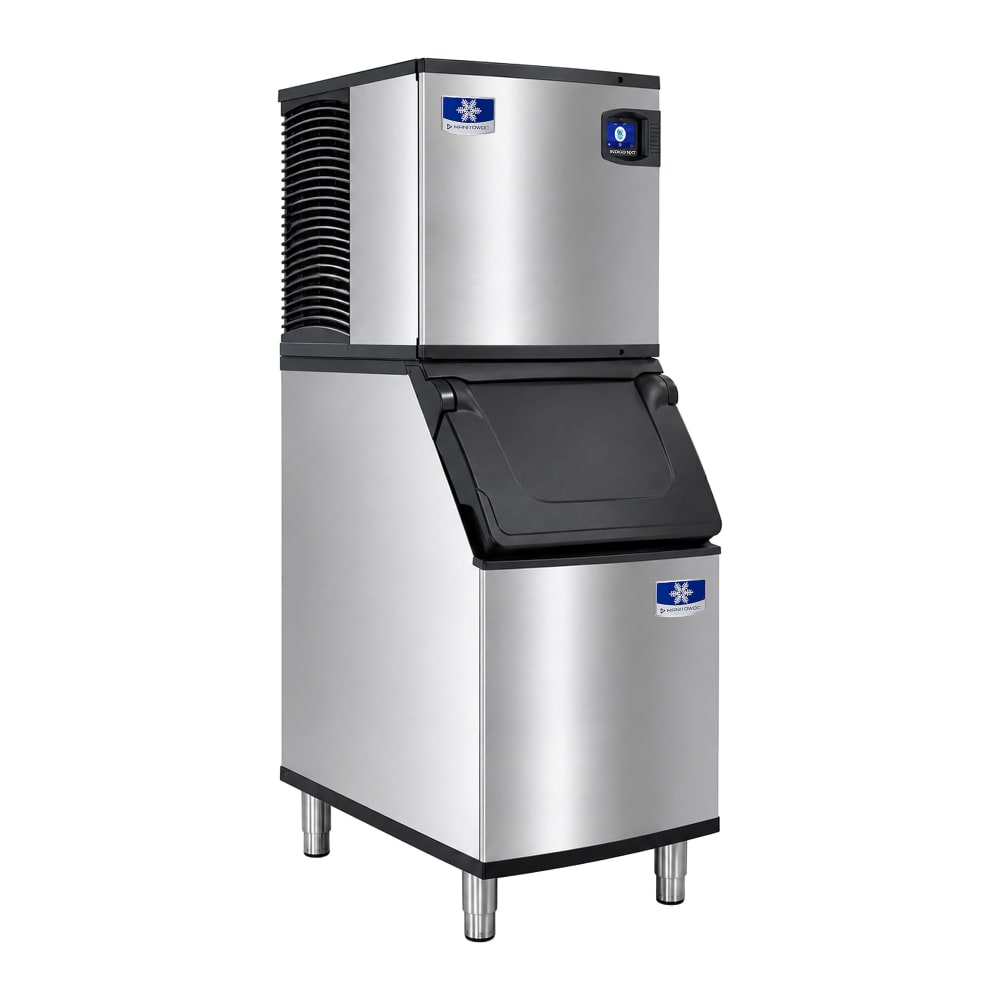

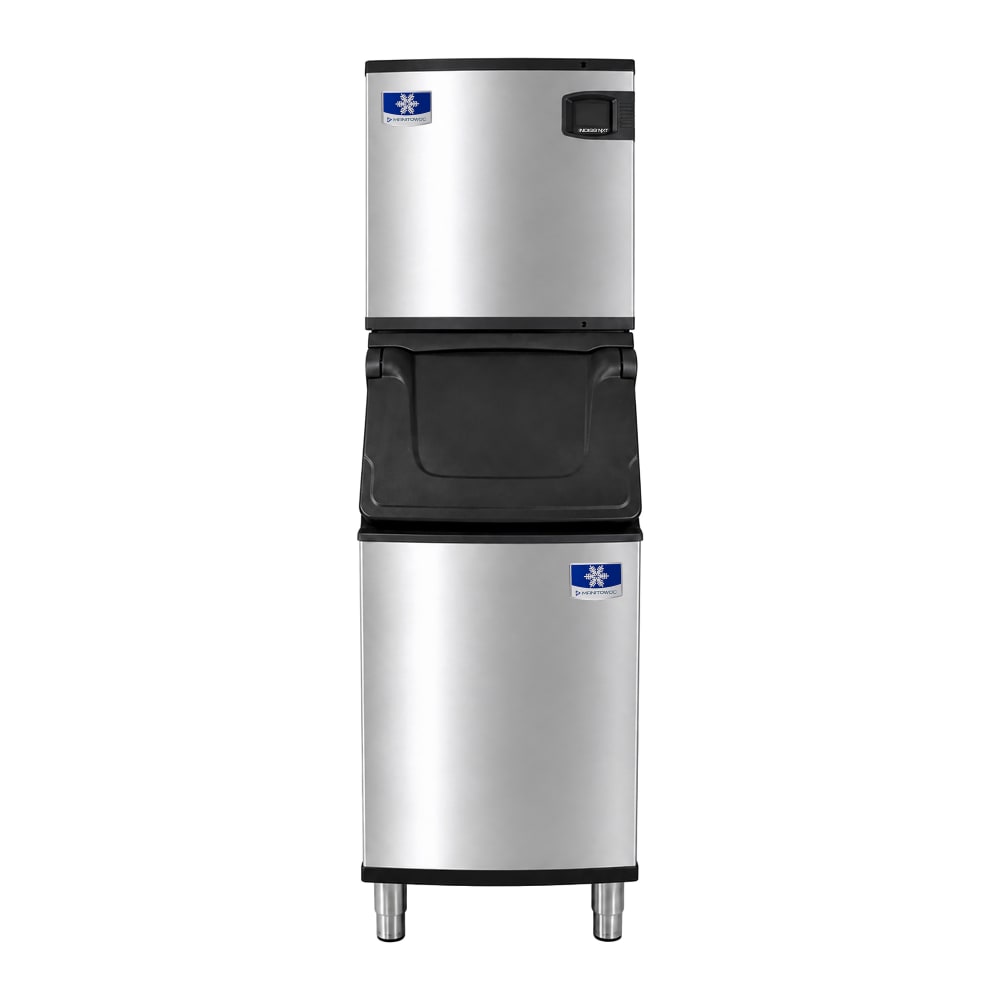

Manitowoc Ice IYP0620W/D320 510 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 264 lb Storage, Water Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
$6,066.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Manitowoc Ice IYP0620W/D320 Description
The Manitowoc IYP0620W-161/D320 Indigo NXT™ ice maker and bin produces half dice cubes, with ice production that is adjusted depending on volume or time of day. To ensure ice is consistent, a probe checks the thickness using sound waves. This unit can make 510 pounds of ice within 24 hours, and its bin can hold 264 pounds. A scoop simplifies ice access, and it has a holder to prevent contamination.
Touch icons on the head simplify using the unit. Some components are removable for cleaning, while ones that contact water have AlphaSan® built in to deter bacteria growth between cleanings. The door to the bin has side grips that simplify opening, while a latch keeps the door open so an employee can scoop ice into a bucket. The Manitowoc IYP0620W-161/D320 ice machine with bin has a DuraTech® coating over its stainless steel exterior to maintain a clean look.
- 510-lb. ice production capacity
- Touch icons on control panel
- Time of day or bin volume can determine ice production
- Hinged front door
- Removable components facilitate cleaning
- AlphaSan technology prevents bacteria growth between cleanings
- Track operating status with 24-hr. diagnostics
- Acoustical probe ensures ideal ice thickness
- Stainless steel exterior has a clear coat for protection

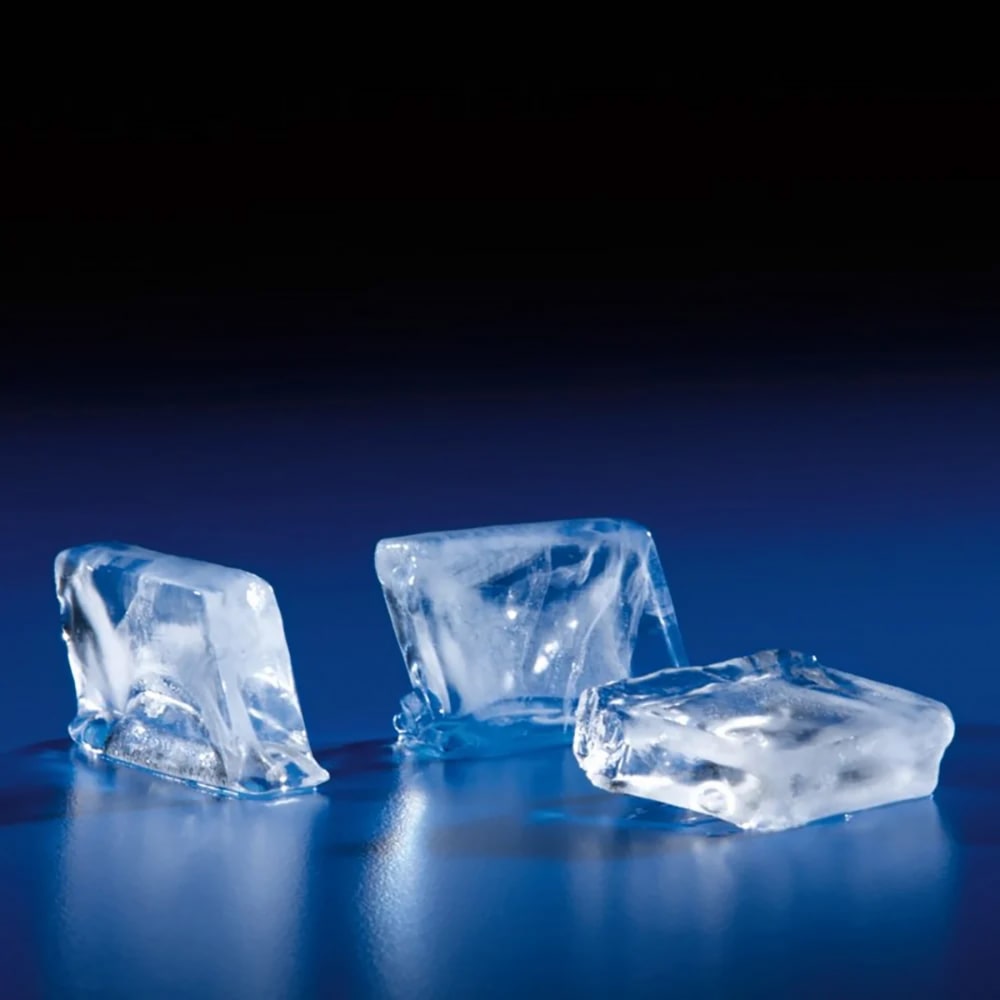

- Produces half dice ice
- Air-cooled motor
- R290 refrigerant
- Part of the Indigo NXT series
- Required ambient temperature range: 40-110 degrees F
- Required incoming water temperature range: 40-90 degrees F
- Required water pressure: 20-80 PSI
- Average BTU per hour: 5,400
- Peak BTU per hour: 6,300
- 11.6 A, 3.87 kW
- 115 V/60 Hz/1 ph

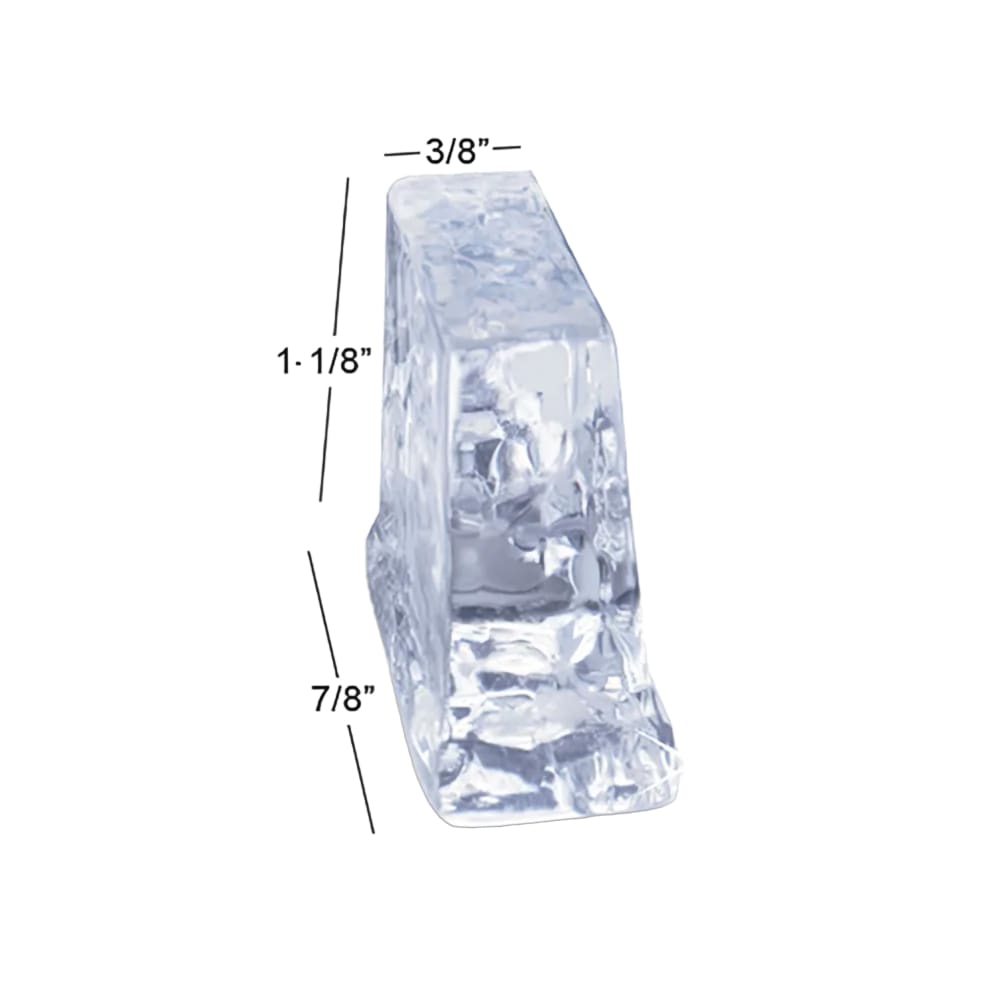

- Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
- Overall dimensions: 22 in. W x 31.19 in. D x 75.5 in. H
- 264-lb. storage capacity
- 8.9-cu.-ft. AHRI-certified storage capacity
- Scoop has a built-in knuckle guard
- 5.3-lb. ice scoop capacity
- Holder keeps scoop out of ice to reduce contamination risk

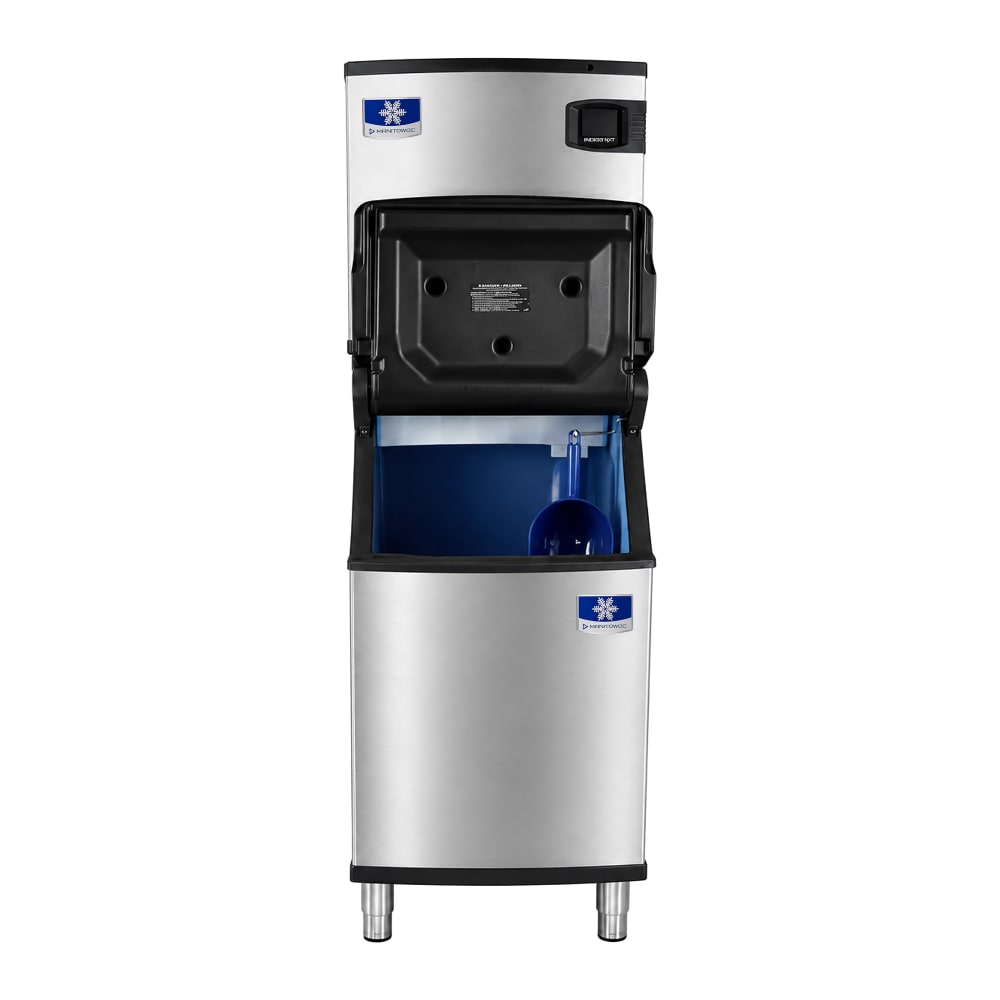

- Simply lift the door open with side grips
- Door is insulated to retain cold air

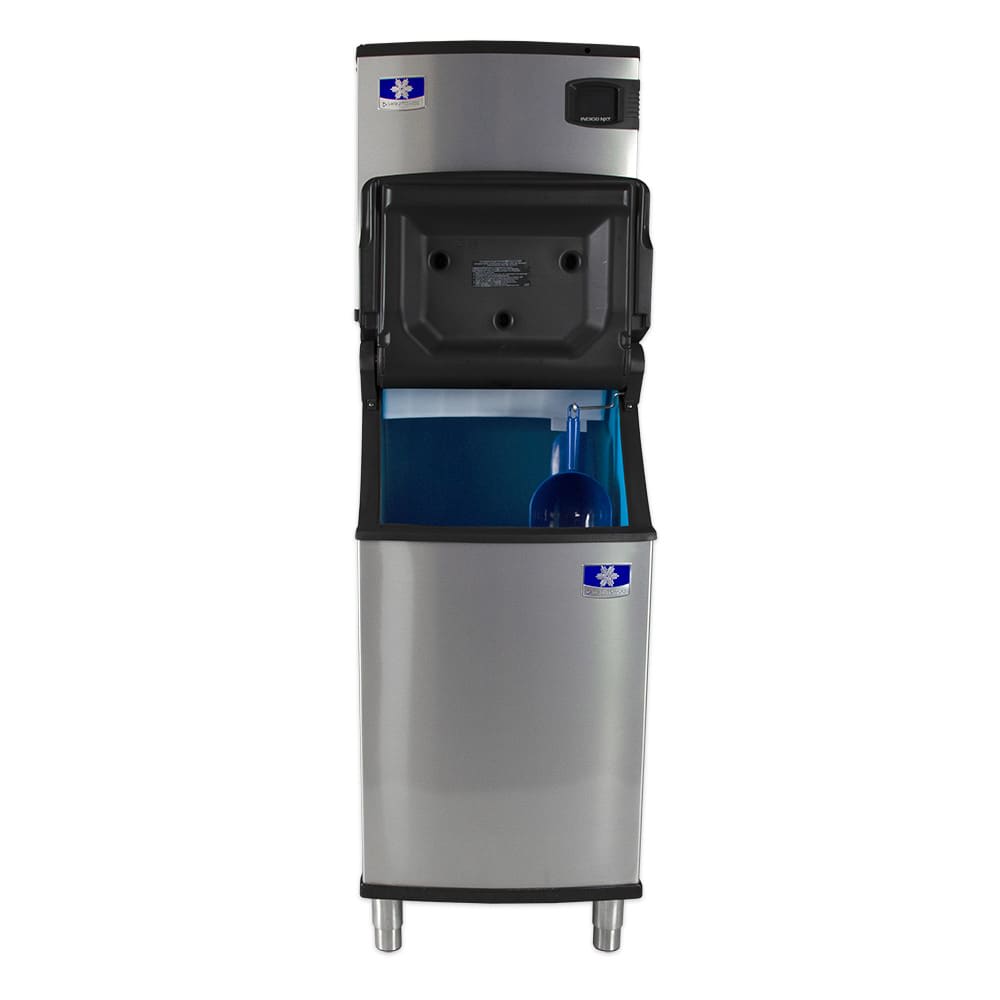

- A latch holds the door open for scooping
- DuraTech clear coat on the stainless steel resists fingerprints
- Polyurethane artic blue bin liner
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0620W/D320 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 510 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
Ice Bin, 22"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 264 lbs. application capacity, AHRI certified 8.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Watch a video about this product
Manitowoc Ice IYP0620W/D320 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 510 |
| Access | Lift Up Door |
| Also Known As | IYT0620W/D320 |
| Bin Capacity (lb) | 264 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 59.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 215.00 |
