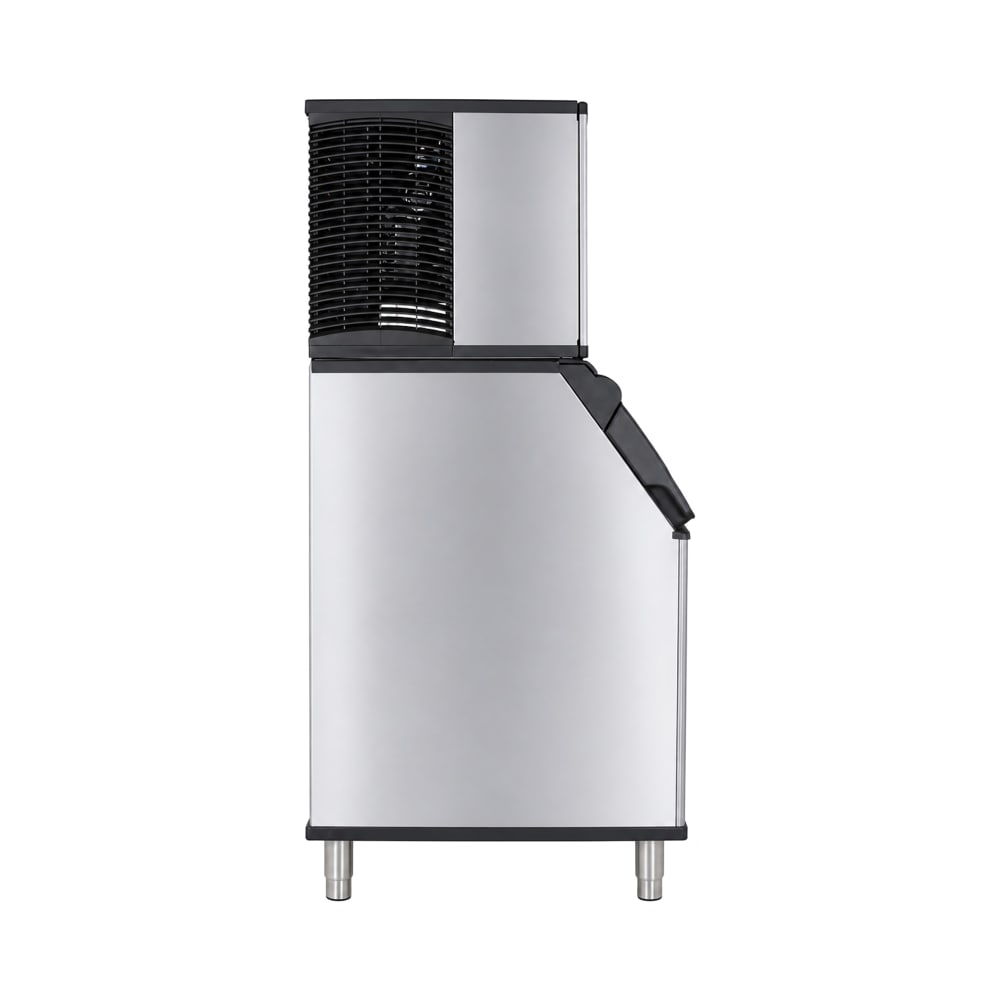

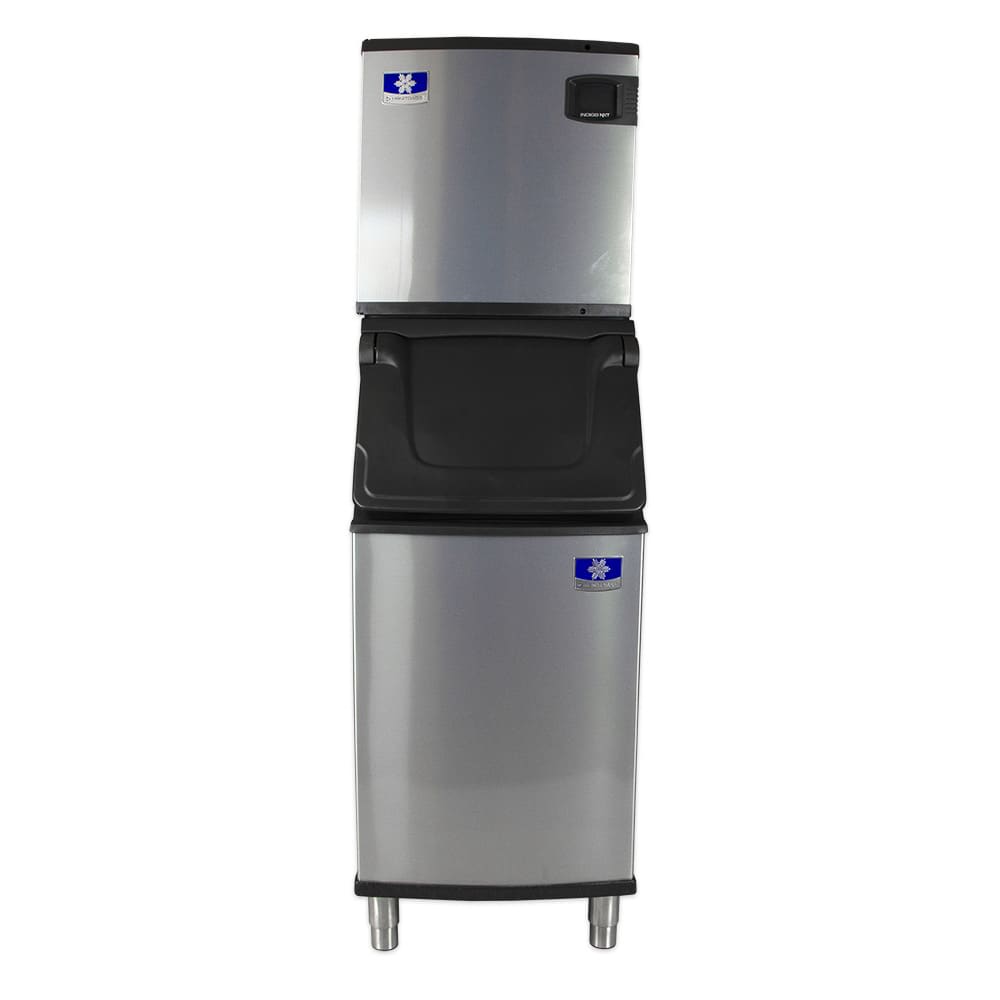

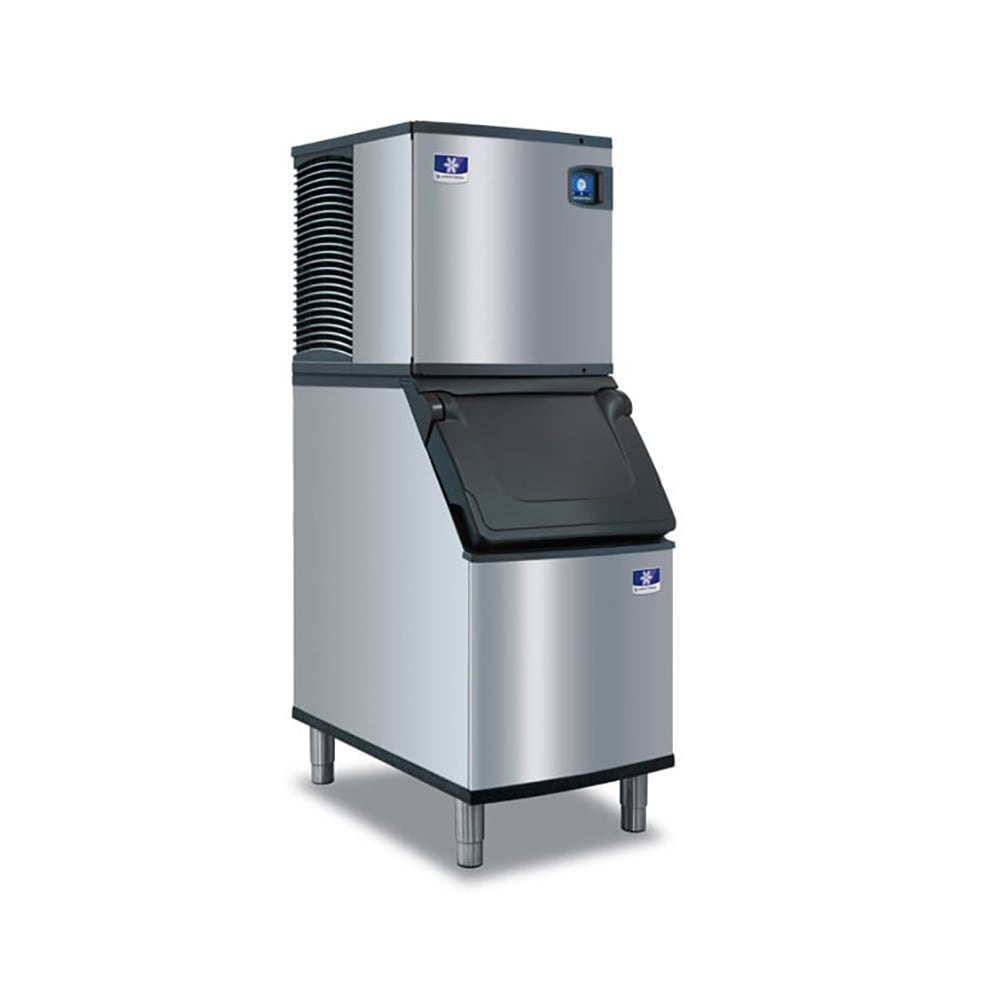

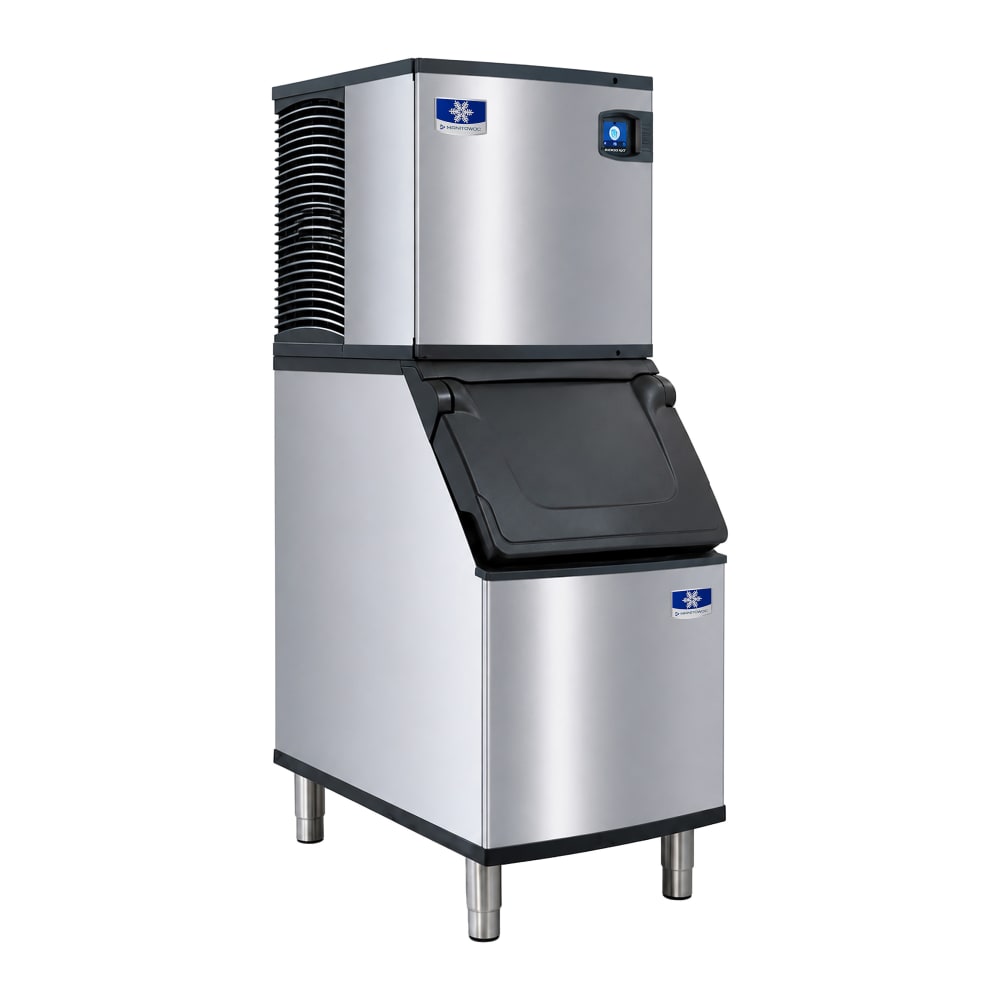

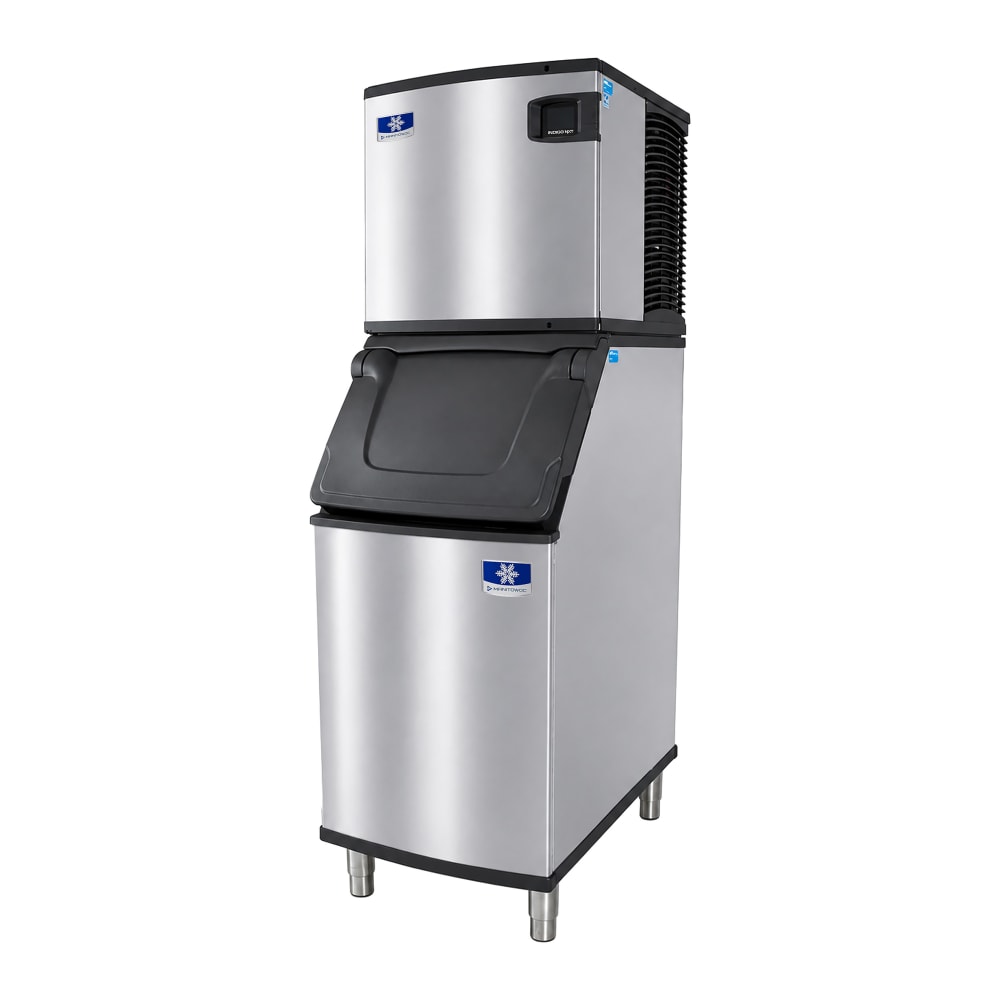

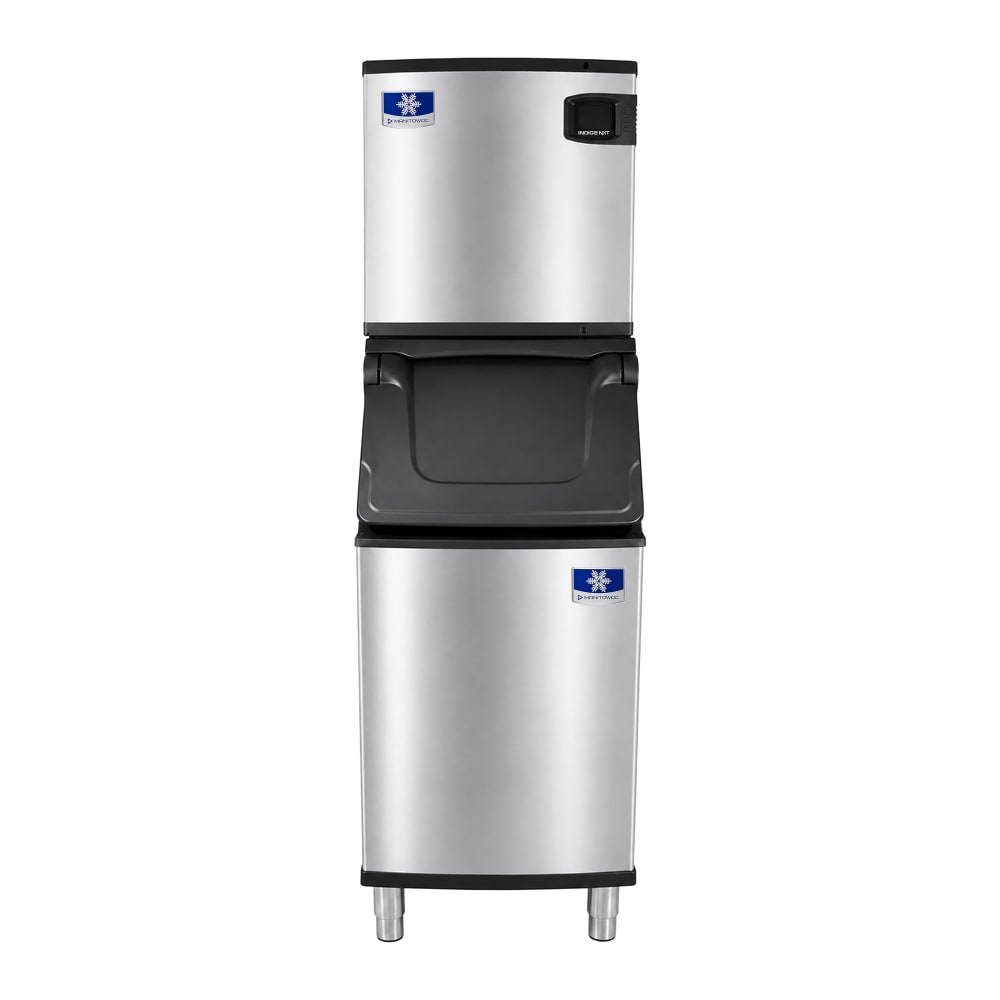

Manitowoc Ice IYP0620A/D320 537 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 264 lb Storage, Air Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
$5,759.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Manitowoc Ice IYP0620A/D320 Description
The Manitowoc IYP0620A-161/D320 Indigo NXT™ ice maker with bin uses an acoustical probe to measure the thickness of ice before it is released from the evaporator plate. This unit can produce 537 pounds of ice every 24 hours. Production can be adjusted based on the time of day or volume in the bin. Its bin can hold 264 pounds of ice. Certain components have an antimicrobial agent built in to slow scale growth. Its control panel uses touch icons to simplify use.

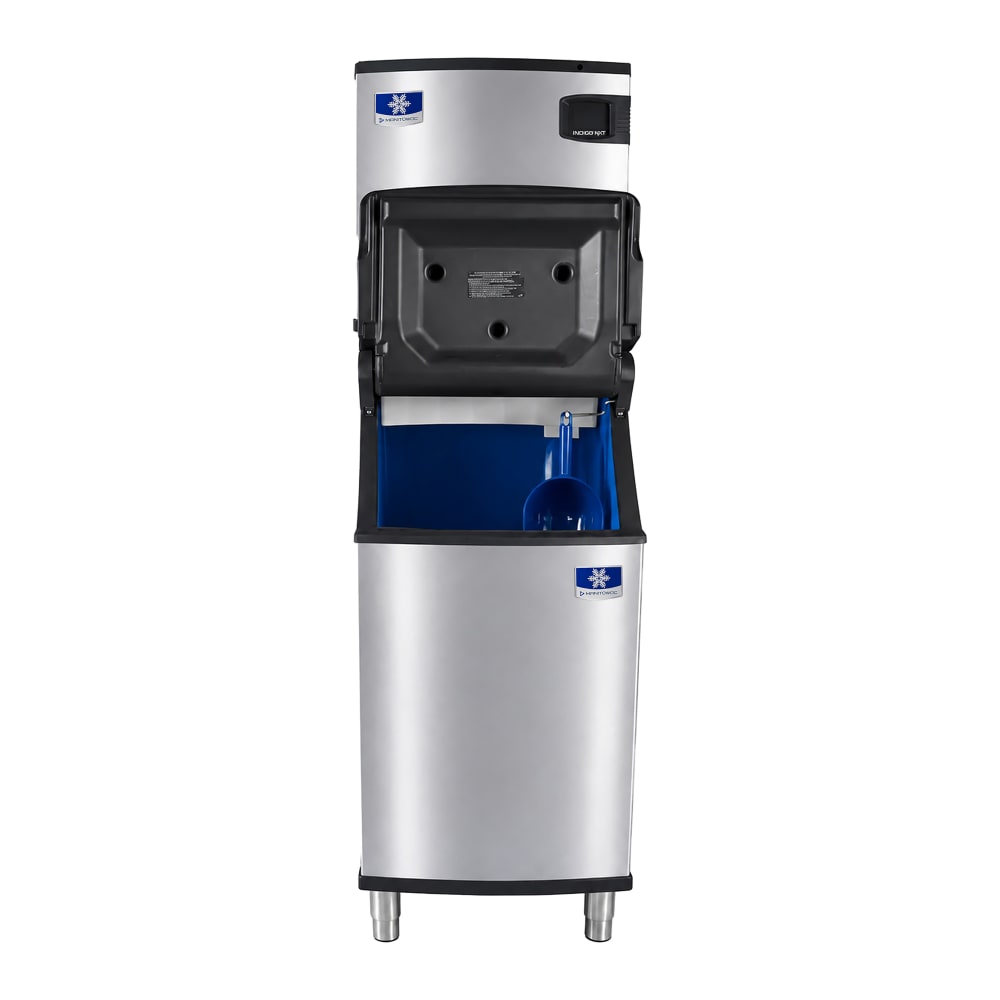

An ice scoop comes in the bin, and it has knuckle guards to prevent hands from contacting ice. A holder keeps the scoop out of the ice to reduce the risk of contamination. The scoop holds 5.3 pounds of ice. Slides on the door ease opening, and a latch keeps the door open for scooping. The Manitowoc IYP0620A-161/D320 ice maker with bin has a foam-insulated door to prevent ice from melting quickly.
- 537-lb. ice production capacity
- easyTouch control panel uses touch icons
- Volume or time of day ice production schedule
- Hinged front door
- Removable parts make the unit easy to clean
- AlphaSan antimicrobial agent slows bacteria growth
- Runs 24-hr. diagnostics to monitor operating status
- Ice thickness is measured by an acoustical probe
- DuraTech coating maintains a clean appearance
- Produces half dice ice
- Air-cooled motor
- Uses R410A refrigerant
- Part of the Indigo NXT series
- Required ambient temperature range: 40-110 degrees F
- Required incoming water temperature range: 40-90 degrees F
- required water pressure: 20-80 PSI
- Average BTU per hour: 5,400
- Peak BTU per hour: 6,300
- 12.2 A, 4.87 kW
- 115 V/60 Hz/1 ph

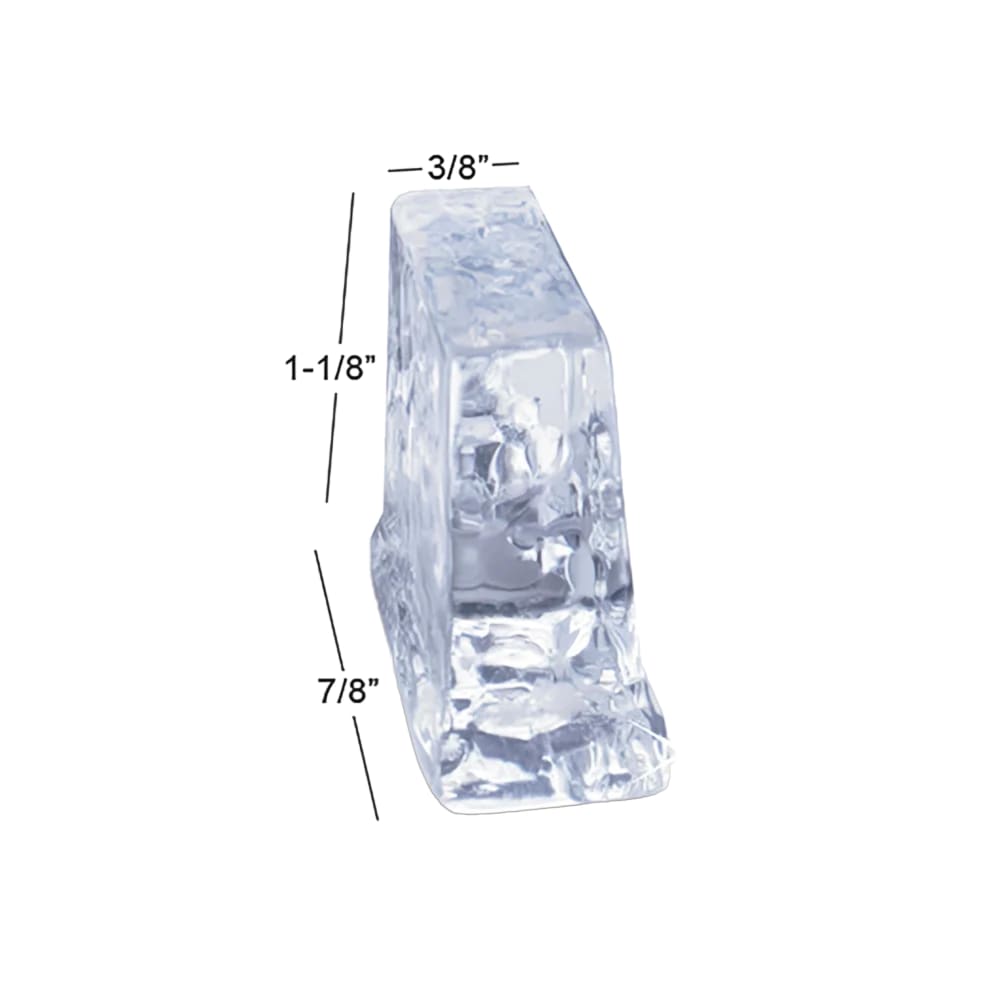

- Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
- Overall dimensions: 30 in. W x 34 in. D x 59.5 in. H
- 264-lb. storage capacity
- 8.9-cu.-ft. AHRI-certified storage capacity
- Built-in knuckle guard prevents hands from contacting ice
- 5.3-lb. ice scoop capacity
- Holder keeps scoop out of ice
- Side grips on the door ease lifting lift
- Insulated door slows ice melting

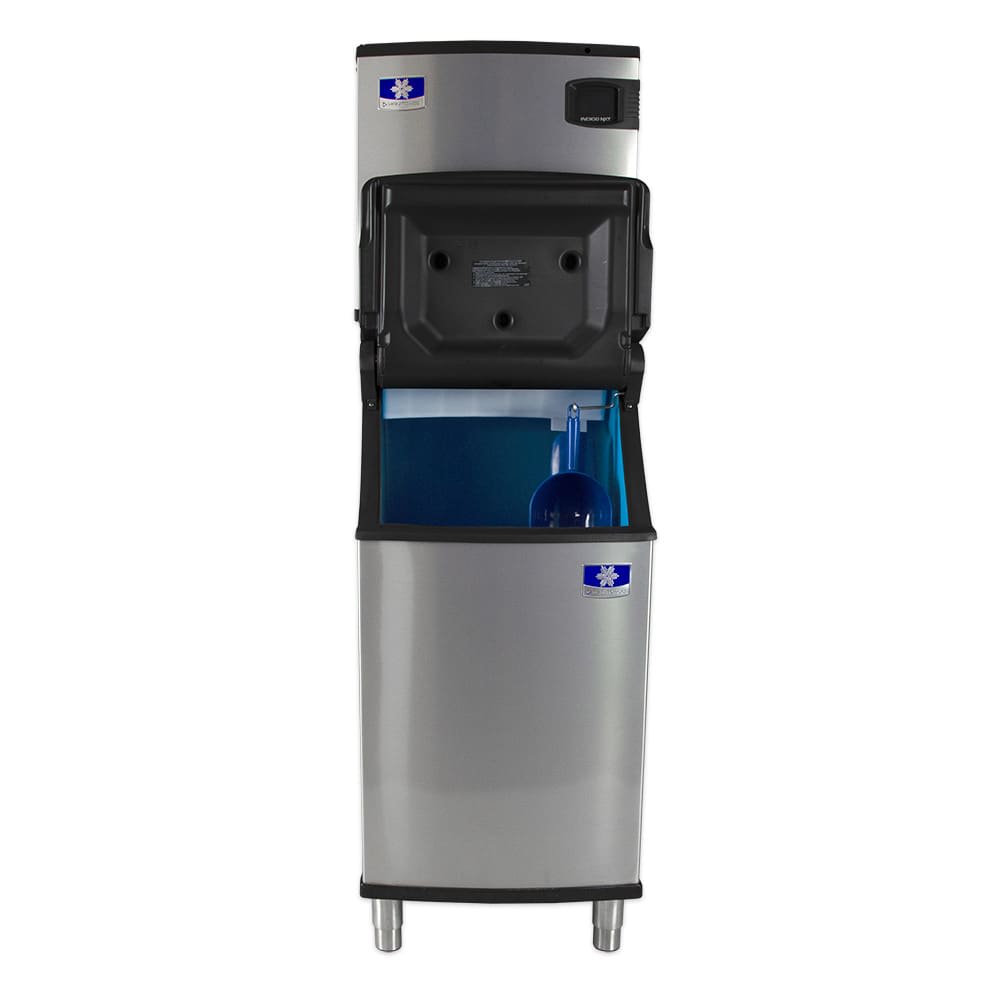

- Latch keeps the door open for scooping
- Clear coat hides fingerprints and smudges
- Polyurethane artic blue bin liner
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0620A/D320 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 537 lb./24 hours at 70°/50° (417 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Ice Bin, 22"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 264 lbs. application capacity, AHRI certified 8.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Watch a video about this product
Manitowoc Ice IYP0620A/D320 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 537 |
| Access | Lift Up Door |
| Also Known As | IYT0620A/D320 |
| Bin Capacity (lb) | 264 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 59.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 220.00 |
