Manitowoc Ice IYP0500W/SPA312 509 lb Half Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 115v
QUICK SHIP: Ships in 1 Business Day
$9,720.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Manitowoc Ice IYP0500W/SPA312 Description

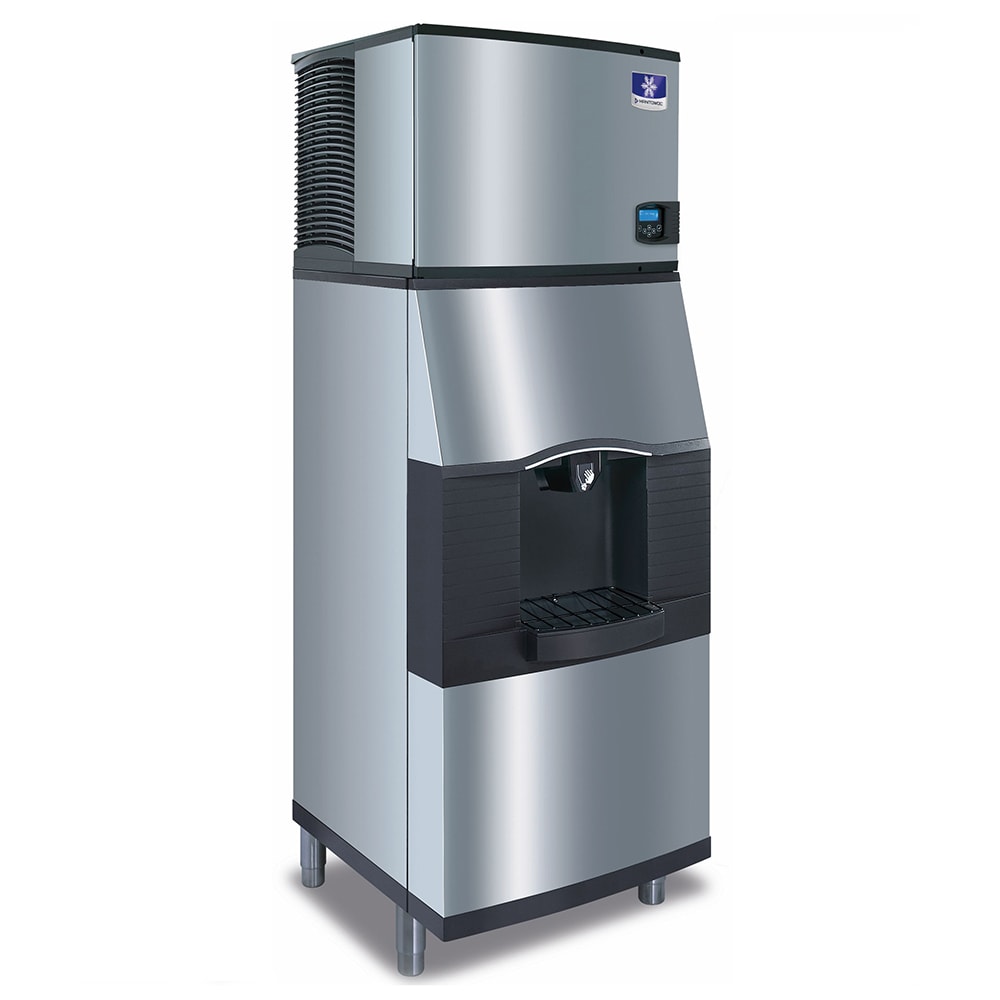

The Manitowoc IYP0500W/SPA312 Indigo NXT™ ice machine with dispenser can make 535 pounds of half dice ice every 24 hours. An acoustical probe ensures the correct cube thickness before ice is released from the plate. Production can be set by the time of day or volume in the dispenser. Major components have AlphaSan®, an antimicrobial agent built in to slow bacteria growth, while the easyTouch® control panel simplifies use.
The dispenser can store 180 pounds of ice at a time. Its chute dispense mechanism prevents overflow, while excess ice is caught by the drain pan, and a built-in agitator breaks up clumps of ice. The Manitowoc IYP0500W/SPA312 ice machine with dispenser has a DuraTech® clear coat over its stainless steel exterior to hide fingerprints and smudges.
- 509-lb. ice production capacity
- 455-lb. AHRI-certified production capacity
- Control the unit with easyTouch control panel
- Ice production can be set to the time of day or volume in the bin
- Hinged front door
- Removable parts simplify cleanup
- AlphaSan antimicrobial technology slows bacteria growth
- 24-hr. diagnostics run constantly to monitor the unit's status
- Acoustical probe measures ice thickness
- Clear coat over stainless steel maintains a clean look
- Produces half dice ice
- Water-cooled motor
- R290 refrigerant
- Part of the Indigo NXT series
- Required ambient temperature range: 40-110 degrees F
- Required incoming water temperature range: 40-90 degrees F
- Required water pressure: 20-80 PSI
- Average BTU per hour: 3,800
- Peak BTU per hour: 6,000
- 10.8 A, 3.9 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
- Overall dimensions: 30 in. W x 32 in. D x 82 in. H
- 180-lb. ice storage capacity
- Chute dispense mechanism reduces ice spilling
- Built-in agitator
- Drain pan catches ice overflow
- Fingerprints and smudges are hidden by the DuraTech clear coat
- 1.6 A
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0500W/SPA312 within the 48 contiguous states.
From The Manufacturer
IYT-0500W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21.5"H, production capacity up to 509 lb/24 hours at 70°/50° (455 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
SPA-312: Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant
Watch a video about this product
Manitowoc Ice IYP0500W/SPA312 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 509 |
| Also Known As | IYT0500W, IYT0500W-161 |
| Amps | 10.8, 1.6 |
| Bin Capacity (lb) | 180 |
| Compressor Type | Water Cooled |
| Depth (in) | 32 |
| Dispenser Type | Lever |
| Dispenses | Ice Only |
| Height (in) | 82 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Serving Vessel | Bucket |
| Special Features | Duratech™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 370.00 |
