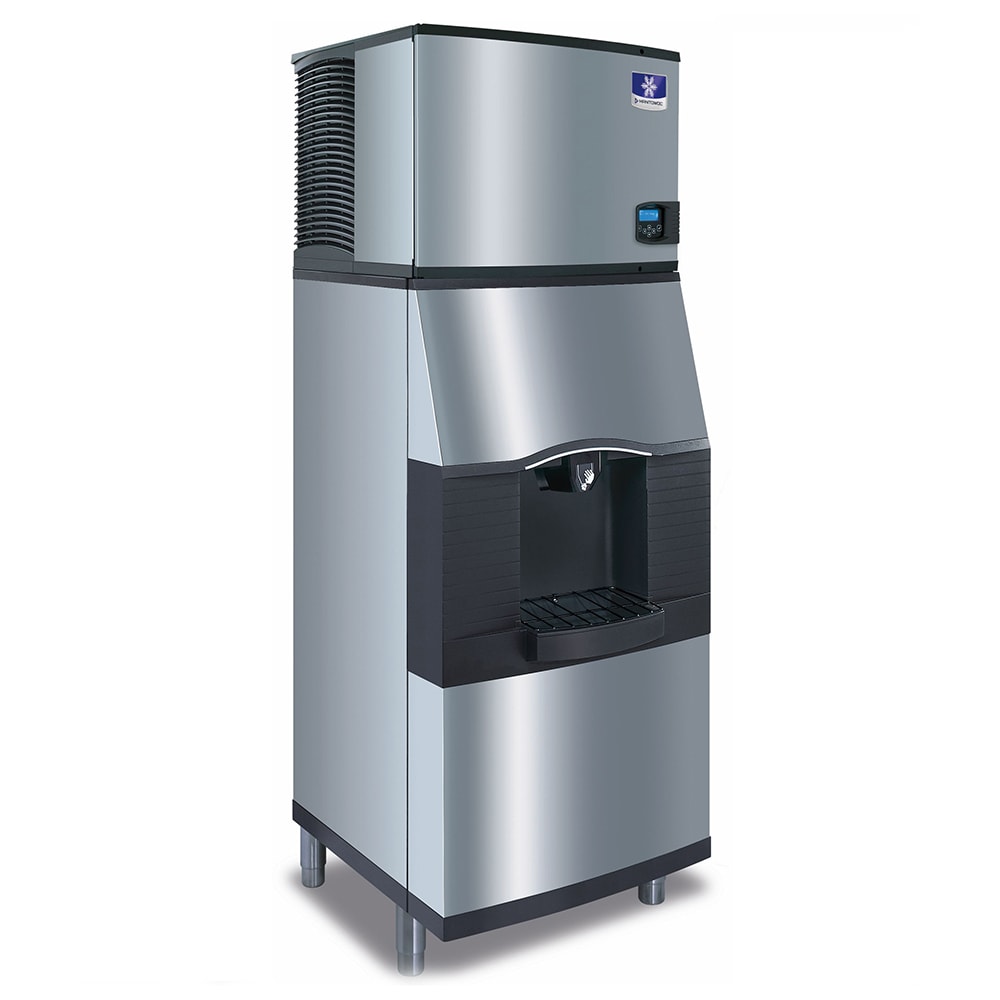

Manitowoc Ice IYP0500A/SPA312 516 lb Half Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

KaTom #: 399-IYT0500A161SPA31 • MPN: IYP0500A-161/SPA312
  • 399-IYT0500A161SPA31 Primary Thumbnail Image

QUICK SHIP: Ships in 1 Business Day

Free Shipping Item

$9,402.00 /Each

Contact us for details!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Compressor Type: Air Cooled

Water CooledWater Cooled

Selected Ice Type: Half Cube

Full CubeFull Cube
colin white User Image
Ask a Foodservice Equipment Specialist

Manitowoc Ice IYP0500A/SPA312 Description

The Manitowoc IYP0500A-161/SPA312 Indigo NXT™ ice machine with dispenser is constructed of heavy-duty stainless steel. A clear coat called DuraTech® is put over the stainless steel to maintain a clean appearance. This unit is designed for dispensing ice in hotels and resorts. Ice overflow is prevented with a chute dispense mechanism, and the drain pan collects excess ice. The dispenser has a built-in agitator.

When issues arise, the 24-hour diagnostics will alert the operator through the control panel, which has icons to simplify identification. To ease cleaning, the major components are removable, and some have AlphaSan® built in to prevent bacteria growth. The Manitowoc IYP0500A-161/SPA312 ice machine with dispenser can make 516 pounds of ice within 24 hours and store 180 pounds of ice.

  • 516-lb. ice production capacity
  • Touchscreen with straightforward icons
  • Ice production can be set by volume or time of day
  • Hinged front door
  • Removable parts ease cleaning
  • AlphaSan antimicrobial agent is built in to some components to slow bacteria growth
  • Diagnostics run every 24 hrs. to monitor status
  • Acoustical probe measures ice thickness before it is released from an evaporator plate
  • Stainless steel exterior has a DuraTech clear coating to hide fingerprints
  • Produces half dice ice
  • Air-cooled motor
  • R410A refrigerant
  • Part of the Indigo NXT series
  • Required ambient temperature range: 40-110 degrees F
  • Required incoming water temperature range: 40-90 degrees F
  • Required water pressure: 20-80 PSI
  • 3,800-6,000 BTU
  • 11.5 A, 4.58 kW
  • 115 V/60 Hz/1 ph
  • Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
  • Overall dimensions: 30 in. W x 32 in. D x 82 in. H

  • 180-lb. ice storage capacity
  • Chute dispense mechanism minimizes spills
  • Built-in agitator
  • Drain pan collects overflow ice
  • DuraTech clear coat hides smudges and fingerprints
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on Manitowoc Ice IYP0500A/SPA312 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21.5"H, production capacity up to 516 lb./24 hours at 70°/50° (444 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®

Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

Warranty Icon
Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Watch a video about this product

Manitowoc Ice IYP0500A/SPA312 Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.



















Related Categories
0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

It produces up to 516 lb. of ice in 24 hours.

— KaTom Foodservice Equipment Specialist

It holds 180 lb. of ice.

— KaTom Foodservice Equipment Specialist

It dispenses half cube ice.

— KaTom Foodservice Equipment Specialist

No, it dispenses ice only.

— KaTom Foodservice Equipment Specialist

Yes, it has an integrated ice maker.

— KaTom Foodservice Equipment Specialist

Ice is dispensed with a lever.

— KaTom Foodservice Equipment Specialist

It is designed for freestanding installation.

— KaTom Foodservice Equipment Specialist

It measures 30 in. W x 32 in. D x 82 in. H.

— KaTom Foodservice Equipment Specialist

It requires 115 V electrical service.

— KaTom Foodservice Equipment Specialist

The ice maker requires 11.5 A, and the dispenser requires 1.6 A.

— KaTom Foodservice Equipment Specialist

It requires 1-phase electrical service.

— KaTom Foodservice Equipment Specialist

It requires 60 Hz electrical service.

— KaTom Foodservice Equipment Specialist

It is designed to dispense into buckets.

— KaTom Foodservice Equipment Specialist

Its condenser is air-cooled.

— KaTom Foodservice Equipment Specialist

Its listed certifications include AHRI, cULus Listed, CE, ENERGY STAR, and NSF.

— KaTom Foodservice Equipment Specialist

It requires a 3/8-in. water inlet connection.

— KaTom Foodservice Equipment Specialist

Yes, it has antimicrobial protection.

— KaTom Foodservice Equipment Specialist

It uses R290 refrigerant.

— KaTom Foodservice Equipment Specialist

It uses a NEMA 5-15P plug.

— KaTom Foodservice Equipment Specialist

Yes, it has touchless dispensing.

— KaTom Foodservice Equipment Specialist

Yes, it has a drain pan to collect overflow or spillage.

— KaTom Foodservice Equipment Specialist

Yes, it has a built-in agitator to help keep ice moving during dispensing.

— KaTom Foodservice Equipment Specialist

Yes, it has removable components for cleaning.

— KaTom Foodservice Equipment Specialist

Yes, it has a one-touch cleaning feature.

— KaTom Foodservice Equipment Specialist

Yes, its ice production can be programmed.

— KaTom Foodservice Equipment Specialist

Yes, it provides diagnostic feedback for maintenance and service needs.

— KaTom Foodservice Equipment Specialist

Yes, it has a DuraTech exterior.

— KaTom Foodservice Equipment Specialist

The ice measures 0.375 in. x 1.125 in. x 0.875 in.

— KaTom Foodservice Equipment Specialist
