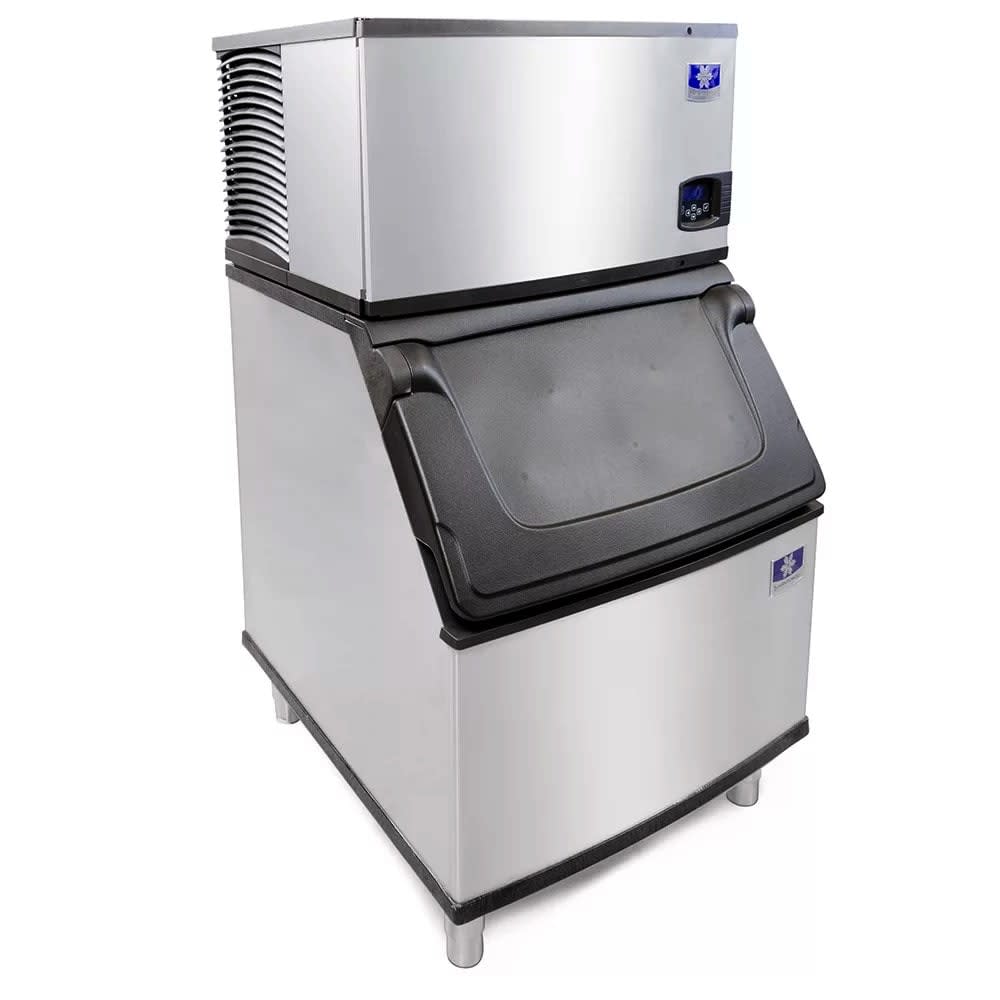

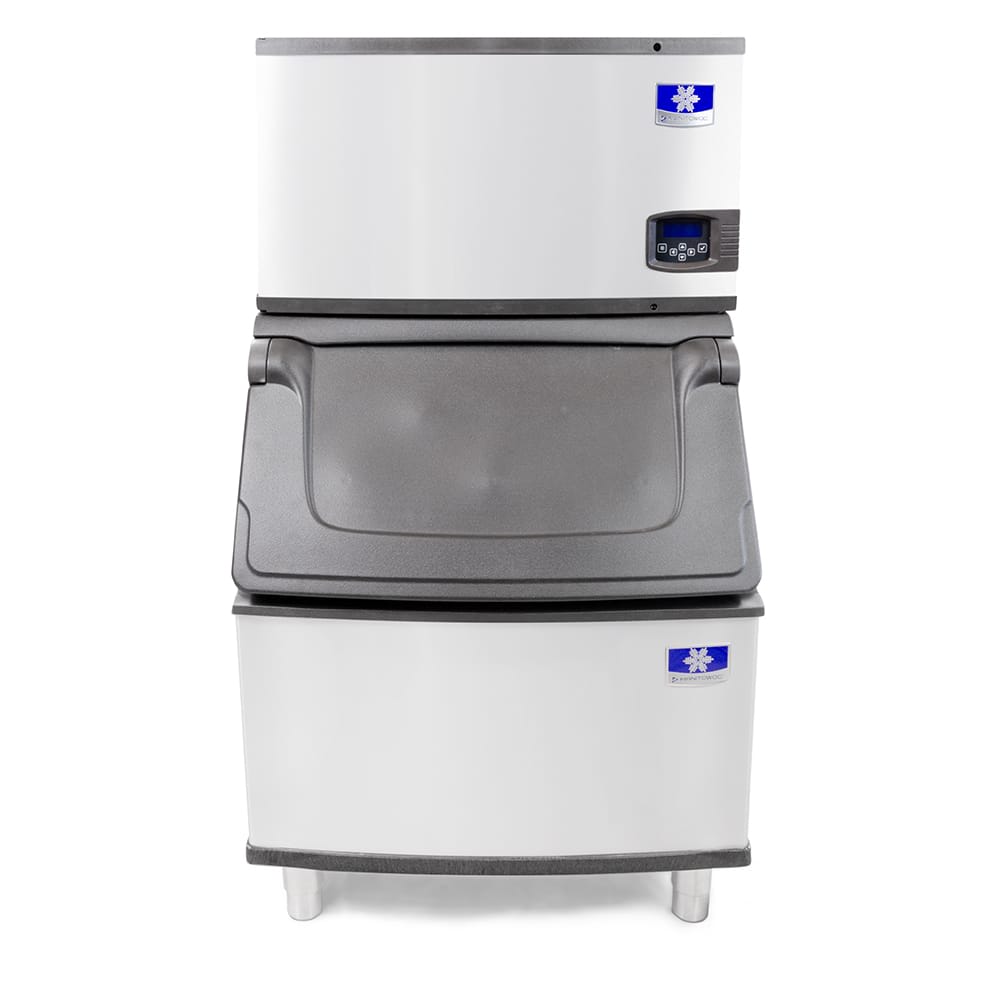

Manitowoc Ice IYP0500W/D400 509 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 365 lb Storage, Water Cooled, 115v
$6,287.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Water Cooled
Manitowoc Ice IYP0500W/D400 Description

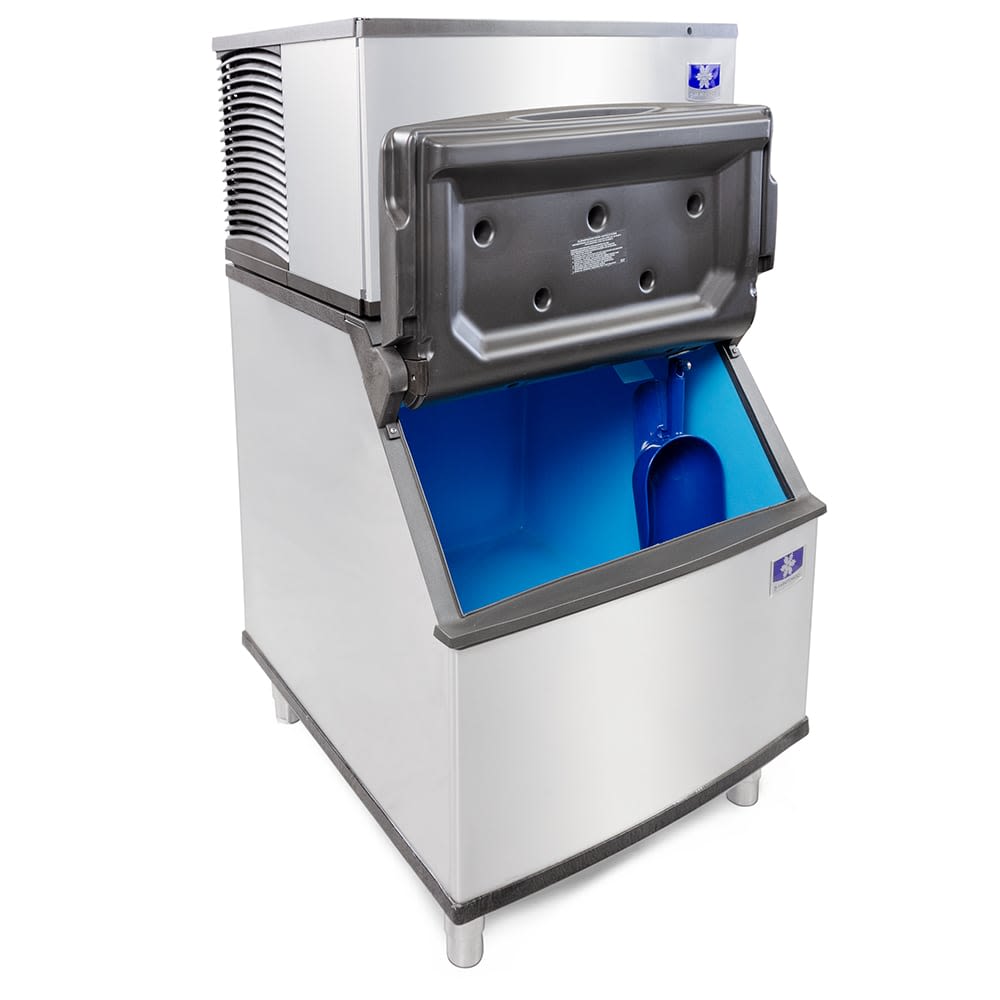

The Manitowoc IYP0500W/D-400 Indigo NXT™ ice machine and bin has a DuraTech® clear coat over its stainless steel exterior to maintain a clean look. An insulated door retains cold air and has side grips to enhance lifting. A latch keeps the door open to simplify scooping. An ice scoop comes with the unit and has a knuckle guard to prevent hands from contacting and contaminating ice. A holder keeps the scoop out of the ice to further protect it from contaminants.

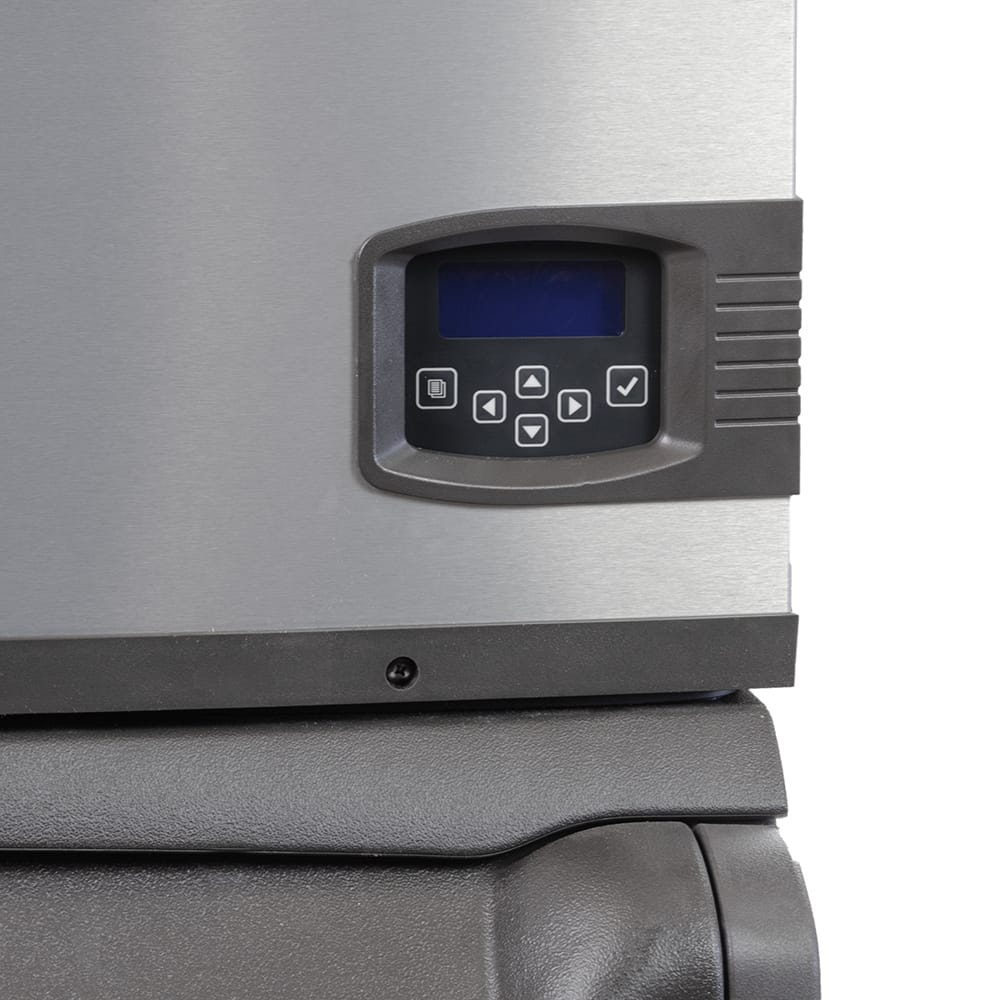

The head can make 509 pounds of ice, while the bin can hold 365 pounds. Production can be set to a specific time of day or how much ice is in the bin. Ice thickness is measured before it is released from the evaporator plate to ensure it is correct. The Manitowoc IYP0500W/D-400 ice machine and bin uses a touchscreen control panel with icons.
- 509-lb. ice production capacity
- 455-lb. AHRI-certified production capacity
- Touchscreen icons provide straightforward use
- Set ice production by volume or time of day

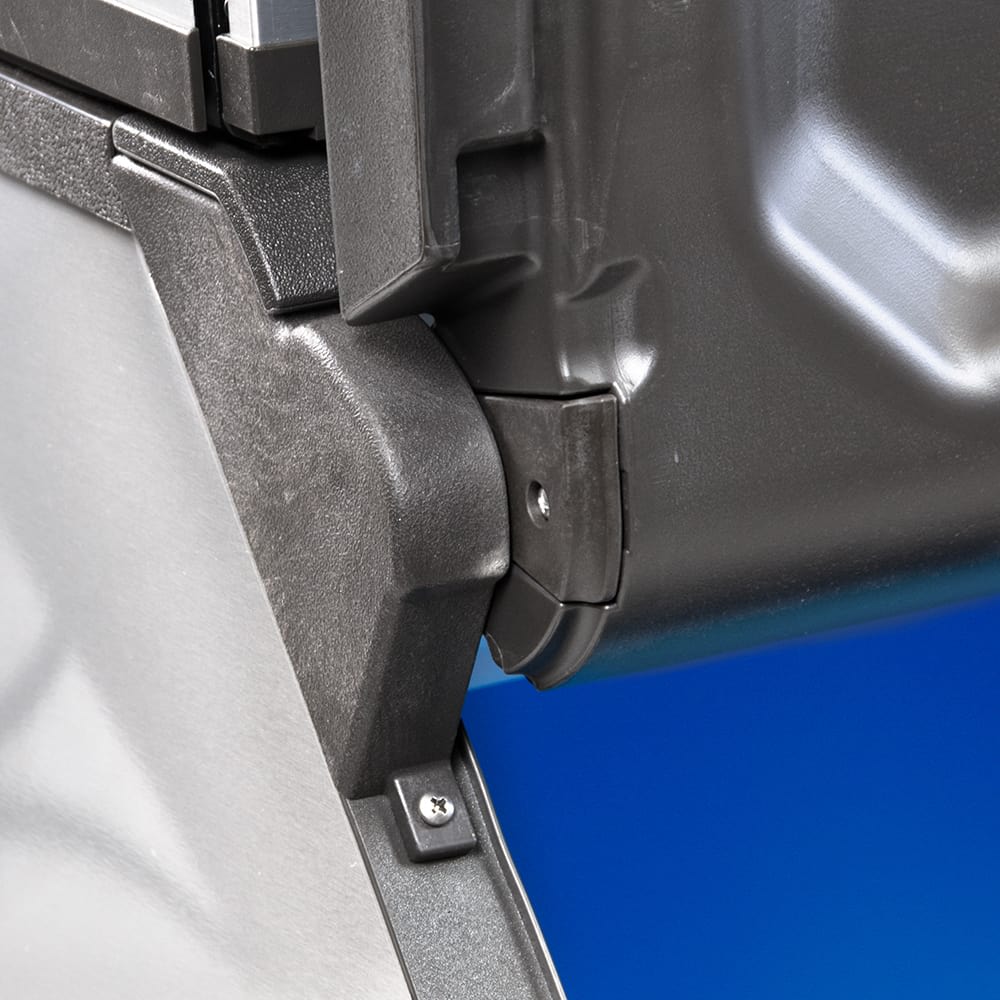

- Hinged front door
- Removable parts simplify cleaning
- AlphaSan antimicrobial deters bacteria growth
- Uses 24-hr. diagnostics to keep track of maintenance needs
- Ice thickness is measured by a probe
- DuraTech coating hides fingerprints and stains
- Produces half dice ice
- Water-cooled motor
- Uses R290 refrigerant
- Part of the Indigo NXT series
- Required ambient temperature range: 40-110 degrees F
- Required incoming water temperature range: 40-90 degrees F
- Required water pressure: 20-80 PSI
- Average BTU per hour: 3,800
- Peak BTU per hour: 6,000
- 11.5 A, 4.58 kW
- 115 V/60 Hz/1 ph

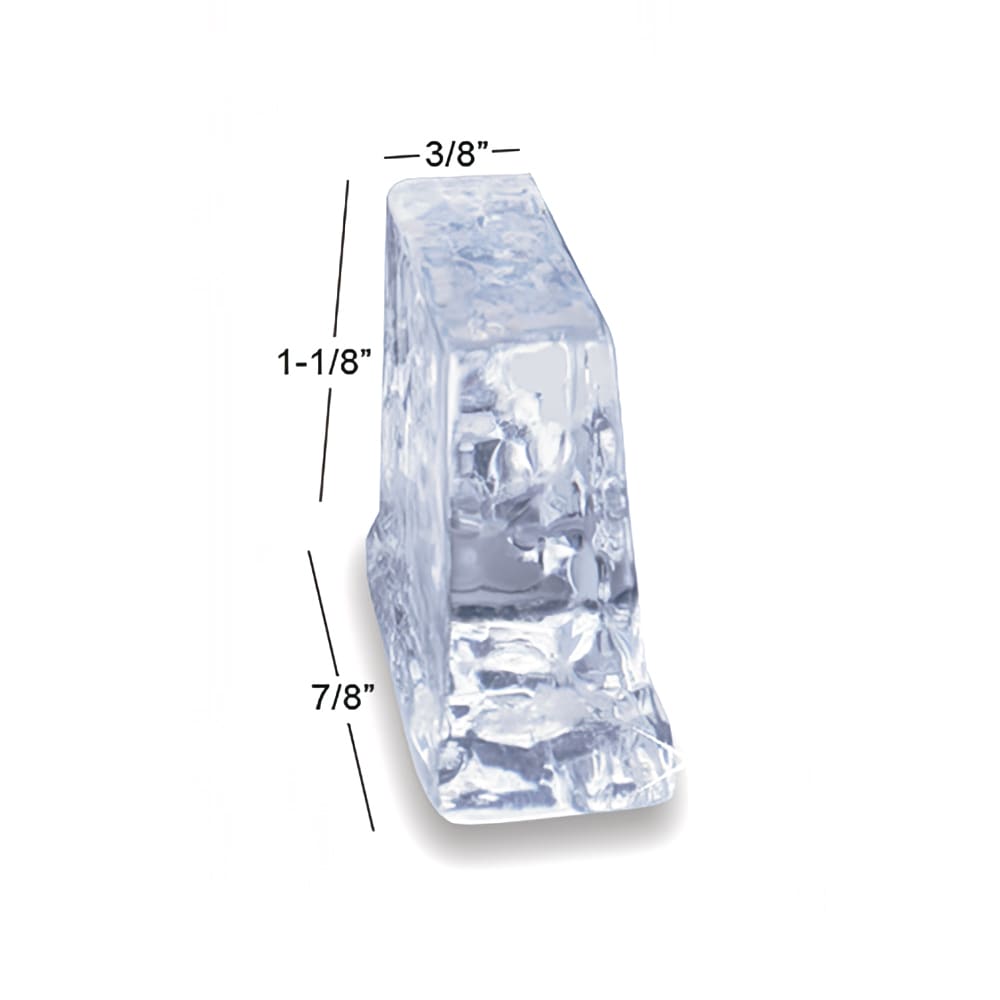

- Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.

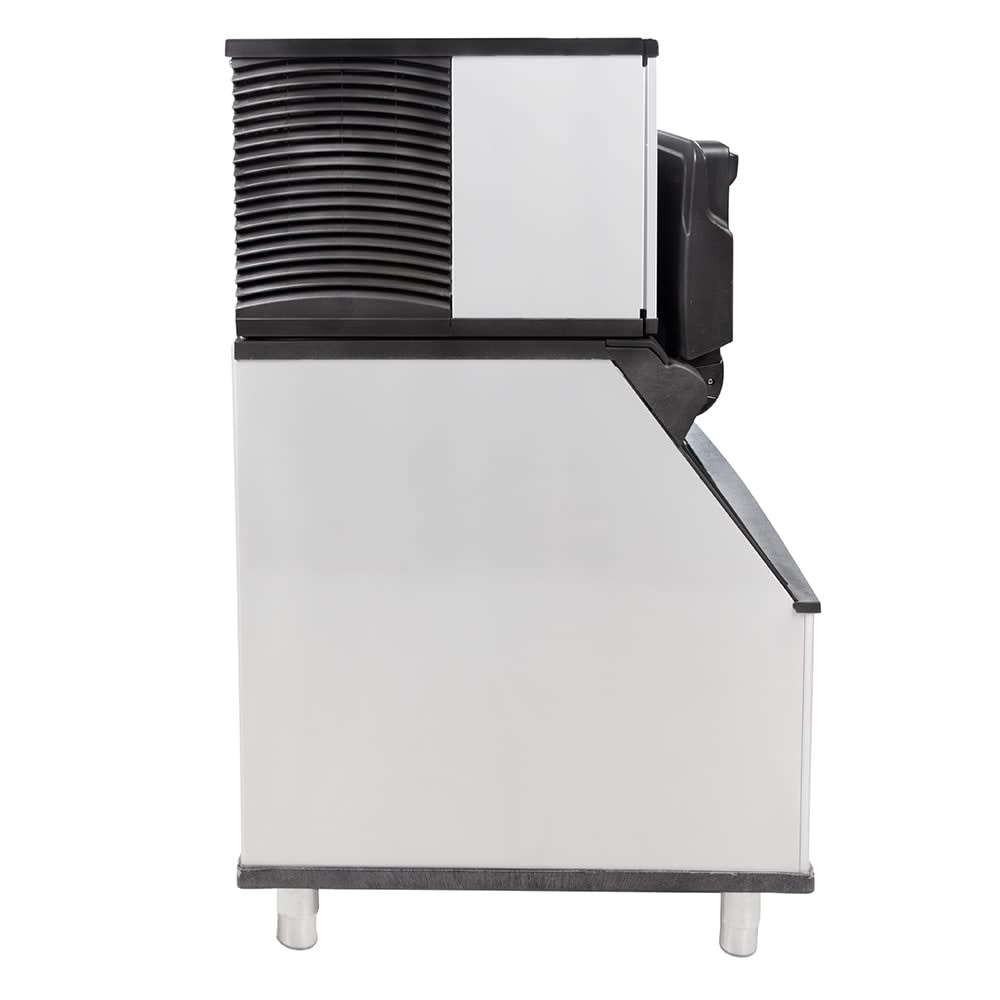

- Overall dimensions: 30 in. W x 32 in. D x 82 in. H
- 365-lb. storage capacity
- 12.3-cu.-ft. AHRI-certified storage capacity

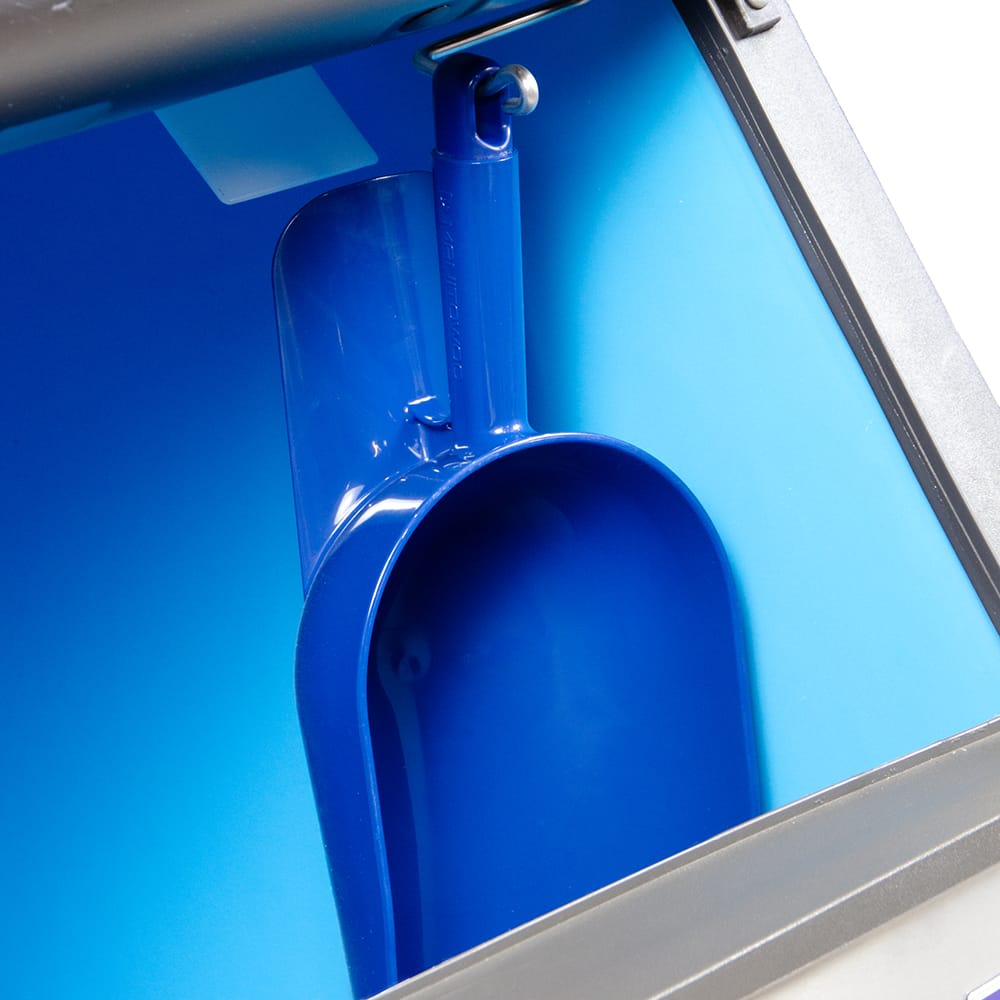

- Scoop knuckle guard prevents hands from touching ice
- 5.3-lb. ice scoop capacity
- Scoop holder keeps ice sanitary
- Side grips simplify door lifting
- Insulated door slows melting
- Door stays open with a latch
- Clear coat over stainless steel maintains a clean appearance

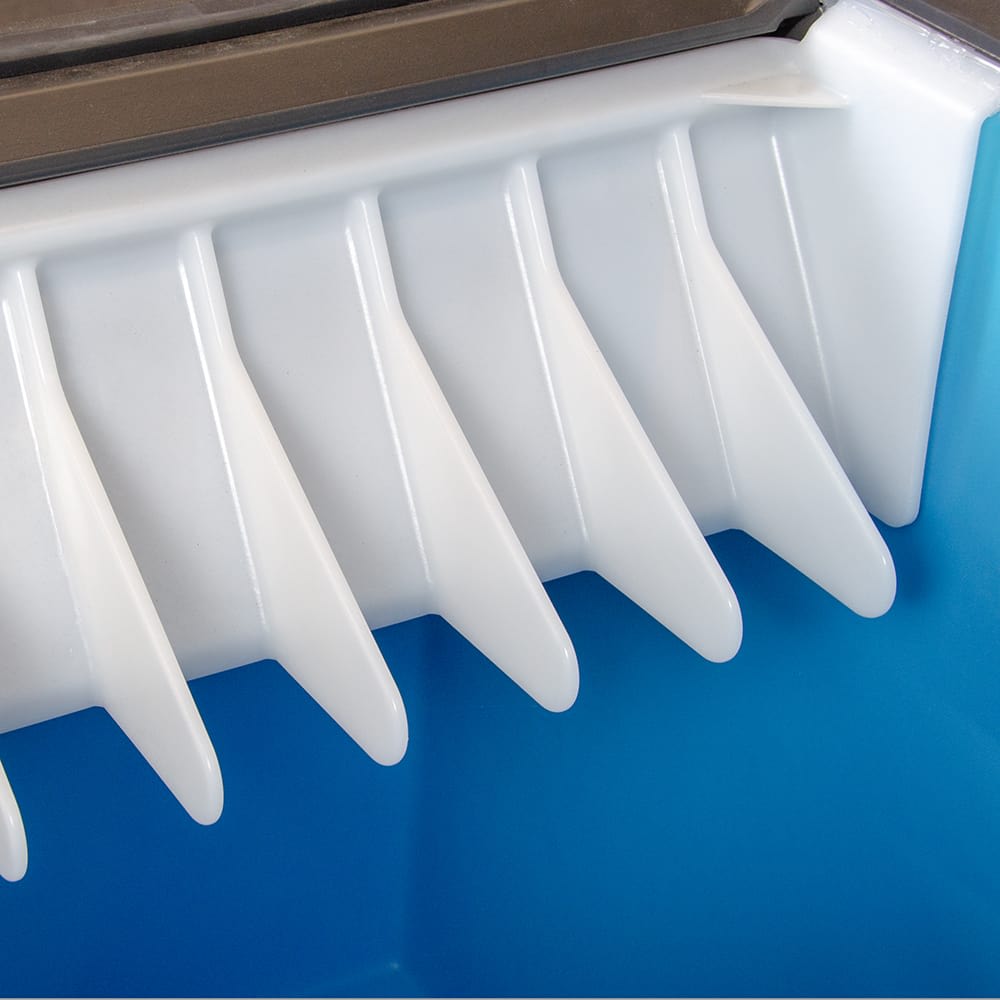

- Polyurethane artic blue bin liner
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0500W/D400 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21.5"H, production capacity up to 509 lb/24 hours at 70°/50° (455 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
D400 Ice Bin: Ice Bin, 30"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 365 lbs. application capacity, AHRI certified 12.3 cu. ft., for top-mounted ice maker, Duratech exterior, NSF
Watch a video about this product
Manitowoc Ice IYP0500W/D400 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 509 |
| Access | Lift Up Door |
| Also Known As | IYT0500W, IYT0500W-161 |
| Bin Capacity (lb) | 365 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 59.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 252.00 |
