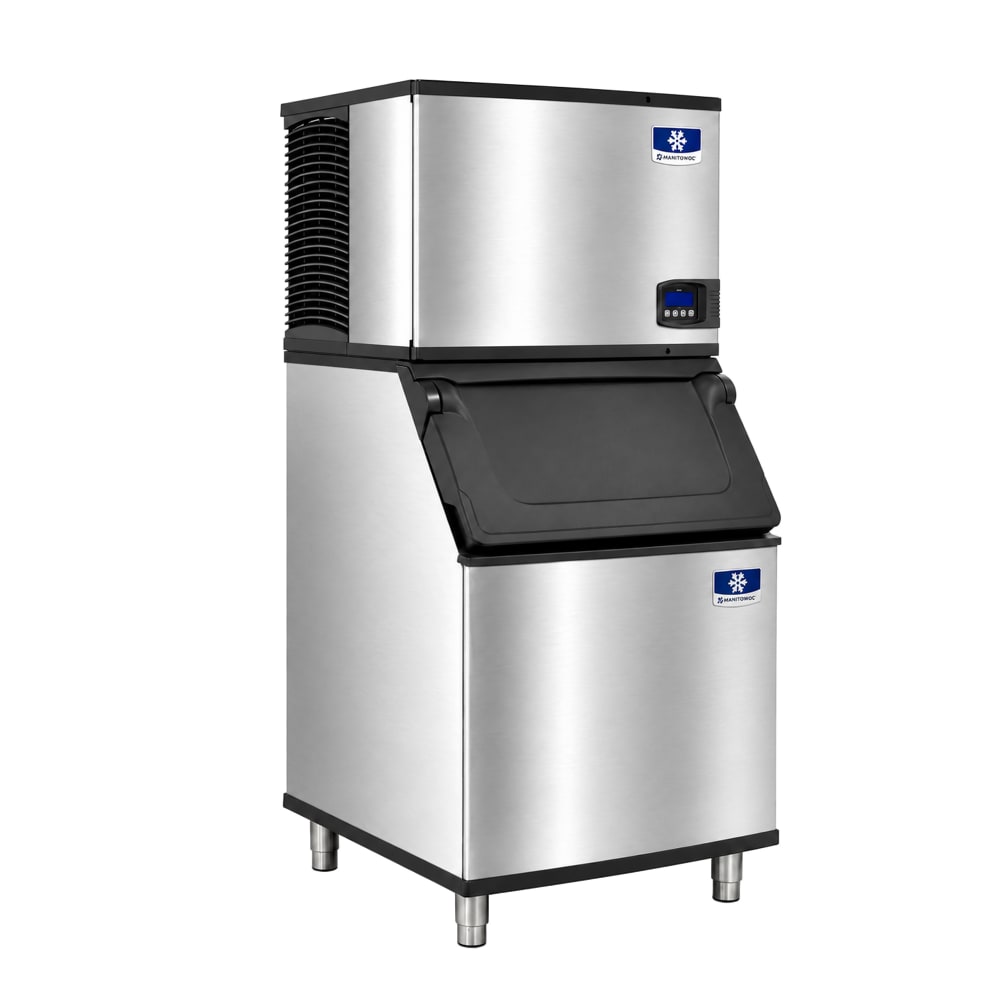

Manitowoc Ice IDT0500W/D400 500 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 365 lb Storage, Water Cooled, 115v

Operators can adjust ice production in the Manitowoc Ice IDT-0500W/D-400 Indigo NXT™ ice maker with bin based on volume or time of day. In 24 hours, it can make 500 pounds of full-cube ice, which is large, slow melting, and fills glasses well. A touchscreen control panel provides information on the unit's energy and service settings.

The Manitowoc Ice IDT-0500W/D-400 ice machine with bin can hold 365 pounds of ice, and the bin’s polyurethane liner highlights ice clarity. Insulated by foam, the door retains cold air and slows the melting process. Grips in the door enable users to open it from any side, and it remains open when ice is being scooped. A corrosion-resistant clear coating strengthens and polishes the stainless steel exterior.

Ice Maker Details

• Part of the Indigo NXT series
• 500-lb. daily ice production capacity
• 400-lb. AHRI-certified daily ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Acoustical sensing probe monitors each cycle’s consistency by measuring ice thickness
• Programmable ice production can track time and volume
• easyTouch® display facilitates operation
• Diagnostics and maintenance are performed 24 hr. a day
• Hinged food zone door has a swing-out design that provides access to the components
• Removable distribution tube, curtain, sensing probes, and water trough
• Some parts have AlphaSan® antimicrobial protection that minimizes bacteria growth
• DuraTech™ clear coat over stainless steel provides corrosion resistance and hides fingerprints
• Water-cooled condenser
• Uses R410A refrigerant
• 3,800 average BTU; 6,000 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Product Features

Bin Details

• 365-lb. application capacity
• 12.3-cu.-ft. AHRI-certified capacity
• Foam insulation in the door retains cold air
• Side grips in the door can open it from any direction
• Self-latching door design
• 5.3-lb. ice scoop capacity
• Scoop's built-in knuckle and thumb guard prevents ice-to-hand contact, reducing the risk of contamination
• Blue polyurethane bin liner
• DuraTech clear coat maintains a clean appearance

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24 in. D x 21.5 in. H
  • 10.8 A, 4.41 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30 in. W x 34 in. D x 38 in. H

*Free shipping on Manitowoc Ice IDT0500W/D400 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 500 lb./24 hours at 70°/50° (400 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

Ice Bin, 30"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 365 lbs. application capacity, AHRI certified 12.3 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT0500W/D400 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
