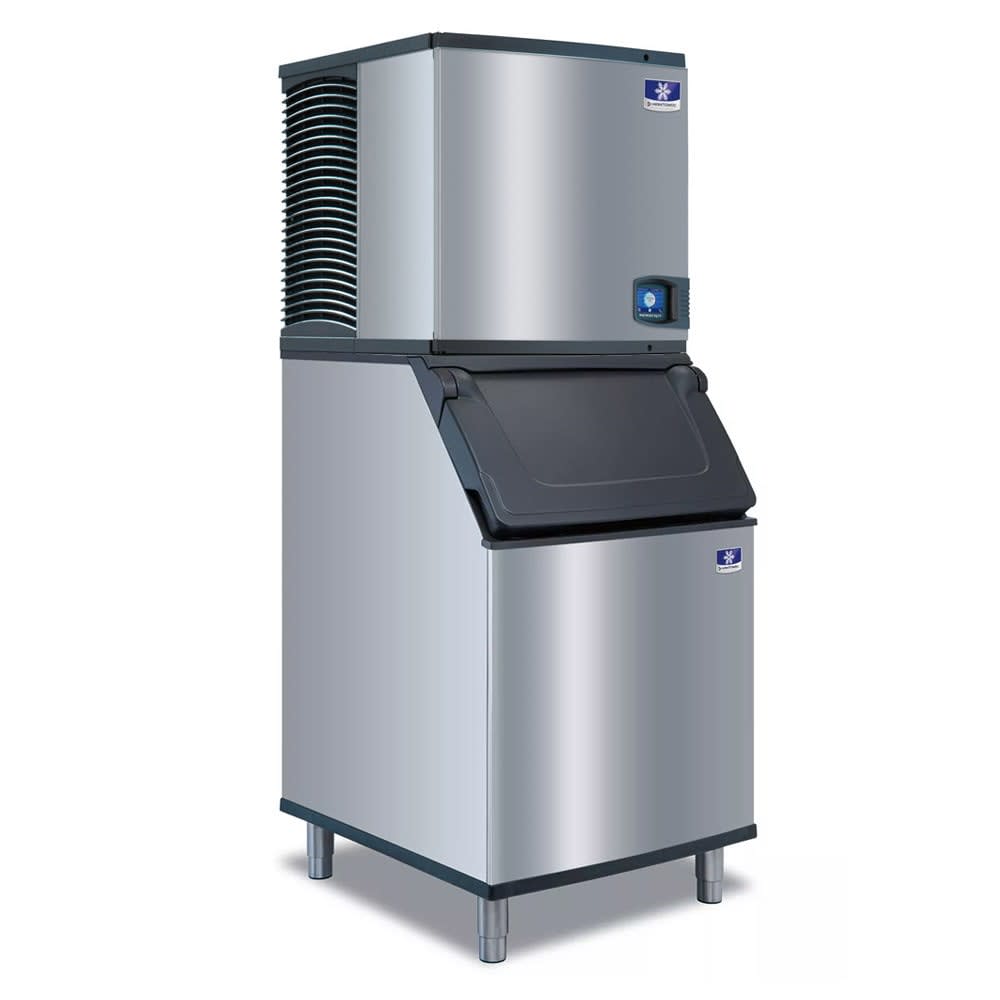

Manitowoc Ice IYP0450W/D570 464 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 532 lb Storage, Water Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
$6,016.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Water Cooled
Manitowoc Ice IYP0450W/D570 Description
The Manitowoc IYP0450W-161/D570 Indigo NXT™ ice maker with bin can produce 464 pounds of ice and store 532 pounds of ice. To prevent hands from contacting ice, the ice scoop has a built-in handle, and a storage holder for the scoop is included. Before ice is dropped, an acoustical ice probe checks the thickness, while diagnostics run daily to ensure the head is running properly. Some of the major components are built with AlphaSan® technology to slow scale buildup, and many parts are removable for cleaning. The exterior of the Manitowoc IYP0450W-161/D570 ice maker and bin is coated in DuraTech® to resist smudges and fingerprints.
- 464-lb. ice production capacity
- easyTouch display uses icons on a touchscreen to control the unit
- Ice production is programmable by volume or time of day
- Hinge front door
- Removable water trough, distribution tube, curtain, water probe, and water pump
- AlphaSan is built into certain components to prevent scale buildup
- Diagnostics run daily to provide operating feedback
- Acoustical ice probe ensures correct ice thickness before dropping
- DuraTech clear coat over stainless steel to resist fingerprints
- Produces half dice ice
- Water-cooled motor
- Uses R290 refrigerant
- Part of the Indigo NXT series
- Required ambient temperature range: 40-110 degrees F
- Required incoming water temperature range: 40-90 degrees F
- Required water pressure: 20-80 PSI
- Average BTU per hour: 3,800
- Peak BTU per hour: 6,000
- 11.2 A, 4.7 kW
- 115 V/60 Hz/1 ph

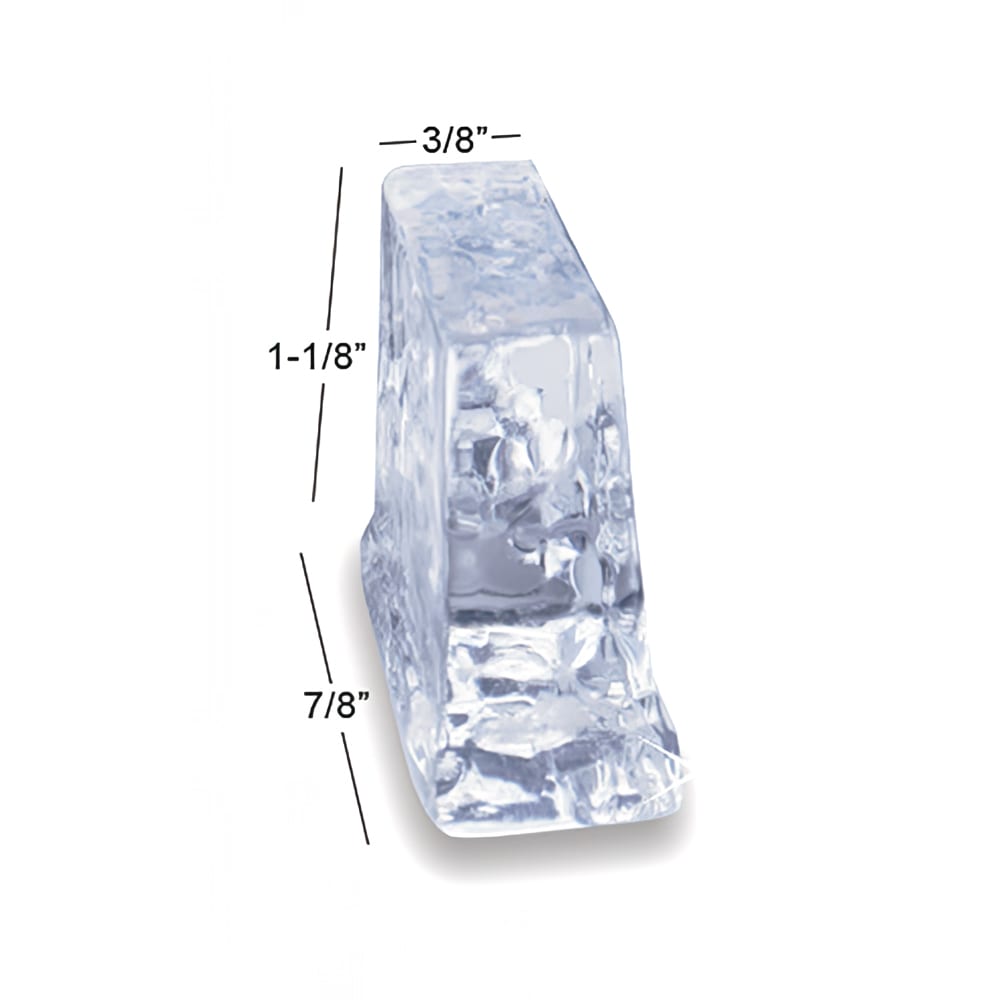

- Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
- Overall dimensions: 30 in. W x 34 in. D x 71.5 in. H
- 532-lb. storage capacity
- 29.7-cu.-ft. AHRI-certified storage capacity
- Built-in knuckle guard on the scoop prevents hands from touching ice
- 5.3-lb. ice scoop capacity
- Holder keeps scoop out of ice
- Side grips on the door ease lifting

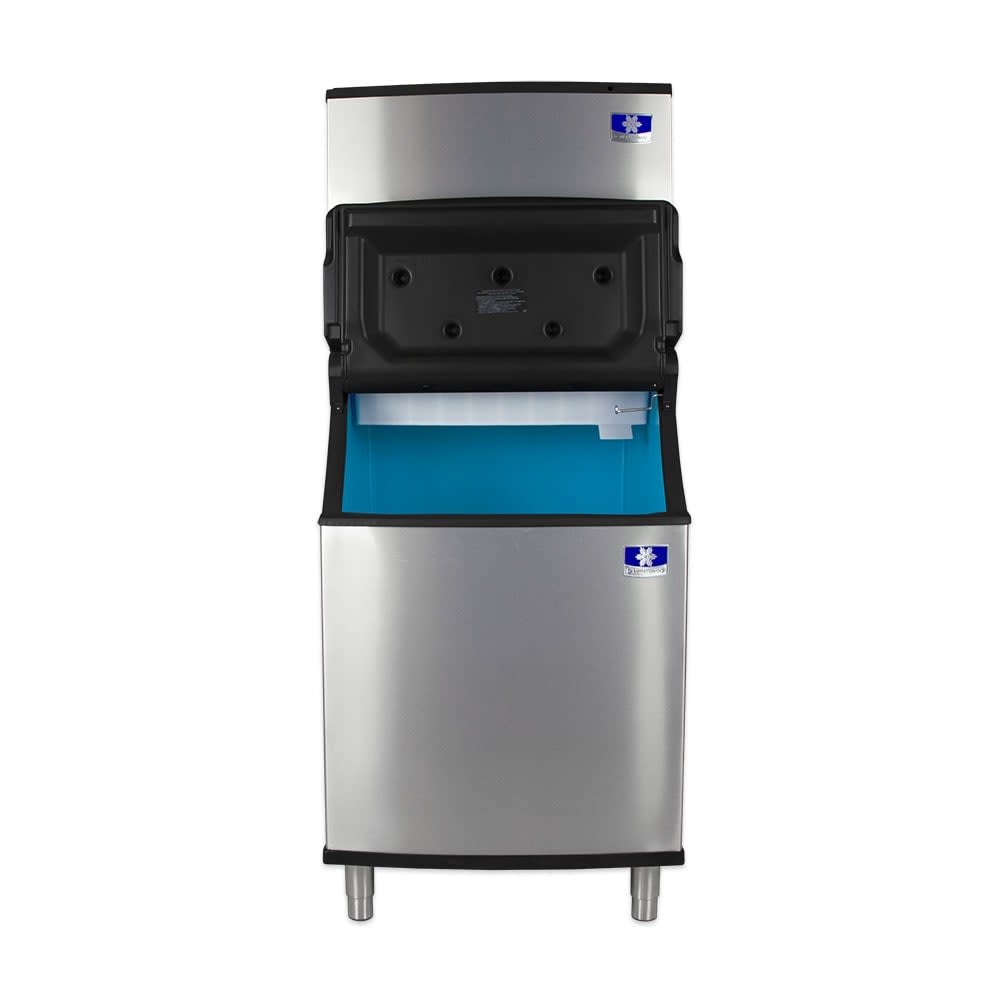

- Door is foam insulated to prevent ice from melting quickly
- Door latches open for convenience
- Smudge-resistant DuraTech finish
- Polyurethane artic blue bin liner
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0450W/D570 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21.5"H, production capacity up to 464 lb/24 hours at 70°/50° (399 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes,R290 refrigerant, NSF, cULus, CE
Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Manitowoc Ice IYP0450W/D570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 464 |
| Access | Lift Up Door |
| Also Known As | IYT0450W/D570 |
| Bin Capacity (lb) | 532 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 71.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 270.00 |
