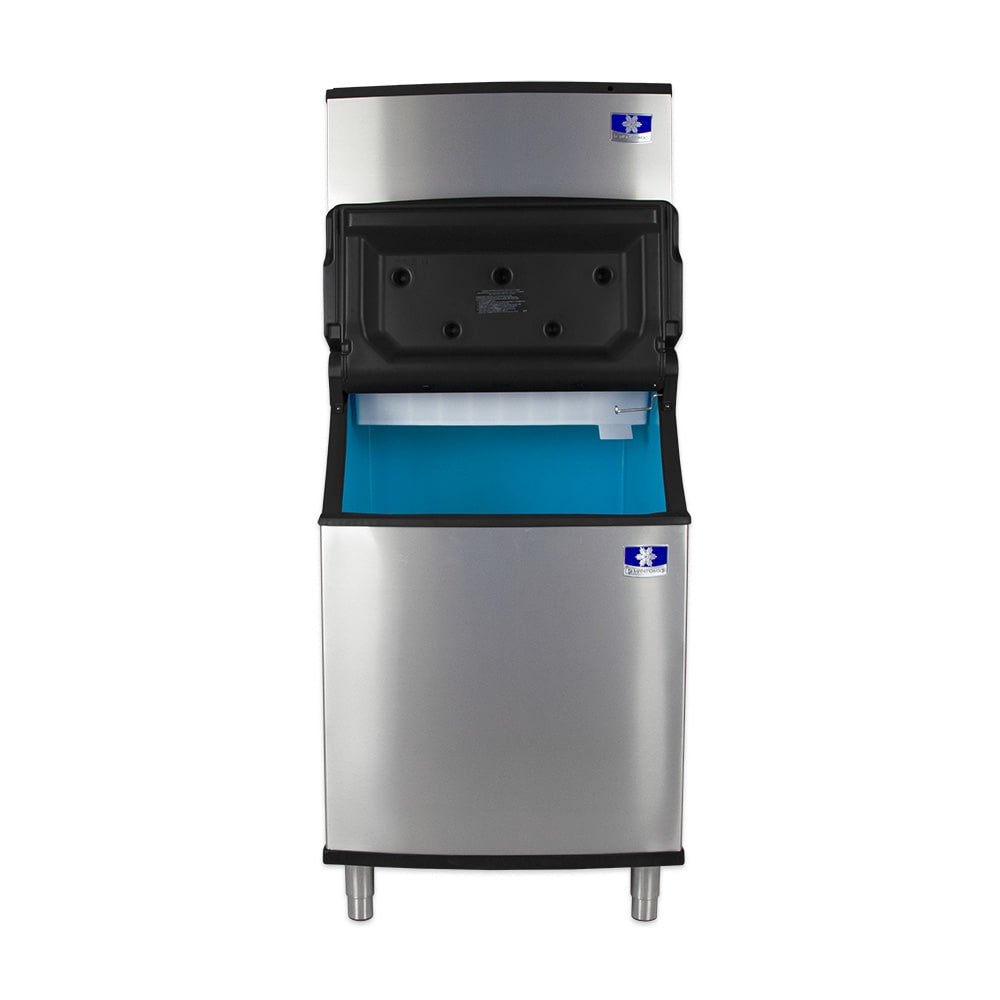

Manitowoc Ice IYT0450A/D570 490 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v

In a 24-hour period, the Manitowoc Ice IYT-0450A-161/D-570 Indigo NXT™ ice maker with bin can produce 490 pounds of half cube ice. On the easyTouch® display, the operator can program daily ice production to fit specific applications and time of day. Users can access the foodzone through the hinged front door. To simplify cleanup, some of the key components are removable or made with an AlphaSan® antimicrobial agent. Resistant to corrosion, the DuraTech exterior is strong and reduces fingerprint visibility.

A bin is included with the Manitowoc Ice IYT-0450A-161/D-570 ice maker, with a capacity of as much as 532 pounds. Scooping from the unit is simple since the self-latching door stays open. Its 53-degree door angle ensures the bottom of the bin is accessible. The built-in thumb and knuckle guard on the 5.3-pound-capacity scoop eliminates contact between the operator and ice.

Ice Maker Details

• Part of the Indigo NXT series
• 490-lb. maximum daily ice production
• 378-lb. AHRI-certified ice production
• Makes half dice ice
• Ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Icon-based easyTouch display
• Amount of ice produced is programmable based on volume or time of day
• Acoustical ice sensing probe measures ice thickness
• 24-hr. preventive maintenance and diagnostic feedback
• Hinged foodzone door swings out to provide access
• Removable water probe, water pump, distribution tube, curtain, and water trough
• Some of the components are made with AlphaSan antimicrobial to slow bacteria growth
• Corrosion-resistant DuraTech exterior keeps fingerprints hidden
• Uses R410A refrigerant
• Ambient air should be between 40-110 degrees F
• Incoming water should be between 40-90 degrees F
• 3,800-6,000 BTU

Product Features

Ice Storage Bin Details

• 532-lb. application capacity
• 430-lb. AHRI-certified capacity
• Ergonomic, 5.3-lb. ice scoop
• Built-in thumb and knuckle guard on the scoop helps prevent contamination
• Molded-in scoop retaining lip prevents ice from spilling out
• Grips on the door on the center, left, and right
• Self-latching door design keeps it open when scooping
• 53-degree door angle makes it simple to reach the bin bottom
• Foam-insulated door reduces condensation on the exterior
• Arctic blue, polyurethane interior liner

Dimensions & Utilities

• Ice maker: 30 in. W x 34 in. D x 71.5 in. H
• Bin: 30 in. W x 34 in. D x 50 in. H
• 11.9 A, 5.52 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

IYT-0450A Ice Maker: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 490 lb/24 hours at 70°/50° (378 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®, 115v/60/1ph; D-570 Ice Bin: Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, AHRI certified 532 lb ice storage capacity (17.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0450A/D570 Specifications
