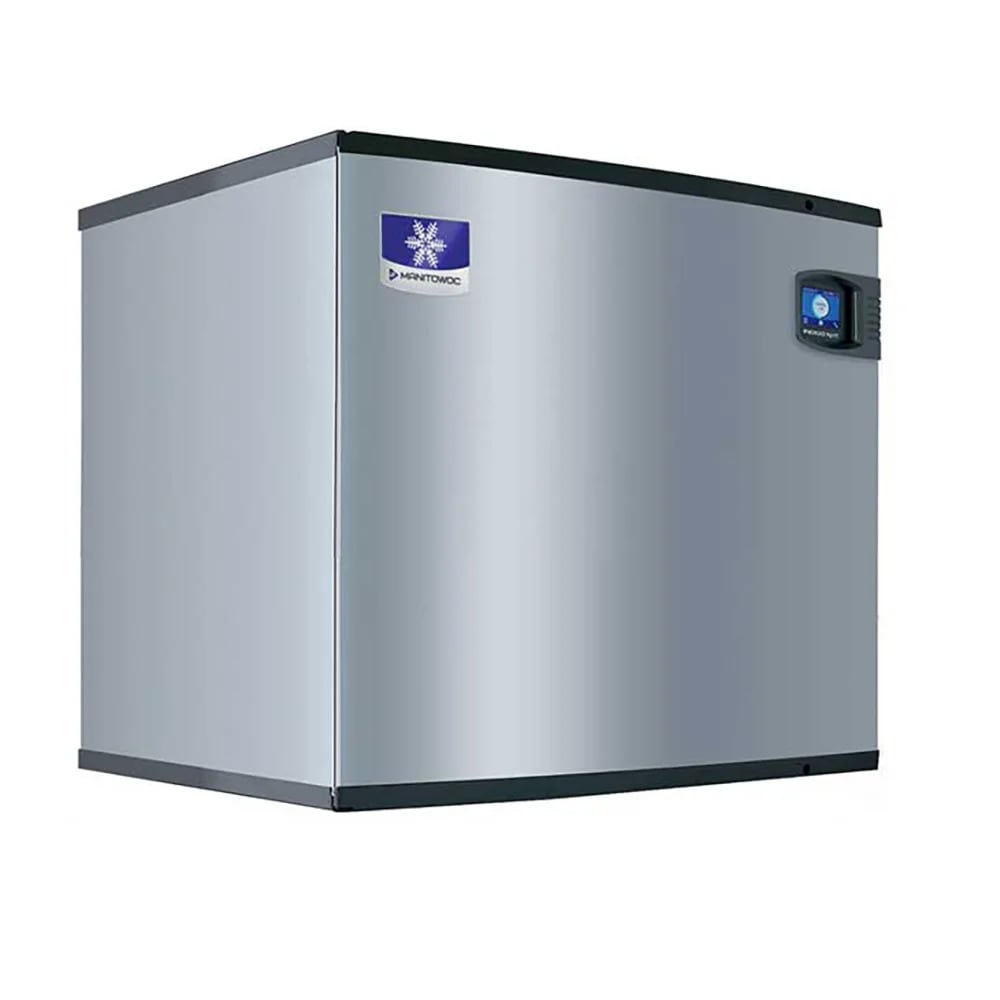

Manitowoc Ice IYF1800C 30" Indigo NXT™ QuietQube Half Cube Ice Machine Head - 1660 lb/24 hr, Remote Cooled, 115v/1ph

KaTom #: 399-IYF1800C161A • MPN: IYF1800C 161A
  • 399-IYF1800C161A Primary Thumbnail Image
  • 399-IYF1800C161A Multiple Thumbnail Image #1
  • 399-IYF1800C161A Multiple Thumbnail Image #2
  • 399-IYF1800C161A Multiple Thumbnail Image #3
  • 399-IYF1800C161A Multiple Thumbnail Image #4
  • 399-IYF1800C161A Multiple Thumbnail Image #5

Typically ships in 4 - 6 weeks

Free Shipping Item

$9,650.00 /Each

Contact us for details!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Ice Type: Half Cube

Full CubeFull Cube
Justin Brouhard User Image
Ask a Foodservice Equipment Specialist

Manitowoc Ice IYF1800C Description

Because of its remote design, the Manitowoc Ice IYF1800C 161A Indigo® NXT™ QuietQube® ice machine head requires a separate purchase of a Cool Vapor Defrost® (CVD) condensing unit, interconnecting refrigerant lines, and an ice storage bin. This head can produce between 1,440 and 1,660 pounds of half-cube ice in 24 hours, depending on ambient air and incoming water temperatures. Acoustical ice-sensing probes and the active-sense system monitor ice production to ensure consistently sized cubes are continuously harvested. Users can program production to halt during slow periods or increase during peak hours. Due to its remote structure, noise is minimized, so it can be used in kitchens or near customer seating without creating disruptions.

The Manitowoc Ice IYF1800C 161A ice maker head has a DuraTech® exterior, which provides corrosion resistance and features a clear coat that conceals unsightly fingerprints and dirt to ease cleaning. Users have full access to the foodzone by opening the hinged door, and key components such as the water trough, distribution tube, splash guard, water probe, and water pump can be removed for interior cleaning. Some parts are treated with AlphaSan® antimicrobial to slow bacterial growth between cleanings. Its front-mounted easyTouch® display features an accessible touchscreen design that provides diagnostic feedback, preventive maintenance updates, and temperature settings for smooth operation. Designed to fit on top of a separately sold ice storage bin, it measures 30 inches wide by 24 1⁄2 inches deep by 29 1⁄2 inches high.

  • Part of the Indigo NXT QuietQube series
  • Maximum daily ice production: 1,660 lbs.
  • AHRI-certified daily ice production: 1,440 lbs.

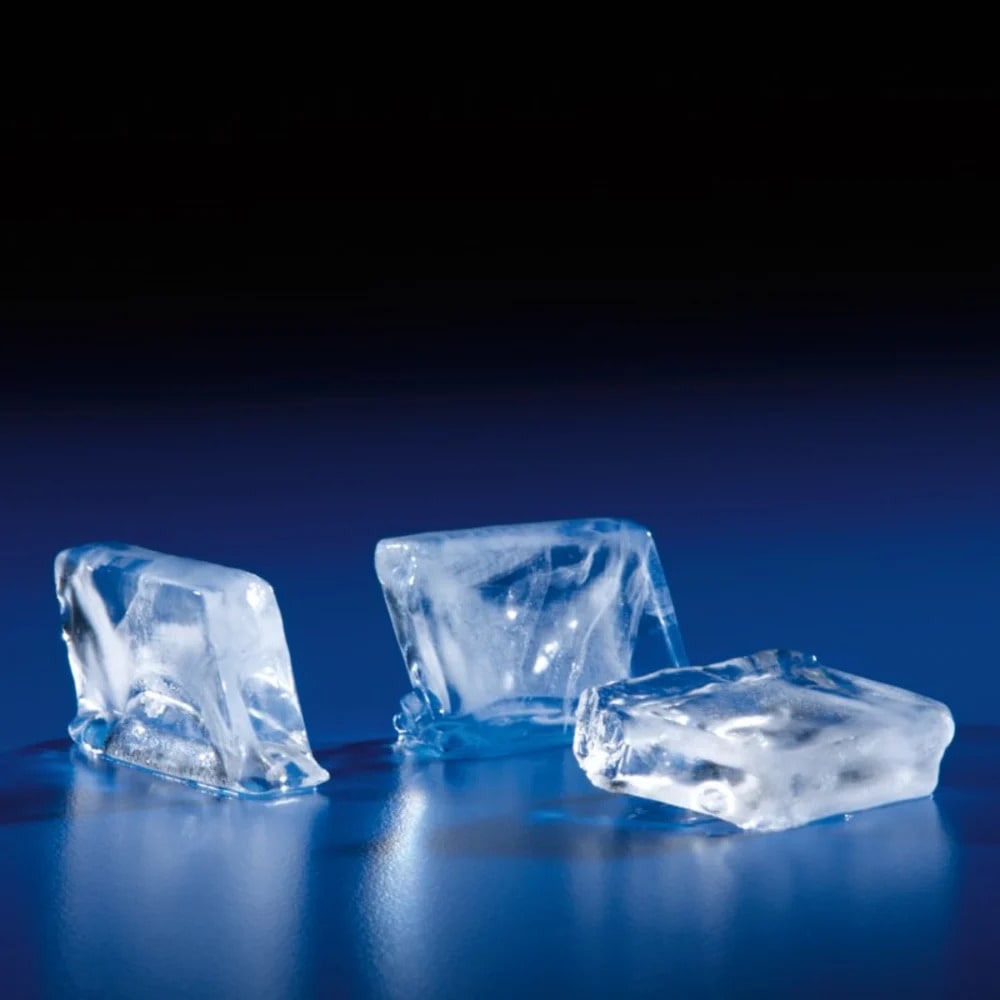

  • Produces half-cube ice

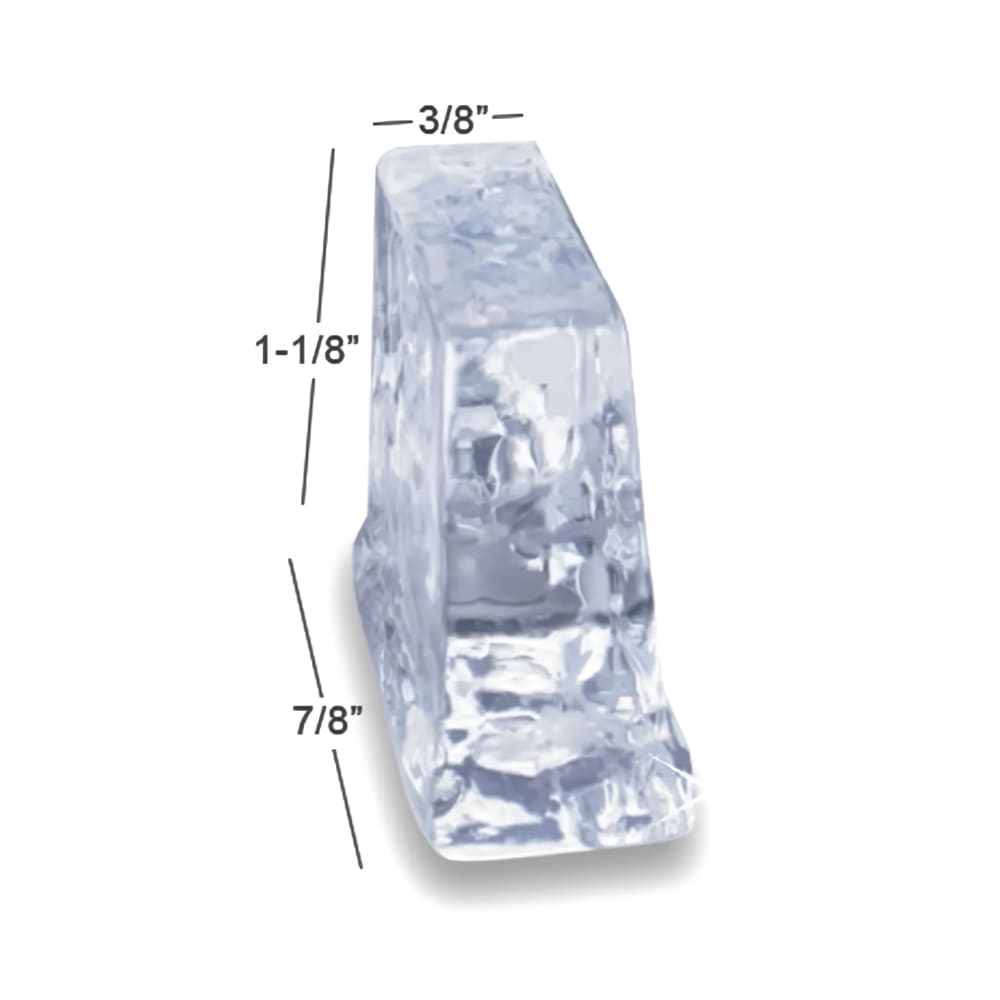

  • Half-cube ice size: 3⁄8 in. x 1 1⁄8 in. x 7⁄8 in.
  • Air-cooled unit
  • Requires separately sold CVD condensing unit, interconnecting refrigerant lines, and an ice storage bin
  • Compatible with the Manitowoc Ice CVDF1400 261A air-cooled remote condensing unit, Manitowoc Ice LB1760 ice bin, and the Manitowoc Ice D970 ice bin
  • Uses acoustical ice-sensing probes and active-sense technology
  • Quiet operation due to remote design
  • Programmable ice production based on time and volume
  • DuraTech exterior
  • Hung door provides access to removable components
  • 24-hour preventive maintenance and diagnostic feedback
  • easyTouch display
  • Required ambient air temperature range: 40-110 degrees F
  • Required incoming water temperature range: 40-90 degrees F
  • Required incoming water pressure range: 20-80 PSI

  • 30 in. W x 24 1⁄2 in. D x 29 1⁄2 in. H
  • 1.1 A, 4.49 kW
  • 115 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Manitowoc Ice IYF1800C within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Indigo NXT™ QuietQube Ice Maker, cube-style, air-cooled, designed for remote refrigeration (condensing unit and lines sold separately), 30”W x 24-1/2”D x 29-1/2”H, production capacity up to 1660 lb/24 hours at 70°/50°F (1440 lb AHRI certified at 90°/70°F), DuraTech™ exterior, half-dice sized cubes, CVD Technology, NSF, cULus, CE

Warranty Icon
3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor
