Built with an added exterior clear coating, the Manitowoc Ice IYT0300W/D570 ice machine with bin is resistant to scratches and fingerprint marks to maintain a neat, clean appearance through heavy use....

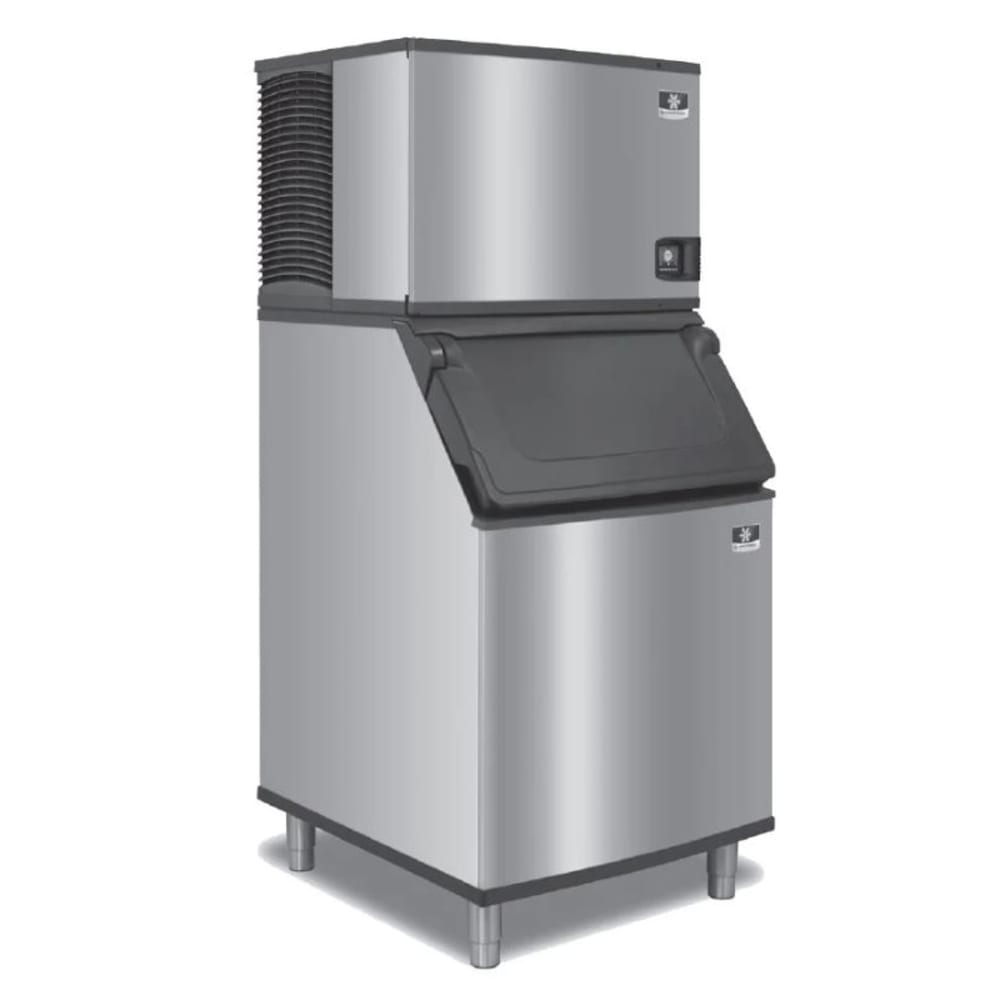

Manitowoc Ice IYF0300W/D570 310 lb Indigo NXT™ Half Cube Ice Maker w/ Bin - 532 lb Storage, Water Cooled, 115v
Manitowoc Ice IYF0300W/D570 Description
For consistent operation, the Manitowoc Ice IYF0300W/D570 half-cube ice maker with bin runs preventive maintenance and diagnostics 24 hours a day. Since the exterior is coated with DuraTech™, it is unlikely to smudge when touched and it resists corrosion. When the components need cleaning, the water trough, curtain, sensing probe, and distribution tube can be removed, while a special antimicrobial agent prevents bacteria from building up. The icon-based touchscreen empowers users to program the ice volume and off times to get the needed results.
To keep user hands out of the ice, the Manitowoc Ice IYF0300W/D570 Indigo NXT™ half-cube ice maker with bin includes a scooping handle with a knuckle-and-thumb guard. The bin's door has side grips to support opening from any direction and it does not slam shut on the user once open. The door is positioned at 53 degrees for accessible ice, even at the bottom of the bin. The bin is lined with polyurethane Artic Blue liner—a material that accentuates ice for quick scooping.
Ice Maker Details
- 310-lb. maximum daily ice production
- 260-lb. AHRI-certified daily ice production
- Half-dice ice size: 3⁄8 in. x 1 1⁄8 in. x 7⁄8 in.
- DuraTech exterior is unlikely to smudge or corrode
- Acoustic ice-sensing probe moves ice to the bin
- Front door swings open for foodzone access
- Runs diagnostics and maintenance 24 hrs. a day
- Small footprint for use with low ceilings
- Removable components for swift cleaning
- AlphaSan® antimicrobial keeps the unit bacteria free
- Self-contained condenser is water cooled for energy efficiency
- easyTouch® screen has icons for simple programming
- Programmable ice volume and production times
- R404A refrigerant
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSI
- 4,600 average BTU; 5,450 peak BTU
- Part of the Indigo NXT series
Ice Bin Details
- 532-lb. application capacity
- 17.9-cu.-ft. AHRI-certified capacity
- 5.3-lb.-capacity ice scoop is included
- Scoop has a knuckle-and-thumb guard for sanitary scooping
- Molding lip on the scoop maximizes holding size
- Insulated door stays open while ice is scooped
- Side grips on the door for opening from any angle
- Door is angled 53 degrees for access to the bottom of the unit
- Polyurethane Artic Blue bin liner accentuates clear ice
- DuraTech exterior resists fingerprint smudges
Dimensions & Utilities
- Bin: 30 in. W x 34 in. D x 50 in. H
- Ice maker: 30 in. W x 24.5 in. D x 16.5 in. H
- 5.5 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYF0300W/D570 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker w/ Bin, cube-style, water-cooled, self-contained condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 310 lb/24 hours at 70°/50° (260 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, NSF, cULus, CE; Ice Bin: 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, AHRI certified 532 lb ice storage capacity (17.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF
Manitowoc Ice IYF0300W/D570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 310 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 532 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 66.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Series | Indigo NXT™ |
| Special Features | Antimicrobial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator; 5-year Compressor Parts |
| Width (in) | 30 |
| Weight | 262.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice IYP0300W/D570 (Replacement)
Compare to Similar Items
| Attributes |
Manitowoc Ice IYF0300W/D570 Manitowoc Ice IYF0300W/D570 310 lb Indigo NXT™ Half Cube Ice Maker w/ Bin - 532 lb Storage, Water Cooled, 115v Current Item |
Manitowoc Ice IYP0300W/D570 |
|---|---|---|
| Customer Rating |
|
|
| Price | $5,812.00 / Each | |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 4 - 8 Business Days | |
| Ice Type | Half Cube | Half Cube |
| 24 Hr. Production (lb) | 310 | 310 |
| Width (in) | 30 | 30 |
| Bin Capacity (lb) | 532 | 532 |
| Compressor Type | Water Cooled | Water Cooled |
| Height (in) | 66.5 | 66.5 |
| Voltage | 115 | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator; 5-year Compressor Parts | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
