The air-cooled condenser in the Manitowoc Ice IYT0300A/D570 ice maker with bin is self-contained for simple installation and uses R404a refrigerant. Using an acoustic, ice-sensing probe and active sen...

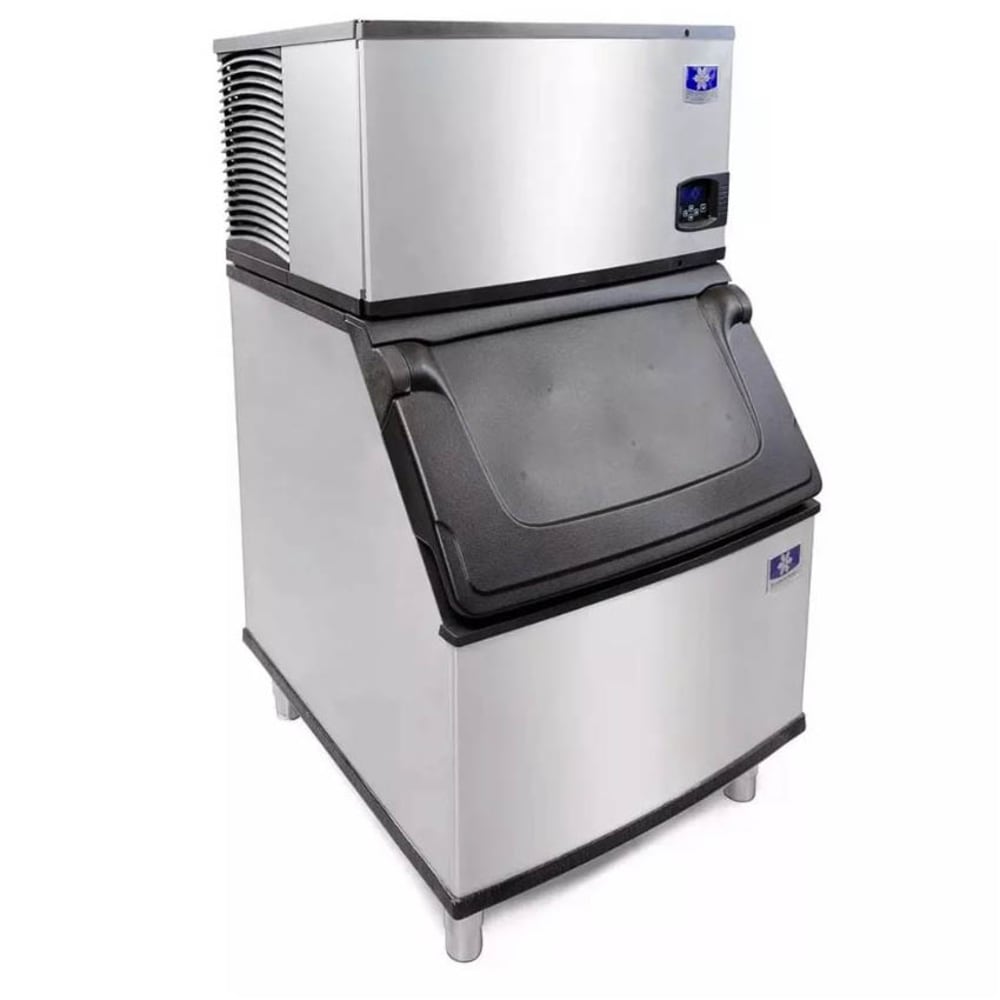

Manitowoc Ice IYF0300A/D570 325 lb Indigo NXT™ Half Cube Ice Maker w/ Bin - 532 lb Storage, Air Cooled, 115v
Manitowoc Ice IYF0300A/D570 Description
Great for restaurants and bars, the Manitowoc Ice IYF0300A/D570 ice maker and bin produces half-cube ice that measures 3⁄8 inch by 7⁄8 inch by 7⁄8 inch. In 24 hours, the unit can make 325 pounds, though this is dependent on ambient air and incoming water temperatures. Operators can also program ice production depending on their application, which can be based on time of day or volume.
After ice is harvested from the ice maker, it drops into the bin in this Manitowoc Ice IYF0300A/D570 ice machine head with bin. It holds as much as 532 pounds, and insulation in the door slows ice melting while reducing sweat on the outside. For opening, the door has grips on the sides and a stay-open design for convenient scooping. The bin comes with a scoop with a 5.3-pound capacity, while the scoop's hand guard keeps the user's knuckles and thumbs out of ice to prevent contamination. Easing cleaning, the bin interior has a polyurethane liner, while the exterior has a DuraTech™ finish that resists corrosion.
Ice Machine Details
- 325-lb. maximum daily ice production
- 240-lb. AHRI-certified daily ice production
- Makes half cubes that work well in mixed and soft drinks
- Half-cube ice size: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Air-cooled condenser
- Icon-based, user-friendly easyTouch® display
- Programmable by ice daily volume or production time
- 24-hr. preventive maintenance and diagnostic information
- Hinged food zone door on the front ensures users can access parts
- Removable sensing probes, curtain, distribution tube, and water trough
- AlphaSan® antimicrobial agent protects against quick bacteria growth
- Acoustical ice sensing probe ensures ice is the right size before harvesting
- Strong, corrosion-resistant DuraTech exterior
- R-404A refrigerant
- 4,600 average BTU; 5,450 peak BTU
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSI
Ice Storage Bin Details
- 532-lb. application capacity
- 17.9-cu.ft. AHRI-certified capacity
- Foam door insulation holds in cold air to slow melting
- Grips in each door side enable opening from any angle
- Door's self-latch keeps it open when users scoop
- Ergonomic scoop's knuckle and thumb guard keeps hands out of ice
- 5.3-lb. scoop capacity
- Blue polyurethane interior liner
- DuraTech exterior finish
Dimensions & Utilities
- Ice Machine
- 30 in. W x 24.5 in. D x 16.5 in. H
- 10.8 A, 6.95 kW
- 115 V/60 Hz/1 ph
- Ice Storage Bin
- 30 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYF0300A/D570 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker w/ Ice Bin, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 325 lb/24 hours at 70°/50° (240 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, NSF, cULus, CE; Ice Bin: 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, AHRI certified 532 lb ice storage capacity (17.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF
Manitowoc Ice IYF0300A/D570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 325 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 532 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 66.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Series | Indigo NXT™ |
| Special Features | Antimicrobial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator; 5-year Compressor Parts |
| Width (in) | 30 |
| Weight | 262.00 |
