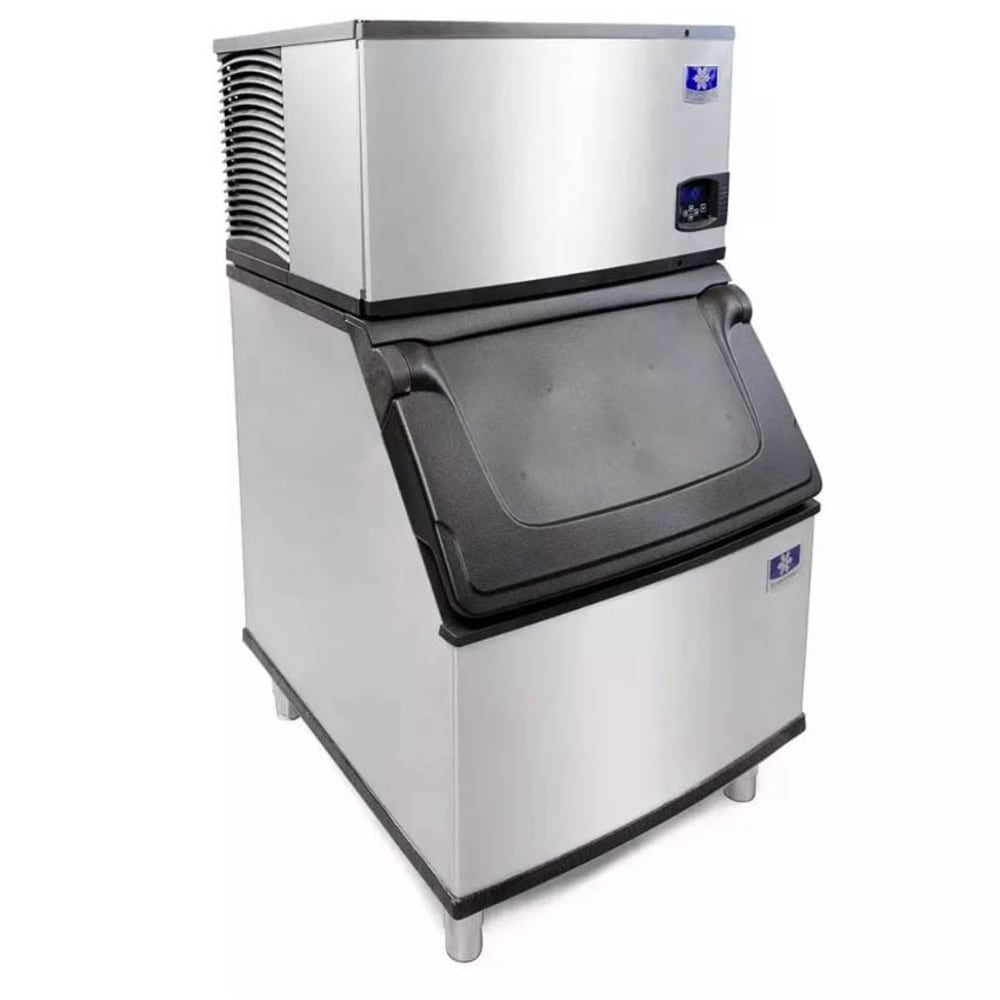

Manitowoc Ice IYF0300A/D400 325 lb Indigo NXT™ Half Cube Ice Maker w/ Bin - 365 lb Storage, Air Cooled, 115v

In a day, the Manitowoc Ice IYF0300A/D400 ice machine and bin can produce 325 pounds of half-cube ice, which is smaller than full cubes and works best with soft and mixed drinks. To suit different situations based on a necessary volume or time of day, the unit’s ice production can be adjusted and programmed. Cooled with air, the unit operates with fans that drop the temperature of the refrigerant so it can remove heat and freeze water. After ice cubes form, they are harvested and dropped into the bin, while the ice maker's components are accessible behind the food zone door and can be removed to ease the cleaning process.

As much as 365 pounds of ice can be stored in this Manitowoc Ice IYF0300A/D400 half-cube ice maker with bin. The interior is lined with polyurethane—a material that resists corrosion and eases cleaning—while the exterior has a DuraTech™ finish that matches the ice machine head. Ensuring convenient opening, the bin door has grips on every side, and because the door self-latches, users can lock it in place while they are scooping. A scoop with a 5.3 pound capacity is included with the bin, which has a built-in sanitation guard to eliminate contact between ice and the employee's hands.

Ice Machine Details

• 325-lb. maximum daily ice production
• 240-lb. AHRI-certified daily ice production
• Produces half-cube ice
• Half-cube ice size: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
• Air-cooled condenser motor
• User-friendly, icon-based easyTouch® display
• Programmable ice production volume or time
• 24-hr. diagnostic feedback and preventive maintenance
• Food zone has a hinged front door for component access
• Removable water trough, curtain, distribution tube, and sensing probes
• AlphaSan® antimicrobial agent reduces bacteria growth
• Acoustical ice sensing probe measures ice thickness before cubes are harvested
• Corrosion-resistant DuraTech exterior eases cleaning
• Uses R-404A refrigerant
• 4,600 average BTU; 5,450 peak BTU
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI

Ice Bin Details

• 365-lb. application capacity
• 12.3-cu.ft. AHRI-certified capacity
• Foam insulation in the door retains cold air to keep ice solid and reduce condensation
• Side grips in the door for opening at any angle
• Door has a self-latch to keep it open for scooping
• Sanitary, ergonomic scoop has a knuckle and thumb guard that prevents hand contact with ice
• 5.3-lb. scoop capacity
• Blue polyurethane bin liner
• DuraTech finish

Dimensions & Utilities

• Ice Machine
  • 30 in. W x 24.5 in. D x 16.5 in. H
  • 10.8 A, 6.95 kW
  • 115 V/60 Hz/1 ph
• Ice Bin
  • 30 in. W x 34 in. D x 38 in. H
