Manitowoc Ice IRT-0500W 30" Indigo NXT™ Large Cube Ice Machine Head - 500 lb/24 hr, Water-Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 399-IRT0500W161 • MPN: IRT-0500W 161
Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Price: $3,173.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Manitowoc Ice IRT-0500W Description

Manitowoc Ice

The Manitowoc IRT-0500W ice machine head produces regular cube ice that measures 1.125 inches by 1.125 inches by 0.875 inches. As much as 500 pounds of cube ice is made every 24-hour cycle. Adjustable settings enable the operator to program the ice machine head for when and how much ice is produced. An acoustical sensor probe checks to make sure the ice is a consistent size before releasing it to the bin.

A blue illuminated easyTouch® display shows the operating status, reminds the operator to clean the machine, and provides information about the unit. Diagnostics run every 24 hours to help prevent maintenance issues. The front door is hinged and easily opens for access to the food zone. To help prevent the growth of harmful bacteria, an AlphaSan® antimicrobial is built into some components in the Manitowoc IRT-0500W ice maker. A DuraTech® coating is on the stainless steel exterior for corrosion and scratch resistance.

Product Details

  • Condensing unit is cooled with water
  • Produces as much as 500 lbs. daily
  • Feedback from diagnostics run every 24 hrs. help prevent maintenance issues
  • Ice thickness is measured by an acoustical ice-sensing probe
  • easyTouch display is simple to use since it is icon based
  • Daily production of ice can be programmed or shut down for certain times
  • Front door is hinged and swings out for access to interior components
  • Sensing probes, distribution tube, water trough, and curtain are removable for cleanup
  • AlphaSan antimicrobial agent is built into some components to prevent the growth of bacteria
  • DuraTech exterior coating resists corrosion and fingerprints
  • Uses R410A refrigerant
  • Ambient temperature range for operation: 40-110 degrees F
  • Water temperature range for operation: 40-90 degrees F
  • 3,800-6,000 BTU
  • 4.3 kW, 10.8 A
  • 115 V/60 Hz/1 ph

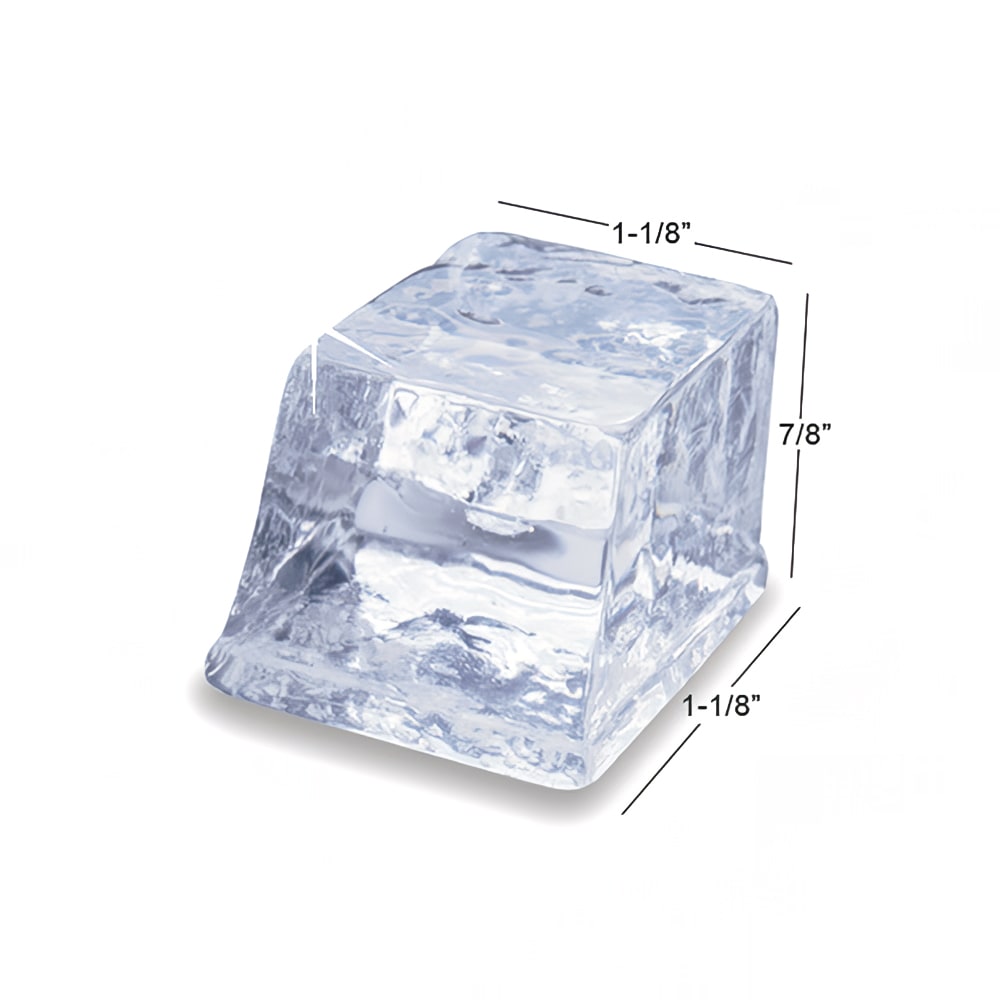

  • Ice dimensions: 1.125 in. W x 1.125 in. D x 0.875 in. H
  • Overall dimensions: 30 in. W x 24 in. D x 21.5 in. H
  • CE approved; California Low Lead qualified; cULus listed; AHRI and NSF certified
  • Note: a bin is required for operation and plug and cord are not included

Additional information on ice makers can be found in the commercial ice machine buyers' guide.

Product Features

Manitowoc irt0500w161 Features

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 500 lb/24 hours at 70°/50° (406 lb AHRI certified at 90°/70°), DuraTech™ exterior, regular size cubes, R410A refrigerant, NSF, cULus, CE, 115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Manitowoc Ice IRT-0500W Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
24 Hr. Production (lbs) 500 lbs
Compressor Type Water Cooled
Depth (in) 24
Height (in) 21.5
Ice Type Extra-large Cube
Specialty Options Antimicrobial System
Specialty Options Digital Controls
Width (in) 30
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor
Production Range (per day) 300-899 lb
Also Known As IR-0501W
Hertz 60
Voltage 115
Phase 1
Product Type Ice Machines
Product Ice Machine Head
Weight 158.00
Manitowoc Ice IRT-0500W Certifications
  • UL
  • NSF
