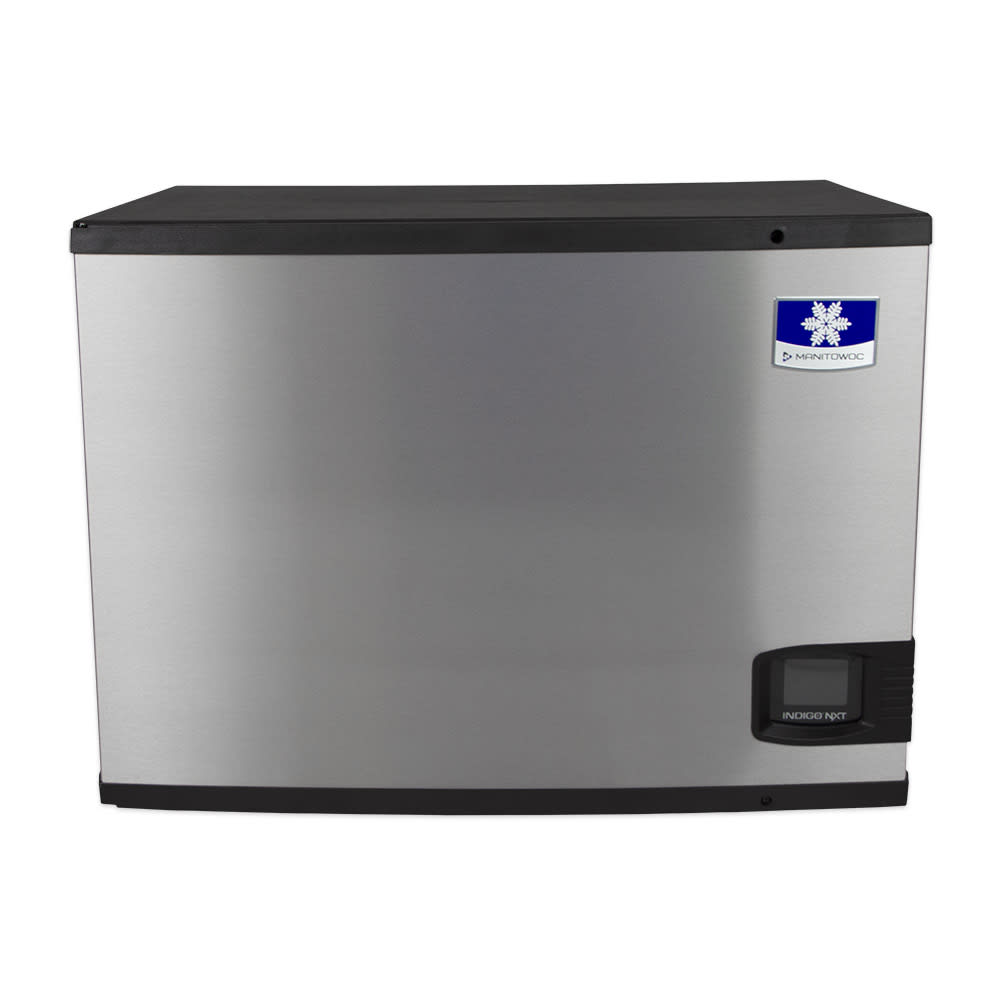

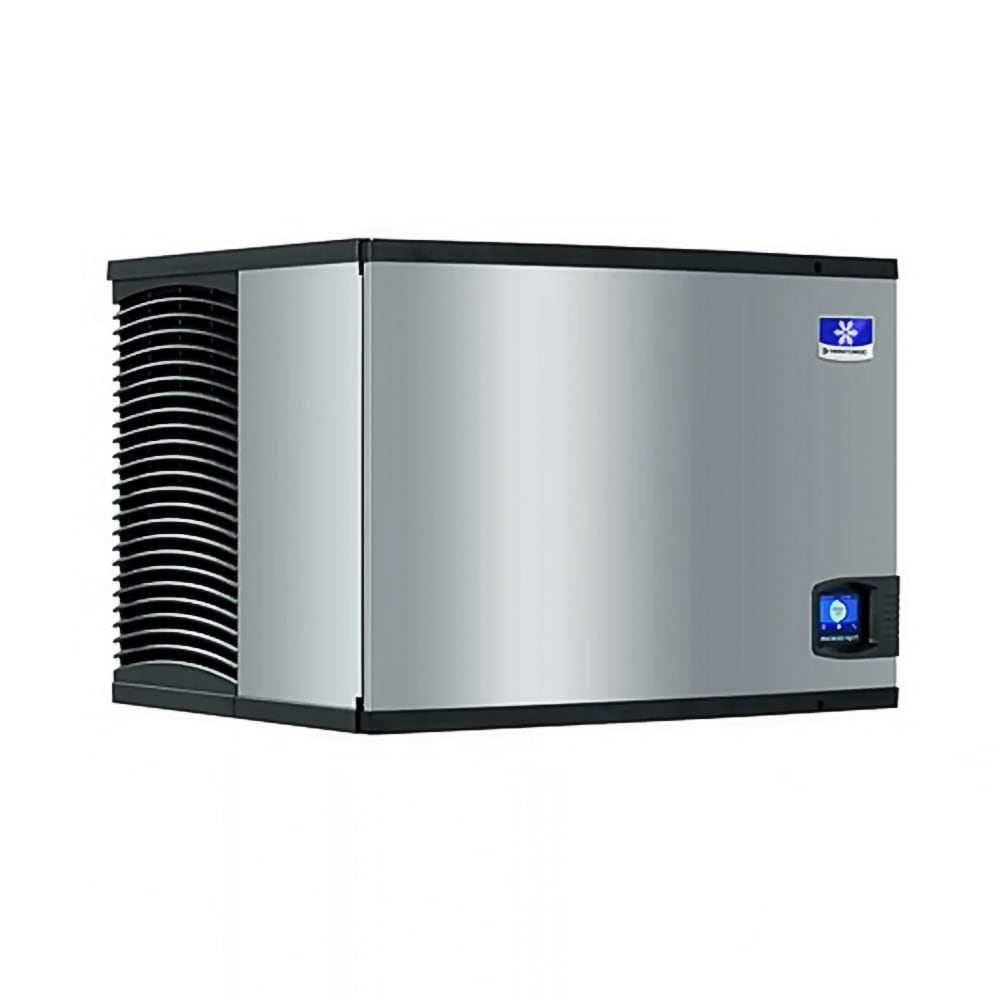

Manitowoc Ice IRT0500A 30" Indigo NXT™ Large Cube Ice Machine Head - 509 lb/24 hr, Air Cooled, 115v/1ph
Typically ships in 1 - 3 Business Days
$4,563.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Manitowoc Ice IRT0500A Description
The Manitowoc IRP0500A Indigo NXT™ ice machine head has an air-cooled condensing unit and can produce 509 pounds of regular-size ice cubes every day. To suit different applications and fit into the hours of any operation, the ice production can be programmed. Ice thickness is measured by a sensing probe, ensuring it's the ideal size. Operation is simple with the easyTouch® display, and the unit runs 24-hour preventive maintenance and gives diagnostic feedback. It has a stainless steel exterior, and with a DuraTech® container, it resists dirt and fingerprints.
A front door on the Manitowoc IRP0500A ice maker head swings open so the foodzone can be cleaned. Inside, a water trough, distribution tube, curtain, water probe, and water pump can be removed for deep cleaning. In between cleanings, certain components remain sanitized with the AlphaSan® antimicrobial agent. Able to fit on top of a D-400 or D-570 ice storage bin, this ice maker is 30 inches wide, 24 inches deep, and 21.5 inches high.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Indigo NXT series
- Air-cooled condensing unit is self-contained
- Maximum daily production: 509 lbs. per 24 hours
- AHRI-certified production: 411 lbs. per 24 hours

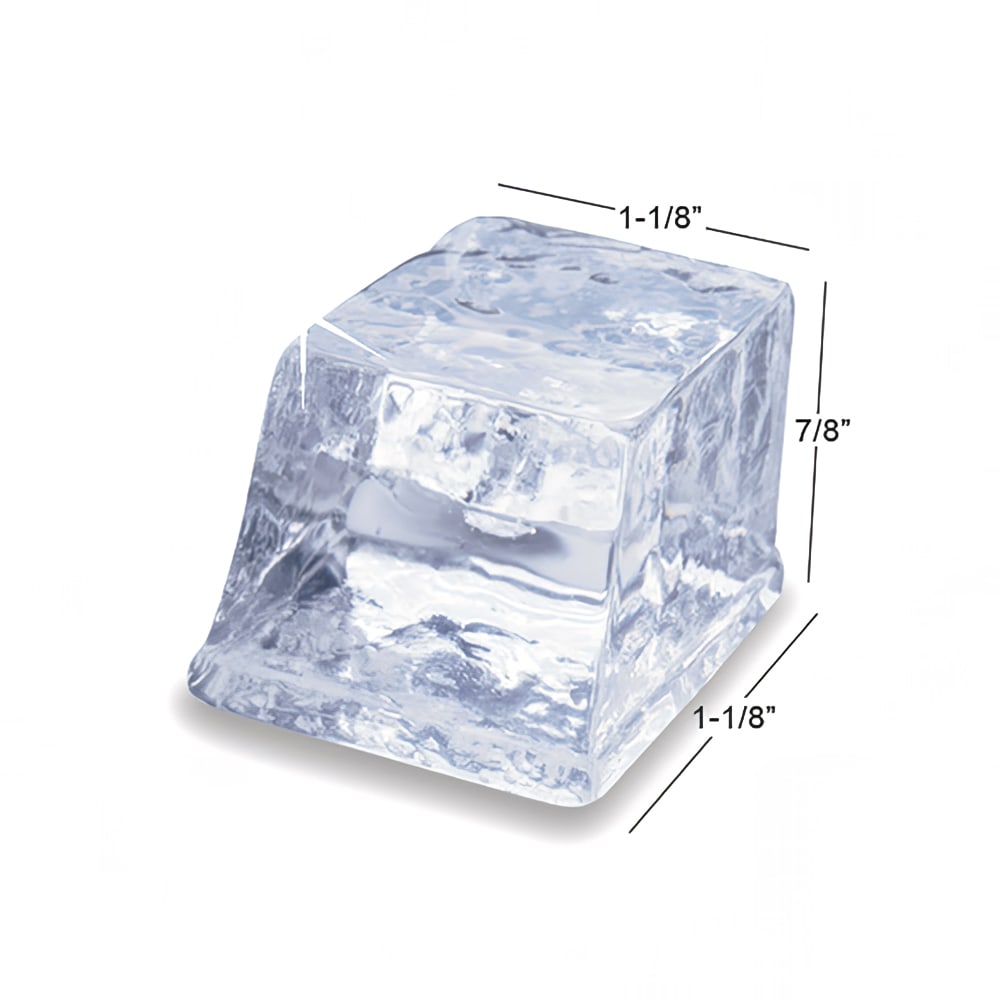

- Ice size: 1.13 in. x 1.13 in. x 0.88 in.
- Programmable ice production
- Acoustical ice-sensing probe
- Date and time display with 1-touch asset information access
- Automatic accessory detection and continuous operating status
- Cleaning cycle is activated with 1 touch
- Simple-to-use easyTouch display
- 24-hour preventive maintenance
- Accessible foodzone components through front door
- Removable curtain, distribution tube, water pump, water trough, and water probe
- Built-in AlphaSan® antimicrobial on some foodzone components
- DuraTech coating on stainless steel construction
- Ice bin is sold separately
- Uses R290 refrigerant
- Ideal incoming air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F

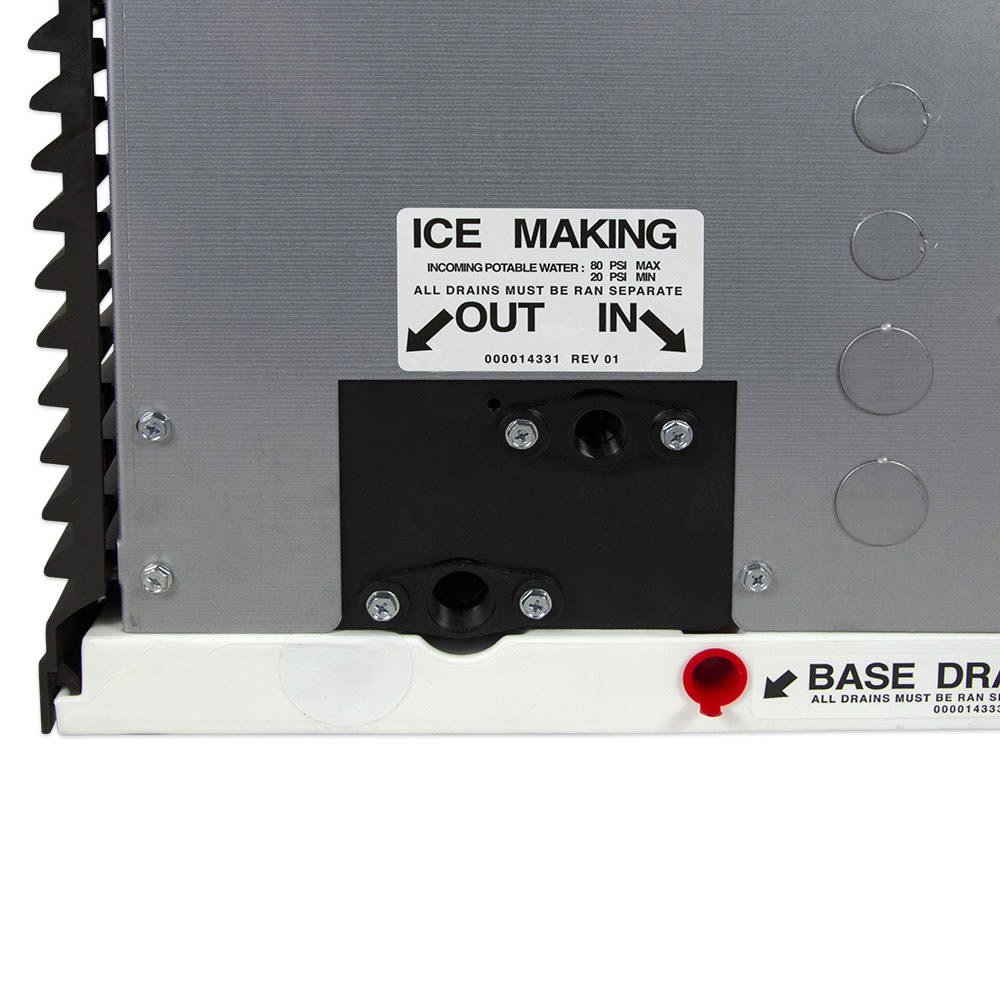

- Ideal incoming water pressure: 20-80 PSI
- 3,800-BTU heat capacity transfer
- 30 in. W x 24 in. D x 21.5 in. H
- 11.5 A, 5.04 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IRT0500A within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21.5"H, production capacity up to 509 lb/24 hours at 70°/50° (411 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, regular size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Watch a video about this product
Manitowoc Ice IRT0500A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 509 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 21.5 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 162.00 |
