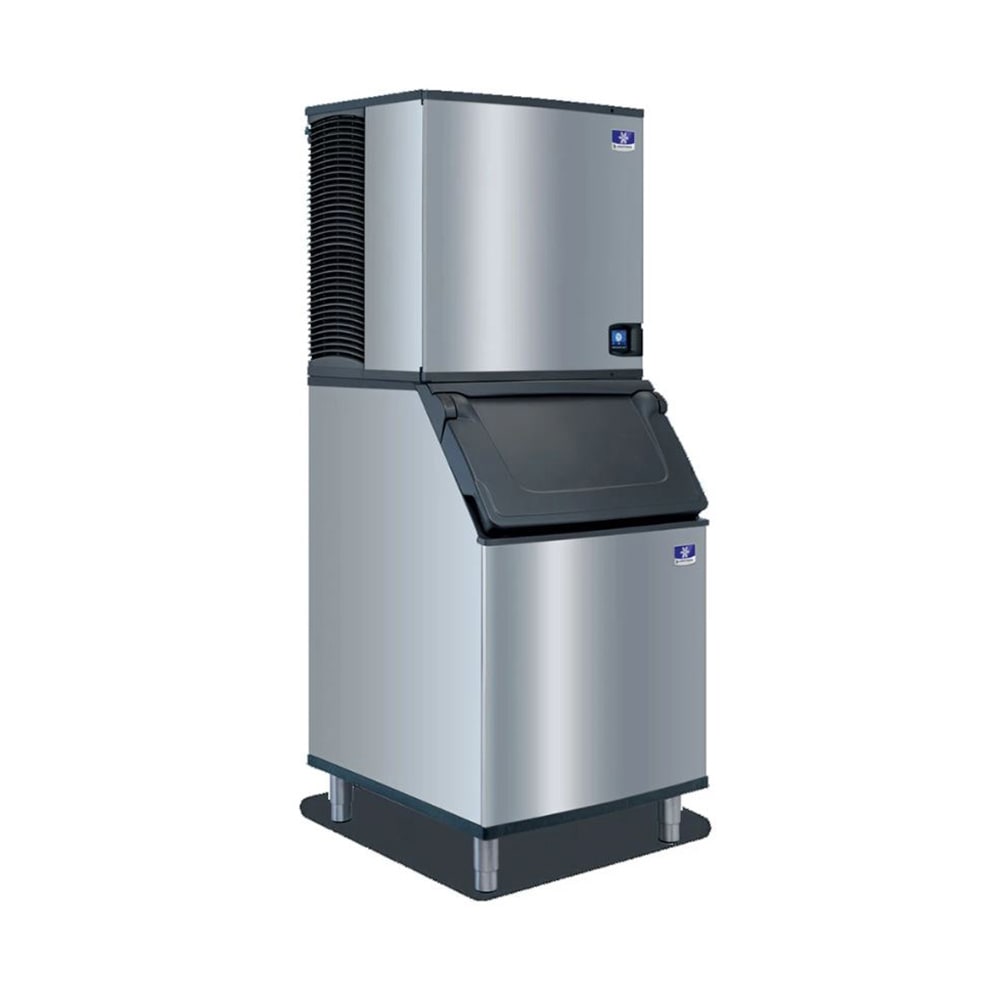

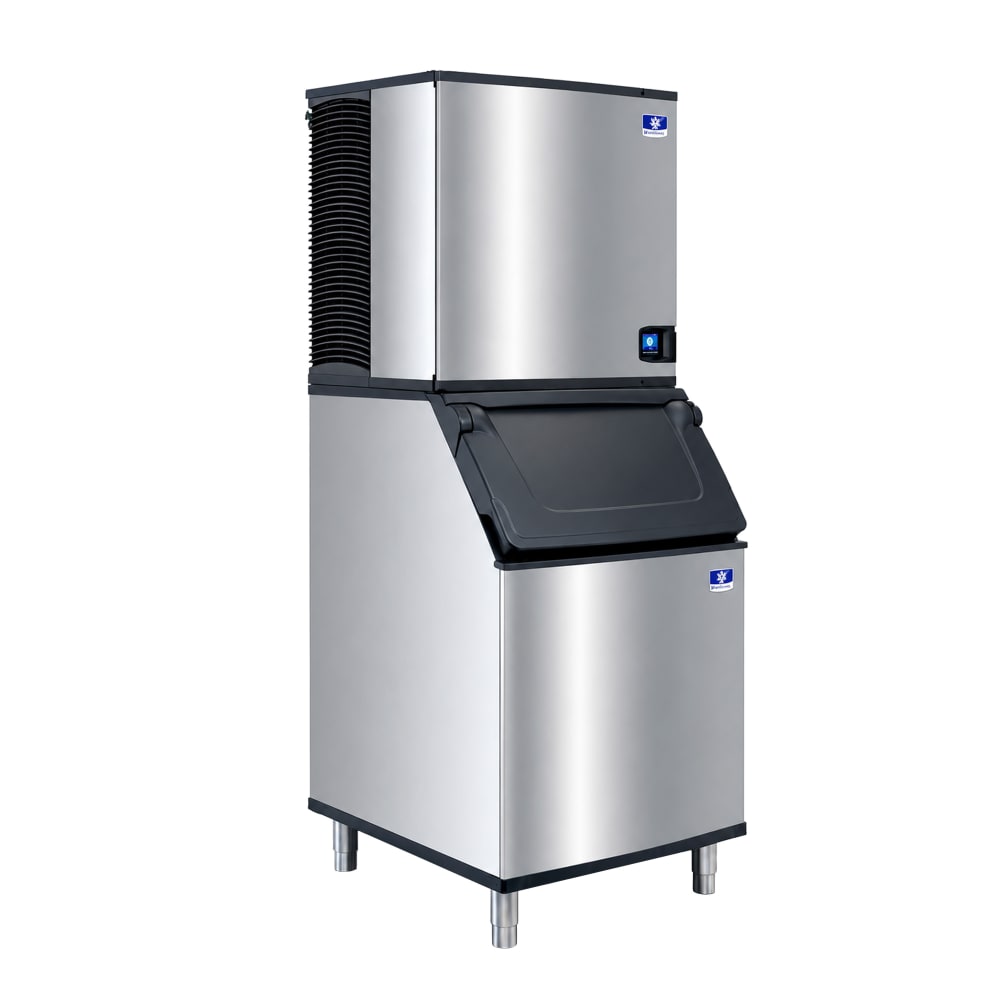

Manitowoc Ice IDT0900W/D970/K00470 780 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 882 lb Storage, Water Cooled, 208-230v

A water-cooled unit, the Manitowoc Ice IDT0900W/D970 ice maker and bin can efficiently produce as much as 780 pounds of ice in an hour. It makes dice ice—large square cubes that melt slowly—and an ice-sensing probe monitors the cubes to ensure each one measures ⁷/₈ of an inch on all sides. After production, ice falls into the storage bin below where it stays frozen and awaits use. The bin door stands at a 53-degree angle for convenient ice access and automatically latches in an open position. To ensure ice tastes pure, this unit has a built-in holder that stores the scoop above the ice level, preventing germs on the frequently touched handle from contaminating the ice. Additionally, the scoop has guards over the knuckle and thumb, creating a barrier between the ice and hands.

If the Manitowoc Ice IDT0900W ice machine needs cleaning or maintenance, it notifies the user on the easyTouch® display. To clean the unit, users can swing open the front panel and remove several parts from the foodzone, including the sensing probe, curtain, water trough, and distribution tube. Reducing bacterial growth between cleanings, components in the foodzone are made with AlphaSan® protection.

Ice Maker Details

• Part of the Indigo NXT™ series
• Maximum daily ice production: 780 lbs.
• AHRI-certified daily ice production: 665 lbs.
• Ice-sensing probe enables consistent results
• Dice ice cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Icon-based easyTouch display screen
• System runs continuous diagnostics and provides preventative maintenance alerts
• Production can be programmed based on time of day and daily quota
• DuraTech™ exterior resists corrosion
• Hinged front door enables foodzone access
• Foodzone components can be removed to ease cleaning
• Several parts protected with AlphaSan antimicrobial agent
• Water-cooled condenser is quieter than air-cooled models
• R410A refrigerant
• 12,700 average BTU; 14,800 peak BTU

Ice Bin Details

• 882-lb. capacity
• 29.7-cu.-ft. interior
• DuraTech finish resists smudges, fingerprints, and corrosion
• Angled, self-latching door provides clear access when scooping ice
• Thumb guard keeps hands out of the ice during scooping
• Internal ice scoop holder

Ideal Operating Conditions

• Clearances: 5 in. at back, 8 in. at top and sides
• Water pressure: 20-80 PSI
• Incoming water temperature: 40-90 degrees F
• Ambient air temperature: 40-100 degrees F

Dimensions & Utilities

• Ice maker: 30 in. W x 24¹/₂ in. D x 26¹/₂ in. H
• Bin: 48 in. W x 34 in. D x 50 in. H
• Overall: 48 in. W x 34 in. D x 76¹/₂ in. H
• 8.8 A, 4.02 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IDT0900W/D970/K00470 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 780 lb./24 hours at 70°/50° (665 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, ENERGY STAR®

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (K00470) Bin Adapter, for 30" Indigo, Indigo NXT, RFF, RNF, ice machine on a 48" B or D-970 bin

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT0900W/D970/K00470 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
