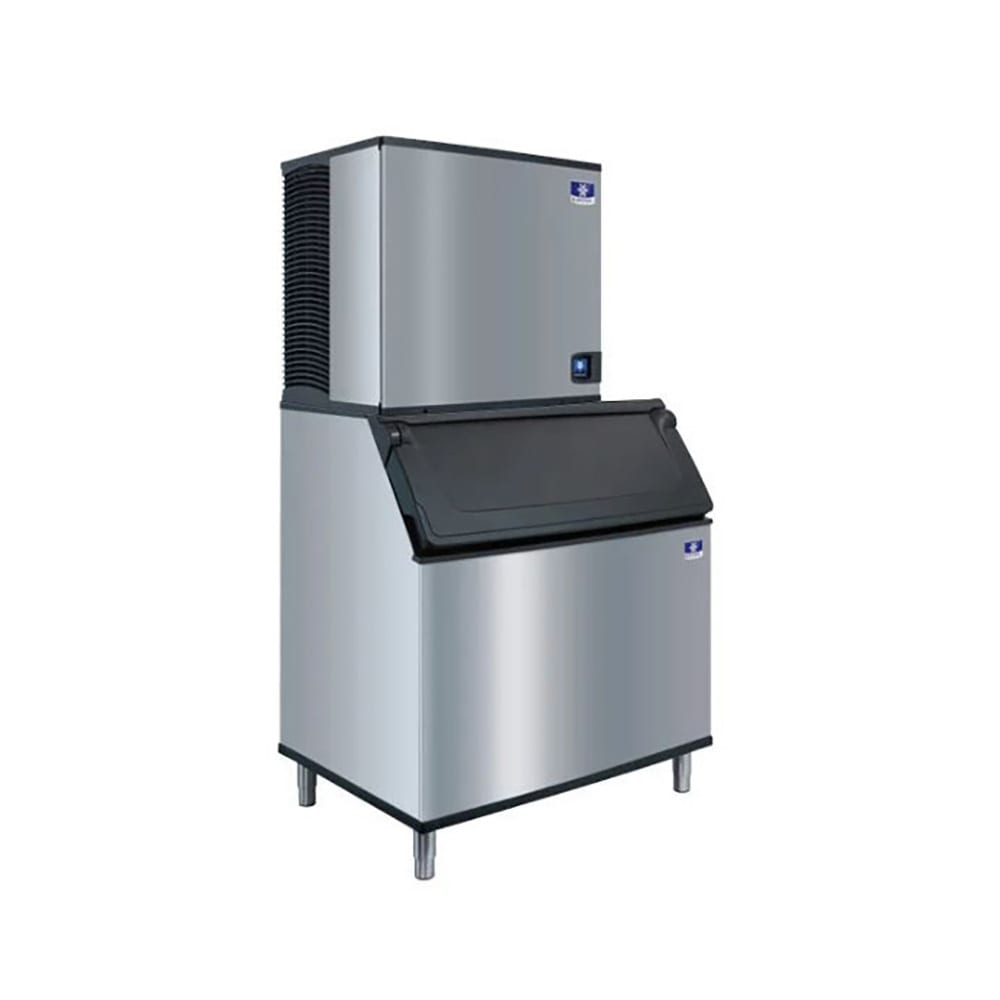

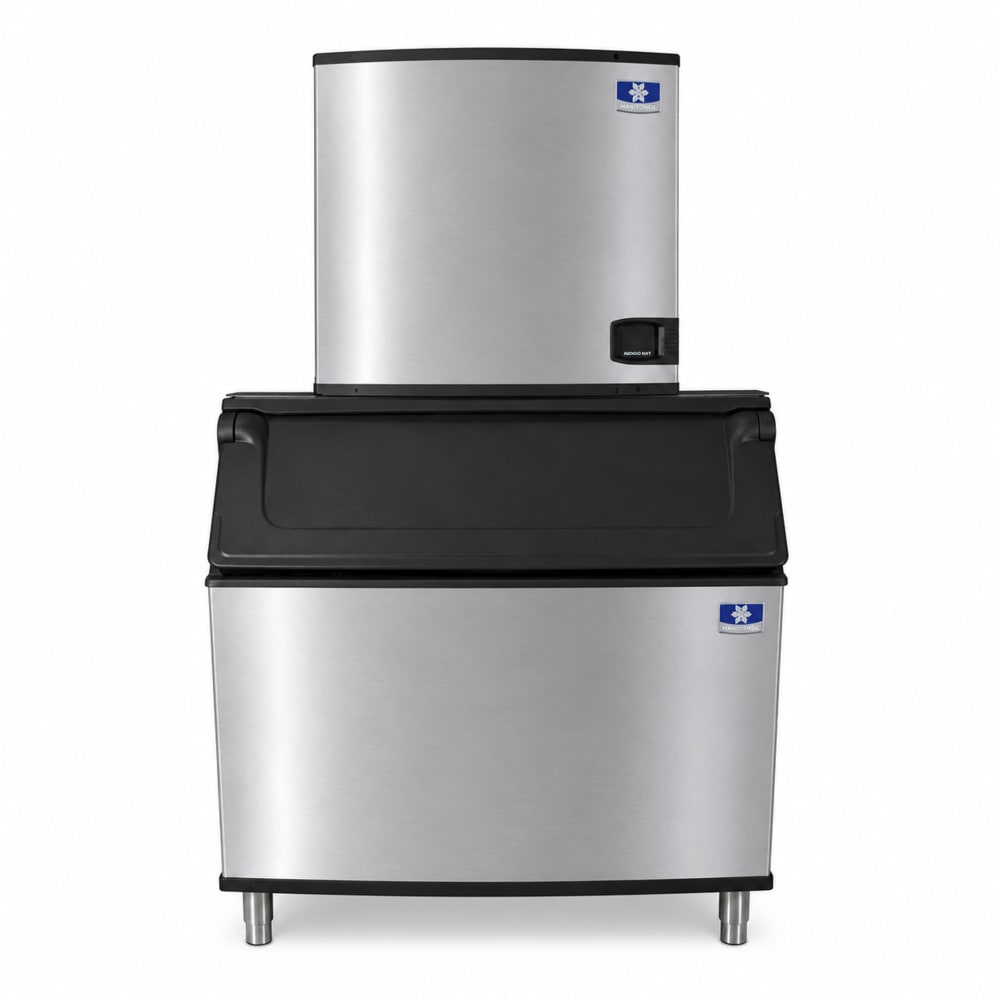

Manitowoc Ice IDT0900A/D970/K00470 851 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 882 lb Storage, Air Cooled, 208-230v

The Manitowoc Ice IDT0900A/D970 Indigo NXT™ full-cube ice maker can be programmed to turn off at certain times and make a set amount of ice on a touchscreen display. Ice cube thickness is regulated using an acoustic ice sensing probe, and for optimized scooping, the insulated door of the bin stays open and is angled at 53 degrees. For comfort, the scoop includes a knuckle and thumb guard to fit in the user's hand, and a holder enables the scoop to be stored safely.

Both the bin and head of the Manitowoc Ice IDT0900A/D970 ice machine have a DuraTech™ construction to resist smudges and fingerprints, creating an attractive unit. This ice maker provides preventive maintenance and diagnostics 24 hours per day for constant operation. To streamline cleaning, the distribution tube, curtain, sensing probes, and water trough are removable for attention and care.

Ice Maker Details

• Part of the Indigo NXT series
• Air-cooled system
• 851-lb. maximum daily ice production
• 695-lb. AHRI-certified daily ice production
• Smudge-resistant exterior keeps the unit clean
• Active Sense keeps unit operating in all environments
• Ice is sensed acoustically and pushed into bin using a probe
• Time and ice volume programmable
• Average: 12,700 BTU
• Peak: 14,800 BTU
• Icon-based touchscreen for controls
• Diagnoses and maintains all day
• Produces dice ice measuring ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Ambient temperature range: 40-100 degrees F
• Water temperature range: 40-90 degrees F
• Incoming water pressure: 20-80 PSI
• Uses R410A refrigerant

Ice Bin Details

• 882-lb. application capacity
• DuraTech metal finish resists dirt
• Polyurethane blue bin liner
• Door safely stays open while scooping
• 53-degree angled door for ice access
• Door can be gripped from any side
• Built-in scoop holder
• Scoop with knuckle and thumb guard
• Molded retaining lip supports maximum scooping

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24.5 in. D x 26.5 in. H
• 9.5 A
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 48 in. W x 34 in. D x 50 in. H

*Free shipping on Manitowoc Ice IDT0900A/D970/K00470 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 851 lb./24 hours at 70°/50° (695 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (K00470) Bin Adapter, for 30" Indigo, Indigo NXT, RFF, RNF, ice machine on a 48" B or D-970 bin

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT0900A/D970/K00470 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
