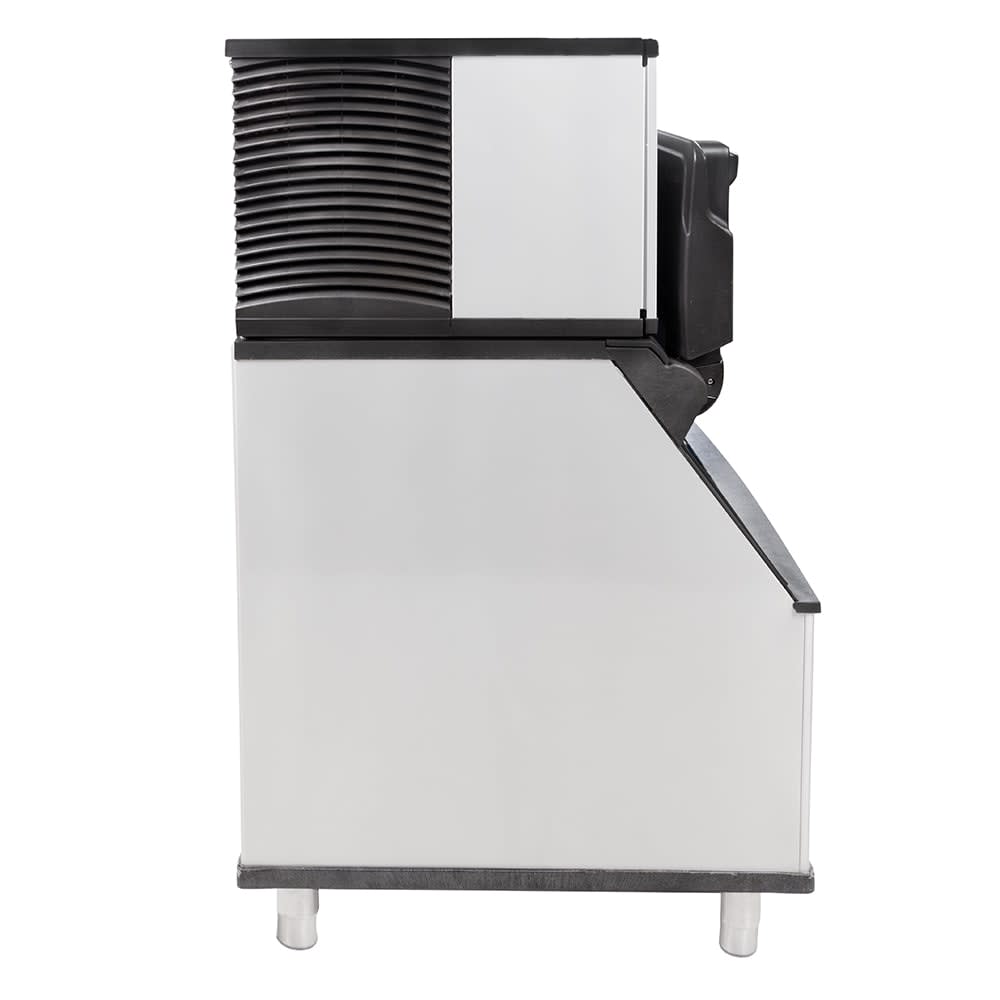

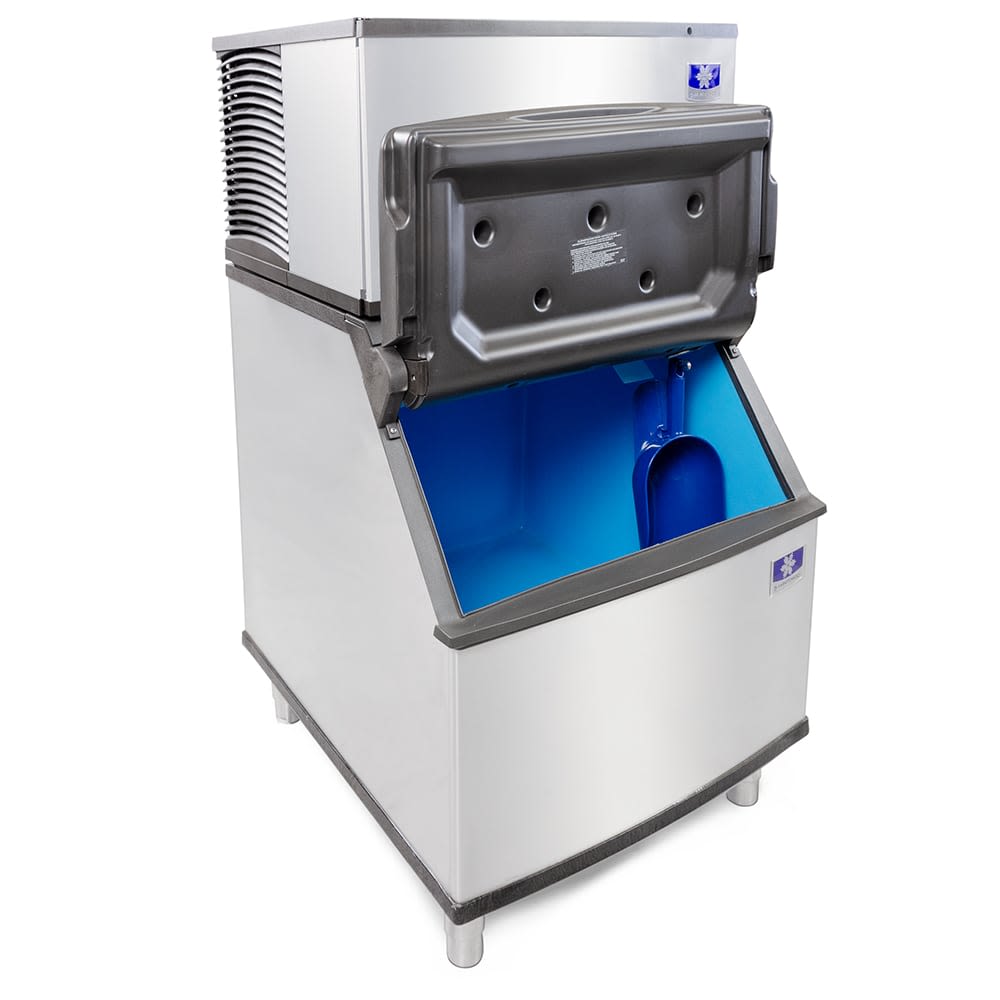

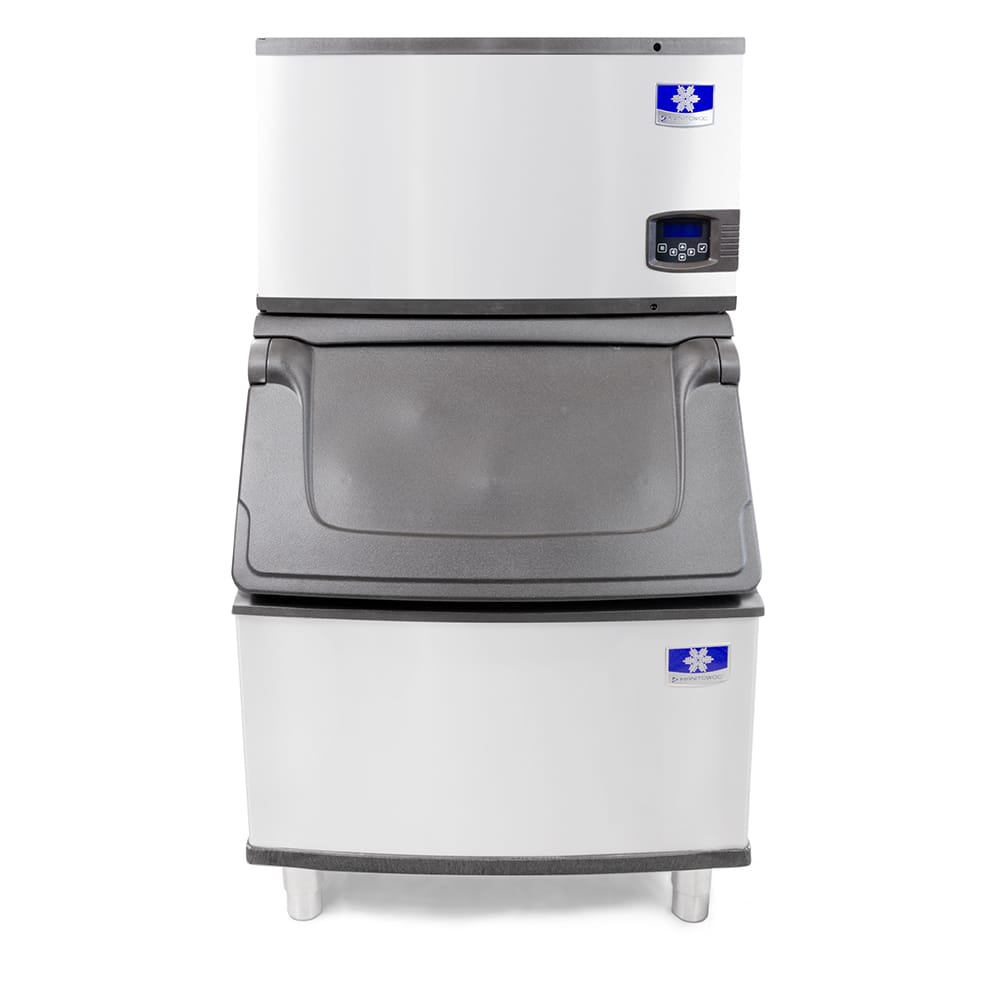

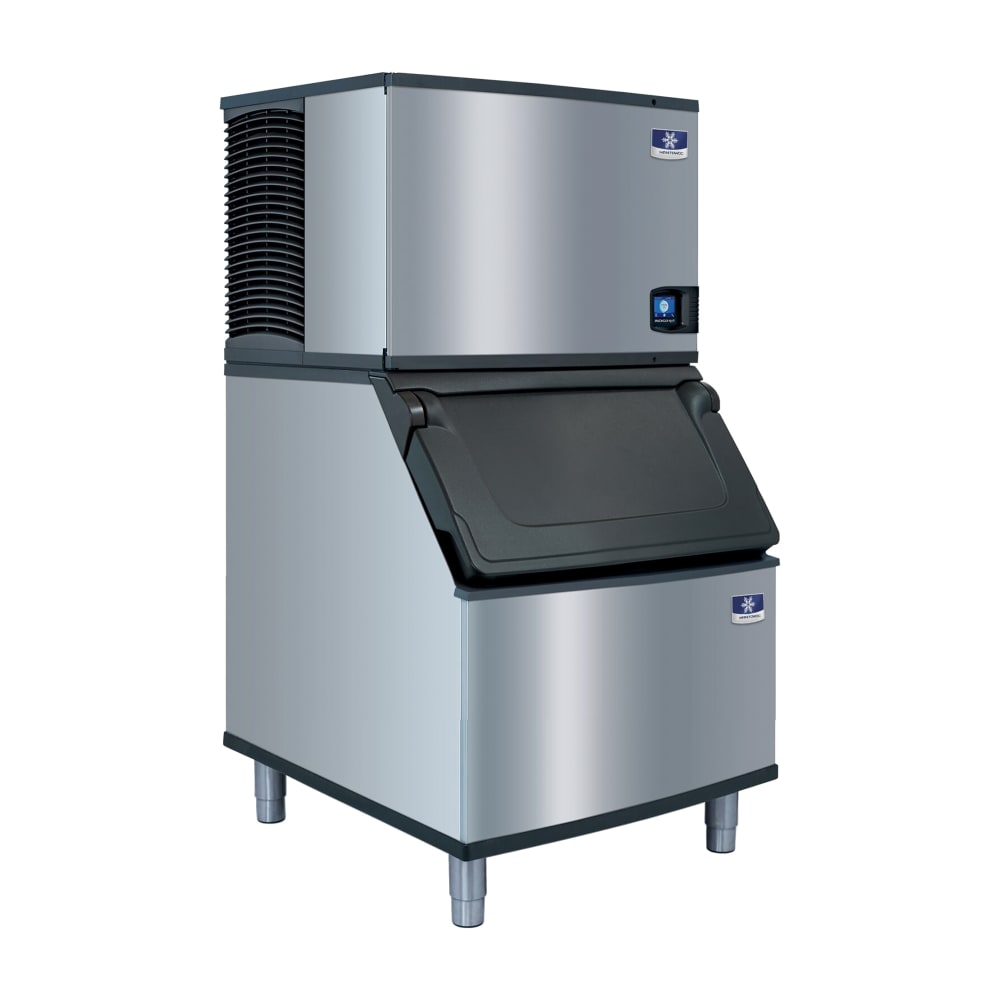

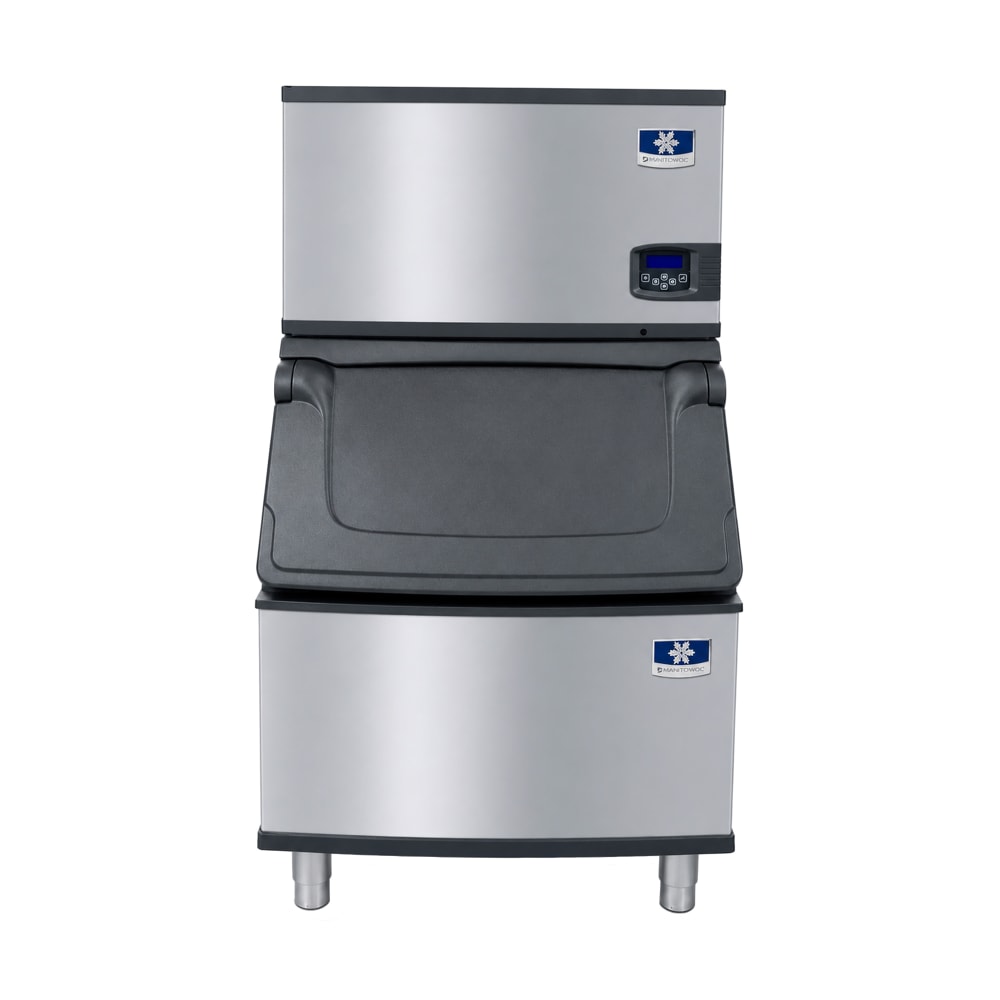

Manitowoc Ice IDT0450W/D400 430 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 365 lb Storage, Water Cooled, 115v

The Manitowoc Ice IDT-0450W-161/D-400 ice maker with bin can make 430 pounds of ice in 24 hours; production can be programmed to suit specific applications. Ice thickness is checked by a probe to ensure all the cycles are consistent. The front door to the food zone swings out, making it easy for the operator to access the components. Some of these parts are removable to simplify cleanup. An antimicrobial agent is integrated into the ice maker to reduce the risk of bacteria growth. The bin accommodates 365 pounds and has foam insulation in the door that slows melting. A 5.3-pound-capacity ice scoop is included. Its built-in guard keeps hands out of ice.

Ice Maker Details

• Water-cooled condensing unit
• 430-lb. ice production capacity
• 360-lb. AHRI-certified ice production capacity

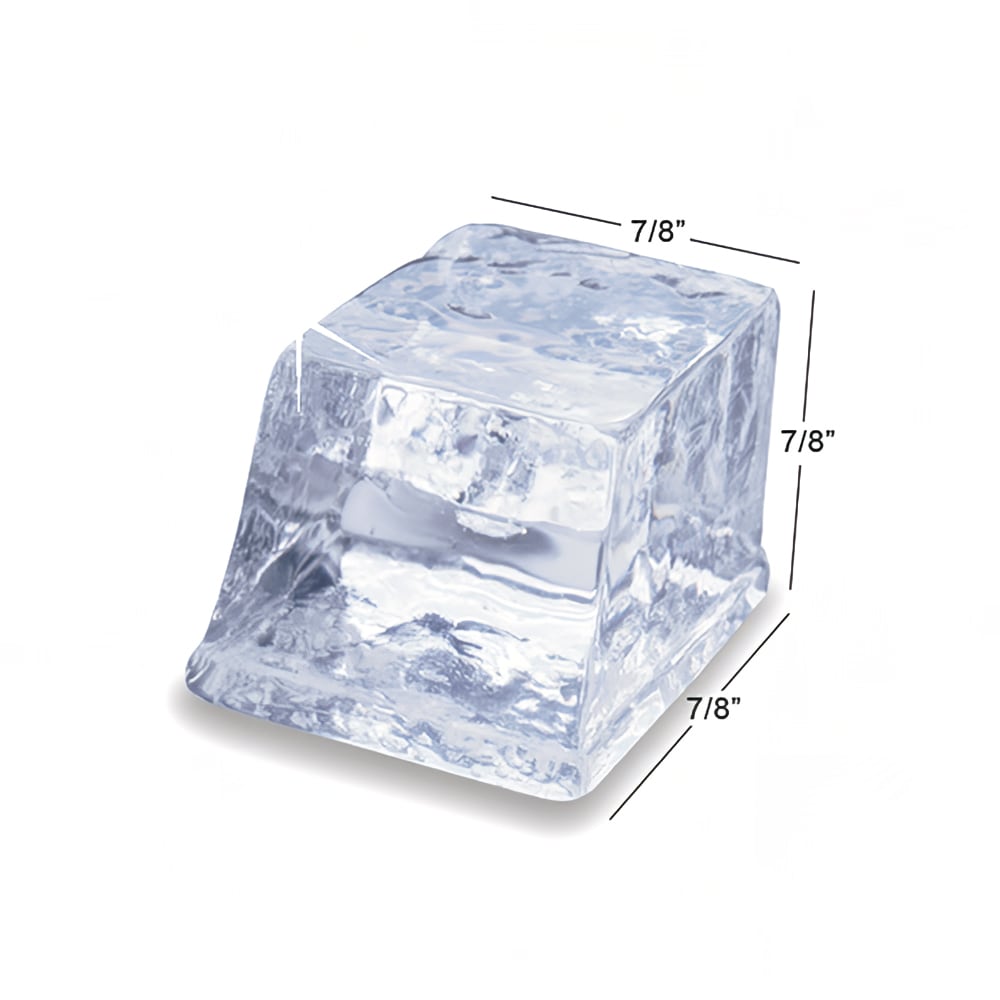

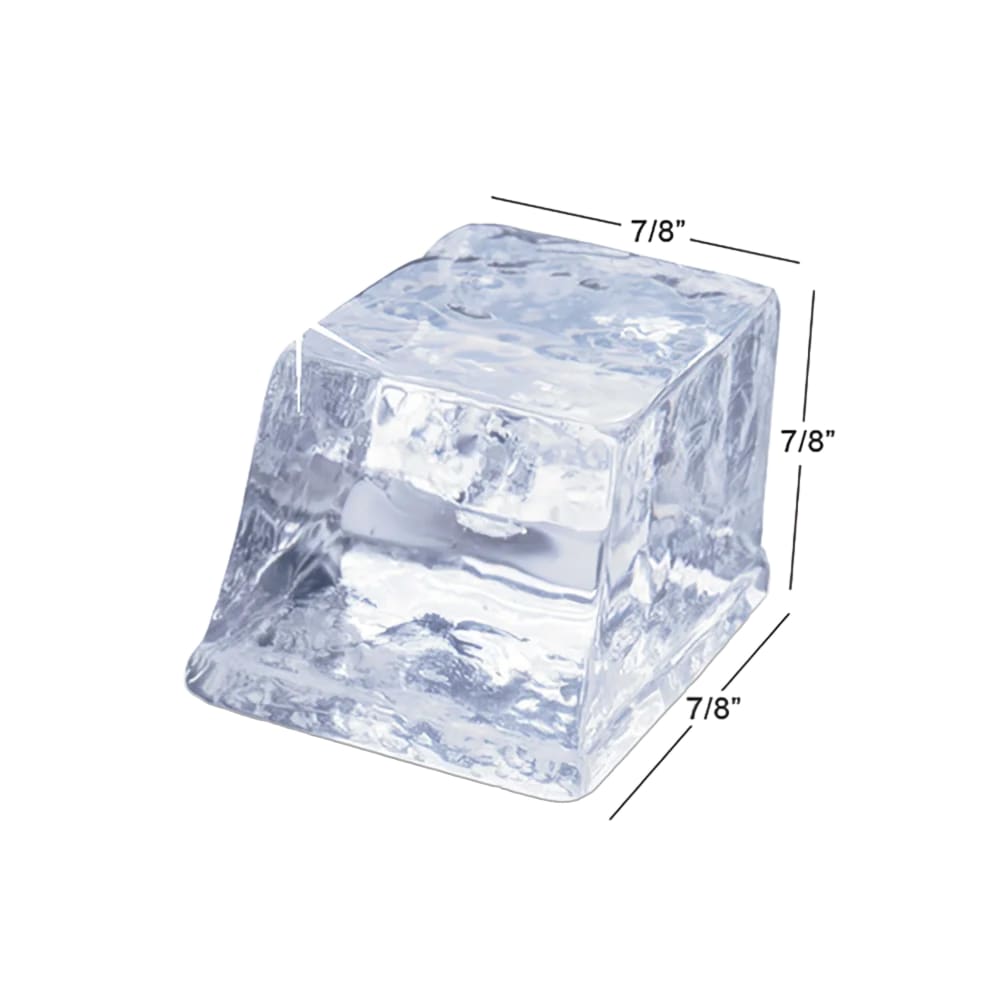

• Dice ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Programmable ice production time or volume
• Acoustical ice sensing probe measures thickness and consistency

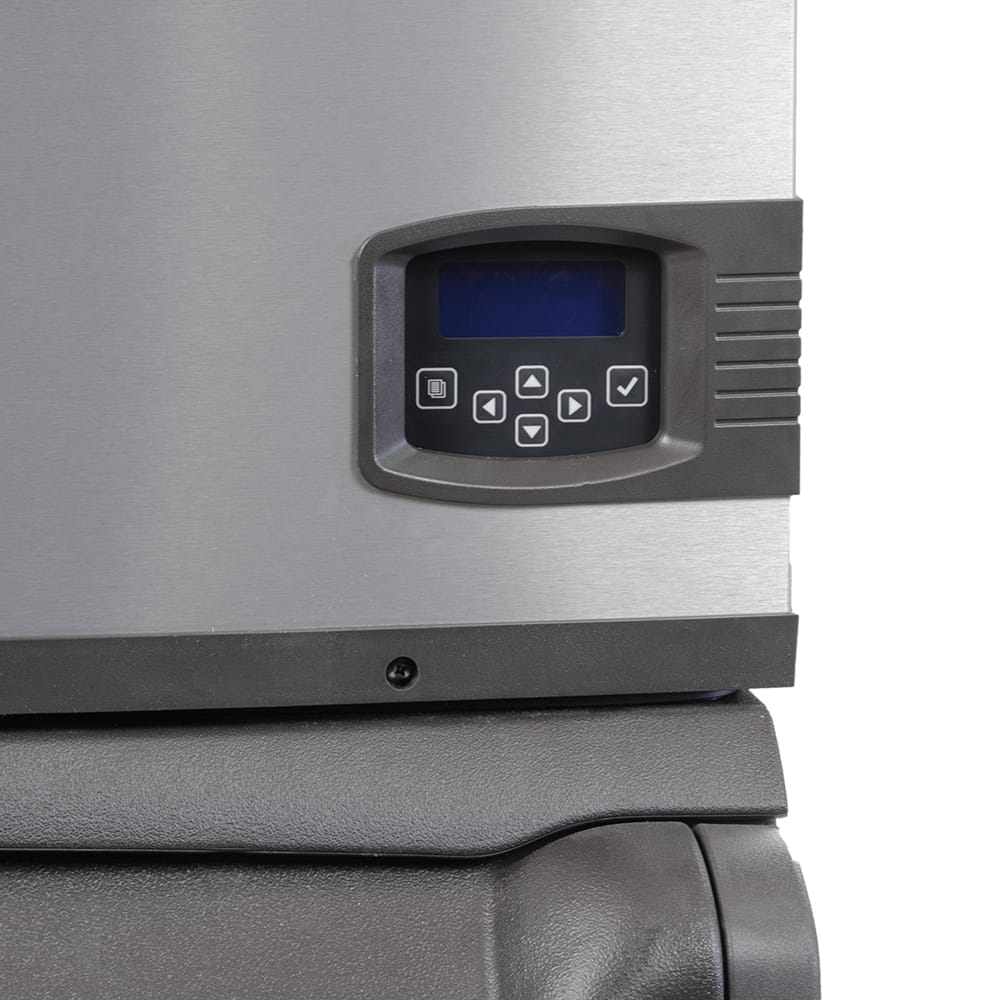

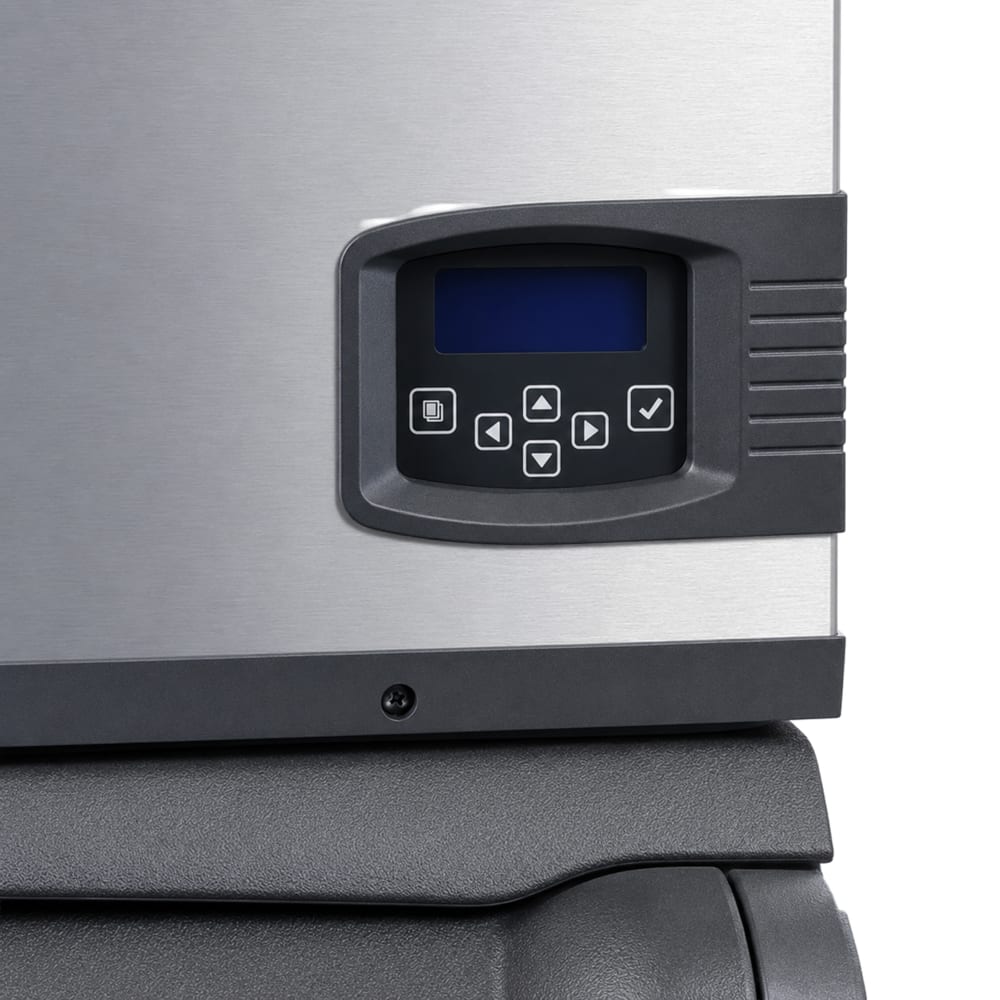

• easyTouch® display with touchscreen icons
• 24-hr. preventive maintenance and diagnostic feedback
• Hinged food zone front door swings out for convenience
• Removable water pump, distribution tube, curtain, water probe, and water trough
• Integrated AlphaSan® antimicrobial agent slows bacteria growth

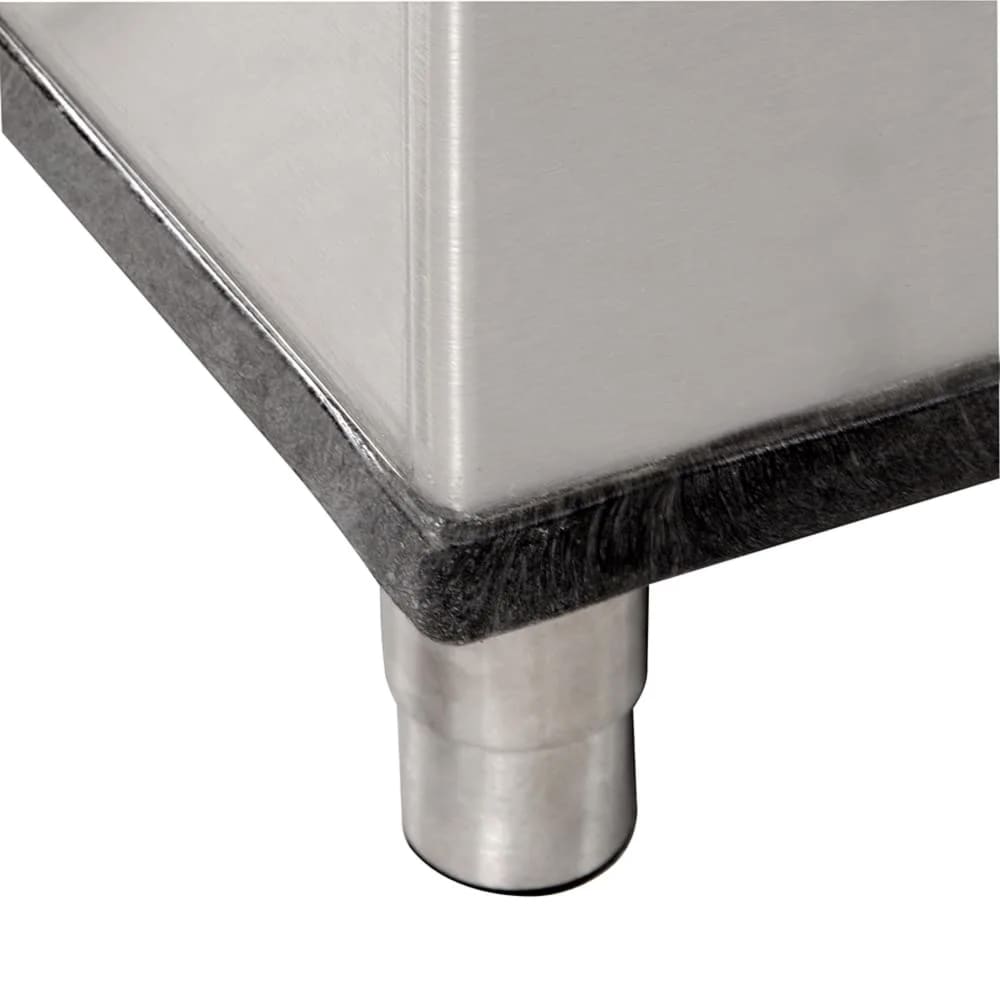

• DuraTech exterior resists corrosion and hides smudges
• Uses R410A refrigerant

Product Features

Bin Details

• 365-lb. application capacity
• 12.3-cu.-ft. AHRI-certified capacity
• Door holds in cold air with foam insulation
• Grips on the door make opening easy from any side

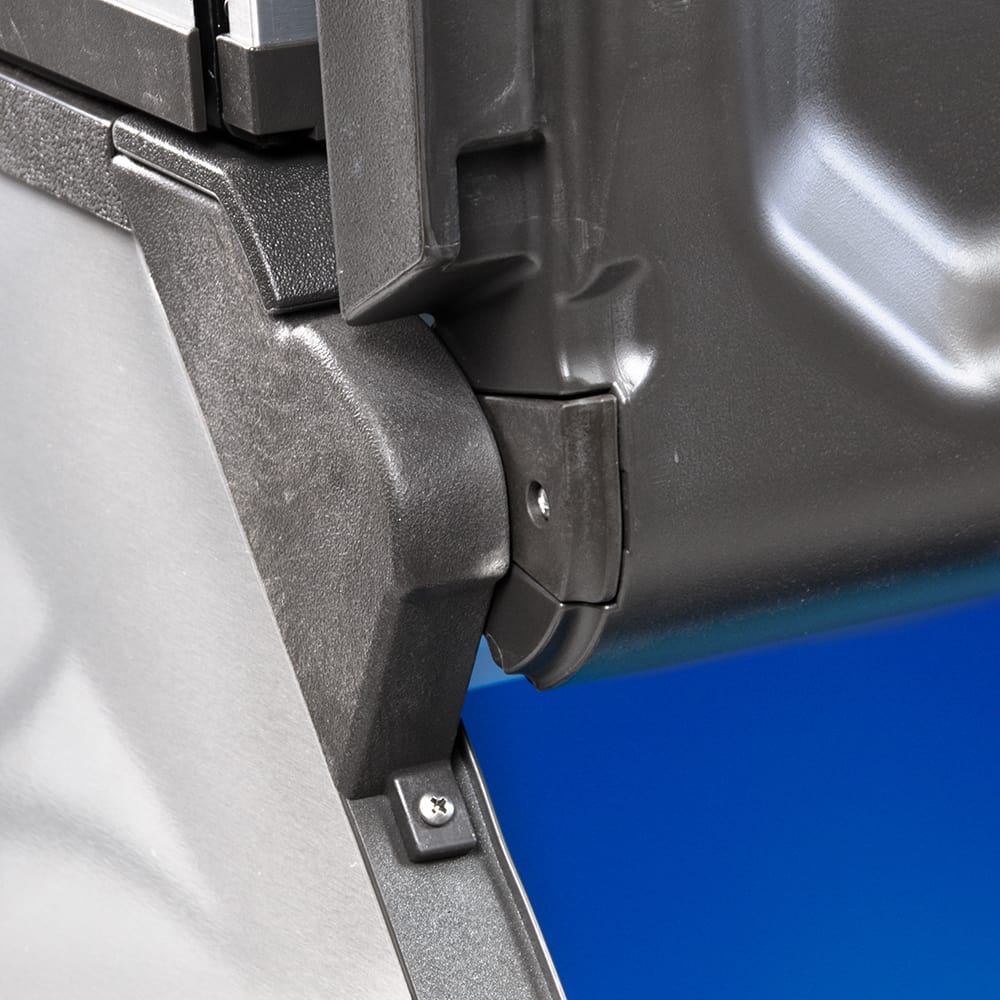

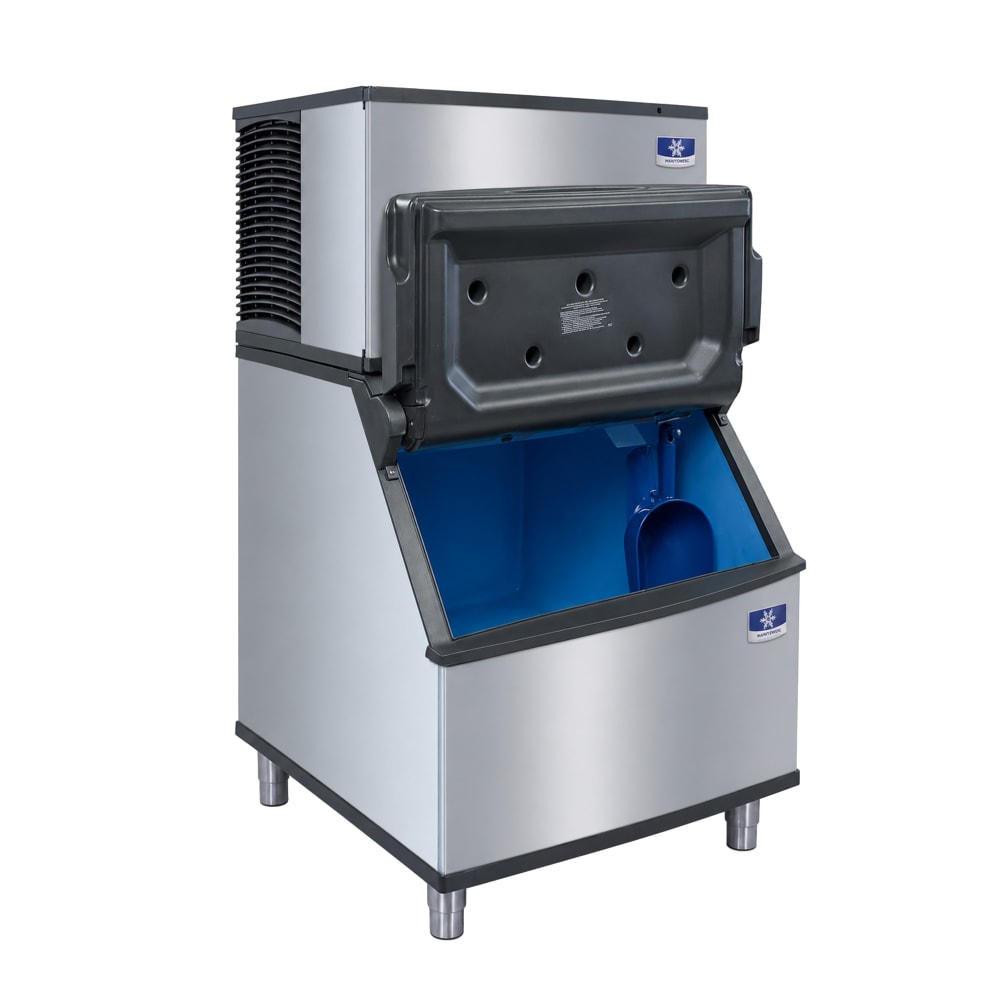

• Latch keeps the door open when users scoop ice

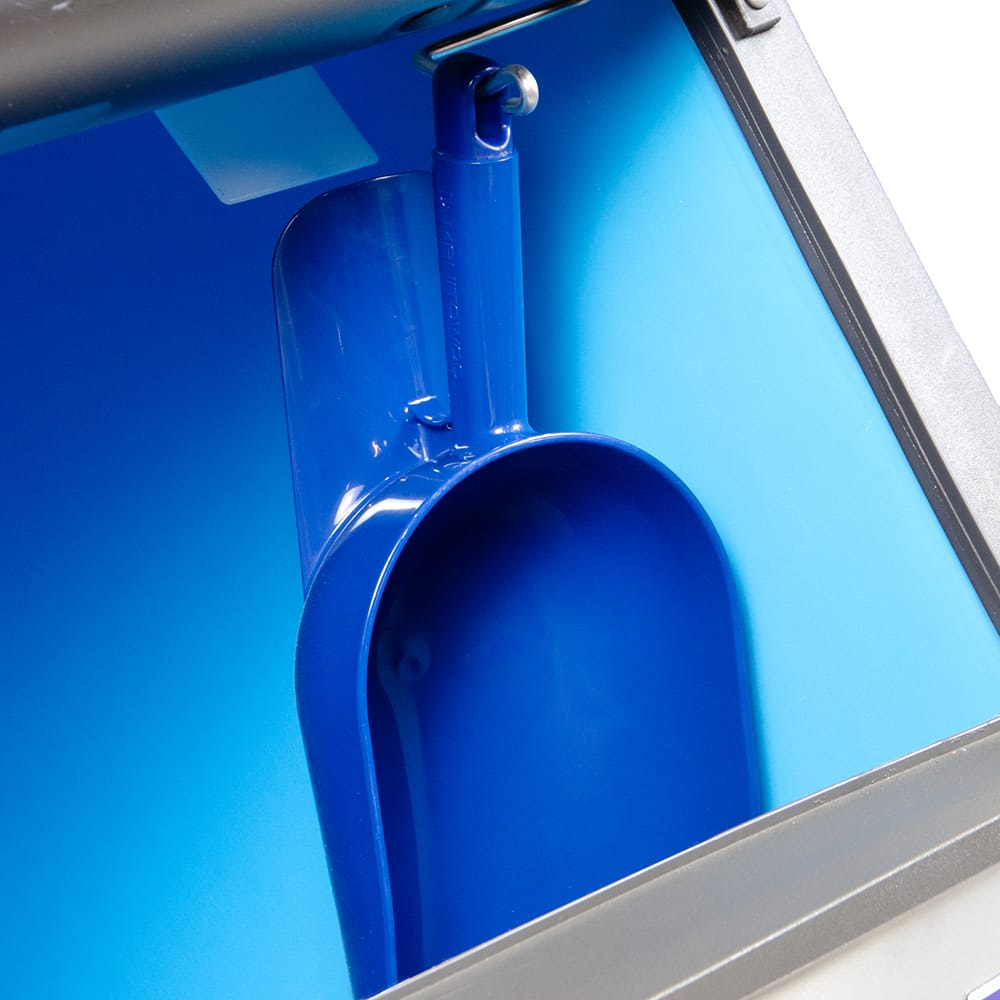

• 5.3-lb. ice scoop capacity
• Scoop's thumb and knuckle guard keeps hands out of ice

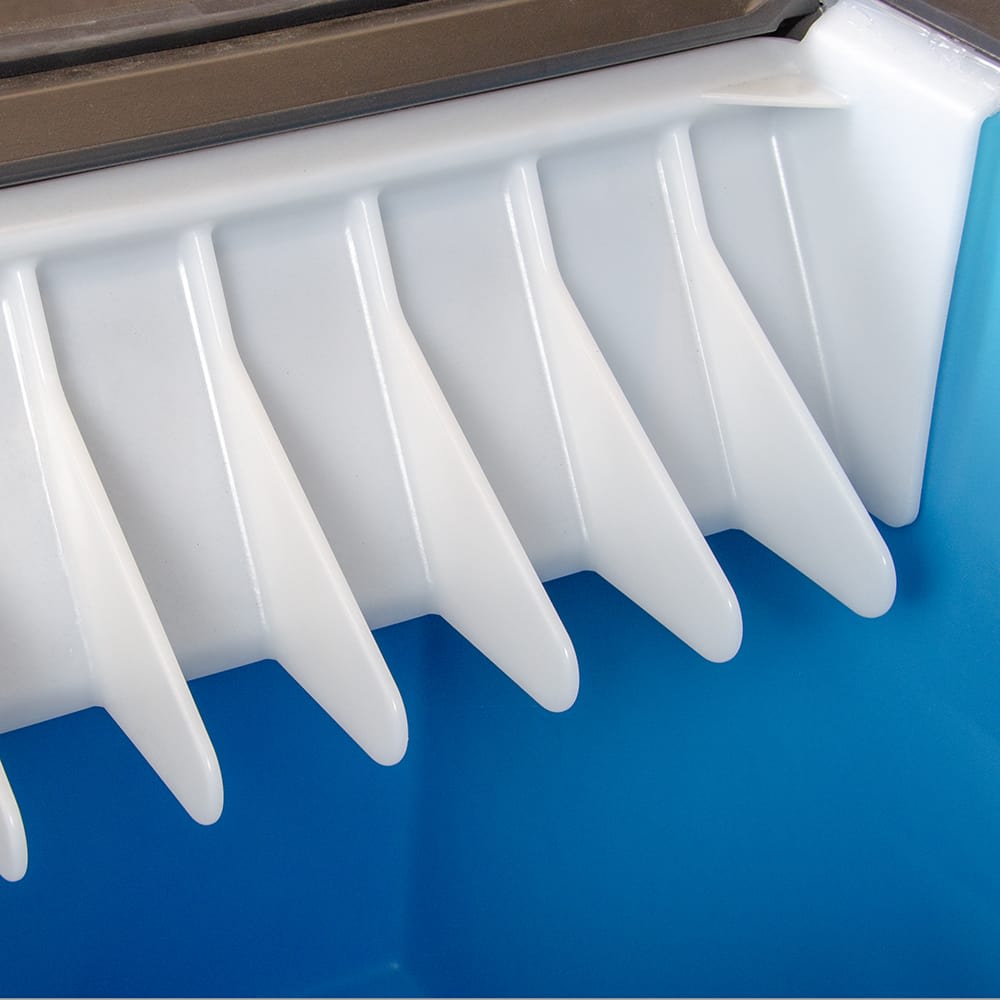

• Polyurethane interior liner
• DuraTech exterior

Dimensions & Utilities

• Ice maker
  • 30 in. W x 24.5 in. D x 21.5 in. H
  • 11.2 A, 4.75 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30 in. W x 34 in. D x 38 in. H

*Free shipping on Manitowoc Ice IDT0450W/D400 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity 430 lb./24 hours at 70°/50° (360 lb. AHRI certified 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

Ice Bin, 30"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 365 lbs. application capacity, AHRI certified 12.3 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
