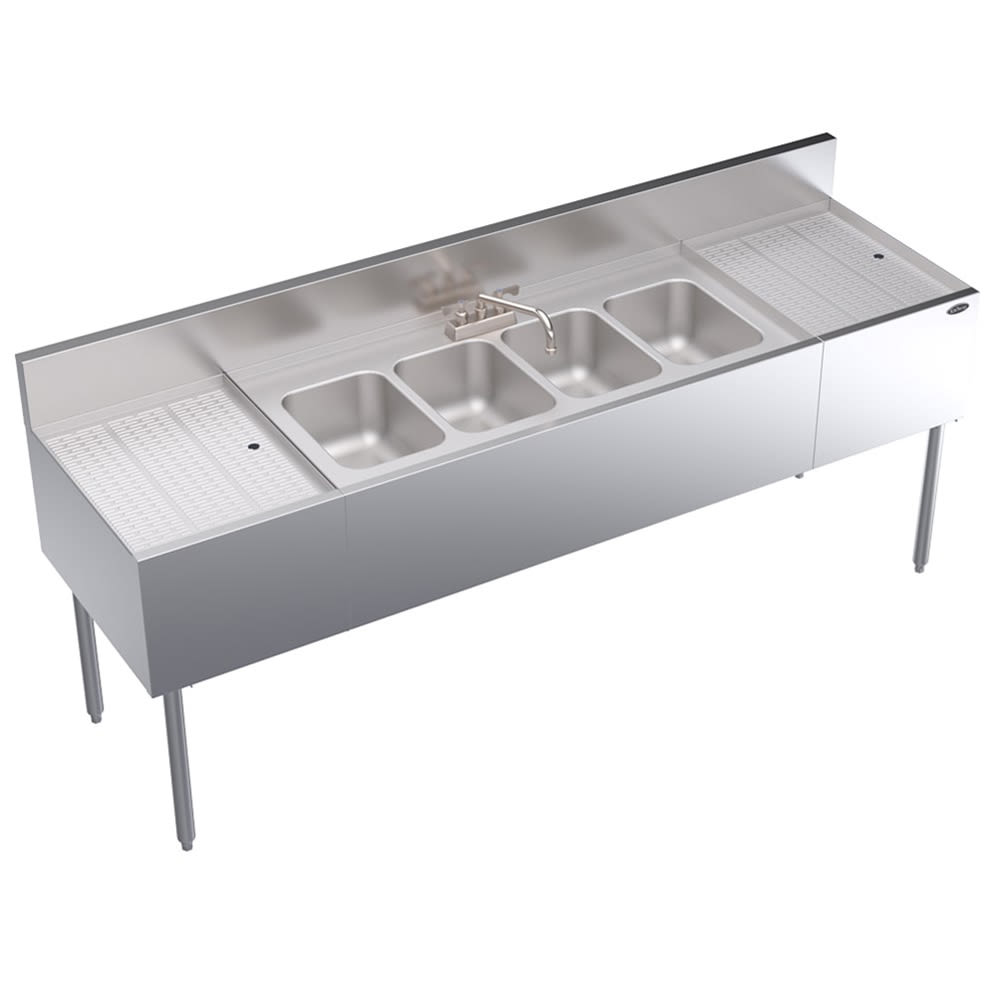

Krowne KR19-74C 84" 4 Compartment Sink w/ 10"W x 14"L Bowl, 10" Deep

KaTom #: 381-KR1874C • MPN: KR19-74C
  • 381-KR1874C Primary Thumbnail Image
Free Shipping Item

$3,148.75 /Each

Add to cart to see your price!

Non Returnable Item

Devan Parrott User Image
Ask a Foodservice Equipment Specialist

Krowne KR19-74C Description

Krowne Custom Bar Builder

To streamline the dish-cleaning process for establishments using the three-sink method to wash, rinse, and sanitize dishes, the Krowne KR19-74C Royal underbar sink unit is built with four 10-inch-long by 14-inch-wide by 10-inch-deep sink bowls. Each bowl has a corresponding 1 1⁄2-inch IPS rear corner drain and 7 1⁄2-inch overflow pipe for smooth operation through high-volume use. A 4-inch faucet in the back-center of the unit features a double-jointed spout to reach the two outermost sink bowls. As dishes dry, they can be placed on the left and right sides' 18-inch-wide embossed drainboards that collect pooling water and direct it into the sink.

For a classic appearance that upholds durability, the Krowne KR19-74C underbar sink's sink bowls, drain boards, sides, backsplash, and legs are made of stainless steel, while the back and bottom are galvanized steel; the front apron is comprised of 20-gauge stainless steel clad over 20-gauge galvanized steel. Sized for underbar placement, it measures 84 inches wide by 19 inches deep by 36 1⁄2 inches tall. Its elevated, open-base configuration provides ample space for users to clean beneath the unit and store additional items. This sink is mounted on 1 5⁄8-inch-diameter tubular stainless steel legs featuring gray plastic feet that can be raised or lowered for stabilization on bumpy or sloped flooring.

  • Featured in the Royal series
  • Can be placed beneath a bar
  • (4) 20-ga. stainless steel sink bowls with 6-gal. capacity
  • 4-in. center splash-mount faucet with double-jointed spout and ceramic cartridge valves
  • 4 removable, 7 1⁄2-in. overflow standpipes
  • Left and right sides feature 18-in.-wide embossed drainboards
  • 20-ga. stainless steel sides and backsplash
  • 20-ga. galvanized steel back and base
  • Front apron constructed of 20-ga. stainless steel clad over 20-ga. galvanized steel
  • (4) 1 5⁄8-in.-diameter tubular stainless steel legs
  • Adjustable gray plastic bullet feet

  • Sink bowls: (4) 10 in. L x 14 in. W x 10 in. D
  • Overall: 84 in. W x 19 in. D x 36 1⁄2 in. H
  • Hot/cold water: 1⁄2-in. IPS
  • Drain: 1 1⁄2-in. IPS

*Image may not depict product color, inclusions or accessories.

*Free shipping on Krowne KR19-74C within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Royal Series Underbar Sink Unit, four compartment, 84"W x 19"D, 10" wide x 14" front-to-back x 10" deep compartments, 18" embossed drainboards on left & right, splash mount Royal Series faucet with double jointed spout, apron on front & sides, (4) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF

Warranty Icon
1-year Limited

Krowne KR19-74C Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
