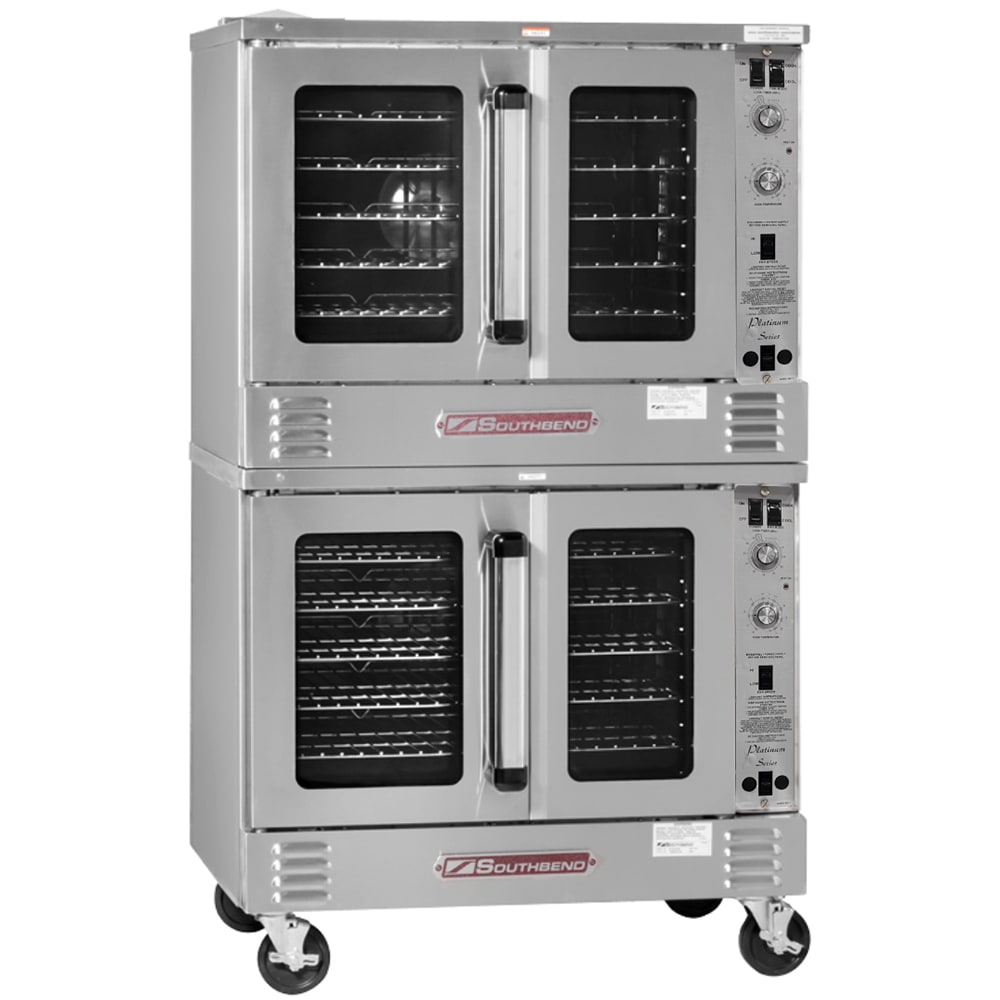

Southbend PCG100B/SI Platinum Bakery Depth Double Full Size Liquid Propane Convection Oven - 50,000 BTU
$10,503.00 /Each
Web price, call us!
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCG100B/SI Description

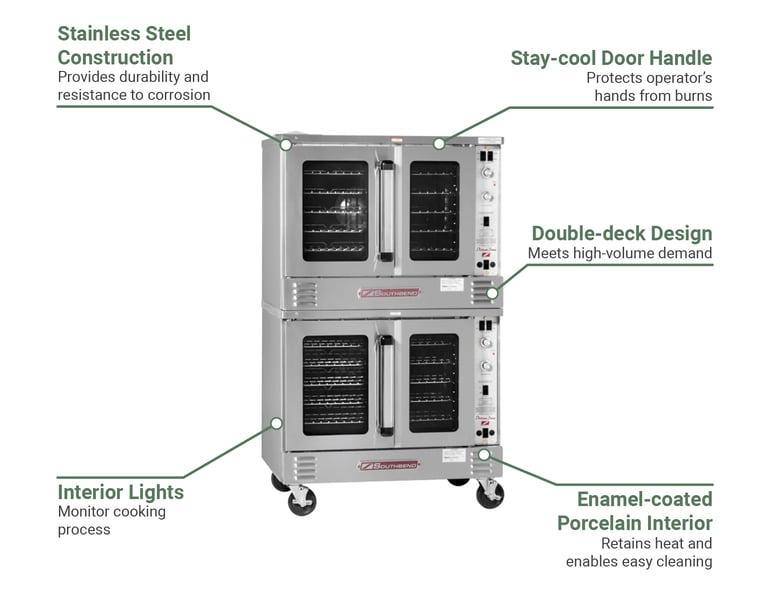

From the Platinum series, the Southbend PCG100B/DSI convection oven efficiently achieves temperatures between 140 and 500 degrees for versatility in product that can be prepared. The double-deck design of this unit permits operators to prepare multiple menu items simultaneously to meet restaurant demands. Each oven deck has its own standard controls with a solid-state thermostat to program accurate temperature settings. Located on a slide-out control panel, these controls can be used to program various cooking modes and includes a 60-minute timer.
Each oven chamber in the Southbend PCG100B/SI convection oven is lit with two recessed lamps to provide a clear view of the cooking process. Each oven chamber holds five oven racks that can be adjusted to fit various pan configurations. There are two doors on each oven deck that have an independent design to avoid excessive heat loss. This unit is constructed of dent- and corrosion-resistant stainless steel to ensure long-lasting use. Each oven chamber is made of porcelain with an enamel finish to aid in heat retention and airflow; the interior features coved corners that help ease the cleaning process.
Product Details
- Platinum series
- Full-size, double-deck unit
- Bakery depth
- Made of stainless steel
- Porcelain enamel interior with coved corners
- 10 plated oven racks (5 per deck)
- 11-position rack guides
- Dual-door seal system
- 2 independent doors per deck with heat-saving windows
- (2) 40-watt, high-temperature recessed lamps in each oven cavity
- Standard controls with solid-state thermostat
- Slide-out control panel
- 60-minute mechanical cook timer
- Temperature range: 140-500 degrees F
- 2-speed fan motor
- Forced cool down mode
- 50,000 BTU per deck
Dimensions & Utilities
- Oven interiors: 29 in. W x 29 in. D x 20 in. H
- Overall: 38 in. W x 431/2 in. D x 663/4 in. H
- LP gas
- 120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
Product Features
*Free shipping on Southbend PCG100B/SI within the 48 contiguous states.
From The Manufacturer
Platinum Double Convection Oven, Gas 50,000 BTU's each, Bakery Depth, Standard Controls, Independent Doors
*Image may not depict product color, inclusions or accessories.
Southbend PCG100B/SI Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 66.75 |
| Interior Construction | Porcelain |
| Number of Ovens | Double |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Total BTU | 50000 |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1180.00 |
