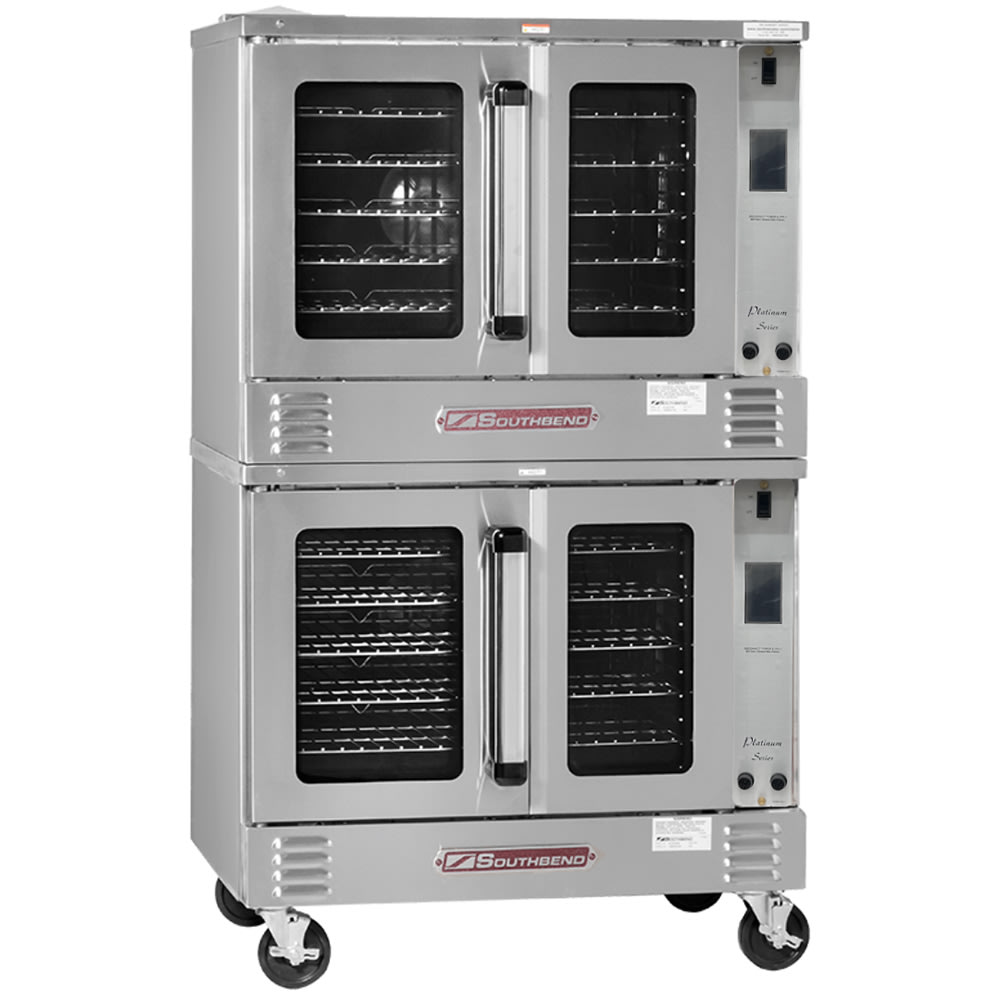

Southbend PCE15B/TD-V Platinum Ventless Bakery Depth Double Full Size Convection Oven - 7.5kW, 208v/1ph
$18,604.00 /Each
Call for details!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Southbend PCE15B/TD-V Description
The Southbend PCE15B/TD-V full-size unit is ventless because of its catalyst design. Its rear-mounted elements produce heat inside the cavity, while the two-speed fan evenly distribute it inside the compartment. The temperature controller is adjustable between 150 and 500 degrees with a holding range between 140 and 200 degrees. This unit has an overheat precaution that can be manually preset. There are three possible modes of operation: manual, recipe, and rack mode. For maintenance or service when needed, the control panel slides out 17 inches.
The porcelain interior of the Southbend PCE15B/TD-V bakery-depth oven measures 29 inches wide. This unit has five plated wire shelves with 11-position guide racks per cavity. The exterior front, top, sides, and rear jacket are made of durable stainless steel that resists corrosion over time. The body is constructed with two dependent doors with energy-saving panels and cool-to-the-touch heavy-duty handles, and the dual-door system effectively retains heat.
- Platinum series
- Heating elements per deck
- Ventless
- Stainless steel construction
- Interior finished in porcelain enamel
- 5 racks per cavity and 11-postion rack guides
- Dependent doors with cool-touch handles
- Dual-door seal system
- Manual, recipe, or rack modes for operation
- Digital display shows time and temperature
- 17-in. slide-out design
- 2 fan speeds
- Temperature range: 150-550 degrees F
- Temperature holding range: 140-200 degrees F
- Manual reset high-limit temperature control
- Overall: 38 in. W x 43 1⁄2 in. D x 64 in. H
- Interior: 29 in. W x 29 in. D x 20 in. H
- 52.9 A, 7.5 kW, 1⁄2 HP
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend PCE15B/TD-V within the 48 contiguous states.
From The Manufacturer
Platinum Double Convection Oven, Electric 7.5kW each, Bakery Depth, Touch Controls, Dependent Doors, Ventless
Southbend PCE15B/TD-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 15 |
| Number of Ovens | Double |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1180.00 |
