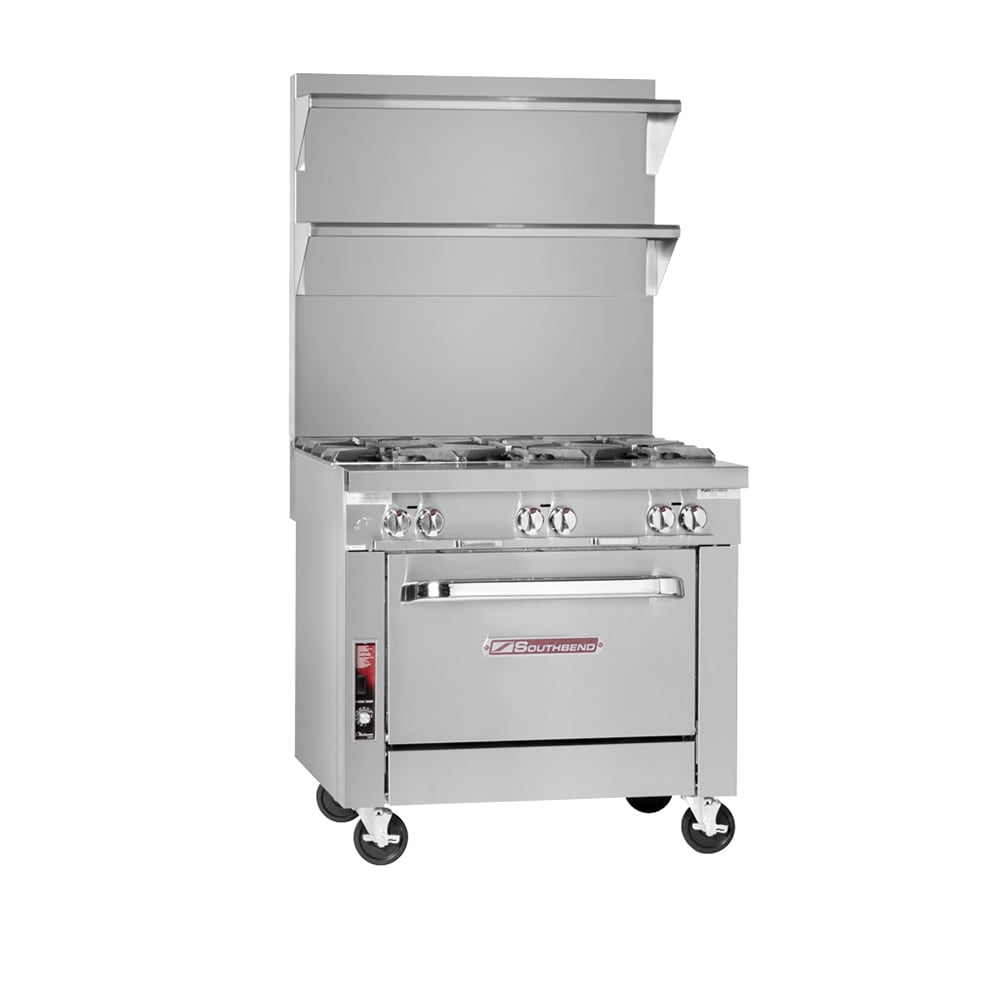

Southbend P36D-XX 36" 4 Burner Gas Range w/ Standard Oven, Liquid Propane
$11,702.00 /Each
Call for details!
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend P36D-XX Description
The Southbend P36D-XX range features four burners and a standard oven base. The Pyromax burners resist clogging and sit under welded steel grates that can hold heavy pots and pans. Its standing pilot ignition system is fueled by natural gas. Inside the standard oven, two racks can switch between five different positions, and the compartment is deep enough to accept pans front to back or side by side. Its porcelain ceramic construction facilitates cleaning.
The Southbend P36D-XX range is constructed of stainless steel, which resists stains and dents, and is insulated by its burner box and lining. Its 5-inch-tall flue riser prevents walls and other equipment from getting dirty. A removable drip tray sits under the grates to collect grease, and the unit’s adjustable legs provide stability on uneven surfaces.
- Heated with LP gas
- 4 non-clogging Pyromax burners
- Welded steel grates support pans and pots
- Standing pilot ignition system
- Constructed of durable stainless steel
- Lining and burner box are insulated to retain heat
- 9 1⁄2-in.-deep rail protects users from heat
- Restricts messes to the cooktop with the 5-in.-tall flue riser
- Stabilizes on uneven floors with adjustable legs
- Quick cleanup supported by a drip tray the under burners
- Includes a 1 1⁄4-in. manifold and 1-in. gas connection
- 255,000 BTU
- 115 V/60 Hz/1 ph, 7-ft. cord with a plug
- Overall dimensions: 36 in. W x 43 1⁄2 in. D x 41 in. H
- Porcelain oven interior facilitates cleaning
- 2 oven racks with 5 adjustable positions
- Accommodates pans side by side or front to back
- Temperature range: 175-550 degrees F
- Handle is constructed of rugged stainless steel
- Oven dimensions: 26 in. W x 26 1⁄2 in. D x 14 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend P36D-XX within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Platinum Heavy Duty Range, liquid propane gas, 36", (4) 45,000 BTU open burners, manual controls, (1) standard oven, includes (2) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 225,000 BTU, CSA, NSF
Southbend P36D-XX Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Standard Oven |
| BTU / Burner | 45000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 37.5 |
| Gas Inlet Size | 1 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 41 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 45000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 5 |
| Racks per Standard Oven | 2 |
| Range Configuration | Burners |
| Rating | Best |
| Series | Platinum |
| Standard Oven BTU/hr | 45000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 225000 |
| Vent | Backriser |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 630.00 |
