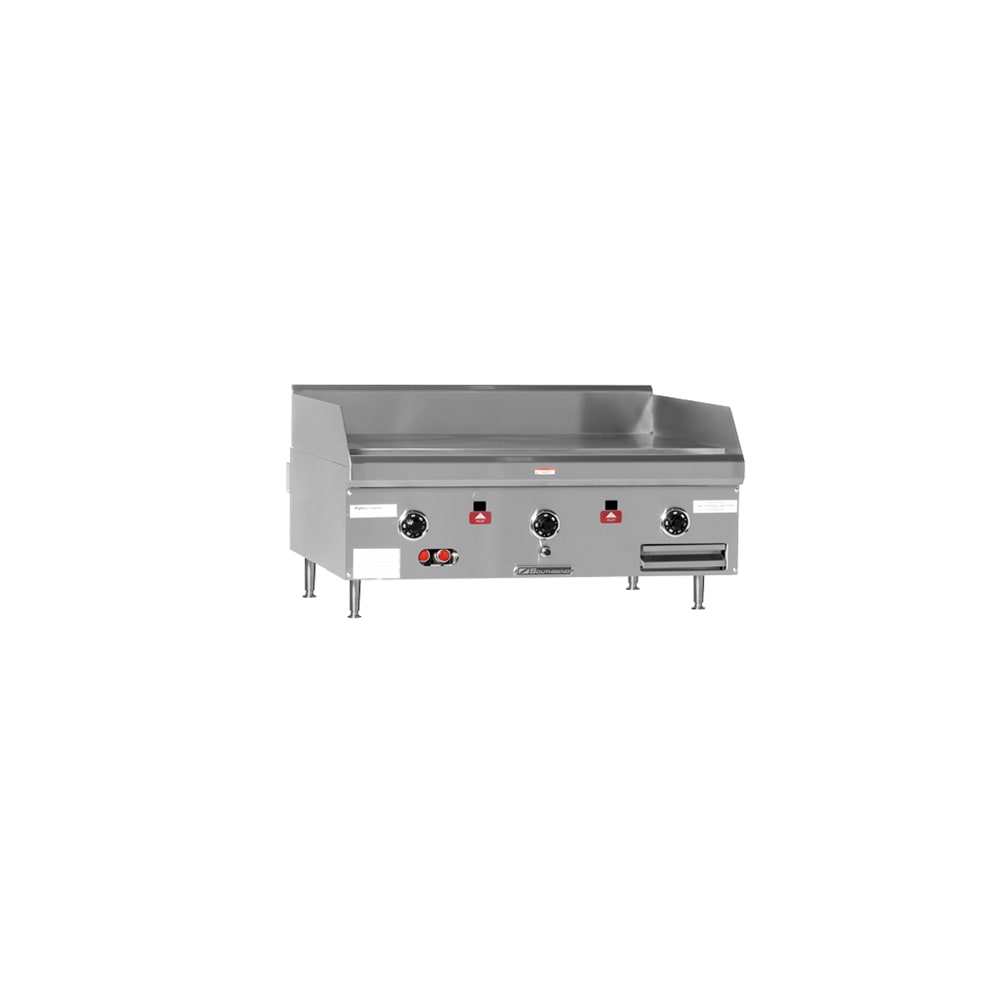

Southbend HDG-48-M 48" Gas Griddle w/ Manual Controls - 1" Steel Plate, Natural Gas
$5,902.00 /Each
Web price, call us!
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend HDG-48-M Description
Using natural gas to heat its four U-shaped burners, the Southbend HDG-48-M gas griddle separately heats four 12-inch sections to cook several foods on the same surface. Each burner operates with 20,000 BTU and is controlled manually; an electronic spark ignition kickstarts operation. The burner's cohesive structure prevents cold zones because they work uniformly if the user needs the entire griddle to grill a single food. The 1-inch-thick polished, rolled steel plate doesn't warp or crack after consistent reheating due to its thick design, and it retains heat with its highly conductive steel construction. Fully welded, the 48-inch-wide by 24-inch-deep plate has a protected exhaust vent to ensure user safety.
This Southbend HDG-48-M commercial griddle has a lifted design that works well on counters or mobile racks, depending on kitchen needs. The legs are 4 inches and can be raised or lowered to fit kitchen spacing; this structure also prevents heat damage to the surface on which it's placed. With its stainless steel front, vent, and sides and aluminized steel rear and bottom panels, the griddle's sturdy construction is durable enough to endure daily high-volume use. Its walls are reinforced and insulated to reduce the risk of operator injury, and its 5-inch rear splash guards and 4-inch side splash guards bar hot oil and fat from splashing onto nearby surfaces or the user. This design also funnels leftover runoff into the large-capacity grease drawer for streamlined removal.
Product Details
- Front, vent, and sides made of stainless steel
- Aluminized steel rear and bottom panels
- Reinforced and insulated walls
- Heats in 12-in. sections with 1 U-shaped burner per section
- Manual controls
- Electronic spark ignition
- Polished, fully welded steel griddle plate is 1 in. thick
- 5-in. rear splash guard and 4-in. side splash guards
- Grease drawer
- 4 runner tubes
- Protected exhaust vent and flue opening
- Side clearances: 12 in.
- Rear clearance: 8 in.
- 120,000 BTU
Dimensions & Utilities
- Cooking surface: 48 in. W x 24 in. D
- Overall: 48 in. W x 31.75 in. D x 16 in. H
- Uses natural gas
- 3⁄4-in. rear gas connection
*Free shipping on Southbend HDG-48-M within the 48 contiguous states.
From The Manufacturer
Griddle, countertop, NG gas, 48" W x 24" D cooking surface, 1" thick polished steel plate, manual controls, battery spark ignition, stainless steel front, sides & 4" adjustable legs, 120,000 BTU, CSA, NSF
*Not as Shown - 4 Controls
Southbend HDG-48-M Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Application | Medium Duty |
| BTU / Burner | 20,000 |
| Control Spacing (in) | 12 |
| Controls | Manual |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 48 |
| Gas Type | NG |
| Heat | Gas |
| Overall Width (in) | 48 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 545.00 |
