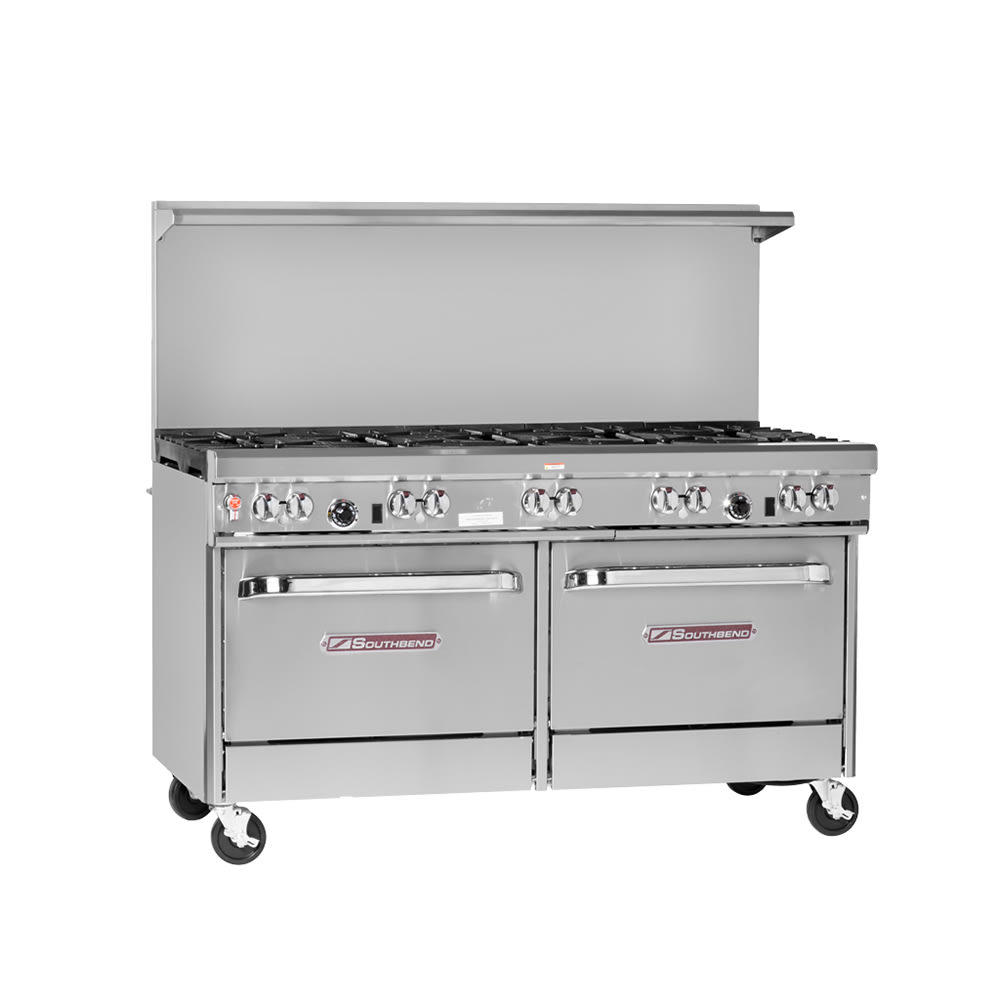

Southbend 4601DD-5R 60" 9 Burner Gas Range w/ (2) Standard Ovens, Liquid Propane
$10,661.00 /Each
Call for details!
Selected Gas Type: Liquid Propane
Southbend 4601DD-5R Description
Part of Southbend's Ultimate Restaurant Range Series, the 4601DD-5R LP range includes a cooktop with nine burners: three standard burners, three sauté burners, and two high-powered Pyromax burners. The range's base consists of two standard, 40,000 BTU ovens which each include an oven rack and accept full-size pans both front-to-back and side-to side. The range is built with a stainless steel front and sides and includes a flue riser and a heavy-duty steel overshelf.
- 3 non-clog, 24,000 BTU standard burners
- 2 high-powered, 31,000 BTU Pyromax burners for heating large stock pots
- (3) 24,000 star/sauté burners designed to distribute an even flame for an evenly-heated sauté pan
- Top burners are ignited by standing pilot flame
- Gas regulator comes factory installed to help insure safe, consistent operation
- Manually-controlled gas shutoff valve on the front of the equipment lets operators quickly shutoff gas supply to the entire range
- Rugged 6-in. stainless steel legs allow for level installation on uneven floors
- Overall Dimensions: 60 3⁄4 in. W x 34 in. D x 59 1⁄2 in. H
- 40,000 BTU burners are lit with battery spark ignition, conserving gas when compared to standing pilot flames
- Porcelainized oven interiors and coved corners contribute to even baking temperatures and easy cleaning
- Spacious 26 in. W x 26 1⁄2 in. D x 14 in. H
- Each oven accommodates full-size sheet pans back-to-back and side-to-side
- Spring-assisted, counterweight doors open smoothly
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend 4601DD-5R within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer

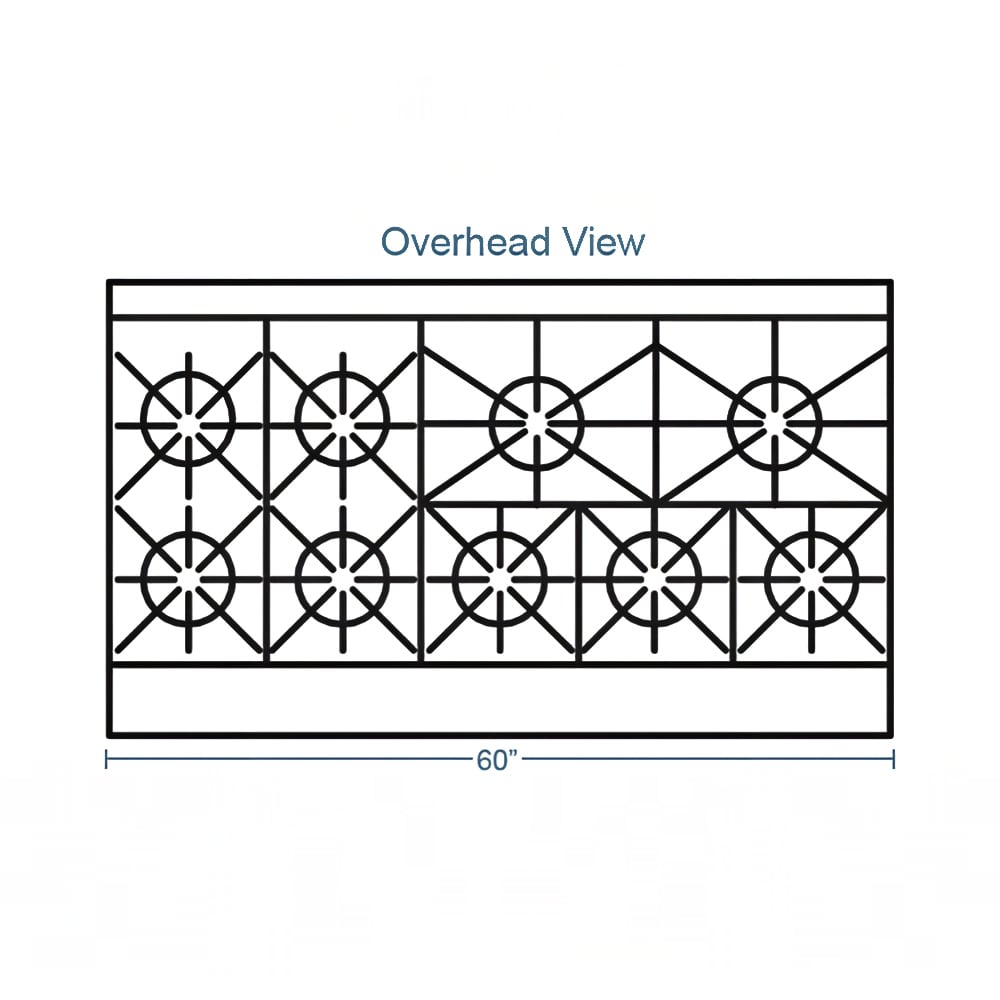

Ultimate Restaurant Range, liquid propane gas, 60", (3) non-clog burners front right, (2) pyromax burners rear right, (4) non-clog burners left, standard grates, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 320,000 BTU, CSA, NSF
Southbend 4601DD-5R Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 24000 |
| BTU / Burner | 31000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open/Pyromax |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2010 |
| Max Temp | 550 |
| Number of Burners | 9 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 24000 |
| Open Burner BTU (ea) | 31000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 2 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners |
| Rating | Better |
| Series | Ultimate |
| Special Features | Spark Ignition |
| Standard Oven BTU/hr | 45000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 320000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 1075.00 |
