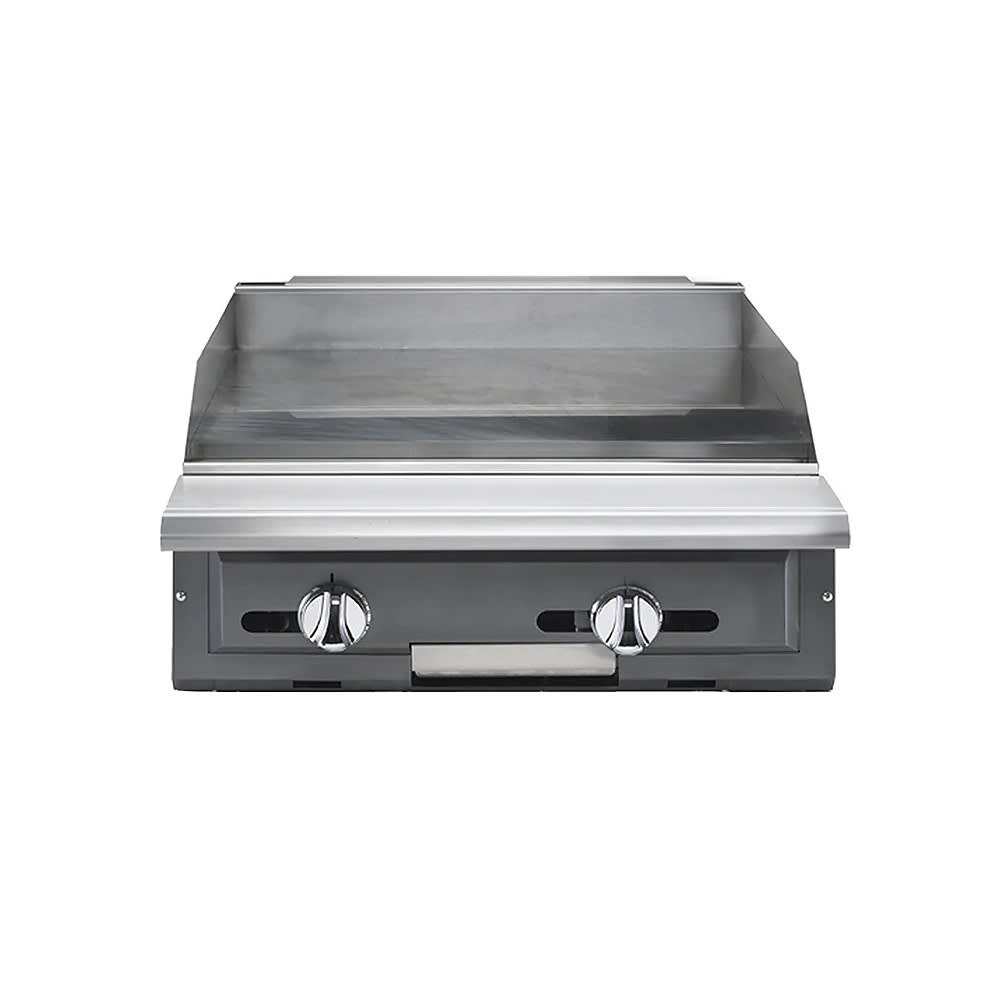

Vulcan VGT24 24" Gas Range Griddle - Modular, Natural Gas

Sized for placement on countertops, workstations, or equipment stands, the Vulcan VGT24 heavy-duty commercial gas range is a modular unit measuring 24 inches wide by 36³⁄₄ inches deep by 17¹⁵⁄₁₆ inches tall. To complement other pieces of back-of-house equipment and provide long-lasting durability and corrosion resistance, its front, stub back, front top ledge, sides, base, and burner box are made of resilient stainless steel. It rests on 4-inch-tall flanged feet that can be raised or lowered to stabilize on uneven surfaces to minimize the chance of the unit rocking and wobbling during use.

Powered by natural gas, the Vulcan VGT24 gas range's two griddle burners can output a total of 60,000 BTUs per hour. Each burner features a separate pilot light and snap-action thermostatic controls so users can heat the 24-inch-wide griddle surface to different temperatures to cook contrasting foods simultaneously. The ³⁄₄-inch-thick griddle plate is thick enough to withstand consecutive heating and cooling, reducing its chance of warping through high-volume use. Side splashes along the plate's left and right sides create a 4-inch-tall barrier that prevents pops of oil from splashing onto adjacent surfaces.

Product Details

• Part of the V series
• 24-in.-wide griddle with (2) 30,000-BTU burners
• Each burner has corresponding pilot light and snap-action thermostatic control
• ³⁄₄-in.-thick polished steel griddle plate
• 4-in-tall side splashes
• 4-in. stub riser
• Modular base rests on 4-in. adjustable flanged legs
• Front, front top ledge, burner box, sides, base, and stub back made of durable, corrosion-resistant stainless steel
• 60,000 BTU

Dimensions & Utilities

• 24 in. W x 36³⁄₄ in. D x 17¹⁵⁄₁₆ in. H
• Powered by natural gas
• 1¹⁄₄-in. diameter front gas manifold
• 1¹⁄₄-in. rear gas connection (capped)

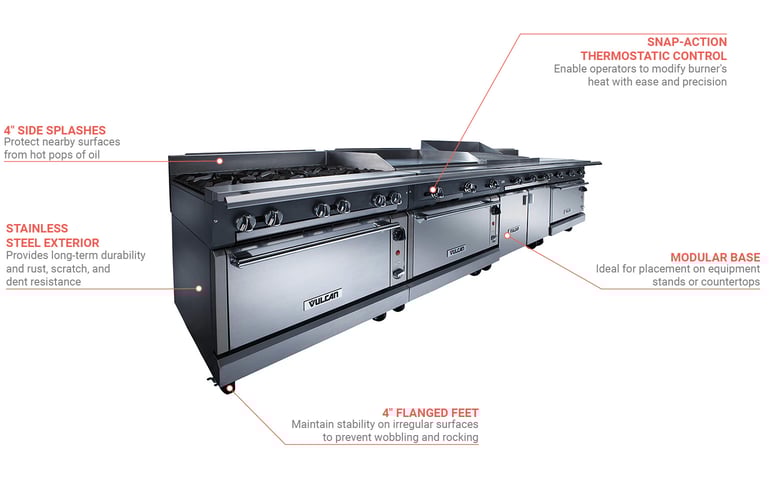

Product Features

*Free shipping on Vulcan VGT24 within the 48 contiguous states.

From The Manufacturer

V Series Heavy Duty Range, gas, 24", modular (no base), griddle, 3/4" thick polished steel plate, snap action thermostatic controls, stainless steel front, front top ledge, side, base, burner box & stub back, 4" flanged feet, 60,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VGT24 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
