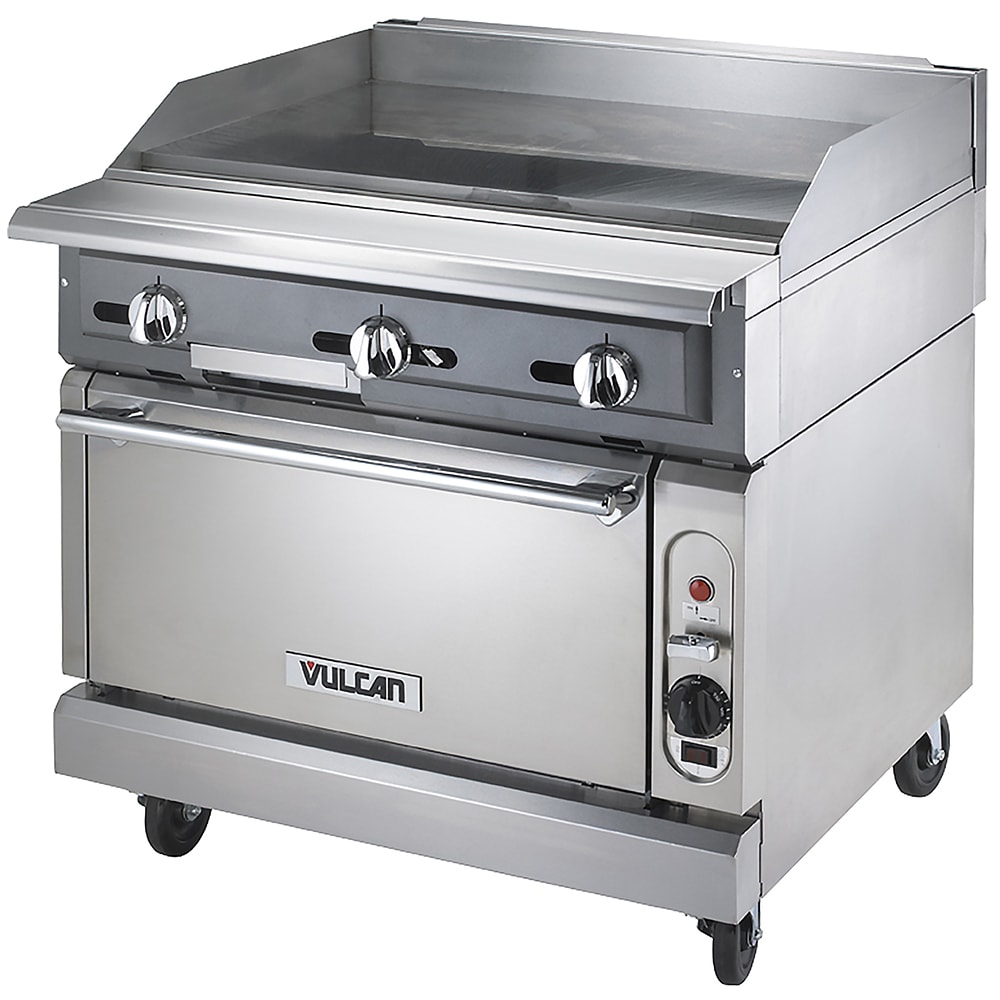

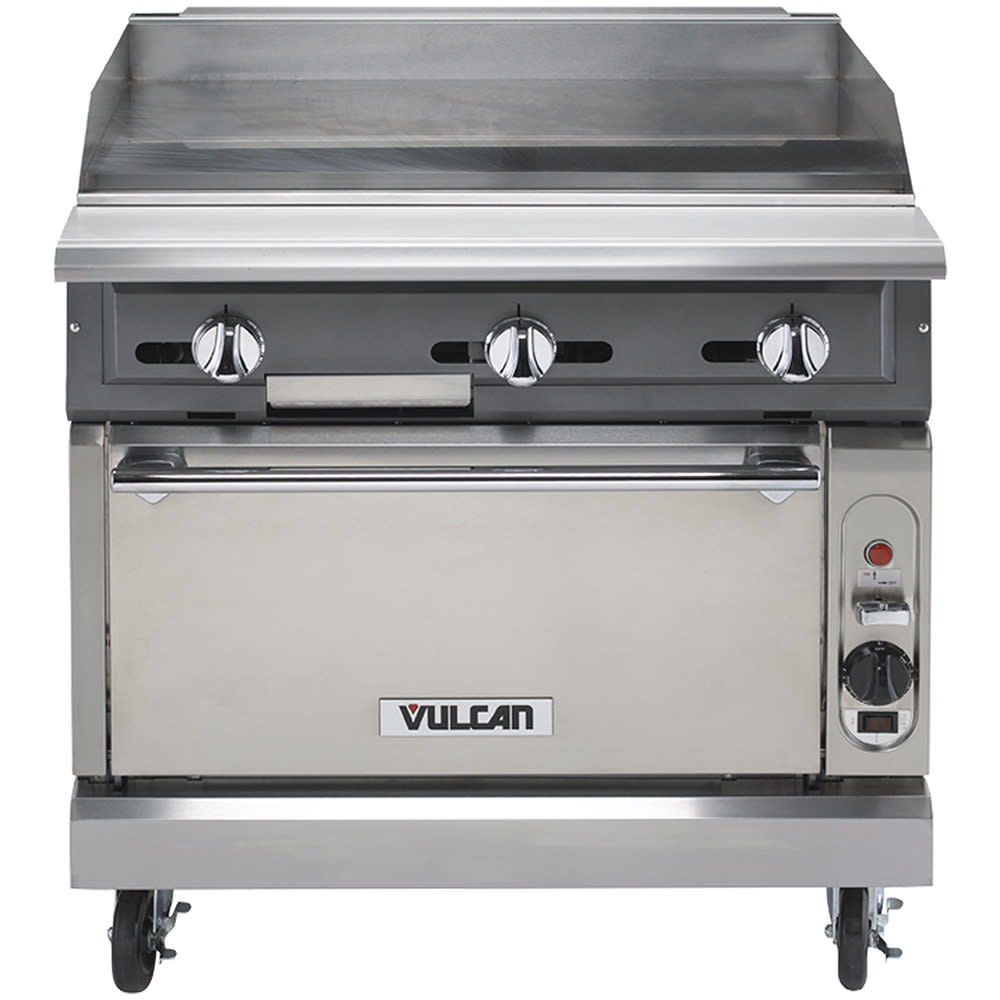

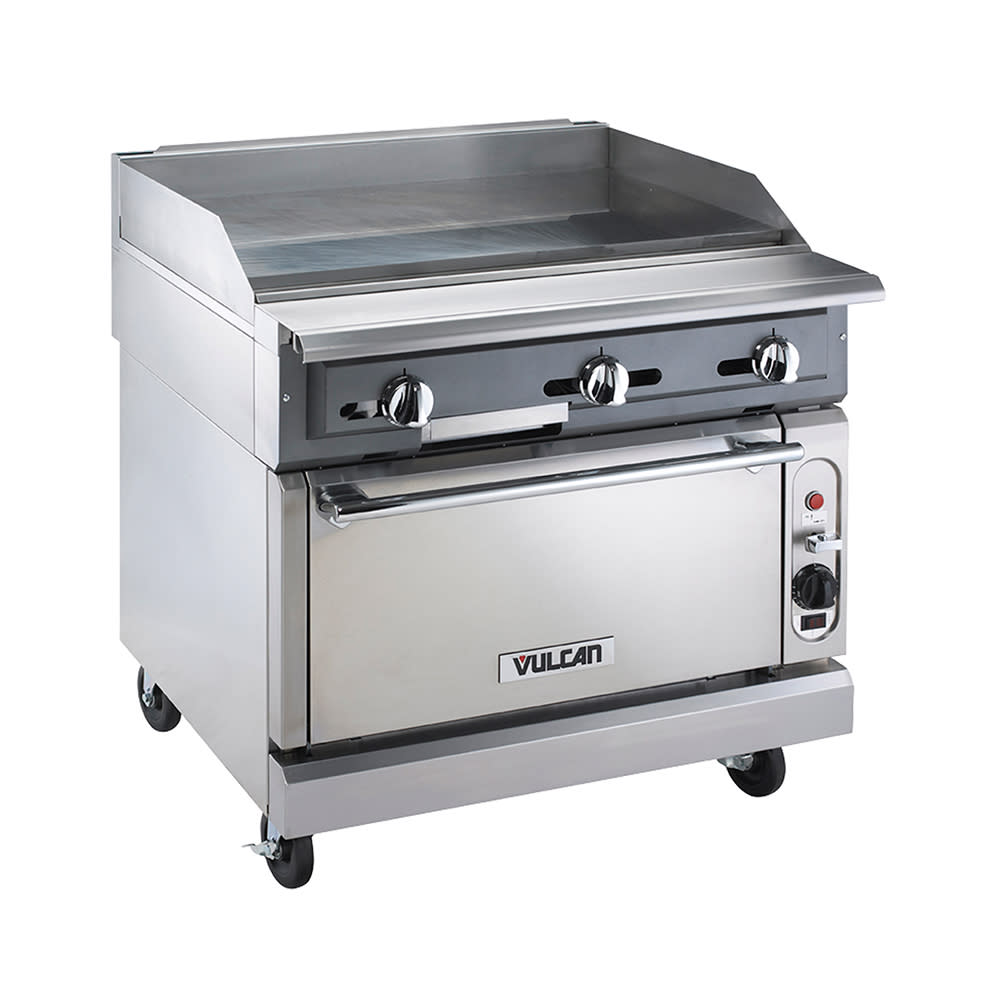

Vulcan VGMT36C 36" Gas Range w/ Full Griddle & Convection Oven, Liquid Propane
Typically ships in 4 - 6 weeks
Free Shipping Item
$21,546.00 /Each
Low price guarantee - call us!
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan VGMT36C Description
The Vulcan VGMT36C commercial range offers a 36-inch-wide grilling surface, separated into three individually heated sections. Each section is 12 inches wide and has its own set of controls. Areas can be turned on and off separately, or set to different temperatures to cook different foods. Snap-action thermostats help temperatures stay near the right level. For durability, the griddle plate is made of polished steel and is 3⁄4 inches thick. Splatter is caught by the plate's side and rear splashes, while the crumb tray captures leftover grease and food particles.
To save kitchen space, this Vulcan VGMT36C heavy-duty gas range has a convection oven in the base with two racks and three rack positions. The racks can be removed when operators are cleaning. The bottom, sides, and door interior are covered in a layer of nonstick porcelain, so crumbs can be removed without difficulty. This heavy-duty stainless steel unit is resistant to corrosion, dents, and bends.
Product Details
- Part of the V series
- 3 individual griddle areas have their own 30,000 BTU burners, pilots, and snap-action thermostats
- Flat 3⁄4-in.-thick griddle plate resists warping
- 4-in. splashes help contain splatter
- Extended front edge protects users from burns
- Crumb tray holds grease for removal
- Convection oven base with a 32,000 BTU burner
- Steel oven interior is coated with nonstick porcelain
- 2 oven racks can be adjusted to 3 positions
- Oven temperature range: 175-550 degrees F
- Stainless steel front, sides, base, and griddle plate withstand heavy use
- Door and door hinges are durable
- 6-in. adjustable legs for level installation
- Needs 10-in. space from combustible surfaces on sides and rear
- 4-in. stub riser
- 122,000 total BTU
Dimensions & Utilities
- Griddle surface: 36 in. W x 233⁄8 in. D
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 417⁄8 in. D x 401⁄2 in. H
- Heats with LP gas
- Front manifold connection is 11⁄4 in.
- Rear gas connection is 11⁄4 in.
- 4 A
- 115 V/60 Hz/1 ph, 7-ft. cord with a plug
*Free shipping on Vulcan VGMT36C within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", griddle, 3/4" thick polished steel plate, snap action thermostatic controls, convection oven, stainless steel front, top front ledge, sides, base, burner box & stub back, 6" adjustable legs, 122,000 BTU, CSA Flame, CSA Star, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan VGMT36C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Convection Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Controls | Thermostatic |
| Convection Oven BTU/hr | 32000 |
| Convection Oven Dimensions | 27"W x 27"D x 13"H |
| Depth (in) | 36.75 |
| Gas Inlet Size | 1.25 |
| Gas Type | LP |
| Griddle Location | Full |
| Griddle Width (in) | 36 |
| Heat | Gas/Electric |
| Height (in) | 36 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 650 |
| Number of Burners | None |
| Number of Ovens | Single |
| Phase | 1 |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 3 |
| Racks per Convection Oven | 2 |
| Range Configuration | Griddle |
| Rating | Best |
| Series | V Series |
| Total BTU | 90000 |
| Vent | Stub Riser |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 763.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
