Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

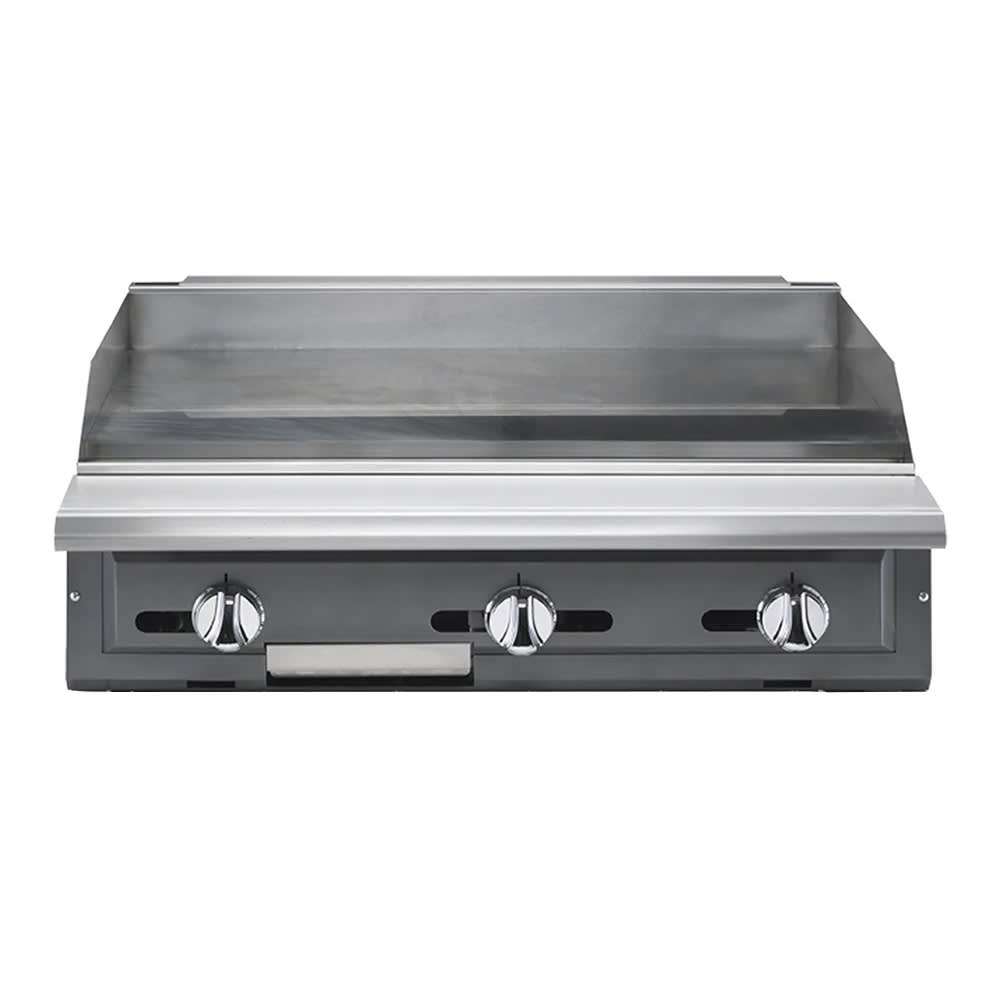

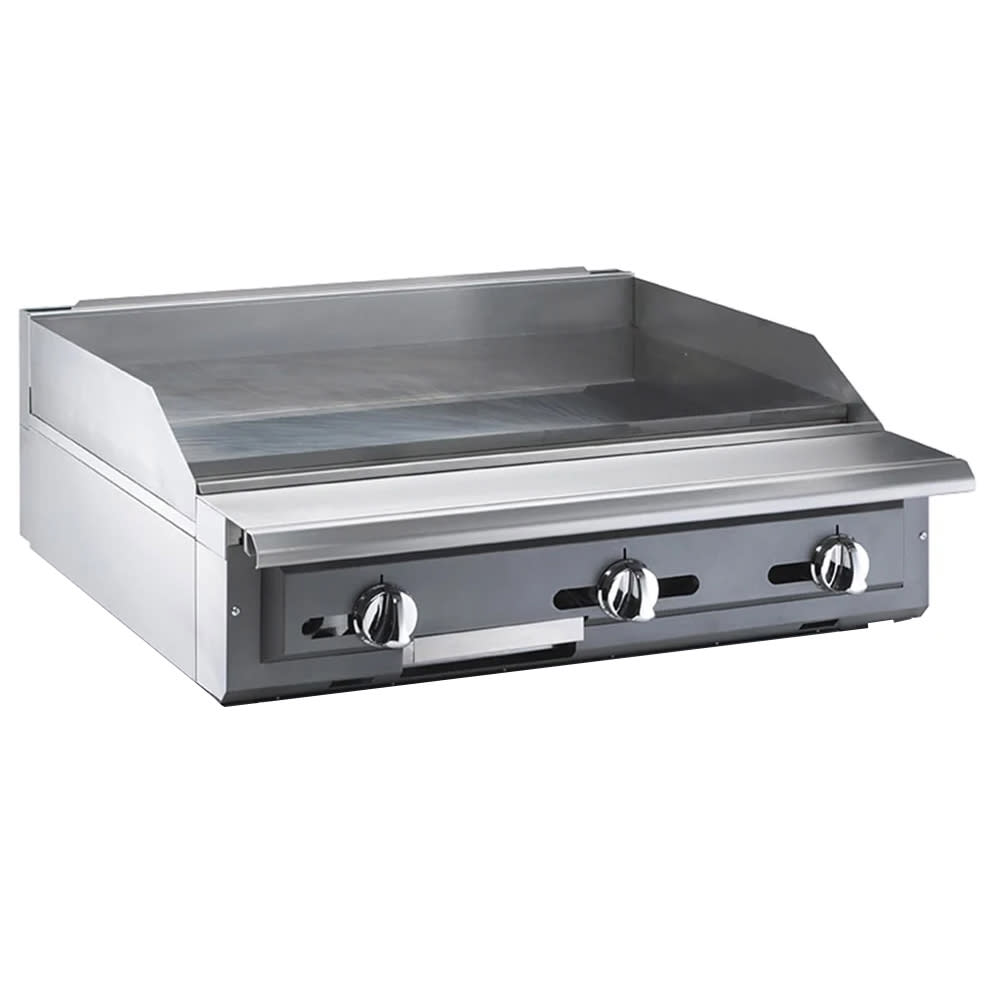

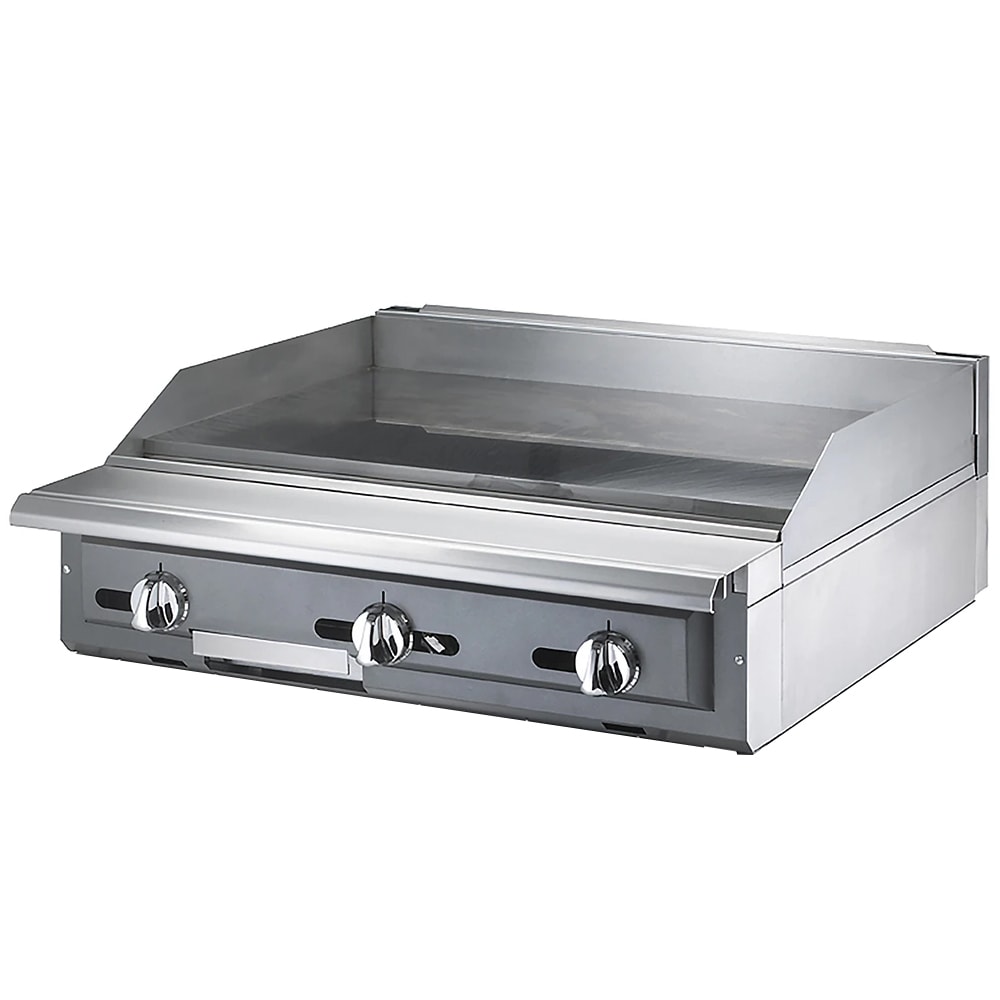

Vulcan VGM36 36" Gas Range Griddle - Modular, Natural Gas
Typically ships in 4 - 6 weeks
Free Shipping Item
$9,277.00 /Each
Low price guarantee - call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan VGM36 Description
Designed with a stainless steel front, front top ledge, burner box, sides, base, and stub back, the Vulcan VGM36 gas range offers the durability to withstand rigorous use in fast-paced kitchens. It's equipped with three 30,000-BTU burners that have individual pilot lights and manual controls to enable operators to cook at multiple temperatures simultaneously. Because it's a modular unit, this model has no base and can be placed on countertops or equipment stands. For secure placement on surfaces, it sits on 4-inch flanged feet that can be adjusted as needed.
The Vulcan VGM36 griddle range includes a 3/4-inch-thick polished steel griddle plate to accommodate flexible cooking needs. It has a 4-inch-high side splash guard and an extra-deep stainless steel crumb tray to contain messes within the range. Overall, this unit measures 36 inches wide by 363/4 inches deep by 1715/16 inches high and operates with natural gas to ensure heat is distributed evenly through meals.
Product Details
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- (3) 30,000-BTU/hr. burners with individual pilot lights
- 3 manual controls (1 per burner)
- 3/4-in.-thick polished steel griddle plate
- 4-in.-high side splash guard and stainless steel stub riser
- Unit rests on 4-inch flanged feet
- Extra-deep crumb tray constructed of stainless steel
Dimensions & Utilities
- Natural gas
- 90,000 BTU
- 36 in. W x 363/4 in. D x 1715/16 in. H
- 11/4-in- diameter front gas manifold
- 11/4-in. rear gas connection (capped)

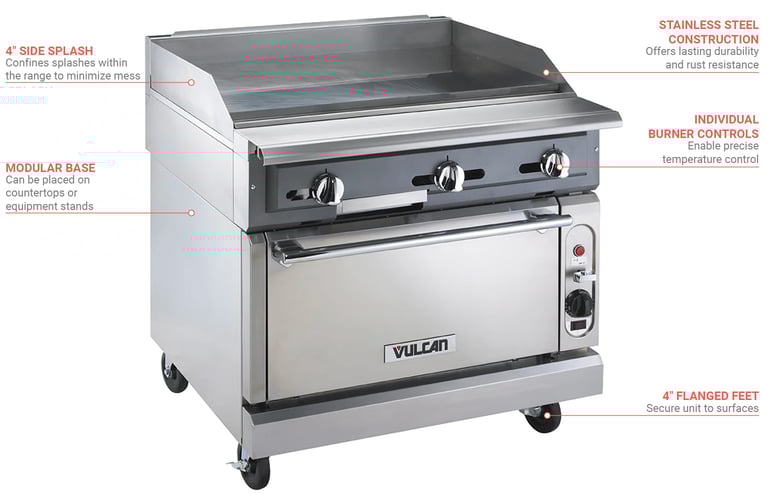

Product Features
*Free shipping on Vulcan VGM36 within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", modular (no base), griddle, 3/4" thick polished steel plate, manual controls, stainless steel front, top front ledge, sides, base, burner box & stub back, 4" flanged feet, 90,000 BTU, CSA Flame, CSA Star, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan VGM36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Controls | Manual |
| Depth (in) | 36.75 |
| Gas Type | NG |
| Griddle Width (in) | 36 |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Griddle |
| Rating | Best |
| Series | V Series |
| Total BTU | 90000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 404.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
