Vulcan VGM36C 36" Gas Range w/ Full Griddle & Convection Oven, Liquid Propane

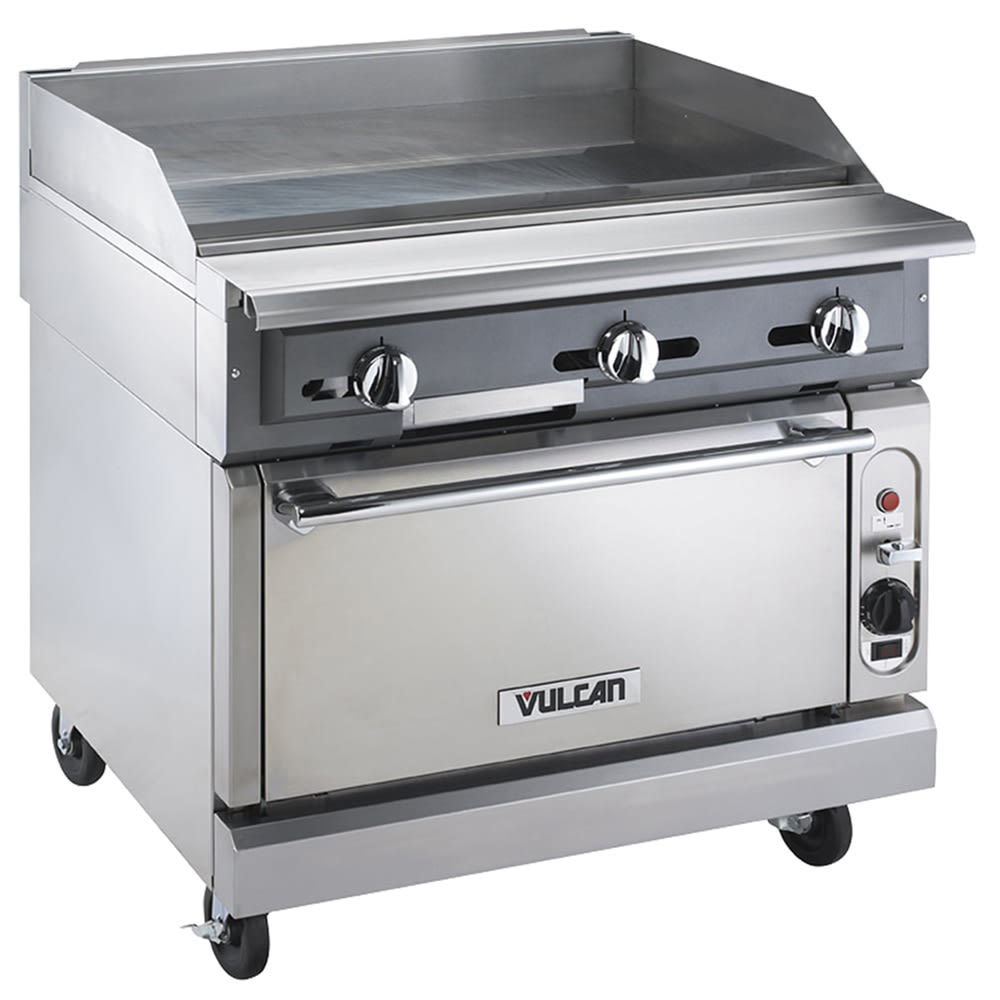

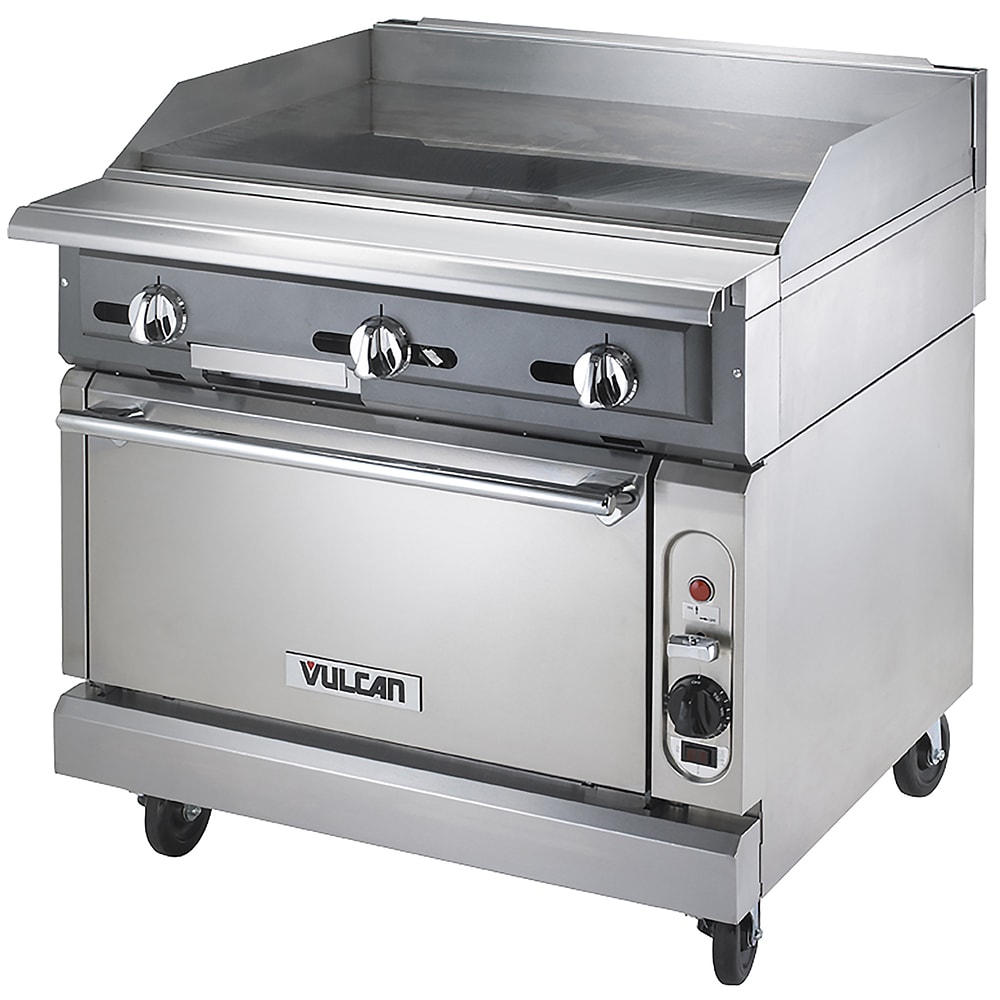

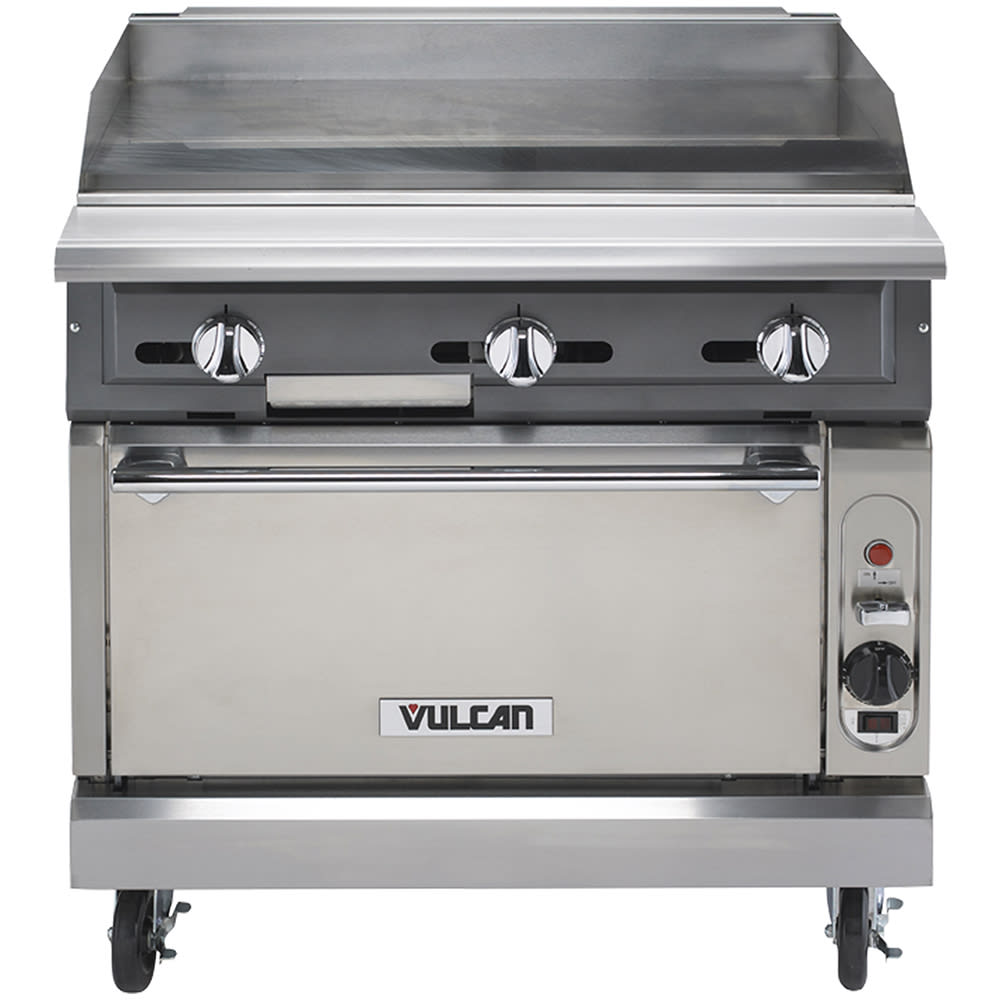

The Vulcan VGM36C heavy-duty gas range with griddle top endures heavy use because its front, sides, base, back, and ledge are all made of sturdy stainless steel. The stainless steel griddle plate is ³⁄₄ inches thick to resist warping over time. The 36-inch-wide plate has three separate sections with their own heat dials and pilot flames, meaning a different food can cook in each section simultaneously, and during slow hours, unnecessary sections can be shut off. The plate's back and sides are bordered by the 4-inch-tall splash that catches stray splatter, while the 8-inch ledge on the front can be used to plate dishes.

The convection oven base has a sturdy door attached with counterweighted hinges. Inside, the included oven racks can be slid into one of three positions, and staff can set the temperature at a level between 175 and 550 degrees Fahrenheit. The oven interior is porcelain coated on the bottom and sides—making it slick and resistant to congealing food—to expedite cleaning the Vulcan VGM36C griddle range.

Product Details

• ³⁄₄-in.-thick stainless steel griddle plate resists warping
• Burners have separate controls and pilot flames
• 8-in. front ledge to prep dishes
• 4-in. splashes protect walls and surrounding equipment from splatter
• Deep crumb tray can hold a lot of waste
• Convection oven base
• Oven temperature range: 175-550 degrees F
• Porcelain coating on the sides and bottom of the oven interior reduces food buildup
• 2 oven racks and 3 rack positions
• Heavy-duty oven door with counterweighted hinges
• Made mostly of stainless steel for durability and rust resistance
• (3) 30,000-BTU top burners and 32,000-BTU convection oven burner
• 122,000 total BTU

Dimensions & Utilities

• Oven interior: 27 in. W x 27 in. D x 13 in. H
• Overall: 36 in. W x 36³⁄₄ in. D x 40¹⁄₂ in. H
• 1¹⁄₄-in. front manifold connection
• 1¹⁄₄-in. capped rear gas connection
• 4 A
• 115 V/60 Hz/1 ph, 7-ft. cord with plug

*Free shipping on Vulcan VGM36C within the 48 contiguous states.

From The Manufacturer

V Series Heavy Duty Range, liquid propane gas, 36", griddle, 3/4" thick polished steel plate, manual controls, convection oven, stainless steel front, top front ledge, sides, base, burner box & stub back, 6" adjustable legs, 122,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VGM36C Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
