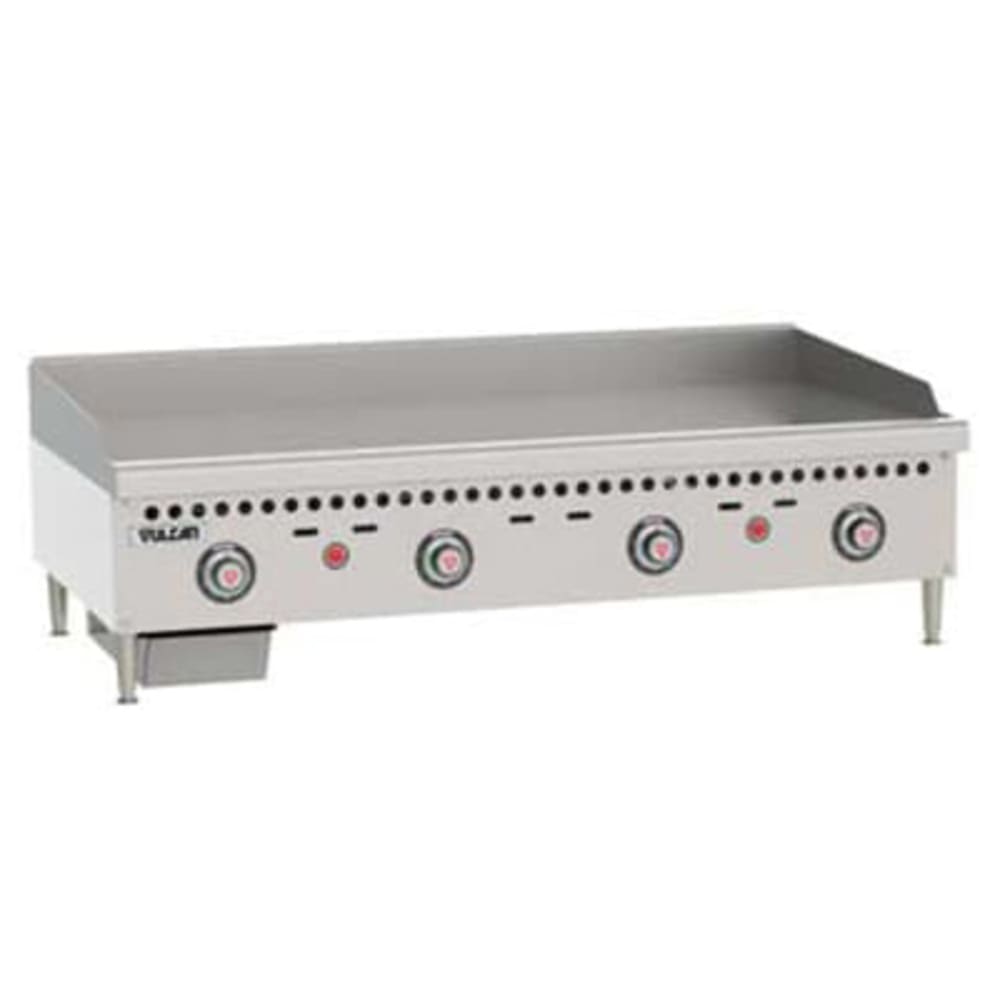

The Vulcan VCRG48-T gas griddle has a 1-inch-thick, polished steel plate with four U-shaped burners placed every 12 inches, providing even heating across the surface. A mechanical, snap action thermostat is embedded in each burner for efficient heating and quick recovery time. The temperature can be adjusted from 200 to 450 degrees Fahrenheit.
There is one pilot for every two burners, helping reduce gas use. If the pilot is extinguished, the safety shuts off gas flow to the pilot and burners. Grease splashes and other messes are contained with tapered side splashes. Grease is directed to a 41⁄2-quart can through a stainless steel grease trough. The Vulcan VCRG48-T gas griddle is durable for commercial settings with a fully-welded steel frame and stainless steel construction on the front, sides, and front top ledge.
- Operates with natural gas
- 1-in.-thick, polished steel plate is welded to a 31⁄4-in. stainless steel back
- Plate is evenly heated by 4 U-shaped aluminized steel burners placed every 12 in.
- 1 mechanical, snap action thermostat is embedded in each burner for efficient heating and quick response time
- Temperature can be adjusted from 200-450 degrees F
- 1 pilot for 2 burners minimizes gas use to save energy
- Pilot safety shuts the gas off to the pilot and burners if the pilot extinguishes
- Side splashes keep grease splashes contained
- Stainless steel grease trough directs grease to a 41⁄2-qt. can
- Stainless and aluminized steel chassis frame is fully welded to add structure
- Sides, front, and front top ledge are made of stainless steel to provide durability
- 3⁄4-in. rear gas connection and convertible gas pressure regulator (Propane conversion kit is supplied with the griddle)
- 100,000 BTU
- Overall Dimensions: 48 in. W x 27 in. D x 16 in. H
- cCSAus listed; NSF certified
Griddle, countertop, natural gas, 48" W x 20-1/2" D cooking surface, 1" thick polished steel griddle plate,(4) burners, fully welded, embedded mechanical snap action thermostat every 12", millivolt pilot safety, low profile, 4-1/2" grease can capacity, heavy gauge (1) drawer, stainless steel front, sides & front top ledge, 4" adjustable legs, 100,000 BTU, CSA, NSF
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Vulcan VCRG48-T SpecificationsPDF Spec Sheet
|BTU / Burner||25000|
|Overall Width (in)||48|
|Cooking Area Depth (in)||20.5|
|Plate Thickness (in)||1|
|Control Spacing (in)||12|
|Specialty Options||Snap Action|
|Specialty Options||Front Grease Trough|
|Warranty||1 year limited warranty|
|Overall Depth (in)||27|
|Product Type||Countertop Cooking Equipment|
