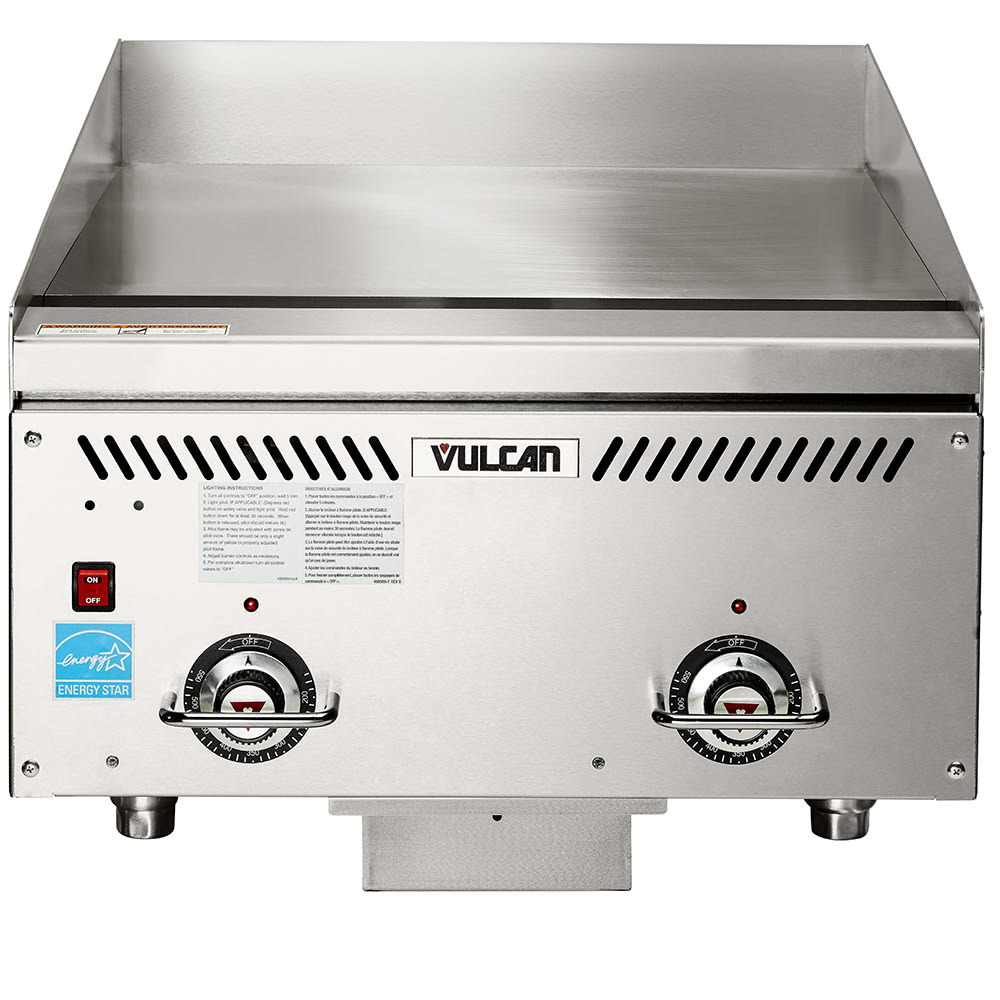

Vulcan VCCG24-AR 24" Gas Griddle w/ Thermostatic Controls - 1" Chrome Plate, Natural Gas

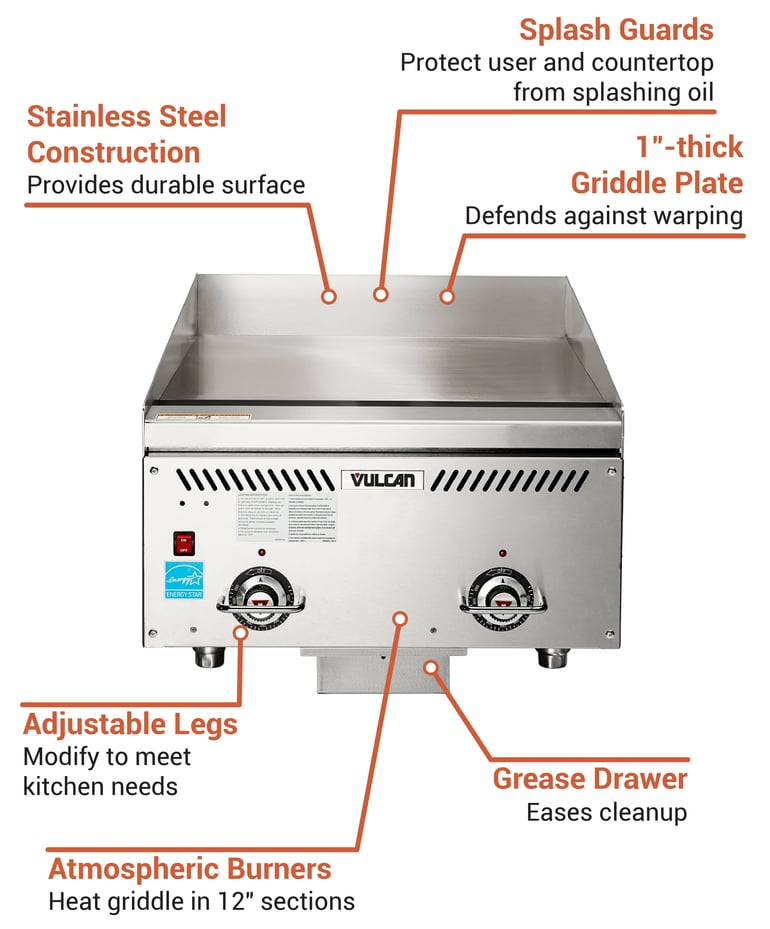

The Vulcan VCCG24-AR VCCG Series heavy-duty gas griddle uses natural gas to heat its two atmospheric burners for independent cooking results, doubling the amount of food cooked at one time. Its 1-inch-thick chrome griddle plate heats in 12-inch-wide sections, and it's controlled by an electronic ignition and solid-state thermostats, reaching temperatures as high as 550 degrees Fahrenheit. Because the chrome plate is thicker than stainless steel plates on other models, it's less likely to warp over time from constant reheating, so it works well for sporadic and high-volume use. This unit comes with a palmetto brush, a scraper, and a blade for cleaning.

Constructed of stainless steel, the Vulcan VCCG24-AR gas griddle is a long-lasting piece of equipment since it's durable, hides common scuffs and scrapes, and adjusts height as needed. It fits on a countertop for added versatility. Splash guards on its sides and back keep hot grease contained during use, and leftover oil drains into the 6-quart grease drawer for removal. To ensure safe use of burners, a built-in pilot safety system keeps the unit in check. Internal gas pressure regulators and a ³⁄₄-inch rear gas connection are also built into the griddle for added security.

Product Details

• Part of the VCCG series
• Stainless steel construction
• Fully welded stainless and aluminized steel chassis

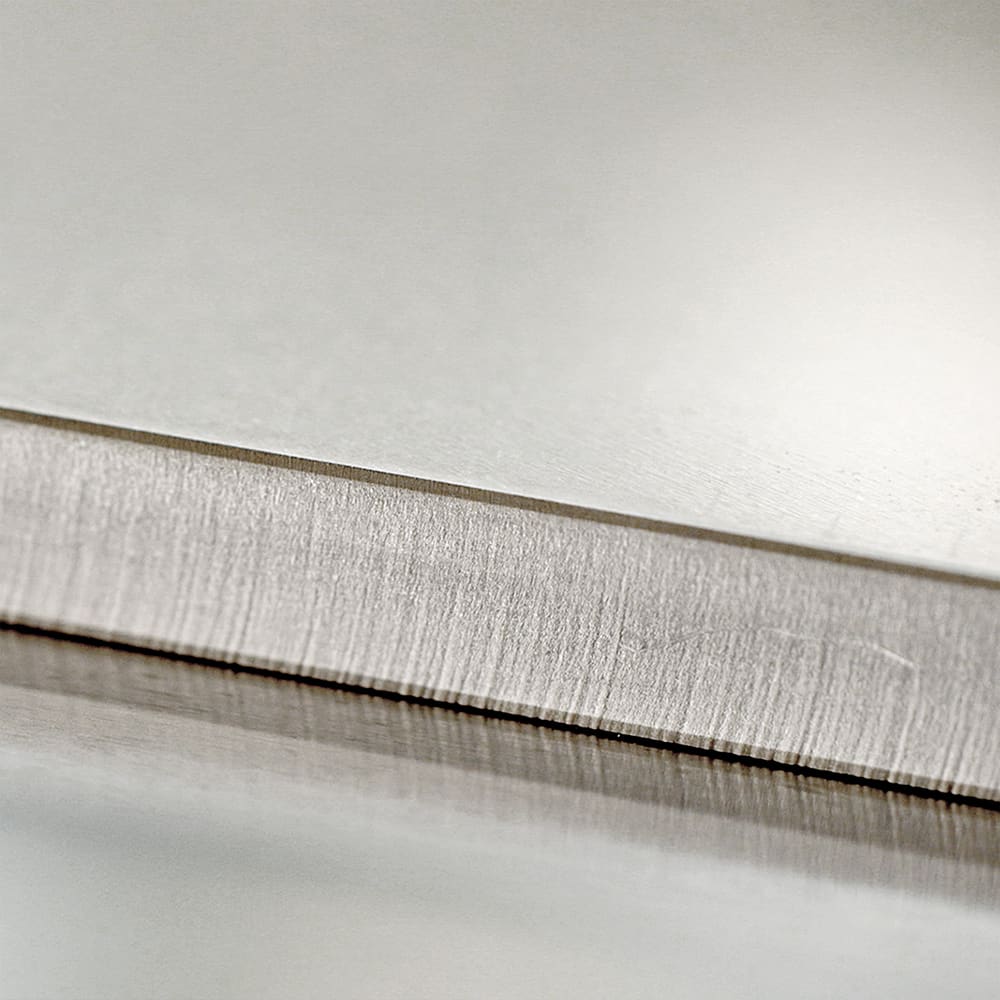

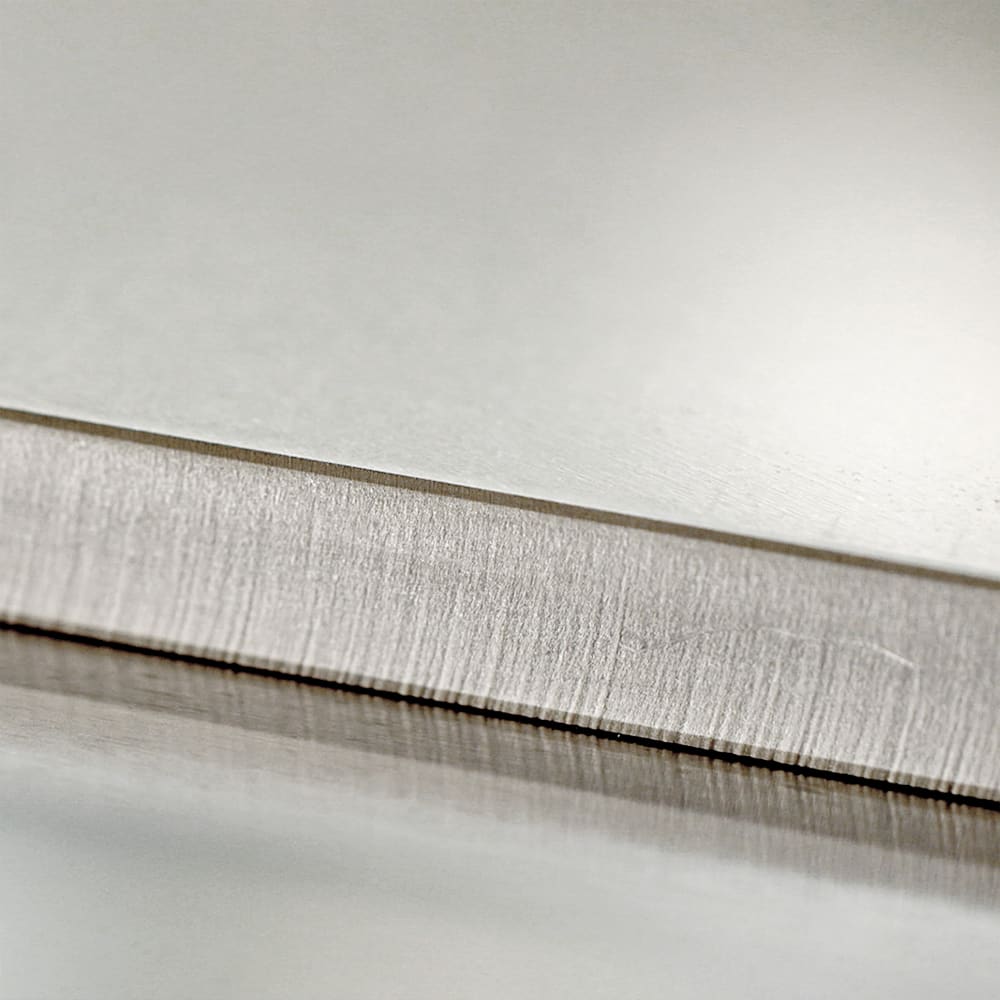

• 1-in.-thick chrome plate

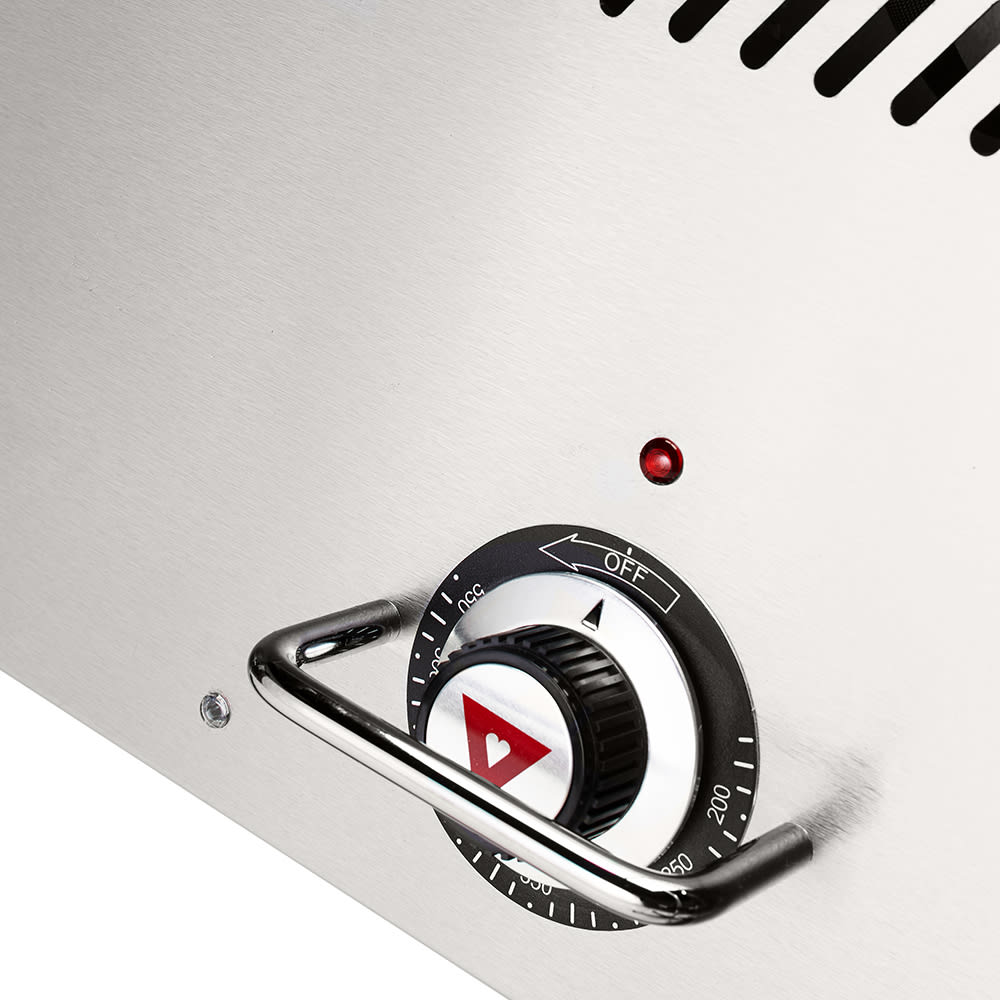

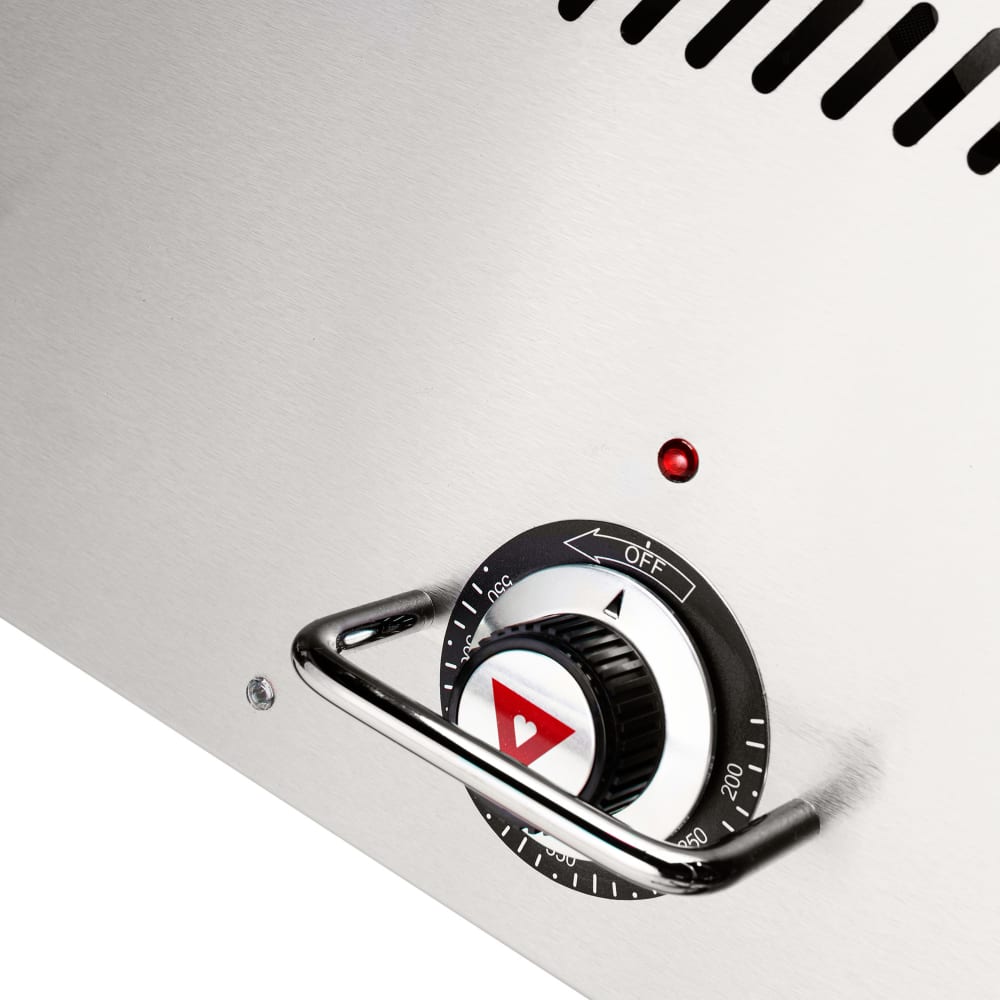

• Knobs protected with chrome guards
• 2 U-shaped aluminized steel atmospheric burners
• Heats in 12-in. sections

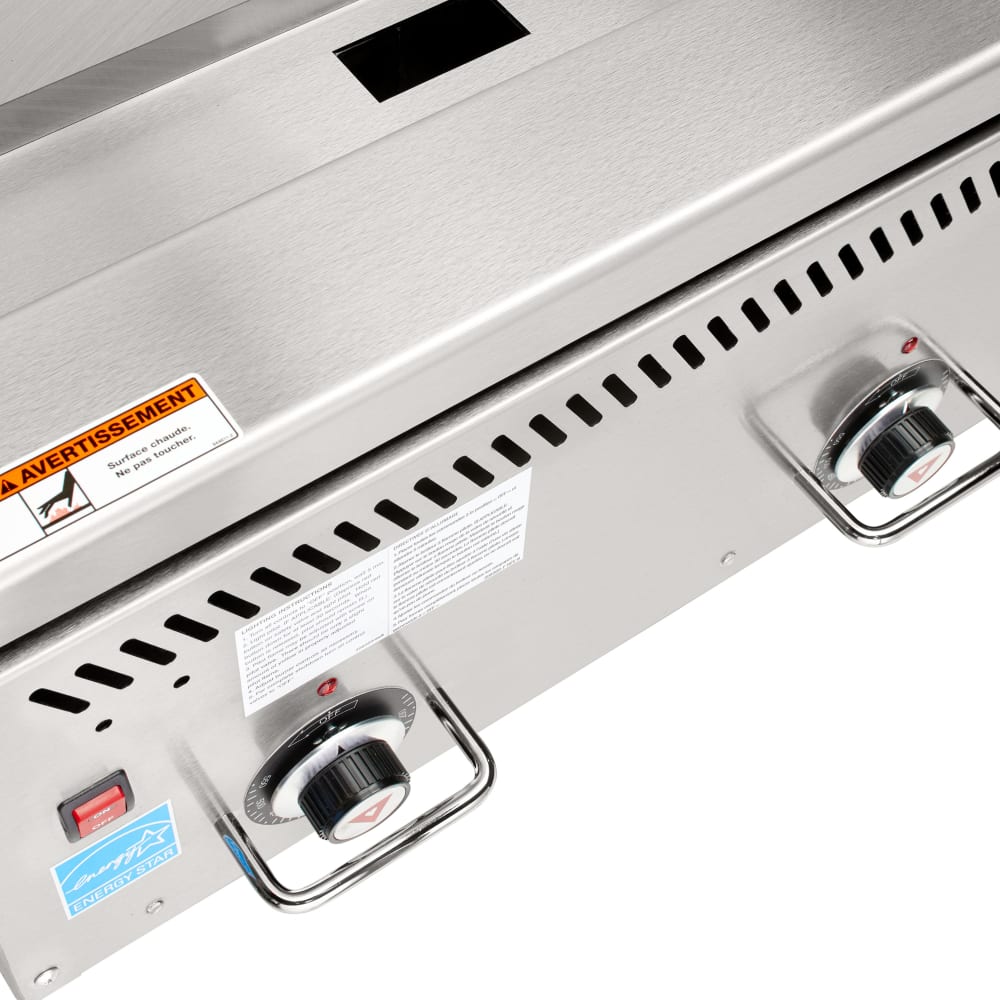

• Electronic ignition with pilot safety system
• Temperature range: 200-550 degrees F
• Cooking height: 14⁷/₁₀ in.
• (4) 4-in.-high adjustable legs

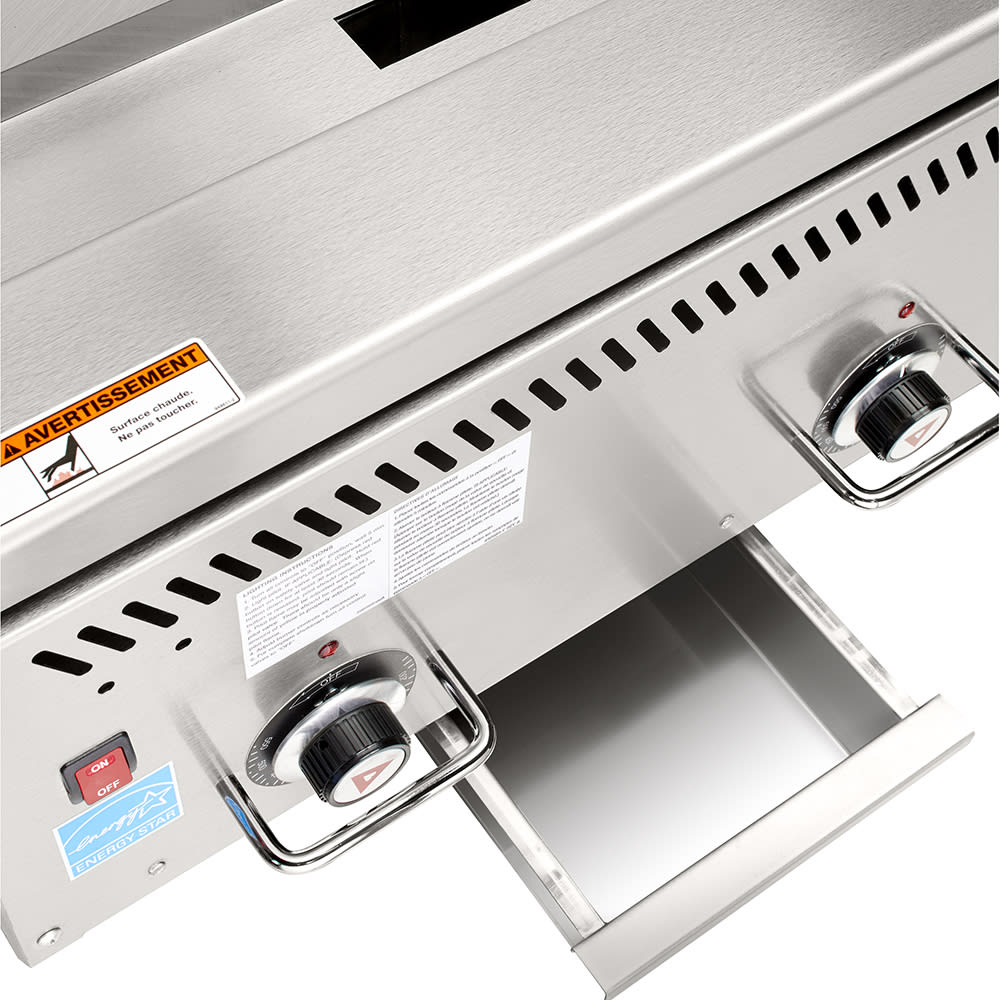

• 6-qt. stainless steel grease drawer
• Internal gas pressure regulators
• Tapered side splash guards and rear splash guard
• Palmetto brush, scraper, and blade included for cleaning
• Side clearances: 6 in.
• Bottom clearance: 4 in.
• 60,000 BTU

Dimensions & Utilities

• Cooking surface: 24 in. W x 24 in. D
• Overall: 24 in. W x 33¹/₁₀ in. D x 18⁴/₅ in. H
• 2 A
• 120 V/50-60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
• Uses natural gas
• ³⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan VCCG24-AR within the 48 contiguous states.

From The Manufacturer

Heavy Duty Griddle, countertop, gas, 24" W x 24" D cooking surface, 1" thick chrome plate, (2) burners, solid state thermostat every 12", atmospheric type “U” shaped aluminized steel burners, electronic spark ignition & pilot protection, wire knob guards, (1) drawer, includes: palmetto brush, scraper & blade, stainless steel front, sides, front top ledge, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 60,000 BTU, NSF, CSA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VCCG24-AR Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
