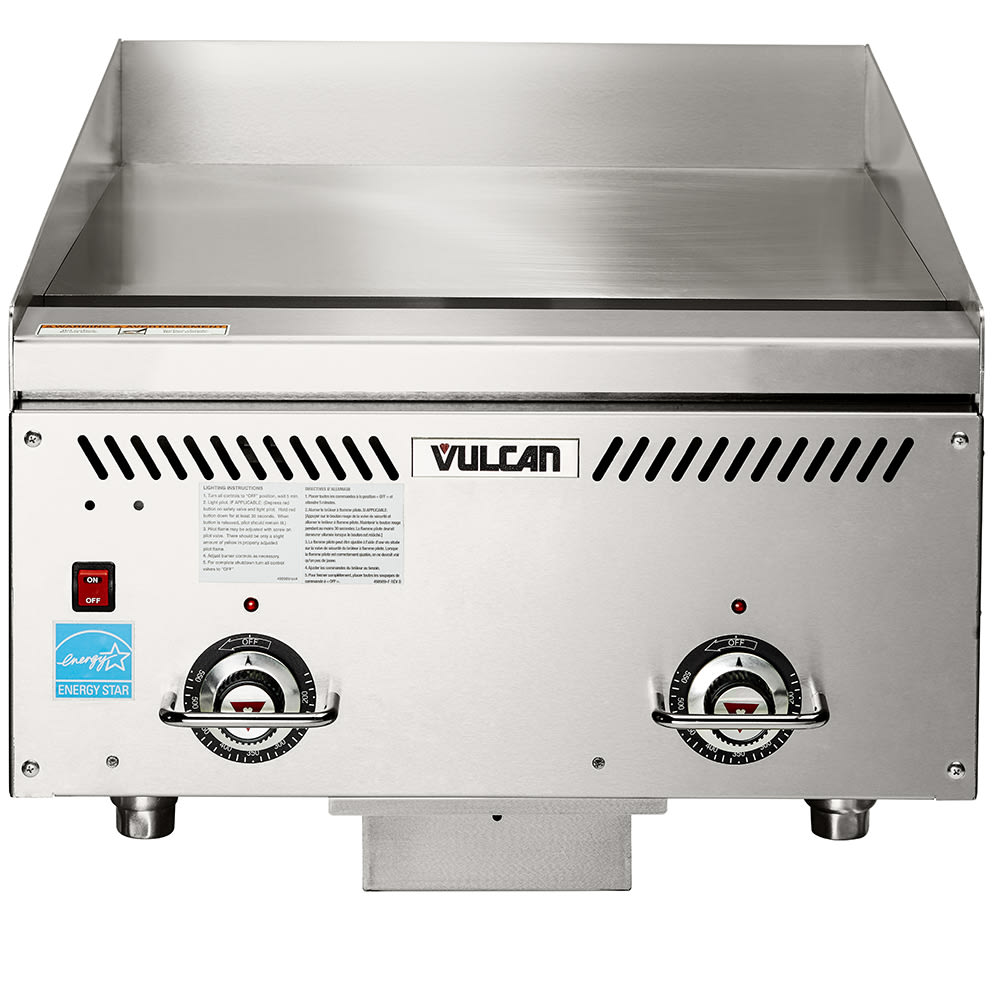

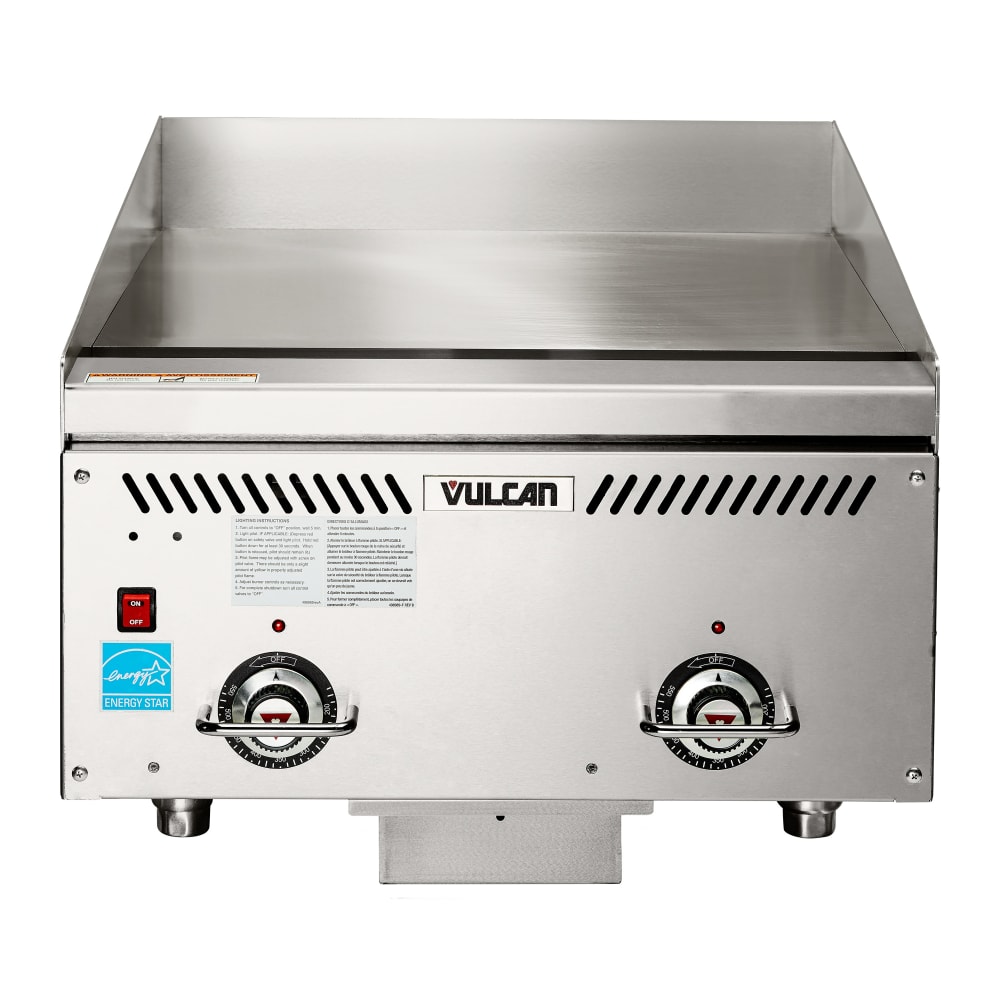

Vulcan VCCG24-AR 24" Gas Griddle w/ Thermostatic Controls - 1" Chrome Plate, Liquid Propane

Heated with two atmospheric burners, the Vulcan VCCG24-AR VCCG Series heavy-duty gas griddle independently warms 12-inch-wide griddle sections on it 24-inch-wide by 24-inch-deep cooking plate to simultaneously accommodate differing cooking needs. Its 1-inch-thick chrome plate can heat between 200 and 550 degrees Fahrenheit, and it's less likely to warp over time than thin griddle plates, making it a long-lasting piece of equipment that can withstand high-volume use. A solid-state thermostat and electronic ignition system work in tandem to keep the burners heated, while a pilot safety system ensures the burners are working properly. Knob guards shield the temperature controls to protect against tampering.

The Vulcan VCCG24-AR gas griddle is made primarily of stainless steel to endure daily wear, and its silver material hides scuffs and scratches for improved presentability over time. Splash guards line the perimeter of its sides and rear to contain hot grease and oil, and they streamline grease removal into the 6-quart stainless steel grease drawer. This griddle is designed to fit on a countertop, and its legs are adjustable to accommodate overhead storage needs. Overall, it has a 14.7-inch-high cooking height. To ensure a clean cooking surface over time, the griddle comes with a palmetto brush, scraper, and blade.

Product Details

• Part of the VCCG series
• Temperature range: 200-550 degrees F
• 2 U-shaped aluminized steel atmospheric burners
• Stainless steel construction with welded stainless and aluminized steel chassis

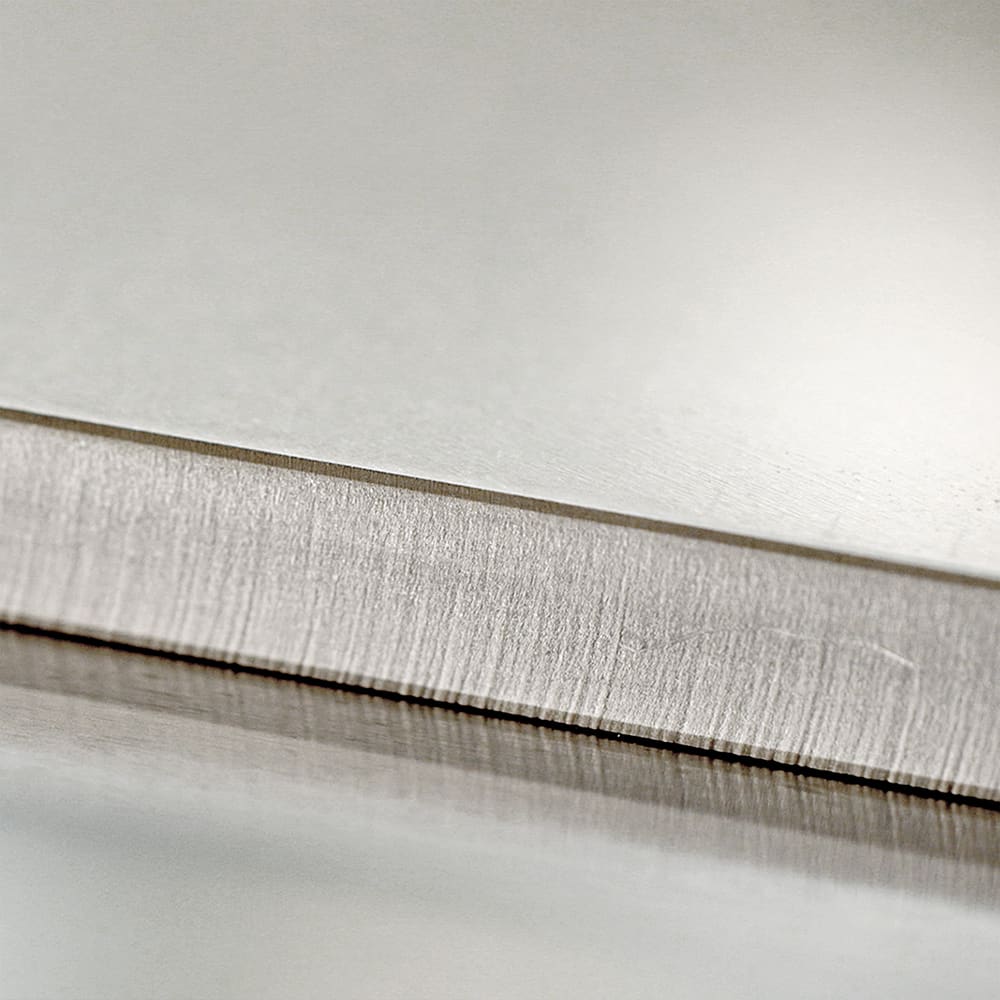

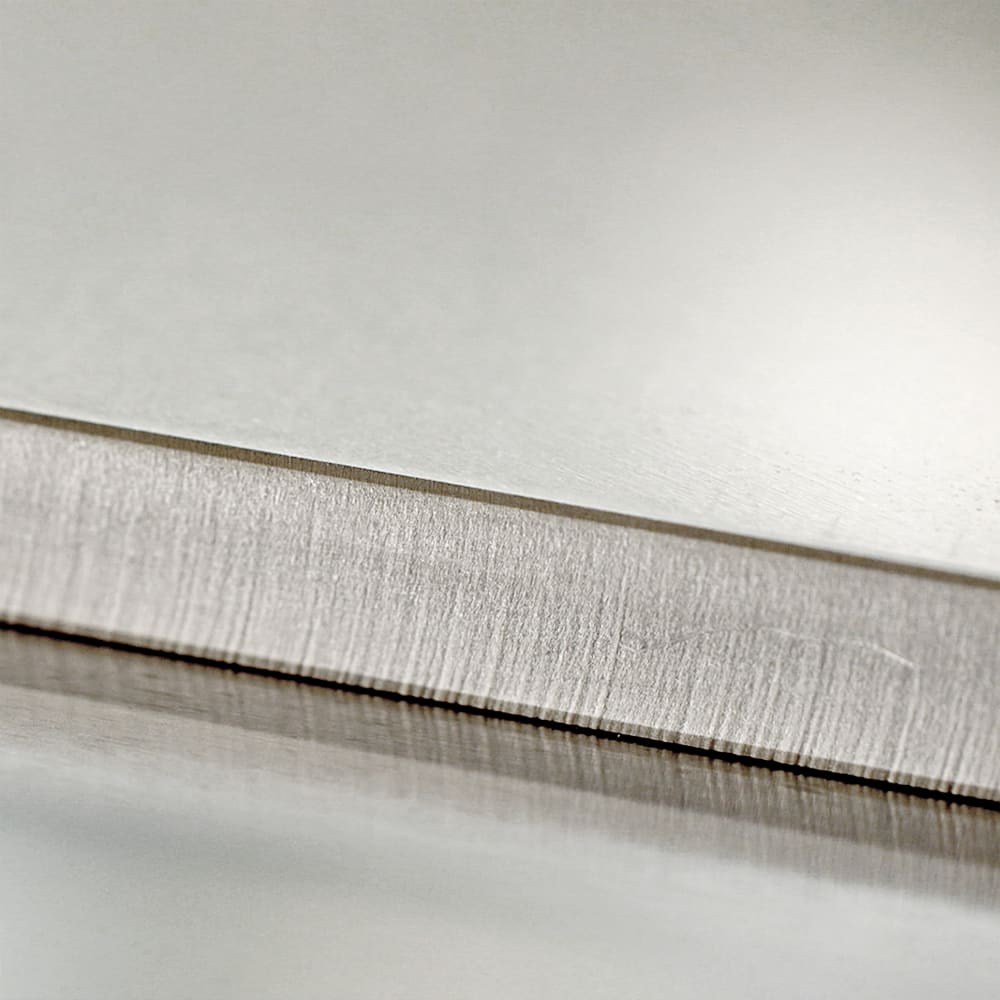

• 1-in.-thick chrome griddle plate

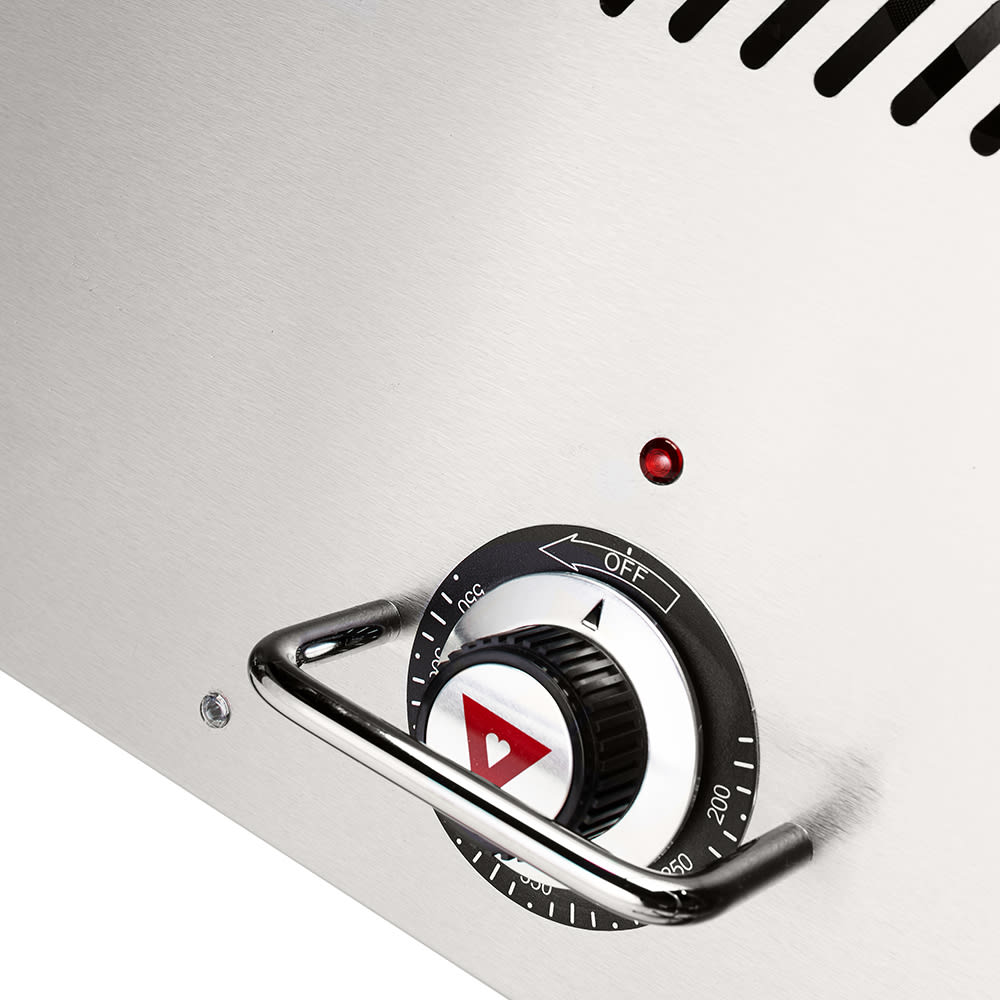

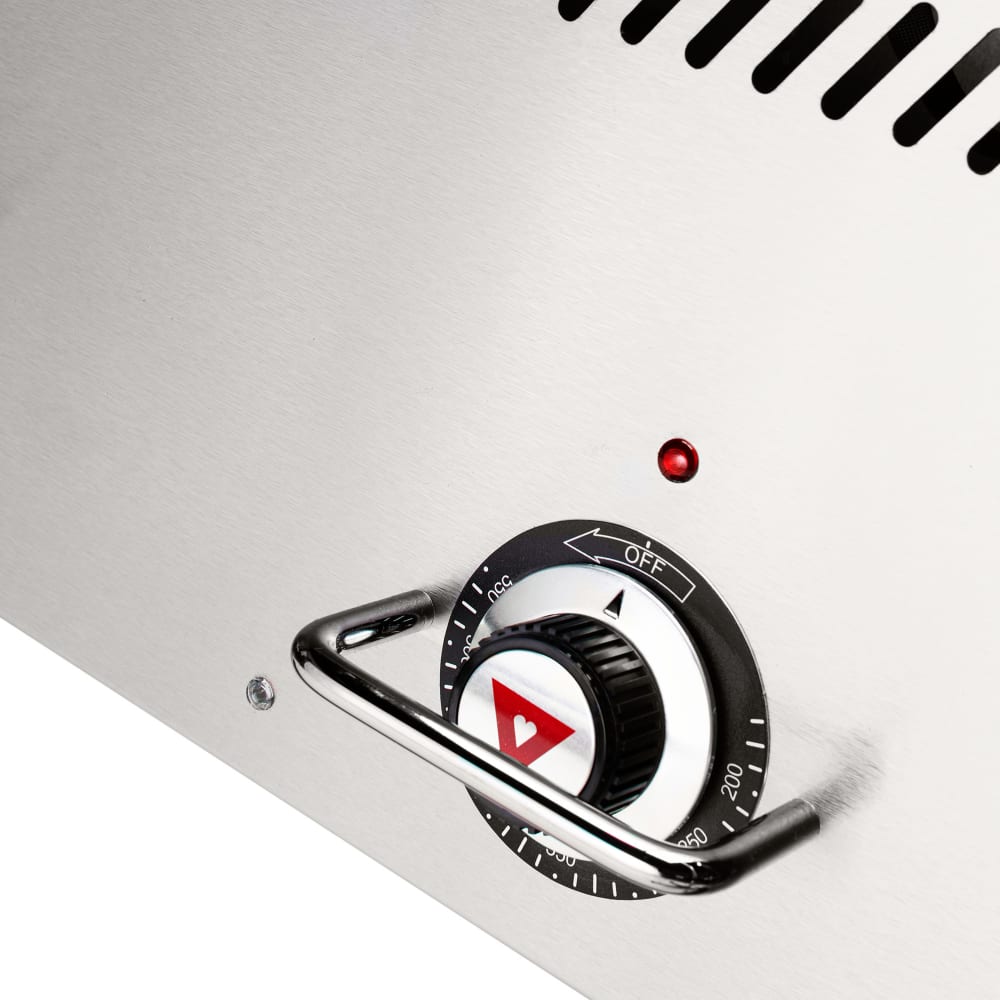

• Knobs protected with chrome guards
• Each 12-in.-wide section heated independently
• Electronic ignition with pilot safety system
• Cooking height: 14⁷/₁₀ in.
• Backsplash and 2 side splashes
• (4) 4-in.-tall adjustable legs

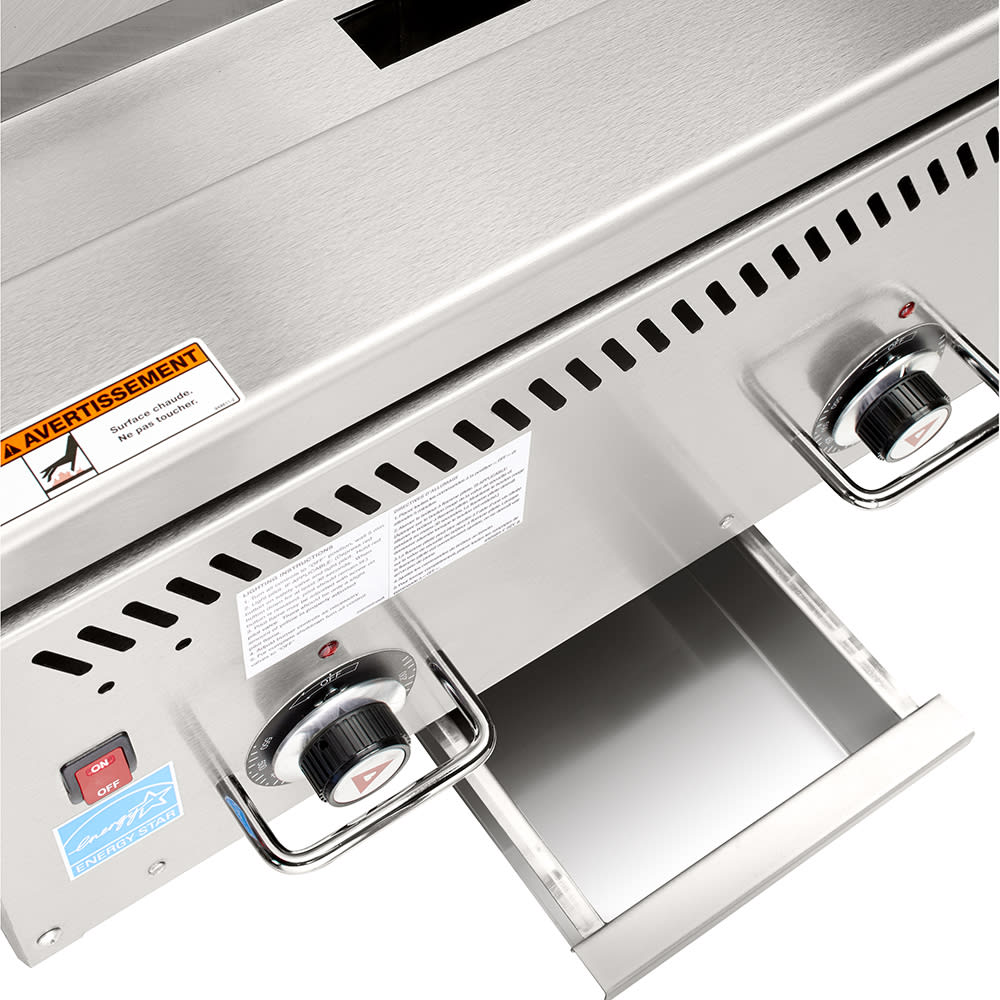

• 6-qt. grease drawer
• Palmetto brush, scraper, and blade included for cleaning griddle plate
• 14⁷/₁₀-in. cooking height
• Side clearances: 6 in.
• Bottom clearance: 4 in.
• 60,000 BTU

Dimensions & Utilities

• Cooking surface: 24 in. W x 24 in. D
• Overall: 24 in. W x 33¹/₁₀ in. D x 18⁴/₅ in. H
• 2 A
• 120 V/50-60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
• Uses LP gas
• ³⁄₄-in. rear gas connection

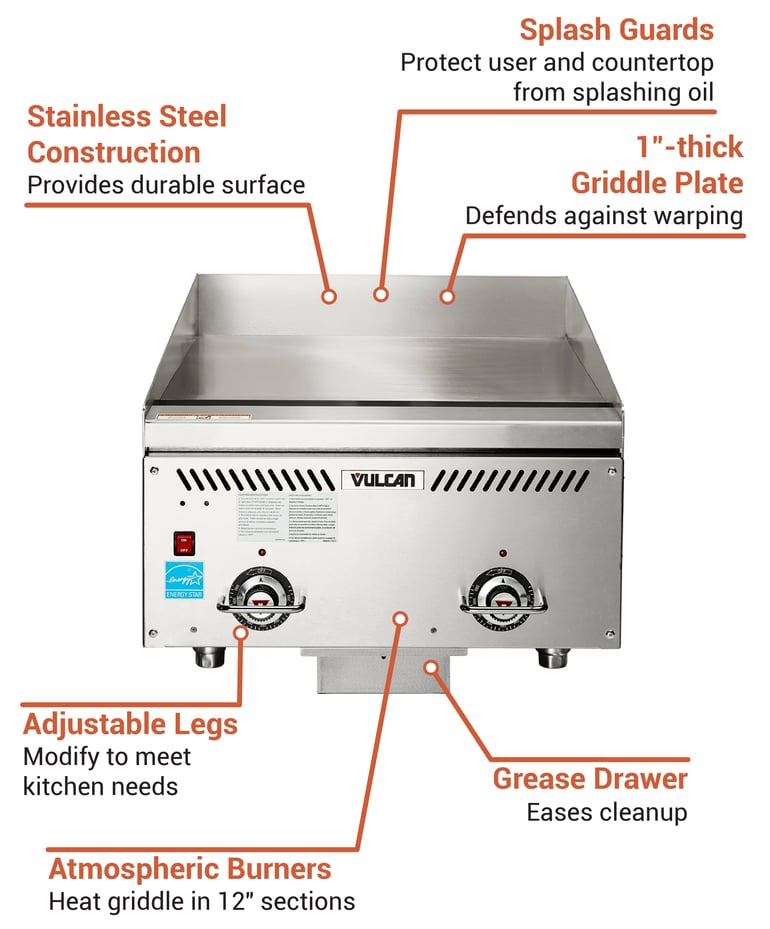

Product Features

*Free shipping on Vulcan VCCG24-AR within the 48 contiguous states.

From The Manufacturer

Heavy Duty Griddle, countertop, gas, 24" W x 24" D cooking surface, 1" thick chrome plate, (2) burners, solid state thermostat every 12", atmospheric type “U” shaped aluminized steel burners, electronic spark ignition & pilot protection, wire knob guards, (1) drawer, includes: palmetto brush, scraper & blade, stainless steel front, sides, front top ledge, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 60,000 BTU, NSF, CSA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VCCG24-AR Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
