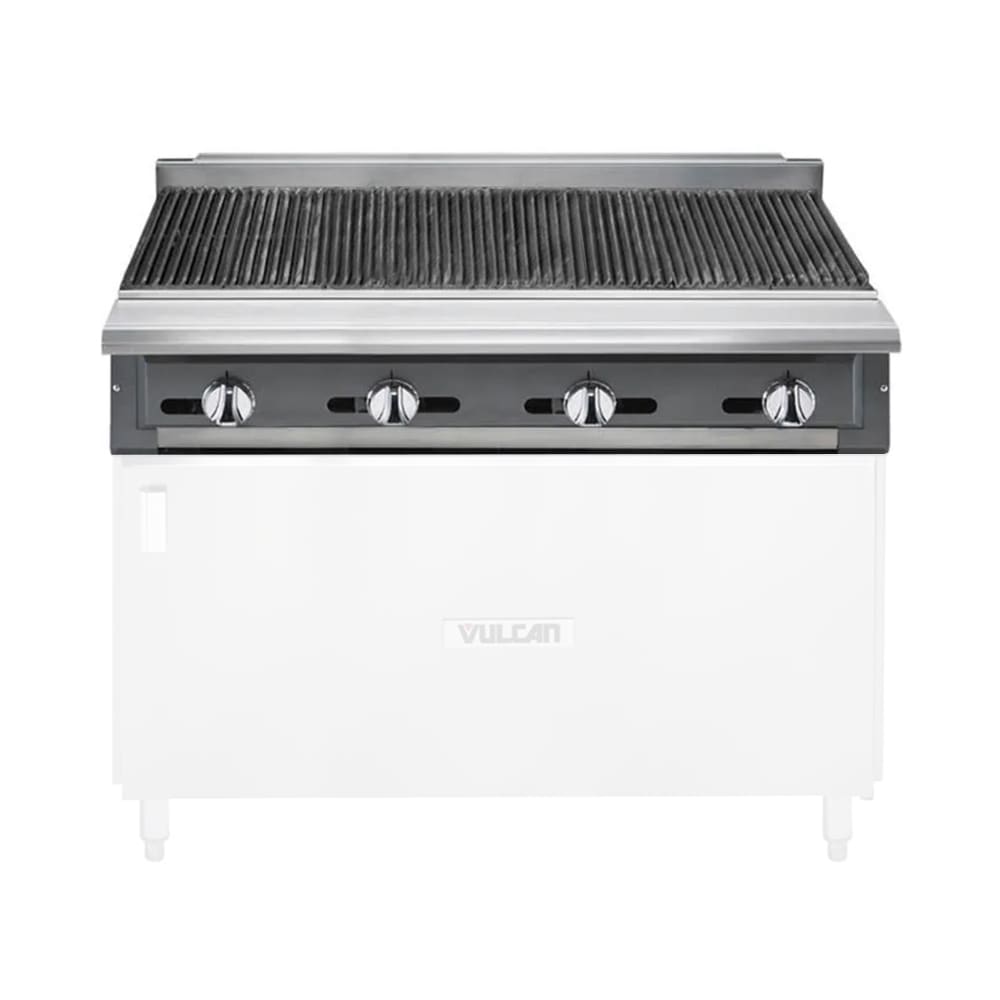

Vulcan VCBB48 48" Gas Range Charbroiler - Modular, Liquid Propane

For placement on a countertop or equipment stand, the Vulcan VCBB48 heavy-duty gas range features a modular base placed on 4-inch flanged feet, which can be raised or lowered to stabilize the unit on sloped or irregular surfaces. This 48-inch-wide by 36³⁄₄-inch-deep by 17¹⁵⁄₁₆-inch-tall piece can save space in compact kitchens and because its front, front top ledge, burner box, sides, and stub back are made of durable stainless steel, it resists rusting, denting, and scratching through high-volume use for prolonged service life.

The Vulcan VCBB48 gas range's top features a 48-inch-wide charbroiler with eight burners. Each burner has a corresponding pilot light and control so only parts of the charbroiler can be used during slow periods. When all burners are in use, this LP-gas-powered unit can output 130,000 BTUs per hour. Its char radiants and stainless steel supercharger burner dividers create a uniformly heated surface, while the heavy-duty slant cast grates leave behind appetizing grill marks and a smoky flavor. To ease cleanup, the grates can be lifted off, and the crumb tray's collected food residue can be removed.

Product Details

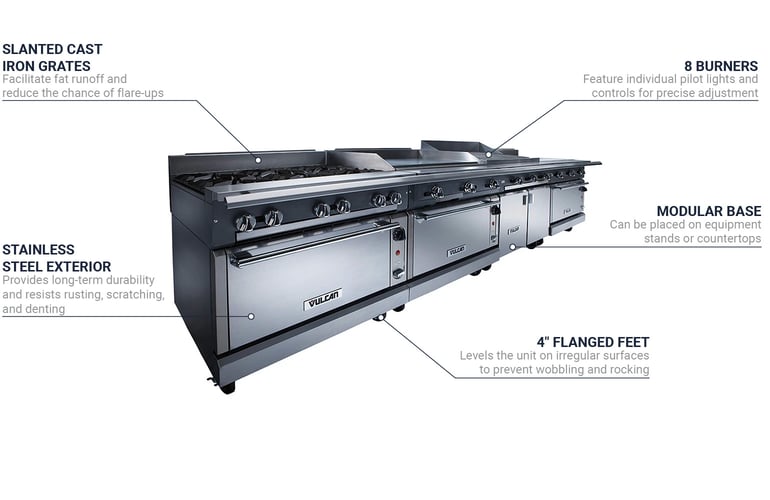

• Part of Vulcan's V series
• Durable stainless steel front, front top ledge, burner box, sides, base, and stub back
• 48-in.-wide charbroiler
• 8 burners with individual pilots and controls for each burner
• Char radiants
• Stainless steel supercharger burner dividers
• 8 lift-off, heavy-duty, slanted cast iron grates
• 4-in. stub riser
• Modular base mounted on 4-in. adjustable flanged feet
• 130,000 BTU

Dimensions & Utilities

• 48 in. W x 36³⁄₄ in. D x 17¹⁵⁄₁₆ in. H
• Powered by LP gas
• 1¹⁄₄-in. diameter front gas manifold
• ³⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan VCBB48 within the 48 contiguous states.

From The Manufacturer

V Series Heavy Duty Range, gas, 48", modular, charbroiler, cast iron grates and char-radiants, stainless steel front, front top ledge, side, base, burner box & stub back, 4" flanged feet, 130,000 BTU, CSA, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VCBB48 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
