Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
Vulcan V4B36B 36" 4 Burner Gas Range w/ Storage Base, Liquid Propane
Typically ships in 4 - 6 weeks
Free Shipping Item
Retail Price: $22,768.20
$9,373.00 /Each
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V4B36B Description

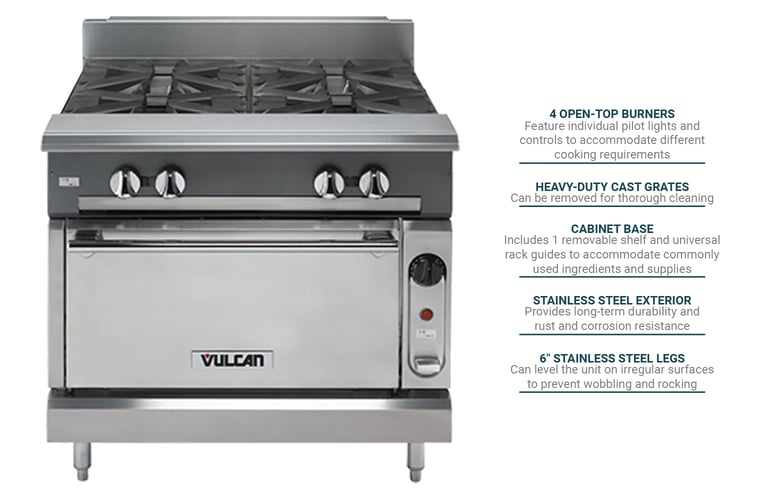

To save space and enhance convenience, the Vulcan V4B36B heavy-duty gas range is a 36-inch-wide by 363⁄4-inch-deep by 36-inch-tall unit built with four open-top burners and a cabinet base. Its front, front top ledge, burner box, sides, base, and stub back are made of durable, rust- and corrosion-resistant stainless steel capable of surviving demanding back-of-house settings. To keep spices, oil, cooking utensils, and supplies within reach, the cabinet base includes one removable shelf that's adjustable on the universal rack guides. For a clean, concealed appearance, a stainless steel door encases the cabinet. Its 6-inch-tall legs can be raised or lowered to level the unit on irregular or sloped flooring.
The Vulcan V4B36B V series range is powered by natural gas and outputs 140,000 BTUs per hour. Its four burners have individual pilot lights and controls so staff can adjust the burners' heat independently. For efficiency, the burners feature heavy-duty aeration bowls and open-top cast grates. To accommodate different cookware, the two rear grates each measure 14 inches by 17 inches, while the two front grates are 11 inches by 17 inches. To ease cleaning, the grates can be removed, while the stainless steel crumb tray can be pulled out.
Product Details
- Part of the V series
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- (4) 35,000-BTU open-top burners feature lift-off heads
- 4 pilot lights and burner controls
- Heavy-duty cast aeration bowls
- Removable cast top grates
- (2) 11-in. x 17-in. front grates
- (2) 14-in. x 17-in. rear grates
- Extra-deep stainless steel crumb tray
- 4-in. stub riser
- Cabinet base includes 1 removable shelf, universal rack guides, and stainless steel door
- 6-in. adjustable legs
- 140,000 BTU
Dimensions & Utilities
- 36 in. W x 363⁄4 in. D x 36 in. H
- Powered by LP gas
- 11⁄4-in. diameter front gas manifold
- 11⁄4-in. rear gas connection
Product Features
*Free shipping on Vulcan V4B36B within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (4) 35,000 BTU open burners, cast iron grates, cabinet base, stainless steel front, front top ledge, sides, base, burner box & stub back, 140,000 BTU, 6" adjustable legs, CSA, NSF

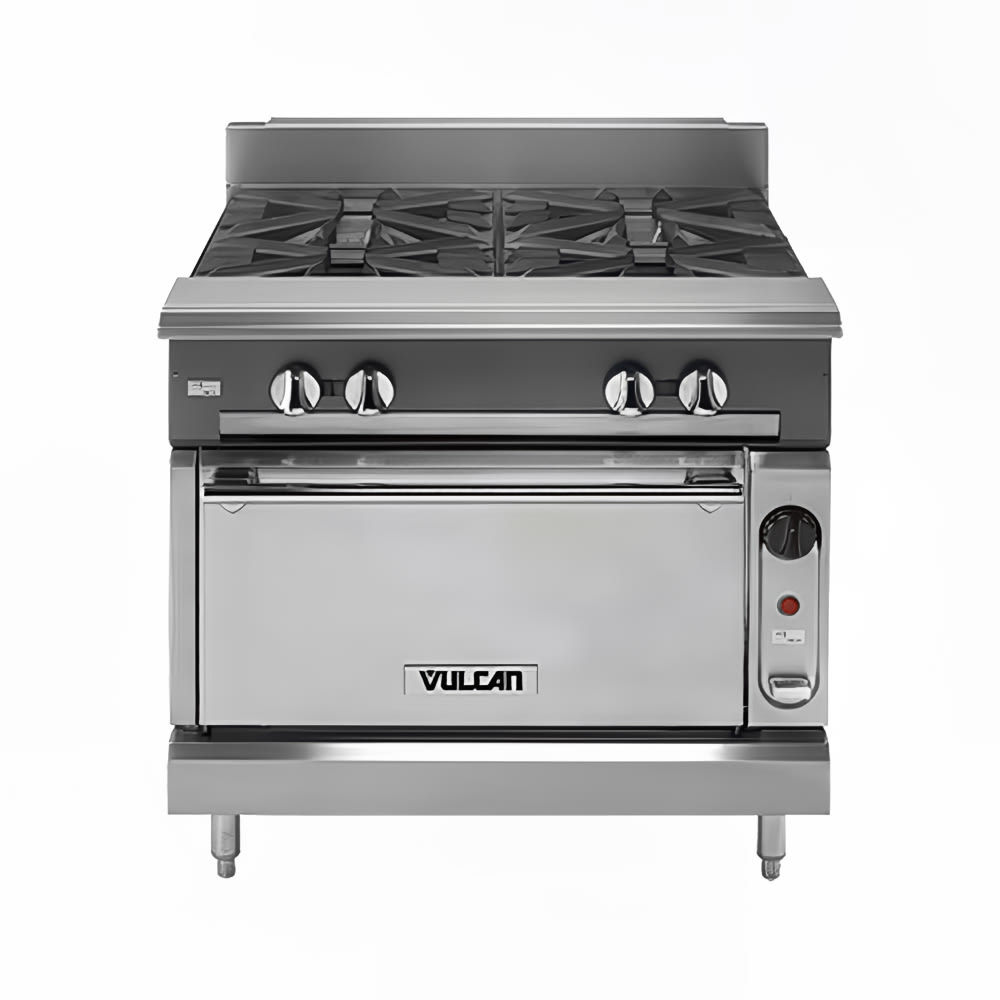

*Not as Shown - Oven Not Included
1-year Limited Parts & Labor
Vulcan V4B36B Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Storage |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Depth (in) | 36.75 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | 4 |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Total BTU | 140000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 380.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
