Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

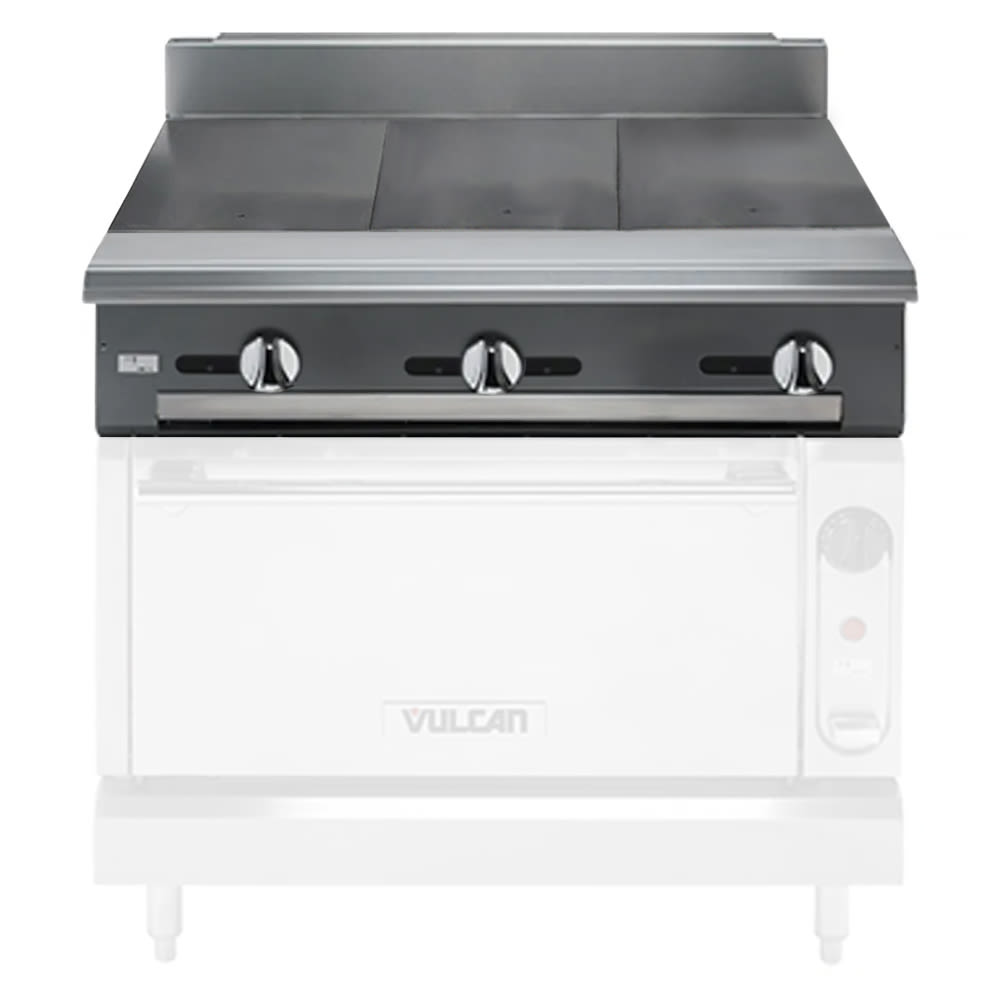

Vulcan V336H 36" Gas Range Top w/ (3) Hot Tops - Modular, Natural Gas
Typically ships in 4 - 6 weeks
Free Shipping Item
$9,116.00 /Each
Low price guarantee - call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V336H Description

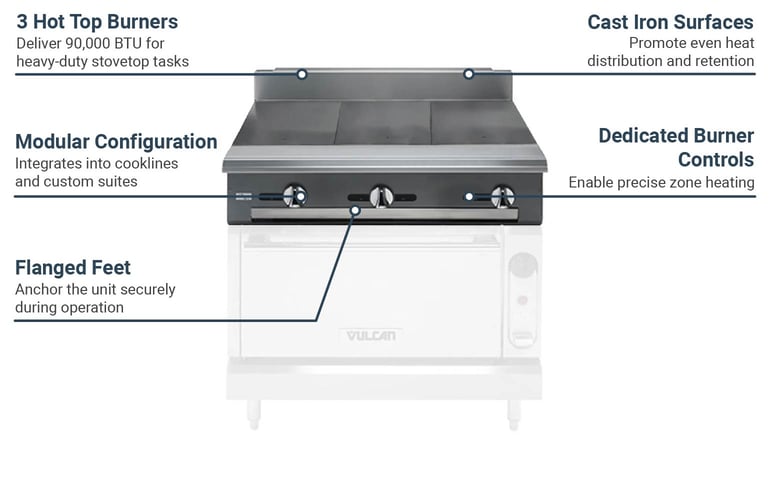

The Vulcan V336H gas range top is a modular unit equipped with three hot tops, each delivering 30,000 BTU to support heavy-volume cooking applications. Fueled by natural gas, the unit is ideal for operations needing intense, consistent heat across large pots and pans. The cast iron hot top sections retain and distribute heat evenly to reduce hot spots and improve temperature control throughout the cooking surface. This 36-inch-wide range top is designed without an oven, making it a strong fit for custom cooklines or integrated suites.
Constructed of stainless steel, the Vulcan V336H has a durable front, sides, base, burner box, stub back, and top ledge that resist rust and wear in demanding environments. Operators can control each burner zone independently using dedicated pilots and controls. A 3/4-inch ground steel griddle plate offers additional cooking flexibility, and the unit rests on 4-inch flanged feet for secure modular installation. The front gas manifold measures 11⁄4 inches and is paired with a capped rear connection to simplify utility routing, while a 4-inch stub riser protects adjacent surfaces from radiant heat.
Product Details
- Part of the V Series
- Manufactured of stainless steel
- (3) 30,000 BTU hot top burners
- Heavy-duty cast iron hot top surfaces
- Includes 3/4-in. ground steel griddle plate
- Individual pilots and controls for each burner
- 11⁄4-in. front gas manifold and capped 11⁄4-in. rear gas connection
- 4-in. stainless steel stub riser
- 4-in. flanged feet for modular installation
Dimensions & Utilities
- 36 in. W x 417⁄8 in. D x 401⁄2 in. H
- Powered by natural gas
- 90,000 total BTU
Product Features
*Free shipping on Vulcan V336H within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", modular, (3) hot tops, stainless steel front, front top ledge, sides, base, burner box & stub back, 4" flanged feet, 90,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan V336H Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 41.87 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 90000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 370.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
