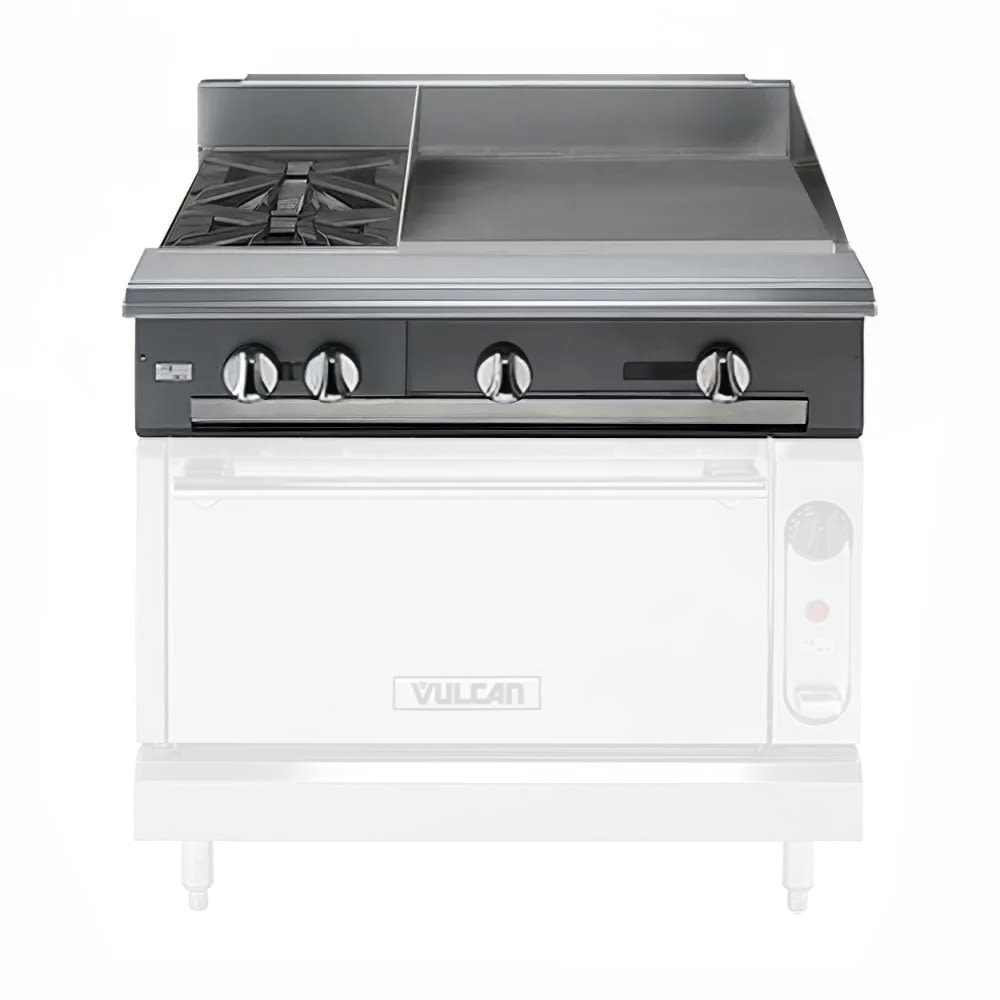

Vulcan V2BG8T 36" 2 Burner Gas Range Top w/ Griddle - Modular, Natural Gas

So chefs can saute, fry, boil, and simmer various ingredients on one unit, the Vulcan V2BG8T V-series heavy-duty range features two 35,000-BTU burners on its left side and a 30,000-BTU burner on its right side. The two open-top burners each have separate pilot lights and controls to accommodate specific cooking needs. While the rear grate is 14 inches by 17 inches to support large pots and pans, the front grate is 11 inches by 17 inches—sized for holding small- or medium-sized cookware. To ease cleaning, the stainless steel extra-deep crumb tray collects food debris during operation, and the grates can be lifted off. The griddle's ³⁄₄-inch-thick ground-steel plate is durable enough to withstand repeated heating and cooling, and to eliminate guesswork, it has corresponding snap-action thermostatic controls that enable staff to set specific temperatures.

The Vulcan V2BG8T commercial range measures 36 inches wide by 36³⁄₄ inches deep by 17¹⁵⁄₁₆ inches high overall. To create an individualized workstation, its modular base can be placed on a countertop, and to ensure stability during use, its 4-inch flanged feet can be raised or lowered as needed. Its front, front top ledge, sides, base, burner box, and stub back are all made of stainless steel—a durable metal resistant to rust, corrosion, and wear that's simple to wipe clean.

Product Details

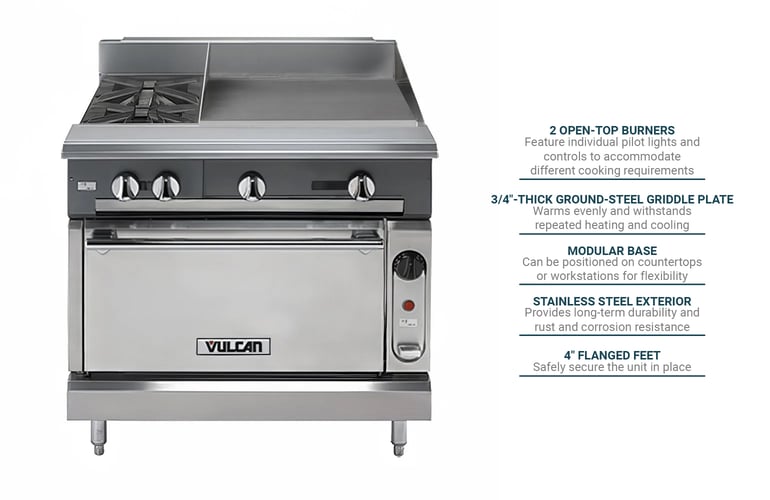

• Part of the V series
• 2 open-top burners with lift-off heads
• 11-in. x 17-in. heavy-duty lift-off cast front grate
• 14-in. x 17-in. heavy-duty lift-off cast rear grate
• Both burners feature individual pilots and controls
• Extra-deep stainless steel crumb tray
• 18-in.-wide griddle with ³⁄₄-in.-thick ground-steel plate
• Snap-action thermostatic controls enable precise temperature adjustment
• Rugged, rust- and corrosion-resistant stainless steel front, front top ledge, sides, base, and stub back
• Modular base can be placed on countertops
• 4-in. adjustable flanged feet
• 100,000 BTU

Dimensions & Utilities

• 36 in. W x 36³⁄₄ in. D x 17¹⁵⁄₁₆ in. H
• Powered by natural gas
• 1¹⁄₄-in. diameter front gas manifold
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan V2BG8T within the 48 contiguous states.

From The Manufacturer

V Series Heavy Duty Range, gas, 36", modular, (2) 35,000 BTU open burners, (1) 18" griddle, thermostatic controls, stainless steel front, front top ledge, sides, base, burner box & stub back, 4" flanged feet, 100,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan V2BG8T Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
