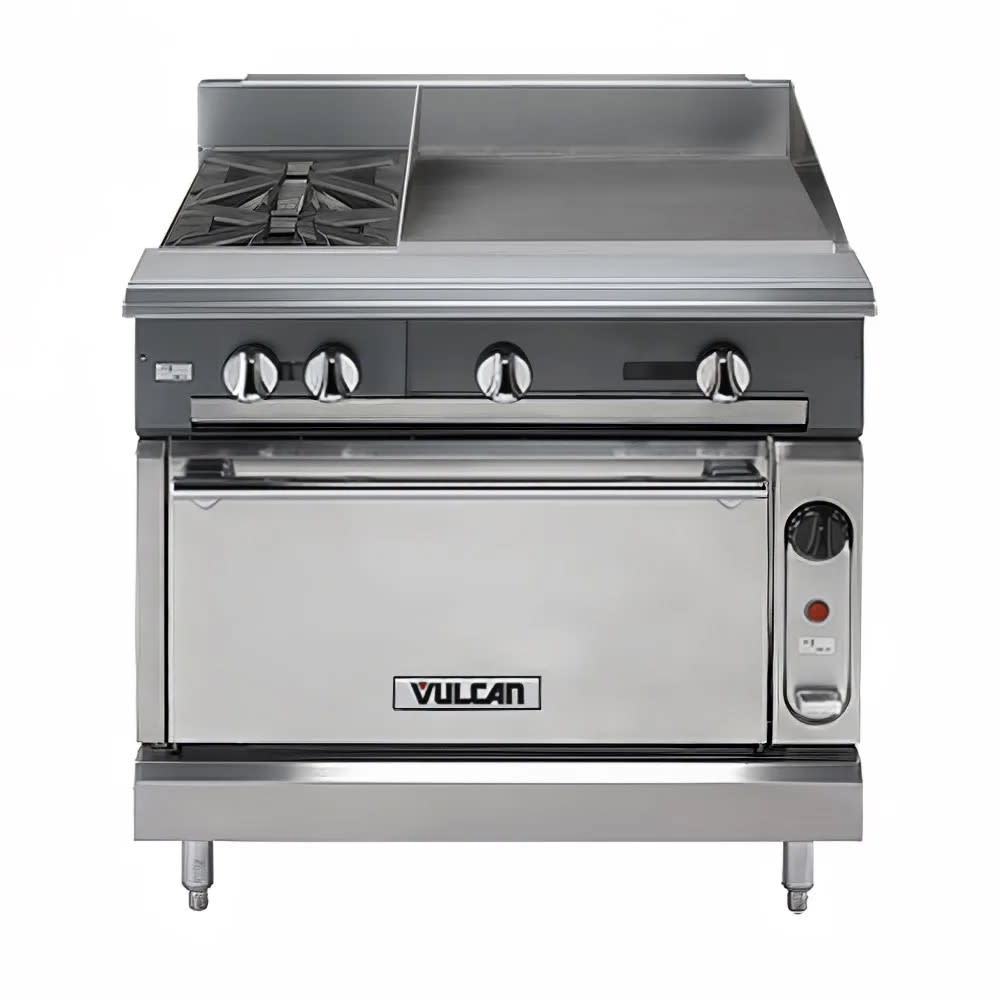

Vulcan V2BG24S 36" 2 Burner Gas Range w/ Griddle & Standard Oven, Natural Gas

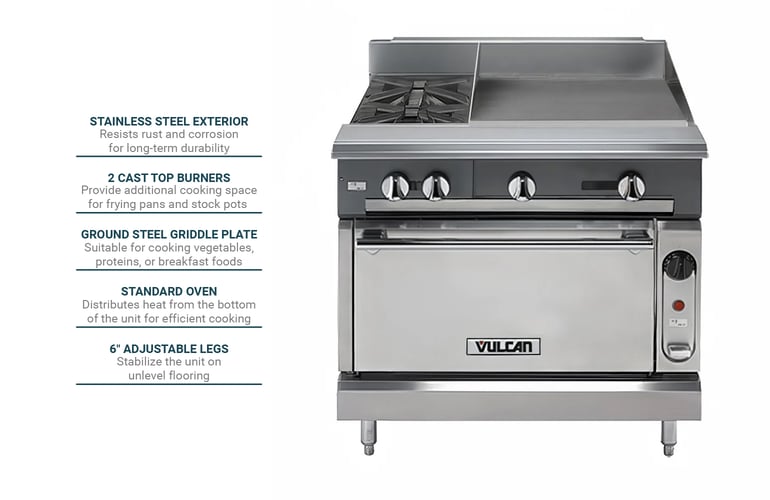

Suitable for an array of cooking applications, the Vulcan V2BG24S natural gas range features two lift-off cast burners and two griddle burners. Each burner has independent pilots and controls for precise temperature modification, and for lasting performance the grates are heavy-duty cast iron. To boil, saute, and pan-fry, this unit has an 11-inch by 17-inch front grate and 14-inch by 17-inch rear grate. For grilling burgers or breakfast items it features a manual griddle with a 24-inch long by ³⁄₄-inch thick ground steel plate. It stainless steel front, top ledge, burner box, base, stub back, and sides are corrosion-resistant for long-term durability, and to simplify cleaning this range's 4-inch stub riser and extra-deep crumb tray are also constructed of stainless steel.

In conjunction with open burners and a griddle, the Vulcan V2BG24S range has a standard oven base with a 27-inch-wide by 27-inch-deep by 13-inch-high porcelain baking chamber. It includes three rack rails with one adjustable rack and sports a heavy-duty oven door attached to counterweight hinges. Ideal for baking and roasting, this 36-inch-wide by 41⁷/₈-inch-deep by 40¹⁄₂-inch-high oven has an operating temperature range of 150 to 550 degrees Fahrenheit, and for stability on uneven flooring it's mounted to 6-inch adjustable legs.

Range Details

• Part of the V series
• Stainless steel front, front top ledge, burner box, sides, base, and stub back
• (2) 35,000-BTU cast burners with lift-off heads
• (2) 30,000-BTU griddle burners
• Independent pilots and controls per burner
• Stainless steel extra-deep crumb tray
• Heavy-duty cast grates
• 4-in. stainless steel stub riser
• 11-in. x 17-in. front grate
• 14-in. x 17-in. rear grate
• 24-in. manual griddle
• ³⁄₄-in.-thick ground steel griddle plate

Standard Oven Details

• Operating temperature range: 150-550 degrees F
• Porcelain baking chamber
• Includes 1 rack
• 3 rack positions
• Heavy-duty door with counter-weight hinges
• 6-in. adjustable legs
• 50,000 BTU burner

Dimensions & Utilities

• Oven interior: 27 in. W x 27 in. D x 13 in. H
• Overall: 36 in. W x 41⁷/₈ in. D x 40¹⁄₂ in. H
• 4 A
• 115 V/60 Hz/1 ph, 9-ft. cord with plug
• Powered by natural gas
• ¹⁄₄-in.-diameter front gas manifold
• 1¹⁄₄-in.-diameter rear gas connection
• 180,000 BTU

Product Features

*Free shipping on Vulcan V2BG24S within the 48 contiguous states.

From The Manufacturer

V Series Heavy Duty Range, gas, 36", (2) 35,000 BTU open burners, (1) 24" griddle, standard oven, stainless steel front, front top ledge, sides, base, burner box & stub back, 6" adjustable legs, 180,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan V2BG24S Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
