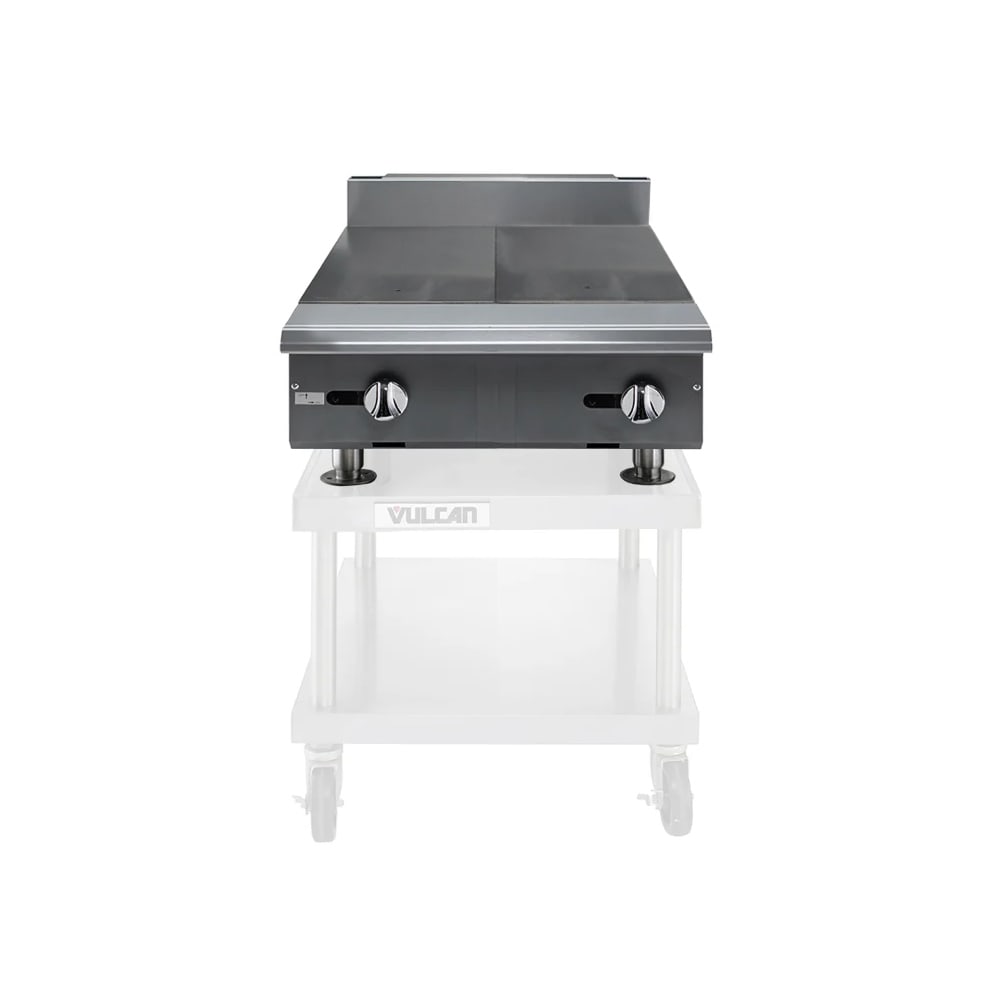

Vulcan V224H 24" Gas Range Top w/ 2 Hot Tops - Modular, Liquid Propane
Retail Price: $18,181.00
$6,257.31 /Each
Selected Gas Type: Liquid Propane
Attention: Order by 12-01-2026 to save before the price increases!
Vulcan V224H Description
Supported by 4-inch flanged feet for secure countertop installation, the Vulcan V224H modular gas range top integrates into customized cooklines where a full base is not required. It is built for heavy-duty performance with a corrosion-resistant stainless steel exterior. A 4-inch stainless steel stub riser is positioned at the rear to guard nearby surfaces from heat and splatter during service. This model is intended for freestanding use on equipment stands or prep counters.
The Vulcan V224H modular range top includes a pair of hot top sections that provide steady, even heat across a 3⁄4-inch-thick ground steel griddle plate. Heat is regulated with individual pilots and front-mounted controls, allowing operators to tailor each section to specific cooking needs. For gas connections, the unit includes a 1⁄4-inch-diameter front manifold and a capped rear outlet for flexible installation with liquid propane fuel sources.
- V series
- Stainless steel construction
- 2 hot top sections
- Heavy-duty hot top castings
- 3⁄4-in. ground steel griddle plate
- (2) 30,000 BTU burners
- Individual pilots and burner controls
- 1⁄4-in.-diameter front gas manifold
- Capped rear gas connection
- 4-in. stainless steel stub riser
- 4-in. flanged feet for modular installation
- 24 in. W x 36 3⁄4 in. D x 40 1⁄2 in. H
- 60,000 total BTU
- Powered by LP gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan V224H within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Vulcan V224H Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 36.75 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 60000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 340.00 |
