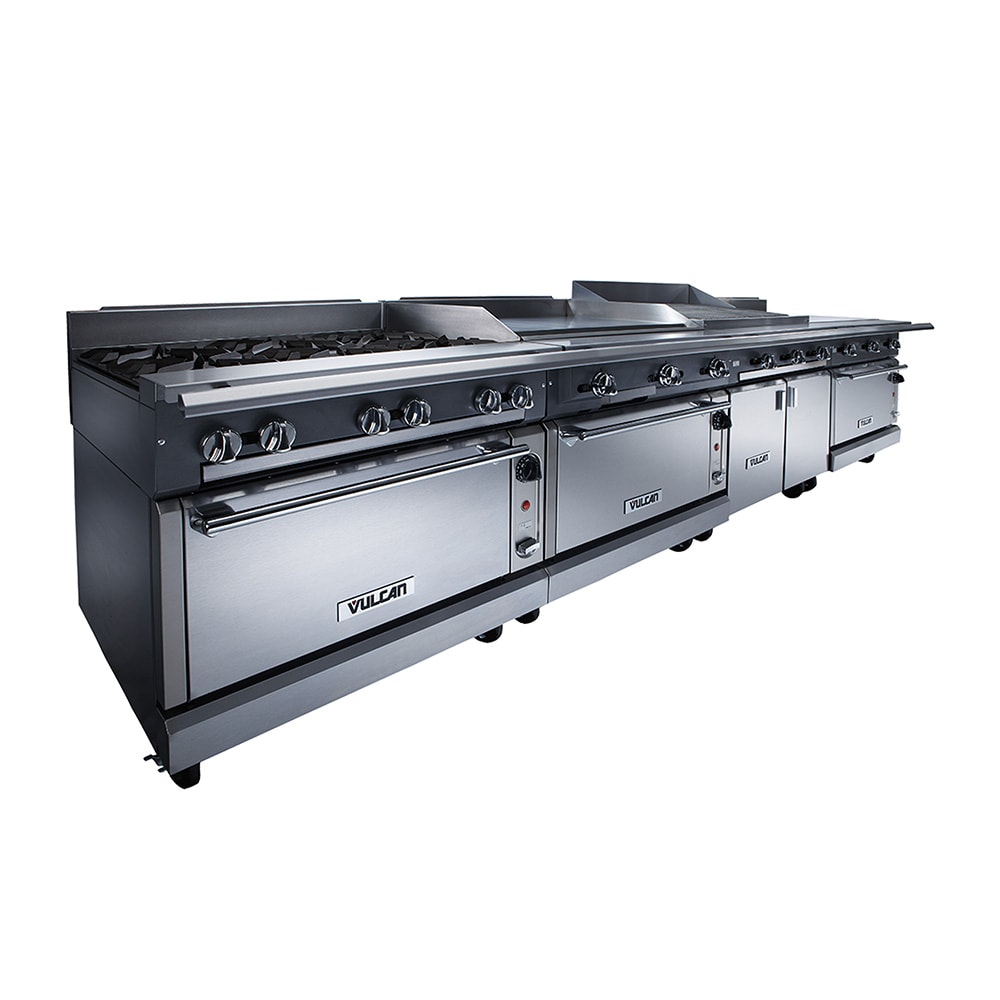

Vulcan V224HB 24" Gas Range w/ 2 Hot Tops & Storage Base, Liquid Propane
Retail Price: $21,353.00
$7,304.30 /Each
Selected Gas Type: Liquid Propane
Attention: Order by 12-01-2026 to save before the price increases!
Vulcan V224HB Description
Equipped with two hot top sections, the Vulcan V224HB gas range delivers consistent surface heat across its cast iron cooking plates. The heavy-duty tops are designed to handle high-volume cooking and retain heat to support long-duration holding or simmering tasks. Each burner includes an individual pilot and front-mounted control to fine-tune performance for different recipes. A 1⁄4-inch-diameter front gas manifold directs fuel into the burners, and a capped rear connection provides flexibility for installation layouts.
The Vulcan V224HB gas range includes a built-in storage base, which features a stainless steel cabinet door, rack guides, and one removable shelf for back-of-house convenience. Its stainless steel construction protects against corrosion. For structural support and stability on uneven floors, the unit stands on 6-inch adjustable stainless steel legs. A 4-inch stainless steel stub riser shields the wall from high temperatures and splatter during cooking.
- Part of the V series
- Made of stainless steel
- 2 hot top sections
- Heavy-duty hot top castings
- 3⁄4-in. ground steel griddle plate
- Individual pilots and burner controls
- 1⁄4-in.-diameter front gas manifold
- Capped rear gas connection
- Cabinet base
- Stainless steel door
- Universal rack guides with 1 removable shelf
- 4-in. stainless steel stub riser
- Mounted on 6-in. adjustable legs
- 24 in. W x 36 3⁄4 in. D x 40 1⁄2 in. H
- 60,000 total BTU
- Powered by LP gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan V224HB within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Vulcan V224HB Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Storage |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 36.75 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 60000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 250.00 |
