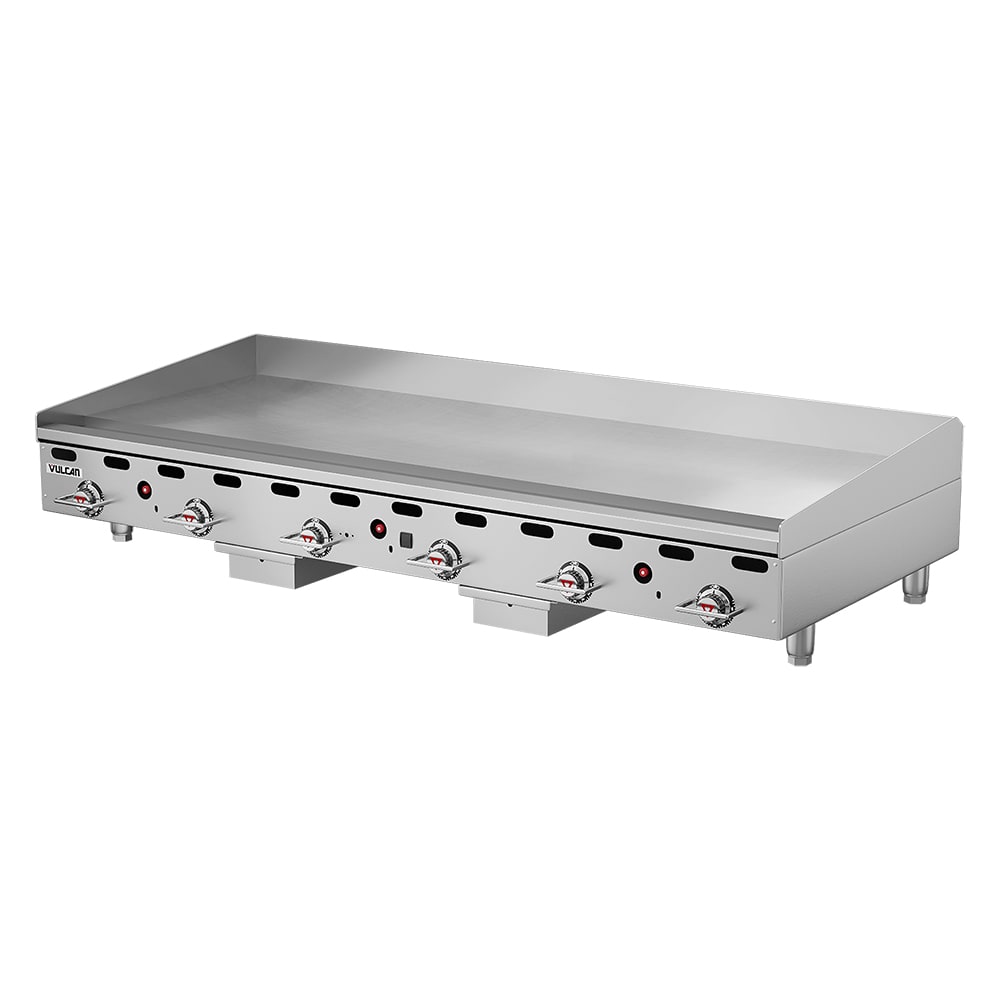

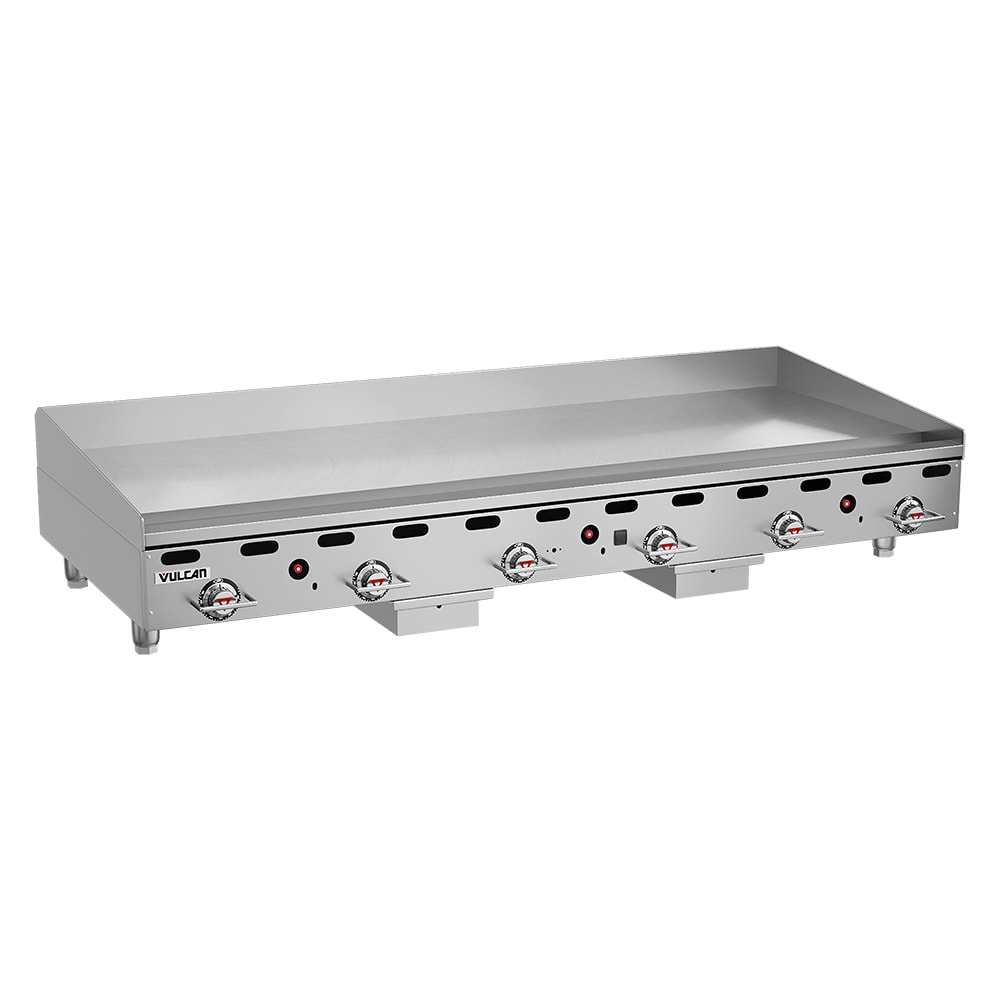

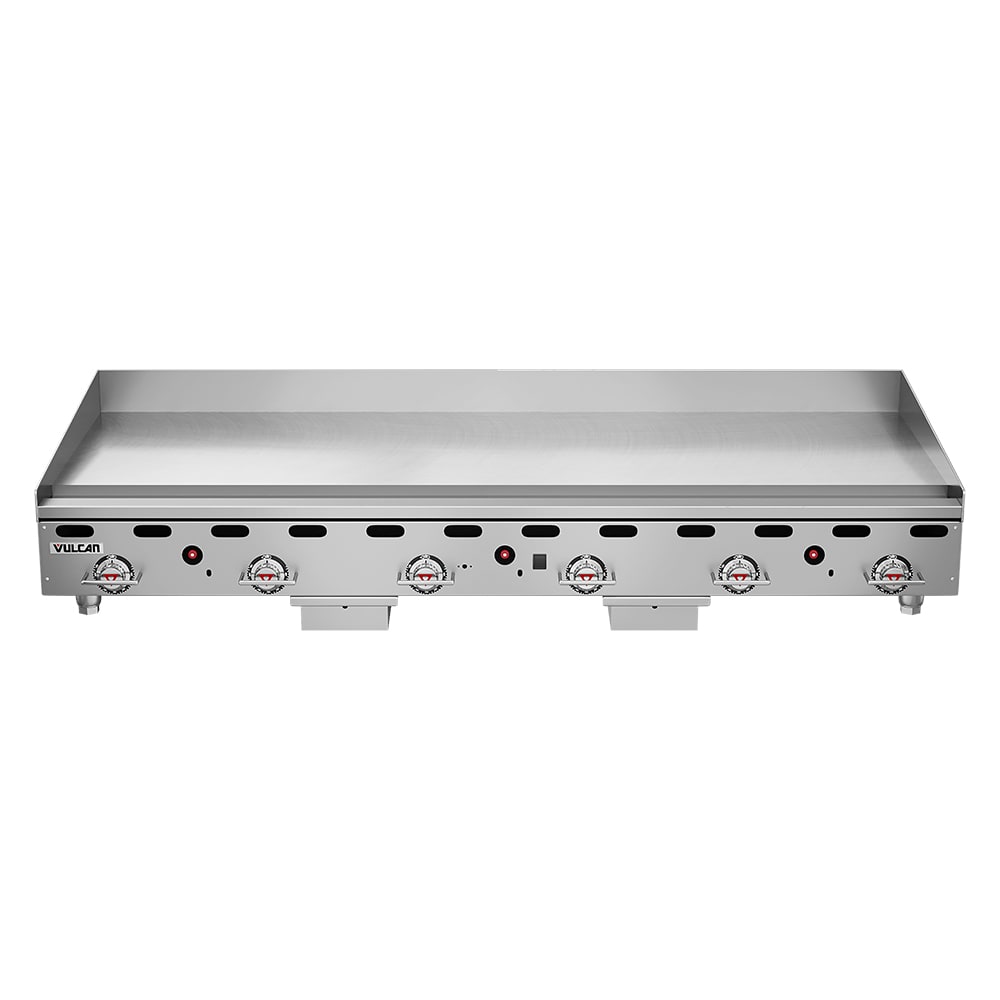

The Vulcan MSA72 gas griddle operates at temperatures between 200 and 550 degrees Fahrenheit. The griddle’s surface has a “U” shaped burner every 12 inches to offer even heat transfer. To provide accurate heating, the snap action thermostats are embedded in each burner. Heavy-duty chrome thermostat knobs guards are durable to stand up to commercial use. The Rapid Recovery™ technology in the 1-inch-thick plate accelerates cook times and increases the production capacity.
Tapered side splashes and a 4-inch backsplash help to keep messes contained to the griddle plate. A 31⁄2-inch grease gutter and grease chute are fully welded to prevent grease migration and make the unit easy to clean. Grease and other liquids are directed to two 6-quart grease drawers. The front rail on the Vulcan MSA72 gas griddle stays cool while preparing food thanks to the bull nose design of the front. It is lifted off countertops and other work stations with 4-inch adjustable legs.
- Natural gas powered
- (6) U-shaped, aluminized steel burners are placed every 12 in. for even heat transfer
- Each burner has an embedded snap action thermostat that adjusts from 200-550 degrees F
- Rapid Recovery plate increases production capacity and accelerates cook times
- Polished steel griddle plate is 1-in.-thick
- Stainless steel, 4-in. backsplash and side splashes help contain messes
- Bull nose design keeps the front rail cool to the touch
- Chrome thermostat knob guards are heavy duty to withstand commercial use
- 1 pilot per 2 burners reduces the use of gas
- 31⁄2-in. fully-welded grease gutter and chute stop grease migration to simplify the cleaning process
- (2) 6-qt. stainless steel grease drawers
- Stainless steel front top ledge, front, and sides add durability
- Structure is added with a fully-welded stainless and aluminized steel chassis frame
- Elevated off countertops and work stations with 4-in. adjustable legs
- 3⁄4-in. rear gas connection and gas pressure regulator
- 162,000 BTU
- Overall Dimensions: 72 in. W x 311⁄2 in. D x 151⁄4 in. H
- CSA listed; NSF certified
Heavy Duty Griddle, countertop, nautral gas, 72" W x 24" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, manual ignition, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 162,000 BTU, CSA, NSF
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Vulcan MSA72 SpecificationsPDF Spec Sheet
|BTU / Burner||27000|
|Overall Width (in)||72|
|Cooking Area Depth (in)||24|
|Plate Thickness (in)||1|
|Control Spacing (in)||12|
|Specialty Options||Snap Action|
|Specialty Options||Front Grease Trough|
|Warranty||1 year limited warranty|
|Overall Depth (in)||31.50|
