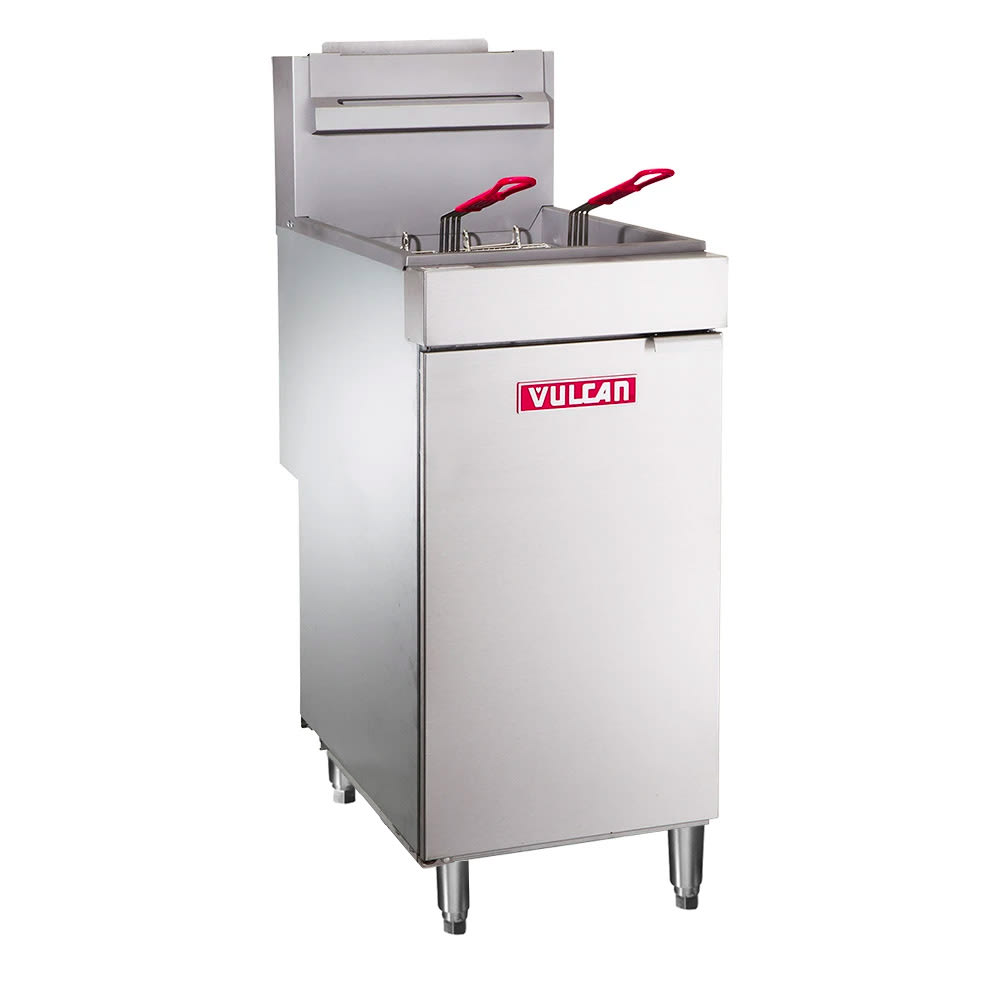

Vulcan LG500 Gas Fryer - (1) 70 lb Vat, Floor Model, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 207-LG500NG • MPN: LG500 NG
Ships Free

Typically ships within 1 - 3 business days

Price: $1,725.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Vulcan LG500 Description


The Vulcan LG500 floor model fryer has a temperature range of 200 to 400 degrees Fahrenheit. If the temperature rises above the safe amount, the high-limit shut-off turns off the gas to the unit. This fryer is heated with natural gas. The tank has an oil capacity of 70 pounds. A cool zone sits under the cooking area so sediment can stay there, where it will not burn, until you are ready to clean. This feature prevents the oil from taking on a burnt flavor and extends its life significantly.

The galvanized sides and back of the tank are non-corrosive. The reinforced door is made from stainless steel and has a liner that provides durability. Four nickel-plated legs are adjustable so the fryer can be installed on uneven floors. The stainless steel basket hanger easily removes for cleaning. Two twin fry baskets have plastic-coated handles to help prevent injuries. The Vulcan LG500 floor model fryer has a tube rack that is plated in nickel for corrosion resistance.

Product Details

  • Uses natural gas to produce heat
  • Door is reinforced for durability and made from stainless steel
  • Galvanized sides and back are non-corrosive
  • Door liner provides stability
  • 4 nickel-plated legs are adjustable for level installation on uneven floors
  • Stainless steel basket hanger removes for cleaning
  • 2 twin fry baskets come with plastic-coated handles to help prevent injuries
  • Tube rack is plated in nickel for durability
  • 70-lb. oil capacity
  • Large cold zone area collects food particles
  • 114-in., full-port, ball-type drain
  • 200-400 degrees F temperature range
  • Electric hookup is not required with the millivolt system
  • High-limit shut-off turns the gas off if the temperature rises above the safe amount
  • Built-in flue detector
  • 150,000 BTU/hr. maximum heat input
  • Overall Dimensions: 21 in. W x 2934 in. D x 4658 in. H
  • CSA listed; NSF certified

Fryer, natural gas, 21" W, free-standing, 65-70 lb capacity, millivolt thermostat controls, twin baskets, legs, stainless steel front top, door and fry tank, 150,000 BTU, CSA Star, CSA Flame, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan LG500 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Number of Fry Pots 1
Gas Type NG
BTU per Fryer 150,000
Oil Capacity/Fryer (lb) 70
Frypot Style Tube Type
Food Type Breaded
Width (in) 21
Warranty 1 year limited parts & labor; 5 year limited tank
Baskets 2
Product Gas Fryer
Product Type Cooking Equipment
Oil Capacity (lb) Range 70 - 79
Type Floor Model
Weight 270.00
Vulcan LG500 Certifications
  • NSF
