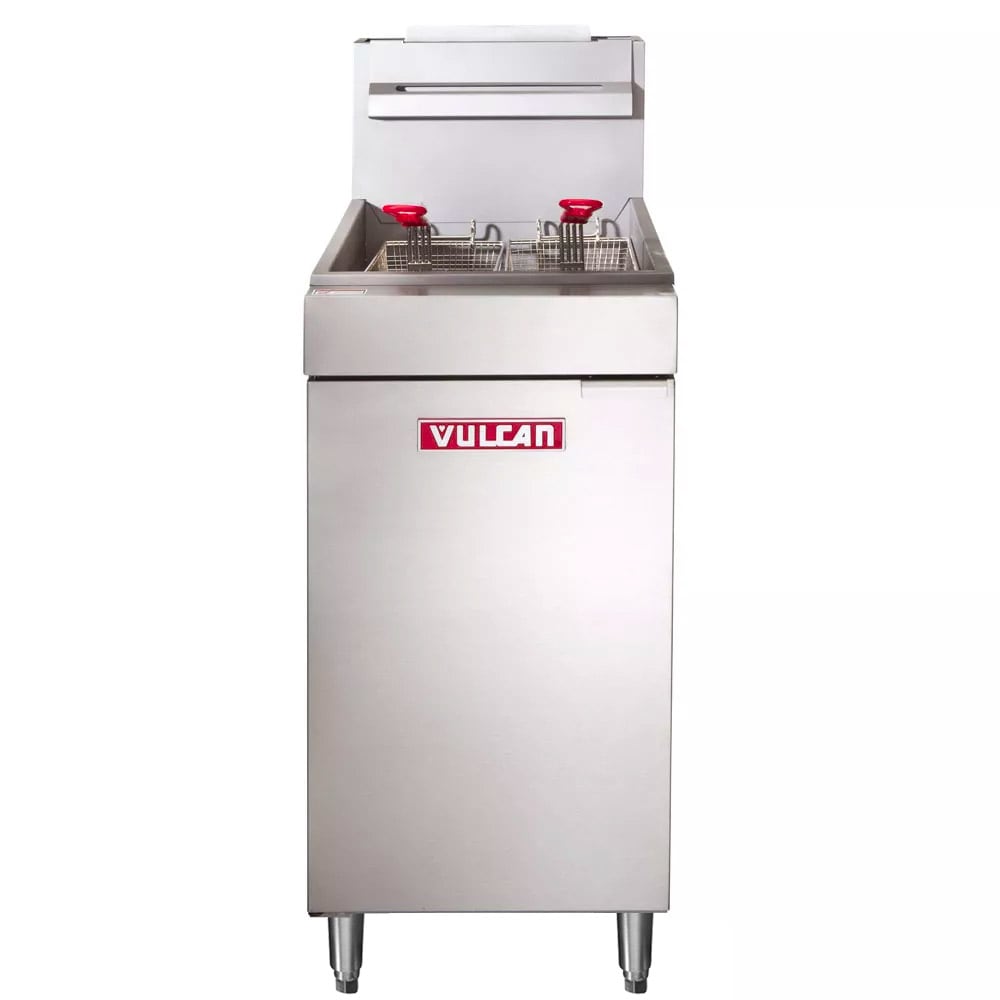

Vulcan LG500 Gas Fryer - (1) 70 lb Vat, Floor Model, LP

Image may not depict product color, inclusions or accessories.

KaTom #: 207-LG500LP • MPN: LG500 LP
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $1,660.00

Selected Gas Type: Liquid Propane

Image may not depict product color, inclusions or accessories.

Vulcan LG500 Description


The Vulcan LG500 floor model fryer is heated by propane gas. If temperatures exceed the safe level, a high-limit shut-off turns the gas flow off. The cooking temperature range on this unit is from 200 to 400 degrees Fahrenheit. A flue deflector is built in, and the millivolt system does not require an electric hook-up. In the tank, there is a large cold zone where food particles collect instead of sitting in the cooking area. If the particles stayed there, the oil would take on a burnt flavor and have a shorter life. When you are ready to clean out the sediment, you use the 114-inch, full-port, ball-type drain valve.

The galvanized, non-corrosive sides and back, along with the stainless steel construction, provides durability for the Vulcan LG500 floor model fryer in a commercial setting. A liner on the reinforced door provides stability and is durable. Nickel-plated legs are adjustable for uneven floors. Two twin fry baskets come with plastic-coated handles to help prevent injuries. The stainless steel basket hanger easily removes for cleaning.

Product Details

  • 70-lb. oil capacity
  • Large cold zone area collects food particles to keep them from settling in the cooking area
  • 114 in., full-port, ball-type drain valve is where sediment is cleaned out of the tank
  • Stainless steel door is reinforced for durability
  • Galvanized, non-corrosive sides and back
  • Door liner provides durability
  • 4 nickel-plated legs are adjustable for uneven floors
  • 2 twin fry baskets have plastic-coated handles to prevent injuries
  • 200-400 degrees F temperature range on the thermostat
  • Millivolt system does not require an electrical connection
  • High-limit shut-off turns the gas off if the temperature exceeds the safe amount
  • Flue detector is built in to guide excess heat towards the kitchen's hood vent
  • Tube rack is made from nickel-plated steel
  • Stainless steel basket hanger easily removes for cleaning
  • Heated by propane gas
  • 150,000 BTU/hr. maximum heat input
  • Overall Dimensions: 21 in. W x 2934 in. D x 4658 in. H
  • CSA listed; NSF certified

Fryer, LP gas, 21" W, free-standing, 65-70 lb capacity, millivolt thermostat controls, twin baskets, legs, stainless steel front top, door and fry tank, 150,000 BTU, CSA Star, CSA Flame, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan LG500 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Number of Fry Pots 1
Gas Type LP
BTU per Fryer 150,000
Oil Capacity per Fryer 70 lb
Frypot Style Tube Type
Food Type Breaded
Width (in) 21
Warranty 1 year limited parts & labor
Warranty 5 year limited fry tank
Baskets 2
Weight 270.00
Vulcan LG500 Certifications
  • NSF
