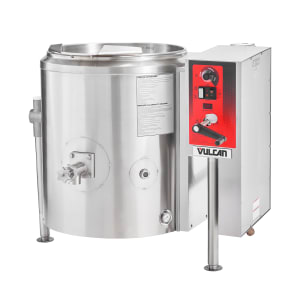

Vulcan K60GLT 60 gal Steam Kettle - Manual Tilt, 2/3 Jacket, Liquid Propane

The Vulcan K60GLT steam-jacketed kettle has a self-contained steam source, eliminating the need for a steam generator or boiler connection. Covering the lower two thirds of the kettle, the jacket is filled with water, which turns into steam as it is heated. This design heats less evenly than a fully jacketed model, but it saves power and water. The unit manually tilts so cooks can empty the cooked food and conveniently clean the interior.

With an ellipsoidal bottom and a 60-gallon true working capacity—not a rim-full capacity as is commonly provided for kettles—this unit is excellent for large-volume batch cooking. Constructed of 316 stainless steel, the kettle liner is highly resistant to corrosion and perfect for acidic dishes. Gallon and liter markings in the unit ensure users can measure ingredients as they are added. This Vulcan K60GLT tilting kettle has tri-leg base with tubular legs and flanged feet that secure the kettle to the floor for stability. A bracket is included so that operators can add a faucet with a constant supply of water.

Product Details

• 60-gal. capacity
• Self-contained steam does not need to be connected to a boiler or generator
• Jacket around the lower two thirds of the kettle body is filled with water that turns into steam
• Maximum steam pressure: 50 PSI
• Interior liner is 316 stainless steel and resists corrosion, even with acidic product
• Ellipsoidal kettle bottom increases size to provide a working capacity instead of a rim-full capacity
• Gallon and liter marks are embossed in the kettle
• Maximum 95-degree tilt to manually empty kettle
• Rim is constructed to withstand heavy use
• Heavy-duty 304 stainless steel exterior
• Tri-leg base with tubular legs and flanged feet
• Faucet mounting bracket included
• 100,000 BTU

Control Panel

• Power on/off switch with an amber indicator light
• Solid-state control works with a thermostat to regulate the temperature from warm to boil
• Vacuum/pressure gauge indicates jacket vacuum in inches and jacket pressure in pounds
• Pressure relief valve keeps users safe by releasing steam in the jacket if pressure is too high
• Red low-water indicator light
• Low-water shut-off function interrupts the power supply if water level is low
• Water-resistant stainless steel encloses the controls, tilt handle, and faucet bracket

Dimensions & Utilities

• 50⁴/₅ in. W x 50¹/₁₀ in. D x 43³/₅ in. H (H measured to the rim)
• Heated by LP gas
• 5 A
• 110-120 V/50-60 Hz/1 ph, 6-ft. cord with a 3-prong plug

*Free shipping on Vulcan K60GLT within the 48 contiguous states.

From The Manufacturer

Tilting Kettle, Gas, 60-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, manual tilt, faucet bracket on tilting console, stainless steel construction, tri-leg base, 100,000 BTU

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan K60GLT Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
