Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
Vulcan HEG72E 72" Electric Griddle w/ Thermostatic Controls - 3/4" Steel Plate, 240v/1ph
Typically ships in 8 - 10 weeks
Free Shipping Item
Retail Price: $29,883.87
$12,302.00 /Each
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!

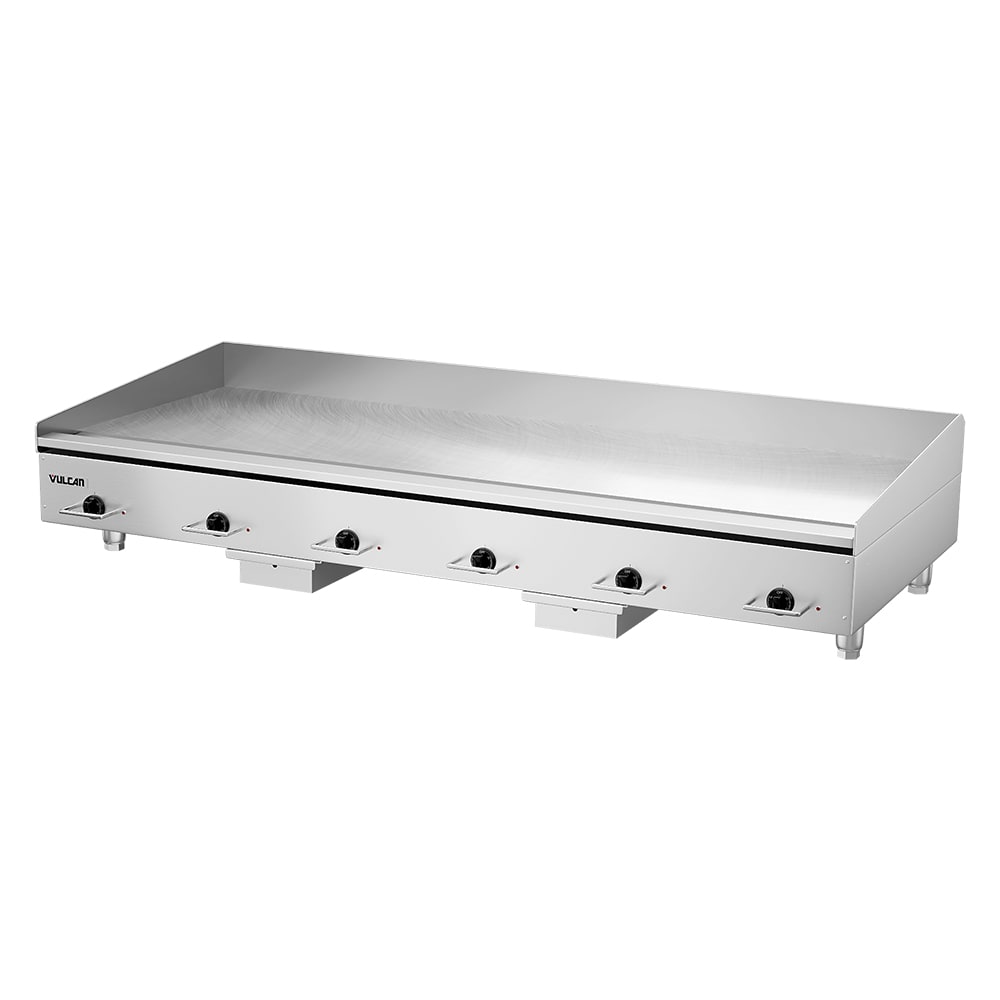

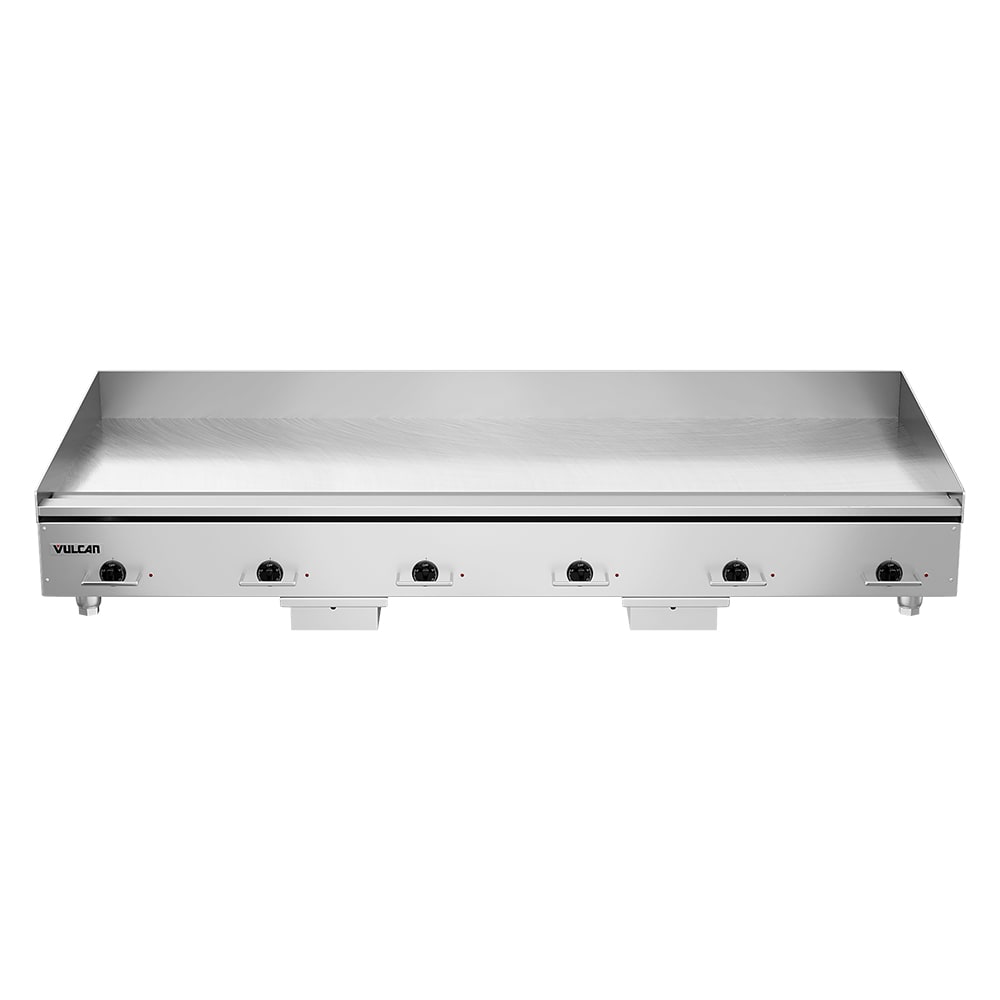

Vulcan HEG72E Description
Sandwiches, meats, eggs, and pancakes can all be cooked on the Vulcan HEG72E HEG-E Series heavy-duty electric griddle at once. Its 72-inch-wide by 24-inch-deep griddle plate structure provides ample room for several foods, and its heating mechanism is designed to individually control 12-inch sections of the griddle. Because of the six separate snap-action thermostatic controls, users can determine the best temperature for certain portions of the griddle for optimal cooking results. Equipped with a temperature range between 200 and 450 degrees Fahrenheit, this unit enables users to reheat, grill, and thoroughly cook a wide variety of foods. Incoloy elements heat the surface, and the 3/4-inch-thick steel plate quickly heats. The plate is thicker than other griddle plates, so it has a reduced risk of warping over time from constant reheating.
The Vulcan HEG72E heavy-duty commercial griddle is made of durable stainless steel and has four legs that can be adjusted as needed for improved airflow and cleaning. Its smooth exterior is quick to clean, and grease is collected in two 1.5-gallon grease drawers for easy removal. Splash guards line the griddle's rear and sides to prevent hot oil from spilling on the counter or the user.
Product Details
- Part of the HEG-E series
- Stainless steel construction
- Temperature range: 200-450 degrees F
- 3/4-in.-thick steel griddle plate
- 6 snap-action thermostatic controls with chrome knob guards and cycling lights
- 2 sheathed, tubular incoloy heating elements
- (4) 4-in.-high adjustable legs
- 31/2-in.-wide grease trough
- 2 grease drawers with 3-gal. capacities total
- 4-in.-high rear splash guard
- 2 tapered side splash guards
- Side and rear clearance: 1 in.
- Bottom clearance: 4 in.
Dimensions & Utilities
- Griddle plate: 72 in. W x 24 in. D
- Overall: 72 in. W x 311/2 in. D x 153/10 in. H
- 67.5 A, 32.4 kW
- 240 V/50-60 Hz/1 ph
*Free shipping on Vulcan HEG72E within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, electric, countertop, 72" W x 24" D cooking surface, 3/4" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", (2) front grease trough, 4" back & tapered side splashes, 4" adjustable legs, CSAus, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan HEG72E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 72 |
| Heat | Electric |
| Hertz | 60 |
| kW | 32.4 |
| Overall Width (in) | 72 |
| Phase | 1 |
| Plate Material | Steel |
| Plate Thickness (in) | 3/4 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 72 |
| Weight | 610.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
