Vulcan HEG72E 72" Electric Griddle w/ Thermostatic Controls - 3/4" Steel Plate, 208v/3ph
Typically ships in 8 - 10 weeks
Free Shipping Item
Retail Price: $29,883.87
$12,302.00 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan HEG72E Description

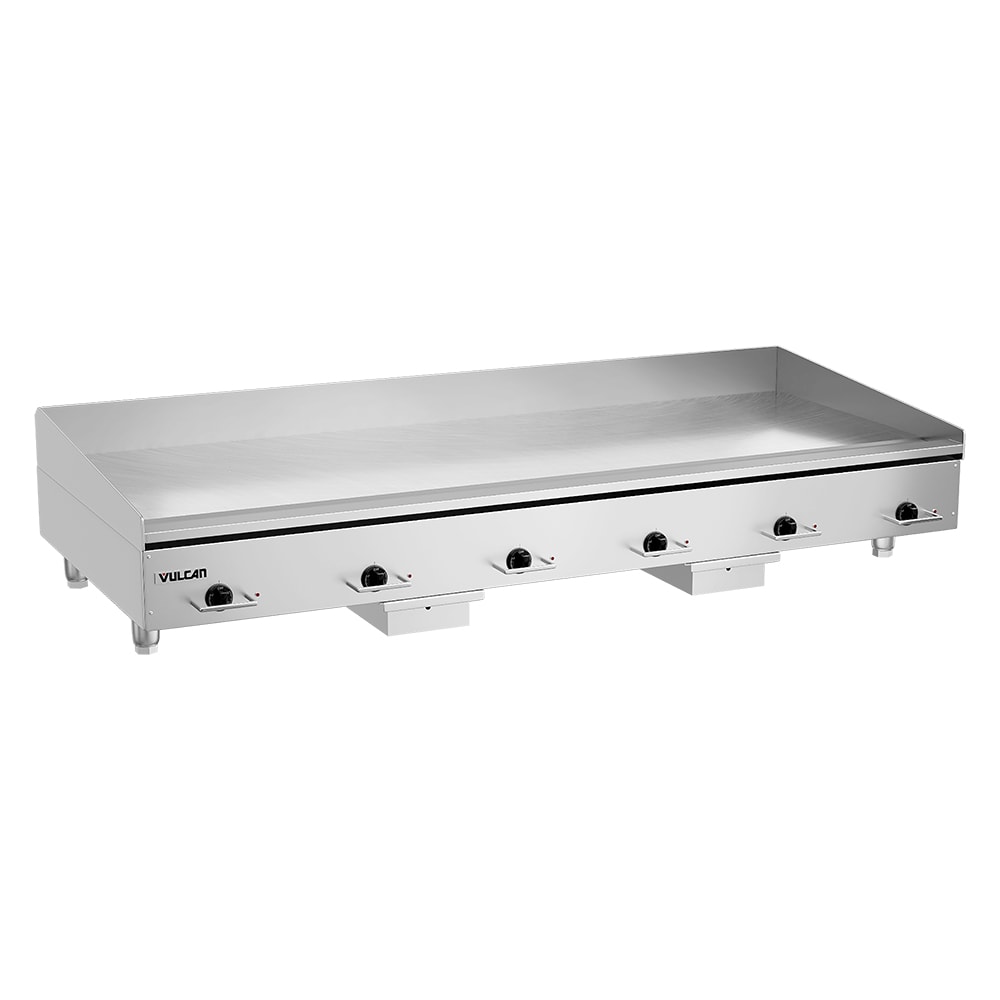

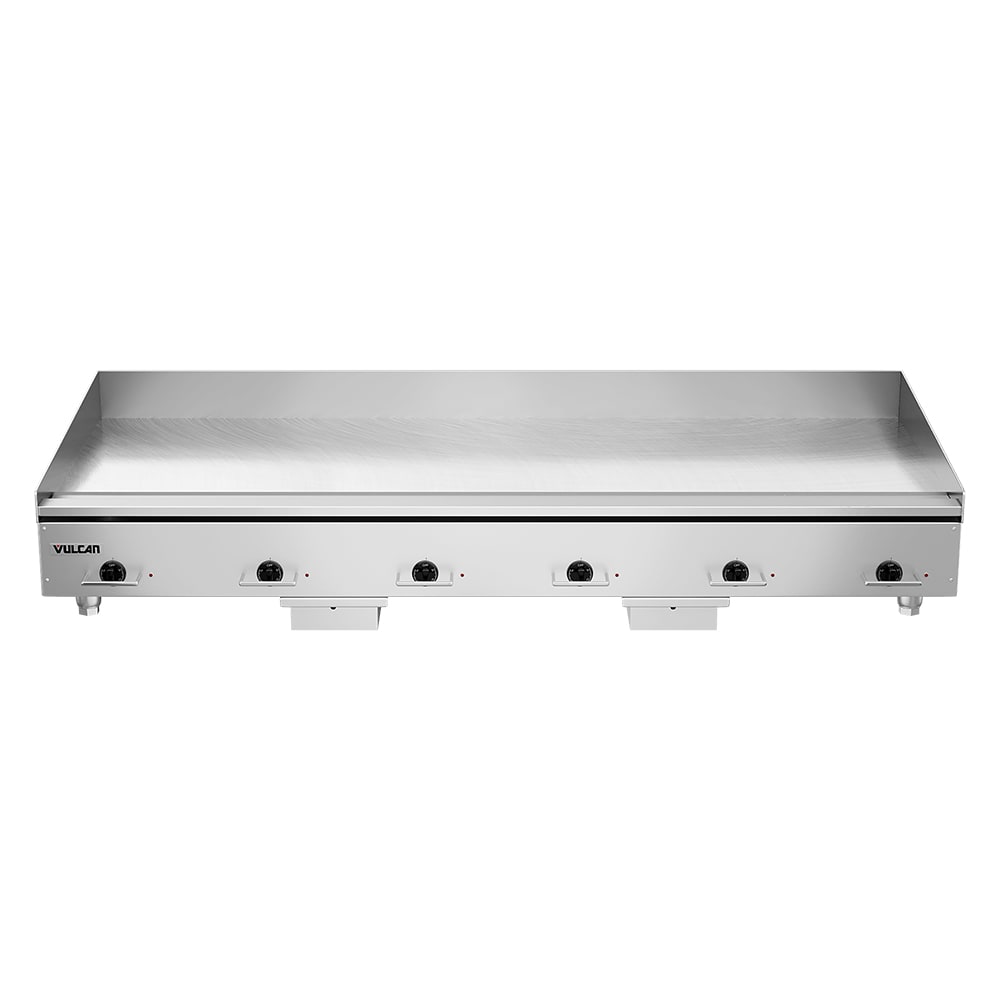

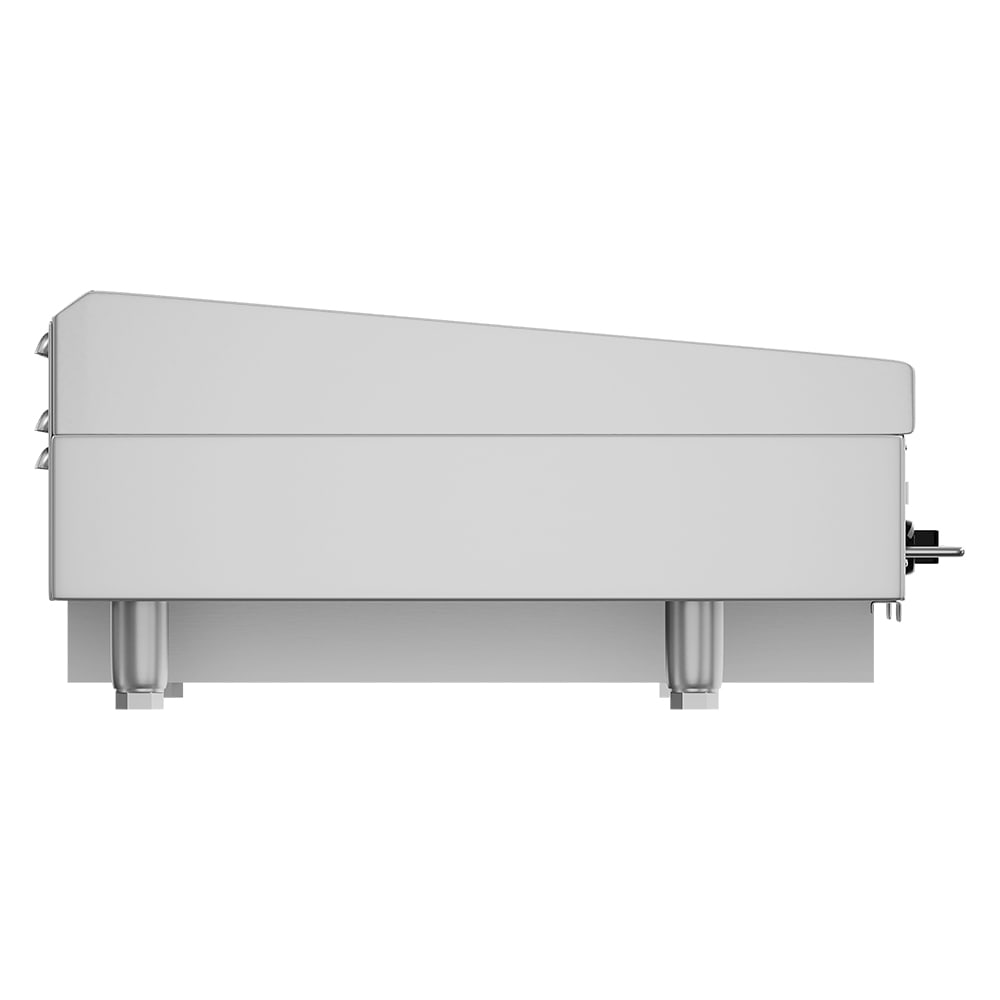

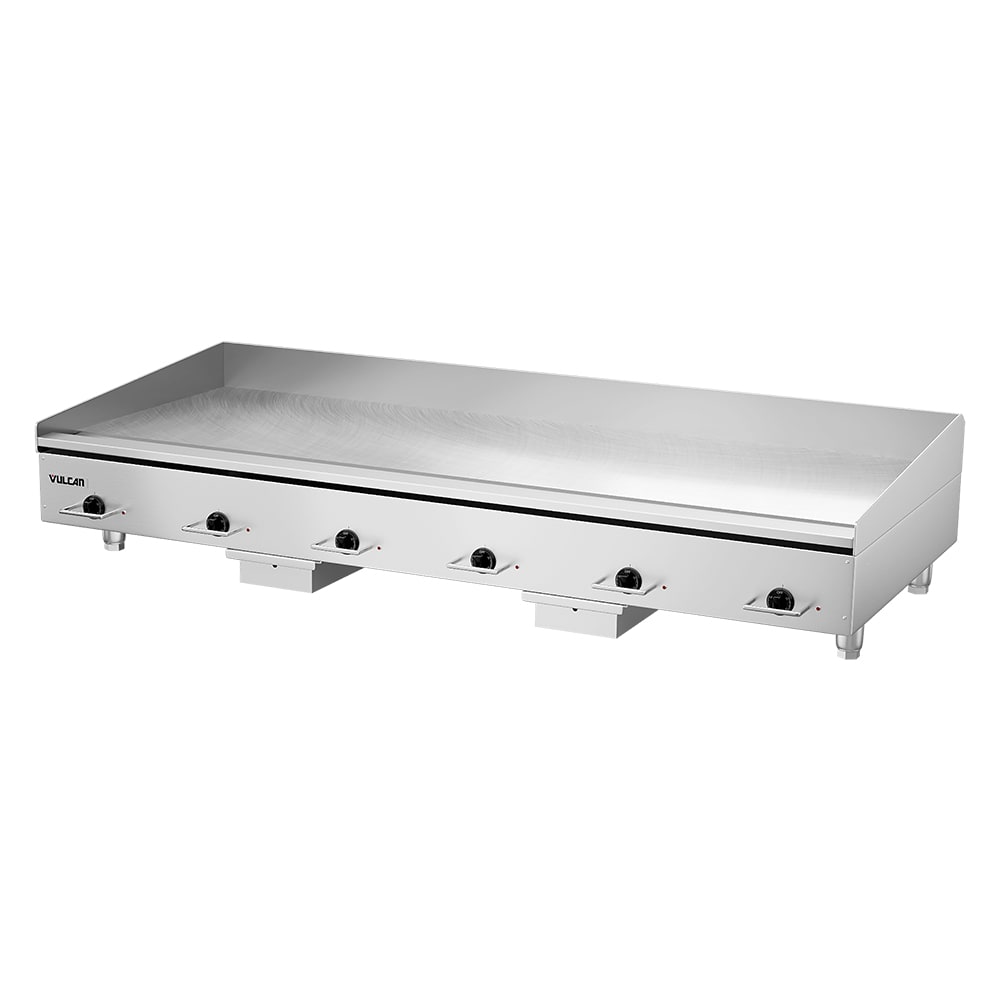

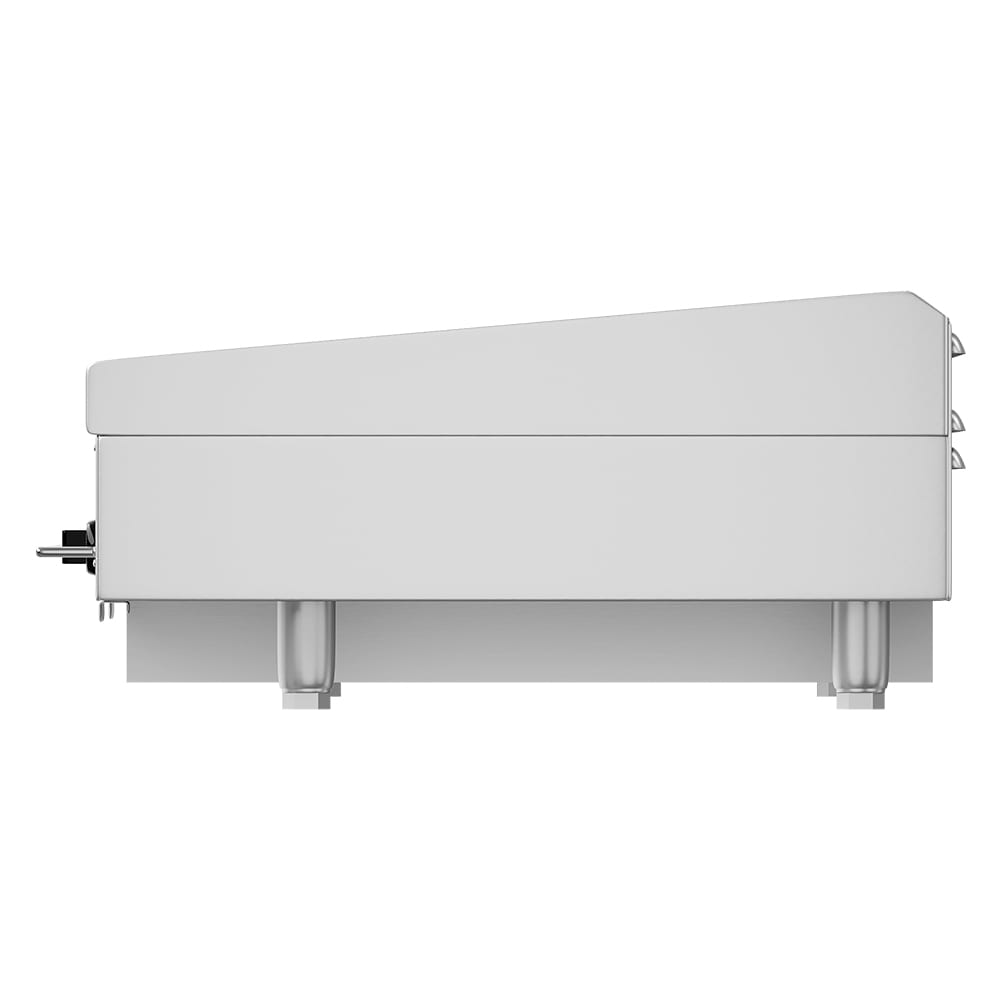

The Vulcan HEG72E HEG-E Series heavy-duty electric griddle's 72-inch-wide by 24-inch-deep griddle plate cooks several foods at different temperatures for versatile cooking. Heated with two incoloy elements, the griddle has six snap-action thermostatic controls that each warm a 12-inch section of the unit for individualized results. A cycling light is included beside each control to alert which griddle sections are hot. Its steel griddle plate is 3/4 inches thick, and this thickness provides an advantage since it's less likely to become warped from reheating than thin plates. This griddle has a temperature range between 200 and 450 degrees Fahrenheit to assist in various cooking styles, from simple reheating to grilling.
Adjustable legs lift the Vulcan HEG72E commercial griddle a maximum of four inches above the countertop for increased sanitation and airflow. The unit's stainless steel construction is durable, low maintenance, and easy to clean due to its built-in components. A grease trough and two grease drawers collect grease during cooking. By removing, cleaning, and reinserting the drawers, maintenance needs are streamlined. This griddle's three splash guards also keep hot oil from splashing over the sides of the unit and direct grease into the trough for proper removal.
Product Details
- Part of the HEG-E series
- Temperature range: 200-450 degrees F
- 3/4-in.-thick steel griddle plate
- Constructed of stainless steel
- 6 snap-action thermostatic controls and cycling lights
- Chrome thermostat knob guards
- 2 sheathed incoloy heating materials
- Heats by 12-in. sections
- 31/2-in.-wide grease trough
- 2 grease drawers with 1.5-gal. grease capacity each
- (4) 4-in.-high adjustable legs
- 4-in.-tall rear splash guard
- 2 tapered side splash guards
- Side and rear clearance: 1 in.
- Bottom clearance: 4 in.
Dimensions & Utilities
- Griddle plate: 72 in. W x 24 in. D
- Overall: 72 in. W x 311/2 in. D x 153/10 in. H
- 45 A, 32.4 kW
- 208 V/60 Hz/3 ph
*Free shipping on Vulcan HEG72E within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, electric, countertop, 72" W x 24" D cooking surface, 3/4" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", (2) front grease trough, 4" back & tapered side splashes, 4" adjustable legs, CSAus, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan HEG72E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 72 |
| Heat | Electric |
| Hertz | 60 |
| kW | 32.4 |
| Overall Width (in) | 72 |
| Phase | 3 |
| Plate Material | Steel |
| Plate Thickness (in) | 3/4 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 72 |
| Weight | 610.00 |
