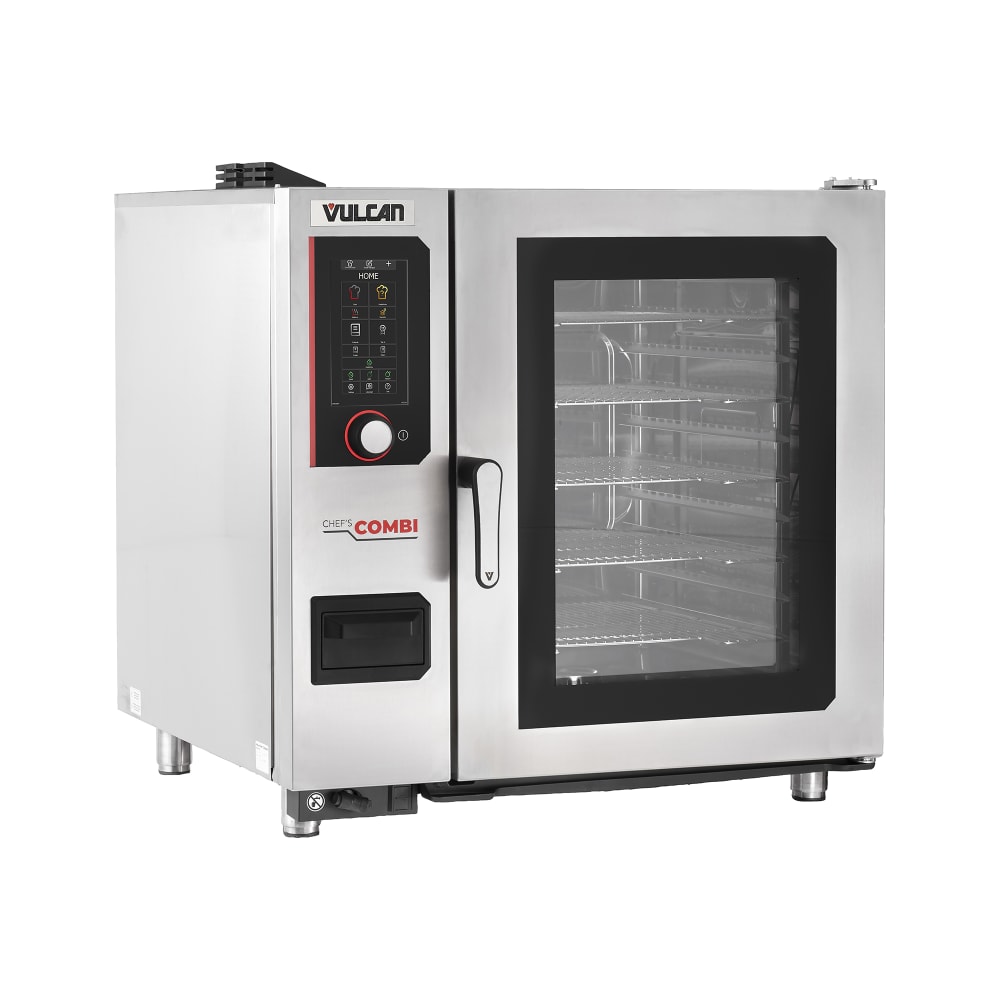

Vulcan CHEF-102E Chef'sCombi Full Size Combi Oven - Boiler Based, 240v/3ph
Retail Price: $54,487.00
$22,430.00 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 3 Phase |
| 480V, 3 Phase |
Vulcan CHEF-102E Description
The Vulcan Chef'sCombi CHEF-102E full size combi oven supports (10) 18-inch by 26-inch sheet pans or (20) 12-inch by 20-inch steam pans. Its full-size cooking chamber is constructed with a seamless 304 stainless steel interior and rounded corners to enhance airflow and cleaning. Each of the 10 levels is spaced 9⁄14 inches apart. A right-hinged, double-glazed door with heat-reflective coating includes rotating panels and an ergonomic swing-shut handle. The retractable spray hose aids in cleaning, while five wire racks provide flexible pan support.
Capable of generating convection, steam, and combination cooking modes, the Vulcan Chef'sCombi CHEF-102E full size combi oven is equipped with a boiler-based steam generator and heating elements. Its CombiClimateControl system balances heat and humidity, with high-performance dehumidification for consistent cabinet conditions. A multi-point temperature probe, Delta-T mode, and adaptive fan logic support accurate low- and high-temperature cooking. Programmable features include AutoClimate, MenuMix for timed multi-level cooking, and CombiGuide for automatic climate adjustments. Cleaning is managed through CombiCare, which supports auto descaling and uses solid detergent tablets.
- Chef’sCombi series
- Holds (10) 18-in. x 26-in. sheet pans
- Holds (20) 12-in. x 20-in. steam pans
- 10 pan levels
- ASTM 304 stainless steel interior
- 2 9⁄14-in. spacing between rack levels
- 1 right-hinged, double-glazed door with heat-reflective glass coating
- Integrated retractable sprayer
- 5 wire racks included
- IPX5-rated housing
- Boiler-based steam generation system
- Convection cooking: 80–575 degrees F
- Steam cooking: 90–270 degrees F
- Combination cooking: 80–575 degrees F
- Multi-point core temperature probe
- Delta-T cooking mode
- 5 fan speeds
- Air and water cabinet cooling
- CombiClimateControl automation
- AutoClimate adjustment
- Automatic proofing function
- Cook and hold feature
- 10-in. capacitive HD touchscreen
- CombiOS operating system
- CombiGuide cooking assistant
- MenuMix recipe planner
- Unlimited recipe storage
- Quick temperature and time menus
- Real-time humidity and temperature display
- Status LEDs and control illumination
- USB and Ethernet port
- WiFi/Bluetooth via USB dongle
- 41 in. W x 41 1⁄16 in. D x 42 5⁄14 in. H
- 39 kW, 96.1 A
- 240 V/60 Hz/3 ph
- 1 1⁄2-in. drain connection
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan CHEF-102E within the 48 contiguous states.
From The Manufacturer
CHEF'SCOMBI 102E, Electric 10-level (240v) full-size(GN 2/1) capacity, (10) 18" x 26" full-size sheet pan or (20) 12" x 20" steam pan, All-in-one multifunctional cooking equipment with customizable CombiOS interface, CombiClimateControl, AutoClimate, CombiGuide, MenuMix, & CombiCare, humidity sensor-controlled climate regulation, high-performance dehumidification, controlled even heat distribution & humidifying function, Multi-point food probe, (5) wire racks, retractable sprayer, Ethernet & WiFi enabled, steam generator combi oven, IPX5, cULus, NSF
Watch a video about this product
Vulcan CHEF-102E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Controls | Touch Screen |
| Depth (in) | 41.06 |
| Heat | Electric |
| Height (in) | 42.36 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Installation Type | Floor Model |
| kW | 39 |
| No. of Compartments | Single |
| Pan Type | Full Size Sheet Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 3 |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Chef'sCombi |
| Sheet Pan Capacity | 10 Full |
| Size | Full Size |
| Special Features | Cook & Hold |
| Special Features | HACCP Record Keeping |
| Special Features | USB Compatible |
| Steam Generator | Boiler-Based |
| Steam Pan Capacity | 20 Full |
| Steam Source | Water Reservoir |
| Voltage | 240 |
| Warranty | 2-year Limited Parts & Labor; 5-year Steam Generator |
| Width (in) | 41.02 |
| Weight | 474.00 |
